service Lexus IS250 2006 Opening, closing and locking the doors and trunk / LEXUS 2006 IS350/250 FROM MAY 2006 PROD. OWNER'S MANUAL (OM53619U)

TABLE OF CONTENTSIndex
• Bottle holders/door pockets ........................................... 213
3-5. Other interior features............ 215 Sun visors.......................................... 215
Vanity mirror ................................... 216
Clock .................................................. 217
Satellite switches ........................... 218
Ashtrays ............................................ 221
Cigarette lighter ........................... 222
Power outlet ................................... 223
Seat heaters .................................... 224
Seat heaters and ve ntilators .... 226
Armrest ............................................ 228
Rear sunshade ............................... 229
Extended trunk............................... 231
Coat hooks ..................................... 232
Floor mat.......................................... 233
Trunk features................................ 234
Garage door opener .................. 237
Compass........................................... 242
4-1. Maintenance and care............ 248 Cleaning and protecting the vehicle exterior.................. 248
Cleaning and protecting the vehicle interior ................... 250 4-2. Maintenance.............................. 253
Maintenance requirements ..... 253
General maintena nce ................ 255
Emission inspection and maintenance (I/M)
programs ..................................... 258
4-3. Do-it-yourself maintenance............................ 259
Do-it-yourself service precautions .................................. 259
Hood.................................................. 262
Positioning the jack ..................... 263
Engine compartment.................. 265
Tires ................................................... 279
Tire inflation pressure................ 289
Wheels.............................................. 293
Air conditioning filter.................. 295
Electronic key battery ................ 297
Checking and replacing fuses ................................................ 299
Headlight aim.................................. 313
Light bulbs ........................................ 314
5-1. Essential information ............... 322 If your vehicle needs to be towed ....................................... 322
If you think something is wrong ............................................. 329
4Maintenance and care
5When trouble arises

Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus deal er before you scrap your vehicle.
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired you ab ility to operate your vehicle. Alcohol and
certain drugs delay reaction time, impair judgment and reduce coordination, which
could lead to an accident that will hurt or kill you, your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full at tention to driving. Anything that distracts
the driver, such as adjusting controls, ta lking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehi cle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or othe r features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to children.

156
2-5. Driving information
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■ Pre-winter preparations
●Use fluids that are appropria te to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
• Have a service technician inspect the level and specific gravity
of battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the specified size and the same brand, and that
chains match the size of the tires.

163
2-5. Driving information
2
When driving
Dinghy towing (vehicles with a manual transmission)
Towing your vehicle with 4 wheels on the groundTo prevent damage to your vehicle, perform the following procedures
before towing. Shift the shift lever to neutral.
Switch to ACC mode. ( P. 9 4 )
Ensure that the audio system and other powered devices have been
turned OFF.
Release the parking brake.
After towing, leave the engine in idle for at least 3 minutes before driv-
ing the vehicle.
■Necessary equipment and accessories
Specialized equipment and accessories are required for dinghy towing. Contact
the service branch of the motor home manufacturer regarding recommended
equipment.
Your vehicle can be dinghy towed in a forward direction (with 4 wheels on
the ground) behind a motor home.
STEP1
STEP2
STEP3

182
3-2. Using the audio system
■When the battery is disconnected
Stations presets are erased.
■Reception sensitivity
●Maintaining perfect radio reception at all times is difficult due to the continually
changing position of the antenna, differences in signal strength and surrounding
objects, such as trains, transmitters, etc.
●The radio antenna is mounted inside the rear window. To maintain clear radio
reception, do not attach metallic window tinting or other metallic objects to the
antenna wire mounted in side the rear window.
■XM satellite radio
The optional Lexus genuine satellite radio tuner and antenna allows you to receive
and play XM satellite radio broadcasts. (Subscription is required. Not available in
Hawaii and Alaska.)
*
●XM subscriptions
For detailed information about XM satellite radio or to subscribe, visit XM on
the web at www.xmradio.com
or call (800) 967-2346.
●Radio ID
You will need the radio ID when activating XM service or reporting a problem.
Select "CH000" using , and the rece iver's 8-character ID number will
appear.
●Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accompany-
ing Text Information of XM satellite radio.
*: Terms and services provided by XM Radi o are subject to change without notice.

Maintenance and care4
247
4-1. Maintenance and care ........ 248Cleaning and protecting the vehicle exterior ................ 248
Cleaning and protecting the vehicle interior ................ 250
4-2. Maintenance .......................... 253 Maintenance requirements ............................ 253
General maintena nce ............. 255
Emission inspection and maintenance (I/M)
programs .................................. 258
4-3. Do-it-yourself maintenance ......................... 259
Do-it-yourself service precautions ............................... 259
Hood............................................... 262
Positioning the jack................... 263
Engine compartment............... 265
Tires ................................................. 279
Tire inflation pressure............... 289
Wheels........................................... 293 Air conditioning filter .............. 295
Electronic key battery .............. 297
Checking and replacing
fuses ............................................. 299
Headlight aim .............................. 313
Light bulbs..................................... 314

254
4-2. Maintenance
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained speciali sts and are kept up to date with the
latest service information. They are well informed about the operations of all
systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been
performed is under warranty coverage. If any problem should arise while your
vehicle is under warranty, your Lexus de aler will promptly take care of it.
CAUTION
■Warning in handling of battery
●Engine exhaust, some of its constituents, and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause can-
cer and birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm. Avoid exposure and wash
any affected area immediately.
●Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after han-
dling. (P. 2 7 5 )
●Used engine oil contains chemicals that have been shown to cause cancer in lab-
oratory animals. Avoid prolonged and repeated contact. Always protect your
skin by washing thorough ly with soap and water.

255
4-2. Maintenance
4
Maintenance and care
General maintenance
Engine compartment
ItemsCheck points
BatteryMaintenance-free. (P. 2 7 5 )
Brake fluidAt the correct level? ( P. 2 74 )
Engine coolantAt the correct level? ( P. 2 7 2 )
Engine oilAt the correct level? ( P. 2 6 8 )
Exhaust systemNo fumes or strange sounds?
Radiator/condenser/hosesNot blocked with foreign matter?
(P. 2 74 )
Wa s h e r f l u i dAt the correct level? ( P. 2 7 8 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Own ers Manual Supplement”. It is recom-
mended that any problem you notice sh ould be brought to the attention of
your Lexus dealer or qualified service shop for advice.

258
4-2. Maintenance
Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks. The OBD system monitors the oper-
ation of the emission control system.
■ If the electronic engine control system warning light comes on
The OBD system determines that a problem exists somewhere in
the emission control system. Your vehicle may not pass the I/M test
and may need to be repaired. Contact your Lexus dealer to service
the vehicle.
■ Your vehicle may not pass the I/M test:
●When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The electronic engine control sy stem warning light comes on as a
temporary malfunction and your vehicle may not pass the I/M
test.
■ When the electronic engine contro l system warning light goes off
after several driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Lexus dealer to prep are the vehicle for re-testing.

259
4
Maintenance and care

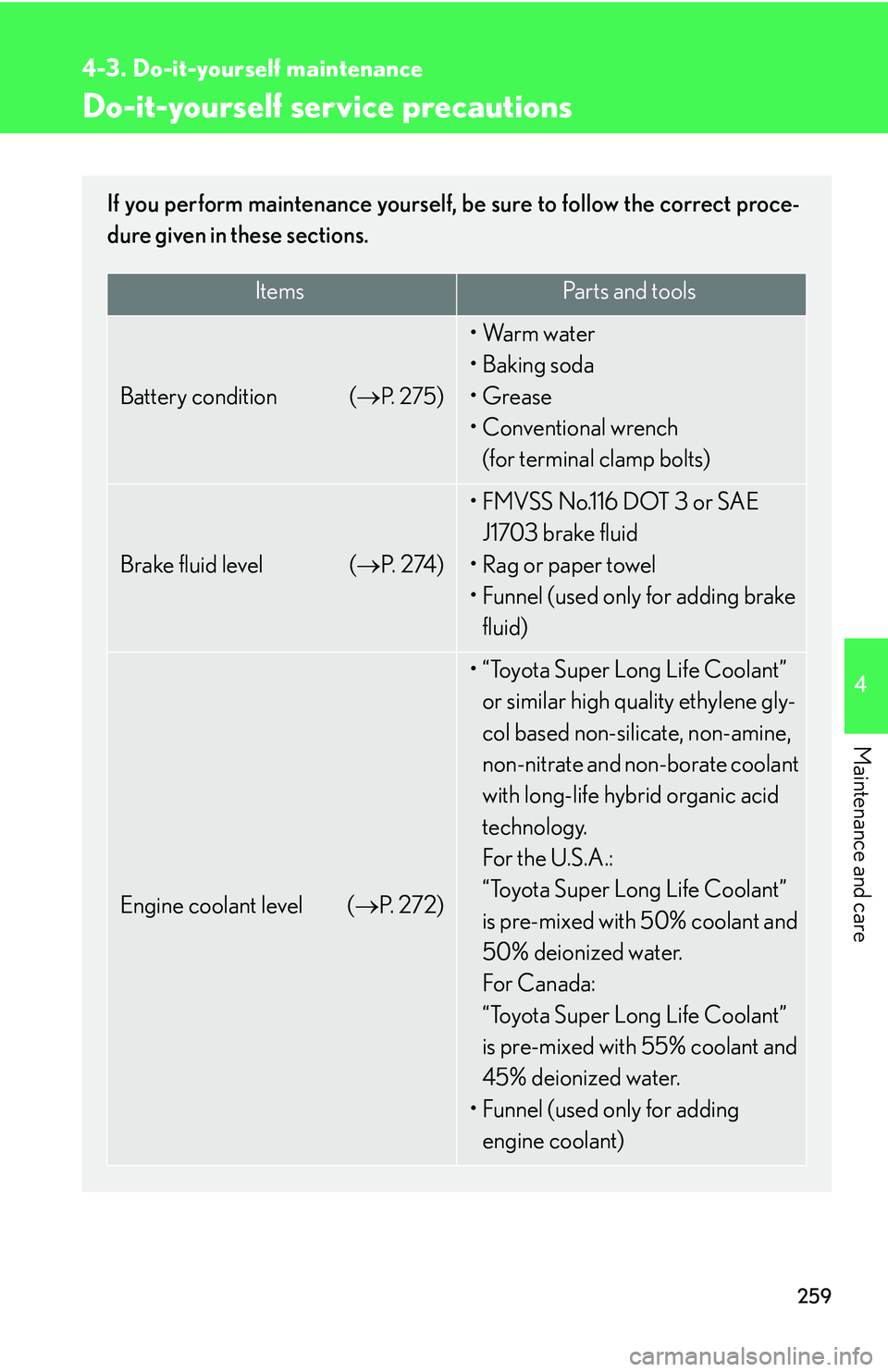

4-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance yourself, be sure to follow the correct proce-
dure given in these sections.
ItemsPa r t s a n d t o o l s
Battery condition (P. 2 7 5)
•Warm water
• Baking soda
•Grease
• Conventional wrench(for terminal clamp bolts)
Brake fluid level ( P. 2 74 )
• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
•Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level ( P. 2 7 2 )
• “Toyota Super Long Life Coolant”
or similar high quality ethylene gly-
col based non-silicate, non-amine,
non-nitrate and non-borate coolant
with long-life hybrid organic acid
technology.
For the U.S.A.:
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding engine coolant)
