Lexus IS250 2006 Opening, closing and locking the doors and trunk / LEXUS 2006 IS350/250 THROUGH APRIL 2006 PROD. OWNER'S MANUAL (OM53508U)

393
6-1. Specifications
6
Vehicle specifications
Tire related termMeaning
Production options
weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68
kg) times the vehicle's designated seating capacity
Intended outboard side-
wall
(a) The sidewall that contains a whitewall, bears white lettering, or bear s manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other side-
wall of the tire, or
(b) The outward facing sidewall of asymmetrical tire that has a particular side that must always face
outward when mounted on a vehicle
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer.
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer's designation for a rim by
style or code
Rim widthNominal distance between rim flanges

394
6-1. Specifications
*: Table 1  Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Tire related termMeaning
Vehicle maximum load on
the tireThe load on an individual tire that is determined by
distributing to each axle its share of the maximum
loaded vehicle weight, and dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is determined by
distributing to each axle its share of curb weight,
accessory weight, and normal occupant weight (dis-
tributed in accordance with Table 1
* below), and
dividing it by two
We a t h e r s i d eThe surface area of the rim not covered by the
inflated tire
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in
a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat

395
6
Vehicle specifications
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart access
system with
push-button
start
(
P. 4 )
Smart access system with
push-button startONOFF
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer)ONOFF
Wireless
remote con-
trol
(
P. 1 2 )
Wireless remote controlONOFF
Unlocking operation
Driver's door
locked in one
step, all doors
locked in two
steps
All doors locked in one step.
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds60 seconds
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer) ONOFF
Your vehicle includes a variety of elec tronic features that can be personal-
ized to your preferences. Programming these preferences requires spe-
cialized equipment and may be performed by an authorized Lexus
dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.

396

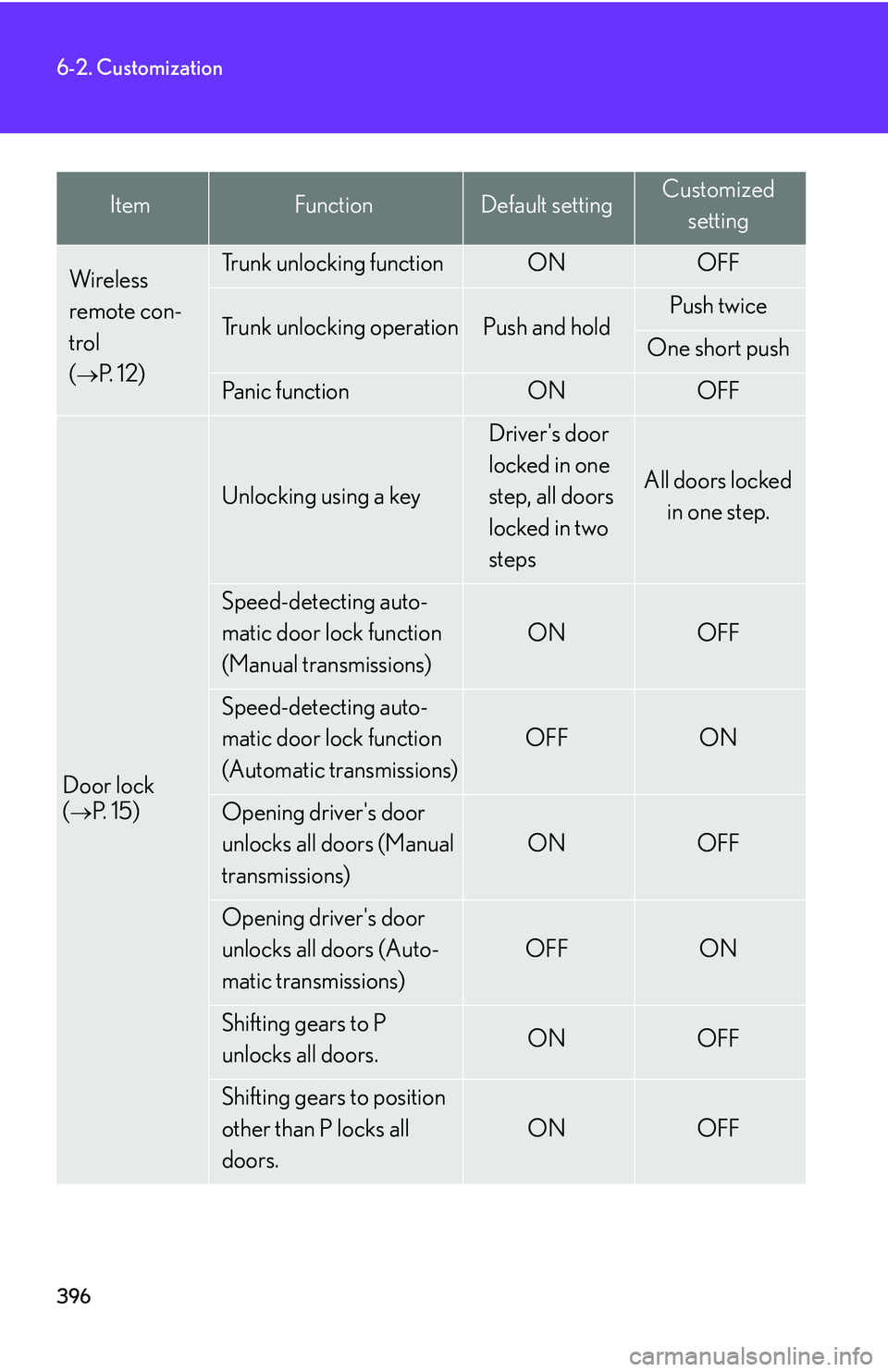

6-2. Customization
ItemFunctionDefault settingCustomizedsetting
Wireless
remote con-
trol
(
P. 1 2 )
Trunk unlocking functionONOFF
Trunk unlocking operationPush and holdPush twice
One short push
Panic functionONOFF
Door lock
(
P. 1 5 )
Unlocking using a key
Driver's door
locked in one
step, all doors
locked in two
steps
All doors locked in one step.
Speed-detecting auto-
matic door lock function
(Manual transmissions)
ONOFF
Speed-detecting auto-
matic door lock function
(Automatic transmissions)
OFFON
Opening driver's door
unlocks all doors (Manual
transmissions)
ONOFF
Opening driver's door
unlocks all doors (Auto-
matic transmissions)
OFFON
Shifting gears to P
unlocks all doors.ONOFF
Shifting gears to position
other than P locks all
doors.
ONOFF

397
6-2. Customization
6
Vehicle specifications
ItemFunctionDefault settingCustomizedsetting
Pow e r w i n -
dows
(
P. 4 1 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationONOFF
Moon roof
(
P. 4 4 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationONOFF
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Automatic
light control
system
(
P. 1 1 3 )
Light sensor sensitivityLevel 3Levels 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds

398
6-2. Customization
ItemFunctionDefault settingCustomizedsetting
Windshield
wipers and
washer
(
P. 1 1 7 )
Switching operation when
the vehicle is stationaryONOFF
Drip prevention functionONOFF
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Lexus parking
assist-sensor
(
P. 1 3 3 )
Back sensor operation
display and buzzerONOFF
Buzzer volumeLevel 3Level 1 to 5
Illumination
(
P. 2 0 1 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
engine switch turned OFFONOFF
Front foot well lightingONOFF
Shift lever lightingONOFF
Outer foot lightONOFF

399
6
Vehicle specifications
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Pow e r w i n d ow
• After reconnecting or changing the battery
• After changing a fuse
P. 4 1
Engine oil maintenance
dataAfter changing engine oilP. 2 6 4
Tire inflation pressure
warning system
• When the standard tire pressure changes by replacing tires or wheels
• When tires are rotated
• When tire pressure sensors are
replaced
• When driving with the tires inflated to a higher than standard tire pressure
P. 2 76
After reconnecting or performing main tenance on the battery, the follow-
ing items must be initialized for normal system operation.

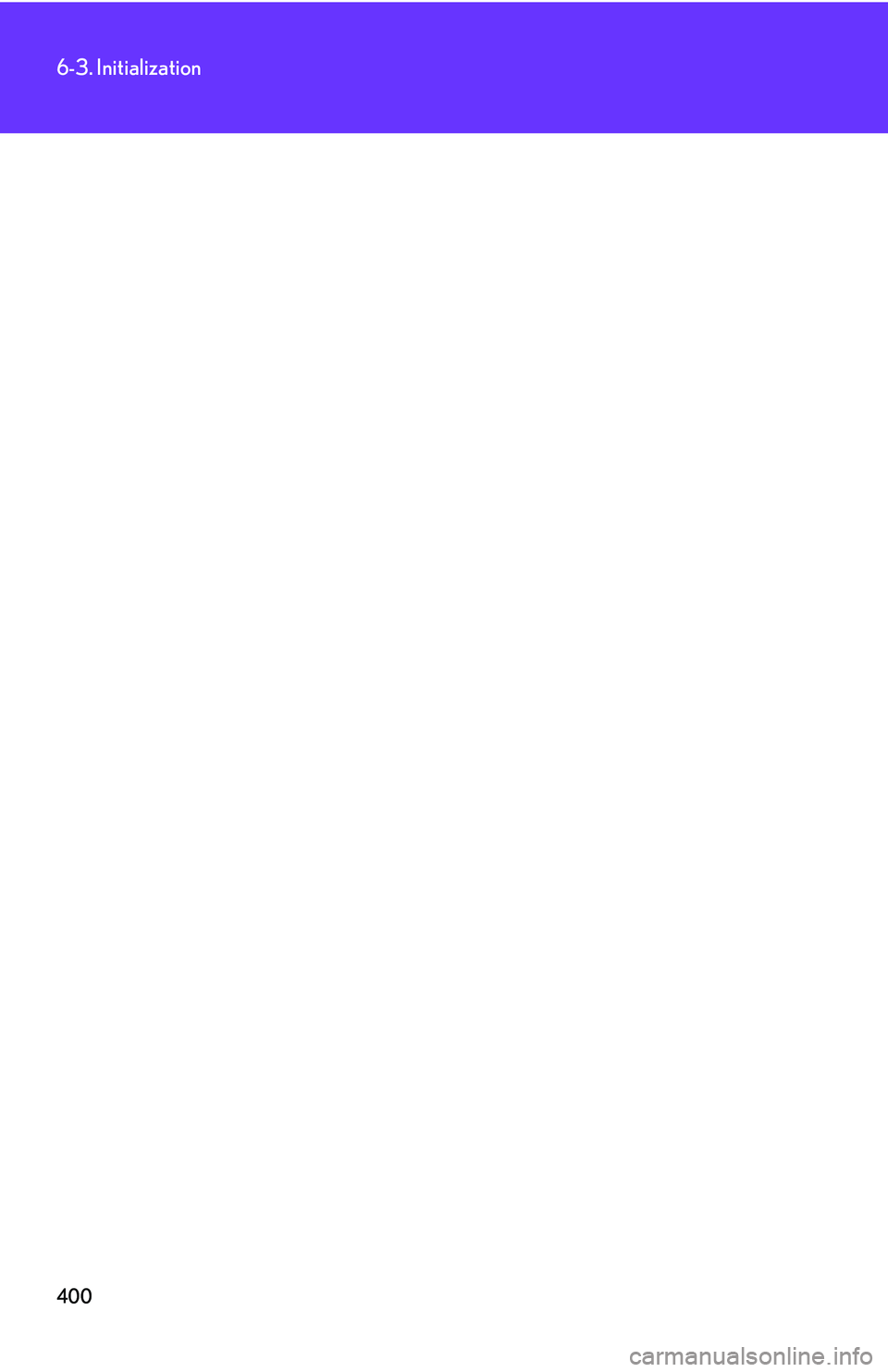

400
6-3. Initialization

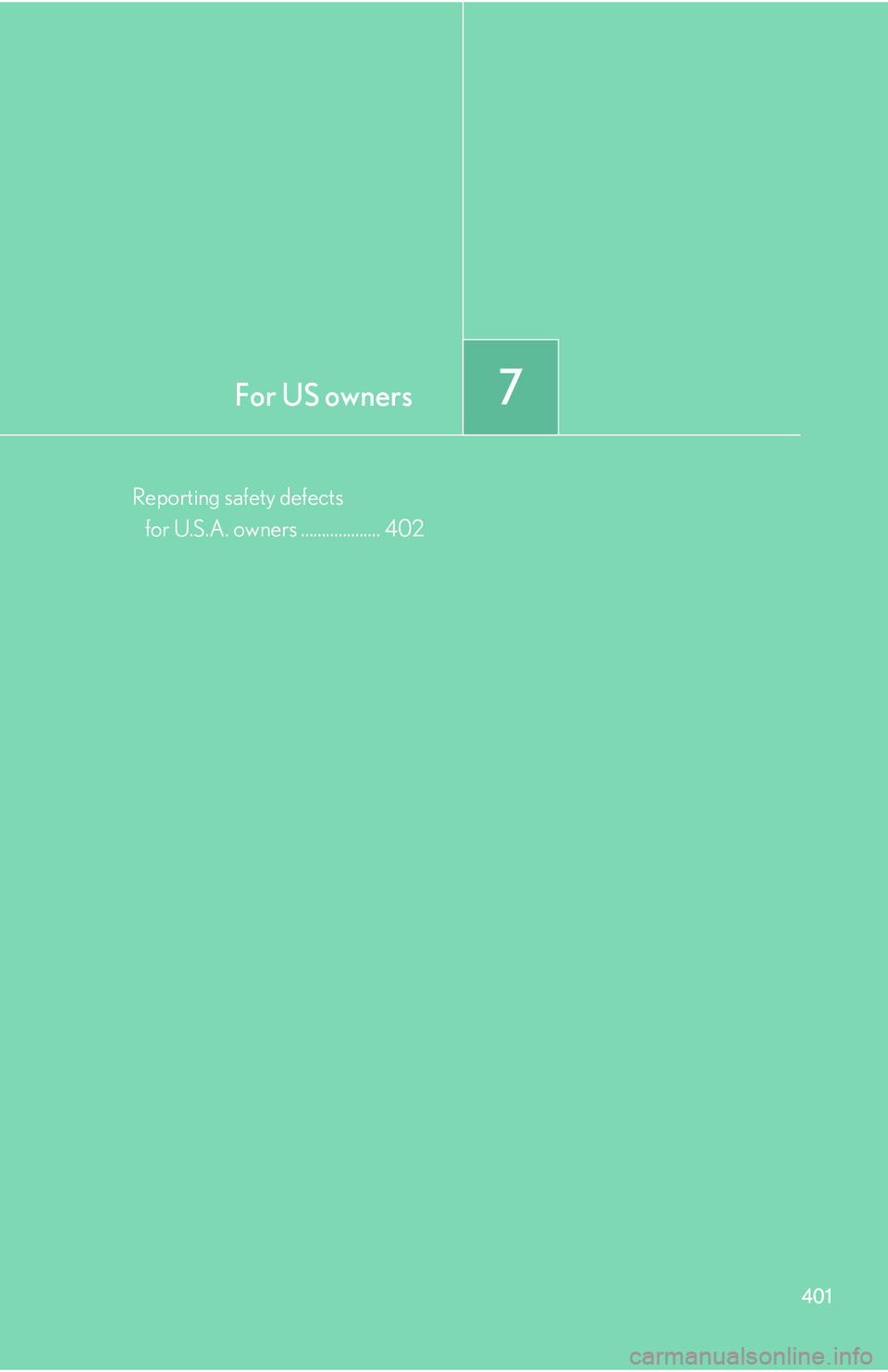

For US owners7
401
Reporting safety defects for U.S.A. owners ................... 402

402

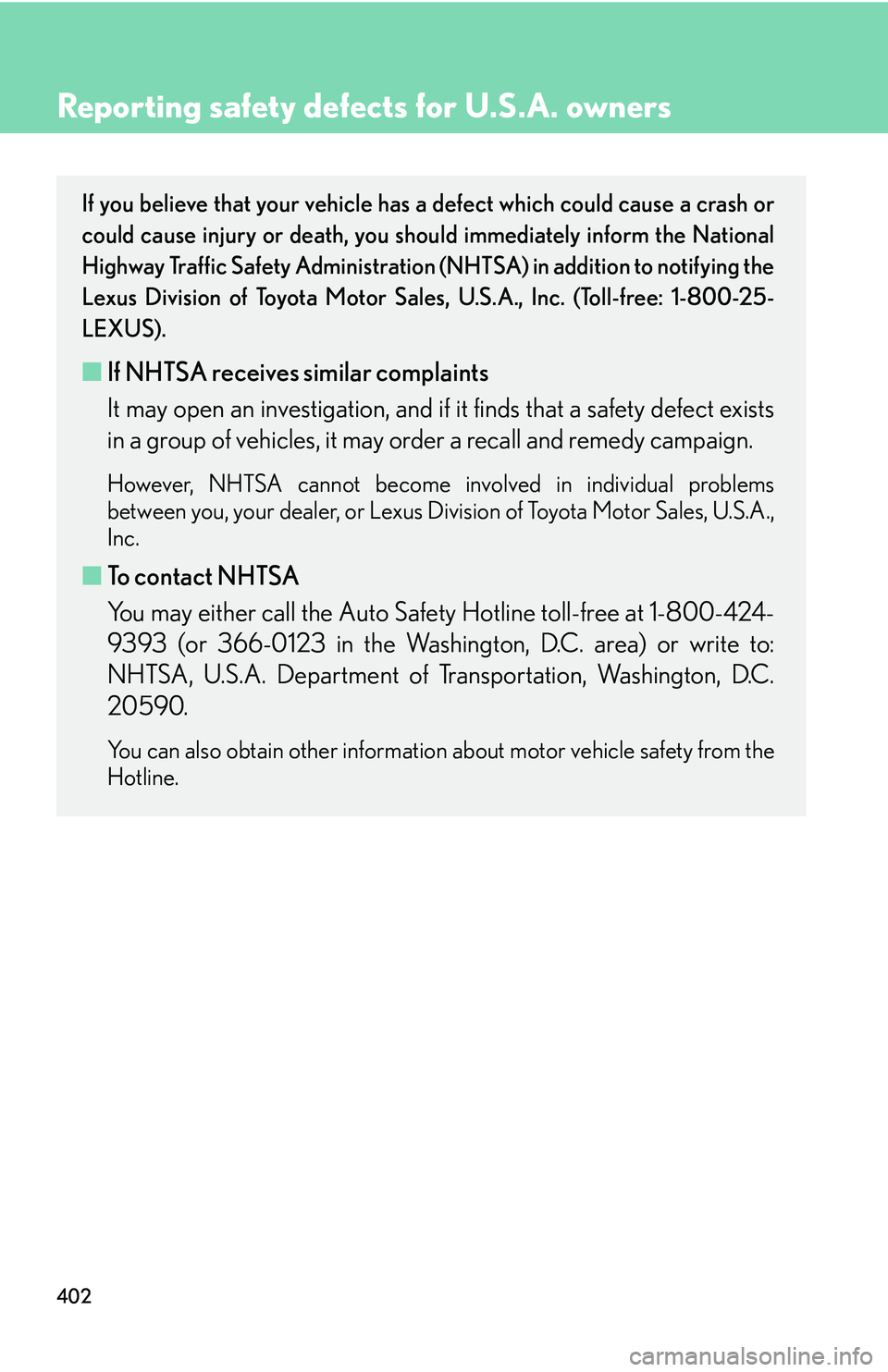

Reporting safety defects for U.S.A. owners
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you sh ould immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying the
Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-25-
LEXUS).
■ If NHTSA receives similar complaints
It may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may or der a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems
between you, your dealer, or Lexus Division of Toyota Motor Sales, U.S.A.,
Inc.
■To contact NHTSA
You may either call the Auto Safety Hotline toll-free at 1-800-424-
9393 (or 366-0123 in the Washington, D.C. area) or write to:
NHTSA, U.S.A. Department of Tr ansportation, Washington, D.C.
20590.
You can also obtain other information about motor vehicle safety from the
Hotline.
