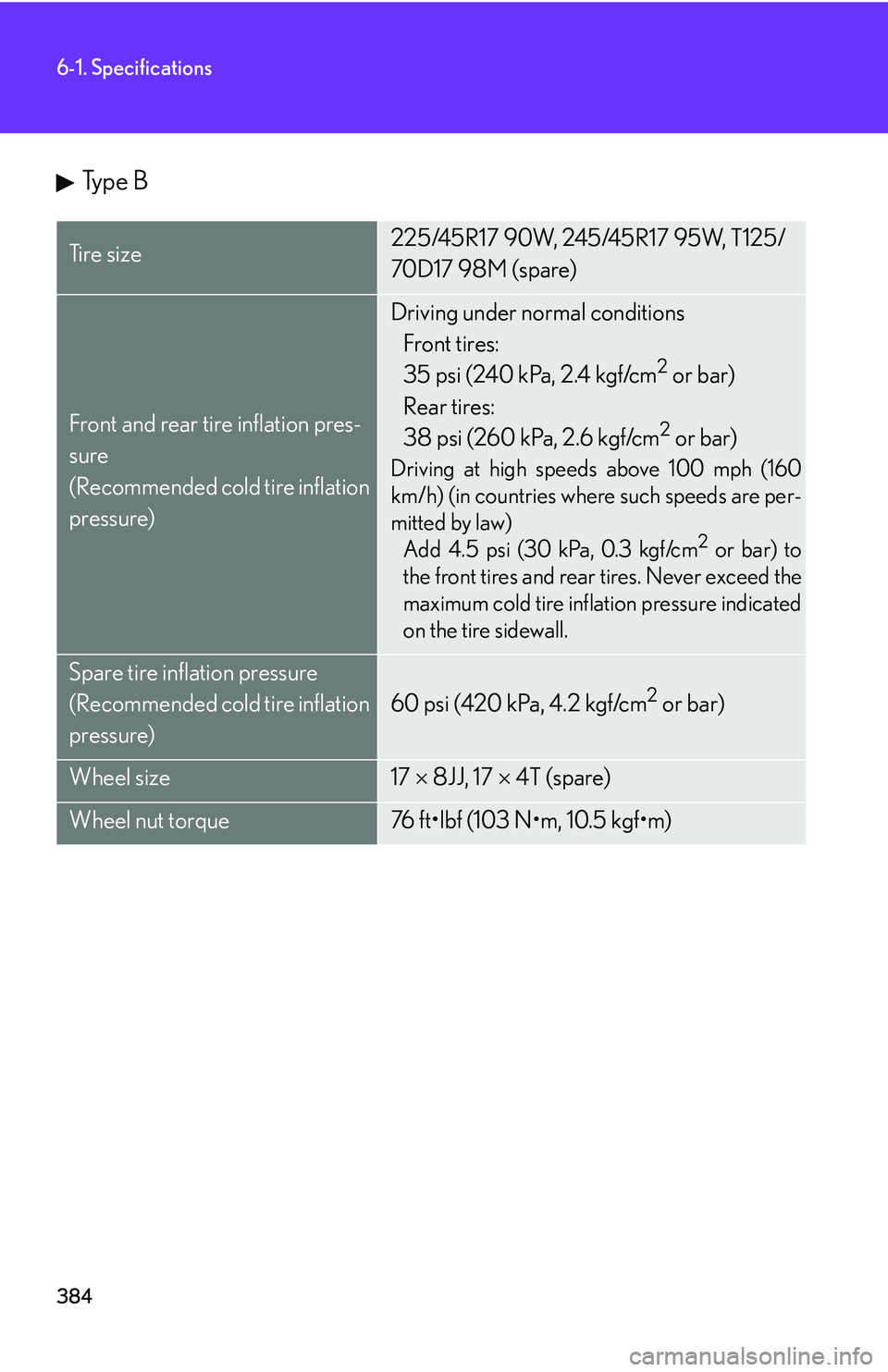

Page 402 of 437

384
6-1. Specifications
Ty p e B
Ti r e s i z e225/45R17 90W, 245/45R17 95W, T125/
70D17 98M (spare)
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Driving under normal conditions Front tires:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear tires:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 4.5 psi (30 kPa, 0.3 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17 8JJ, 17 4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

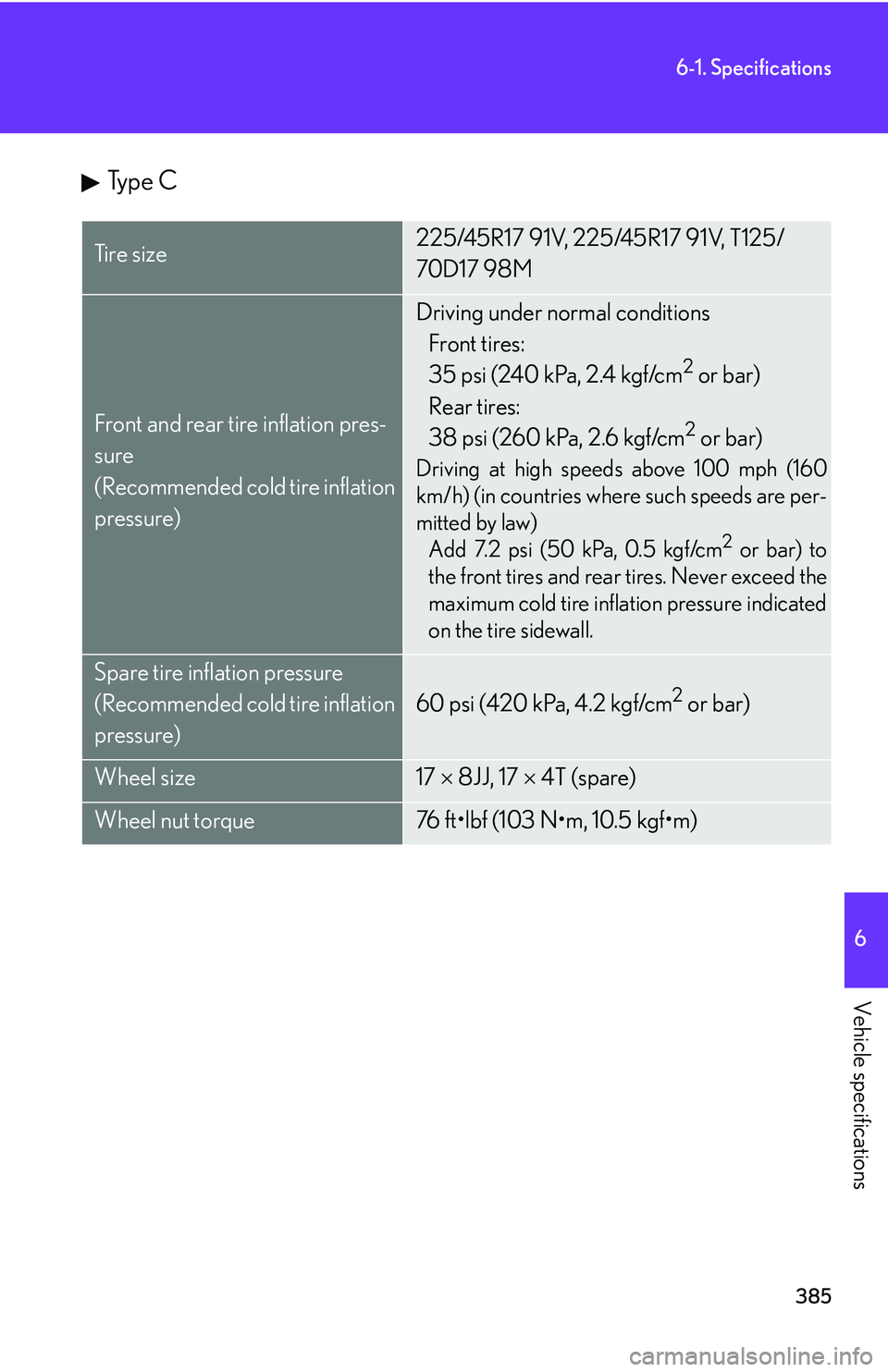

Page 403 of 437

385
6-1. Specifications
6
Vehicle specifications
Type C
Ti r e s i z e225/45R17 91V, 225/45R17 91V, T125/
70D17 98M
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Driving under normal conditionsFront tires:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear tires:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 7.2 psi (50 kPa, 0.5 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17 8JJ, 17 4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

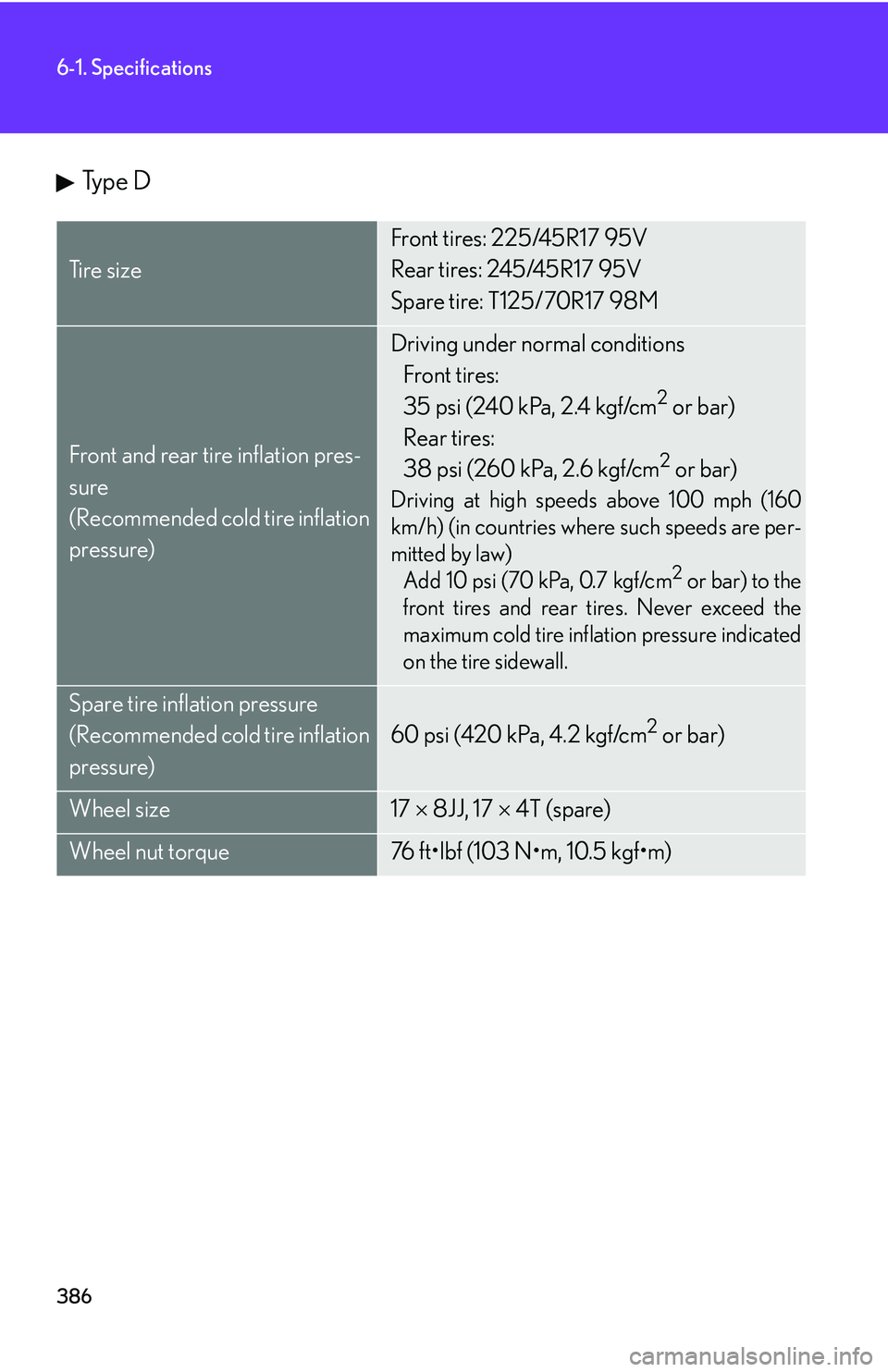

Page 404 of 437

386
6-1. Specifications
Ty p e D
Ti r e s i z e
Front tires: 225/45R17 95V
Rear tires: 245/45R17 95V
Spare tire: T125/70R17 98M
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Driving under normal conditions Front tires:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear tires:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 10 psi (70 kPa, 0.7 kgf/cm
2 or bar) to the
front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17 8JJ, 17 4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

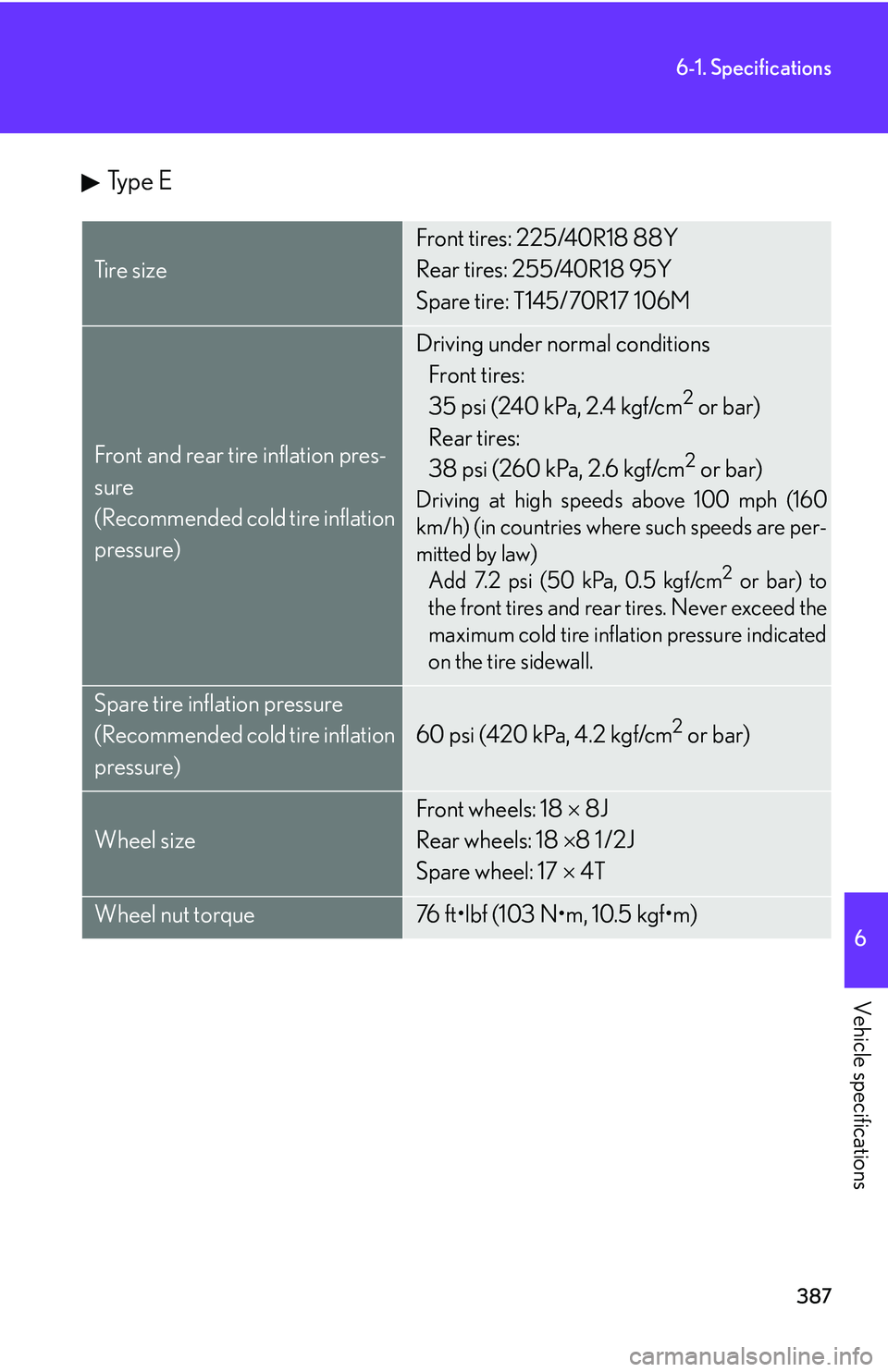

Page 405 of 437

387
6-1. Specifications
6
Vehicle specifications
Type E
Ti r e s i z e
Front tires: 225/40R18 88Y
Rear tires: 255/40R18 95Y
Spare tire: T145/70R17 106M
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Driving under normal conditionsFront tires:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear tires:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 7.2 psi (50 kPa, 0.5 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size
Front wheels: 18 8J
Rear wheels: 18 8 1 /2J
Spare wheel: 17 4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Page 432 of 437

414
Alphabetical index
Smart access system with push-button startEntry function..............................................4
Starting the engine ............................... 94
Spare tire Inflation pressure................................289
Spare tire................................................ 352
Spark plug ................................................ 379
Specifications ......................................... 374
Speedometer Speed indicator ................................... 105
Speedometer........................................ 105
Steering wheel Audio switches ................................... 203
Driving position memory.................. 28
Manual adjustment .............................. 40
Power adjustment .................................. 41
Storage feature......................................209
Stuck If your vehicle becomes stuck....... 371
Sun visors .................................................. 215
Sunshade Rear .......................................................... 229
Roof ............................................................. 49
Switch ECT switch .............................................. 98
Engine switch.......................................... 94
ETCS switch............................................ 101
Fog light switch .......................................121
Light switches ......................................... 118
Power door lock switch ...................... 19
Power window switch ........................ 45
Satellite switches ..................................218
Transmission shift switches.............. 99
Window lock switch ........................... 45
Wipers and washer switch ............. 122 Tachometer
Tacho indicator ....................................105
Tachometer............................................105
Tail lights Switch ..........................................................118
Theft deterrent system Alarm.......................................................... 56
Engine immobilizer system ..............54
Theft prevention labels.......................... 58
Tire inflation pressure ......................... 289
Tire information Glossary .................................................397
Size ........................................................... 394
Tire identification number ............. 393
Uniform tire quality grading......... 395
Tires Chains....................................................... 156
Checking................................................279
If you have a flat tire ......................... 352
Inflation pressure ............................... 289
Inflation pressure sensor ............... 280
Information ............................................392
Replacing .............................................. 352
Rotating tires.........................................279
Size ........................................................... 383
Snow tires................................................ 156
Tools........................................................... 352
Total load capacity ................................ 155
Towing Dinghy towing ............................162, 163
Emergency towing ............................ 322
Trailer towing .......................................... 161
TRAC (Traction control).....................144
Traction control (TRAC).....................144
Transmission shift switches ....................99
Trip meter ................................................. 105T
