ignition Lexus IS250 2006 Other Functions / LEXUS 2006 IS350/250 THROUGH APRIL 2006 PROD. OWNER'S MANUAL (OM53508U)

49
1-5. Refueling
1
Before driving
CAUTION
■Refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so, may
result in death or serious injury.
●Touch the vehicle or some other metal surface to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully re moving the cap. In hot weather, pressur-
ized fuel may spray out the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch an y person or object that is statically
charged.
This may cause static electricity to build up , resulting in a possible ignition hazard.
■When replacing the fuel cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Failure to do so may cause a fire or other incident which may result in death or seri-
ous injury.
NOTICE
■Refueling
Do not spill fuel during refueling.
Failing to do so may damage the vehicle, such as causing the exhaust systems to
operate abnormally or damaging fuel system components or the vehicle's painted
surface.

302
4-3. Do-it-yourself maintenance
■Engine compartment (type B)
FuseAmpereCircuit
1FR CTRL-B25AHeadlight high beam, horn
2A/F15AExhaust system
3ETCS10A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
4ALT-S7. 5 ACharging system
5STR LOCK25ASteering lock
6H-LP CLN30AHeadlight cleaner
7A/C COMP7. 5 AAir conditioning system
8DEICER25A
9FR CTRL-AM30AFront fog lights, parking lights, wind-
shield washer
10IG210AIgnition system
11EFI NO.210AFuel system, exhaust system
12H-LP R LWR15AHeadlight low beam (right)
13H-LP L LWR15AHeadlight low beam (left)

5
When trouble arises

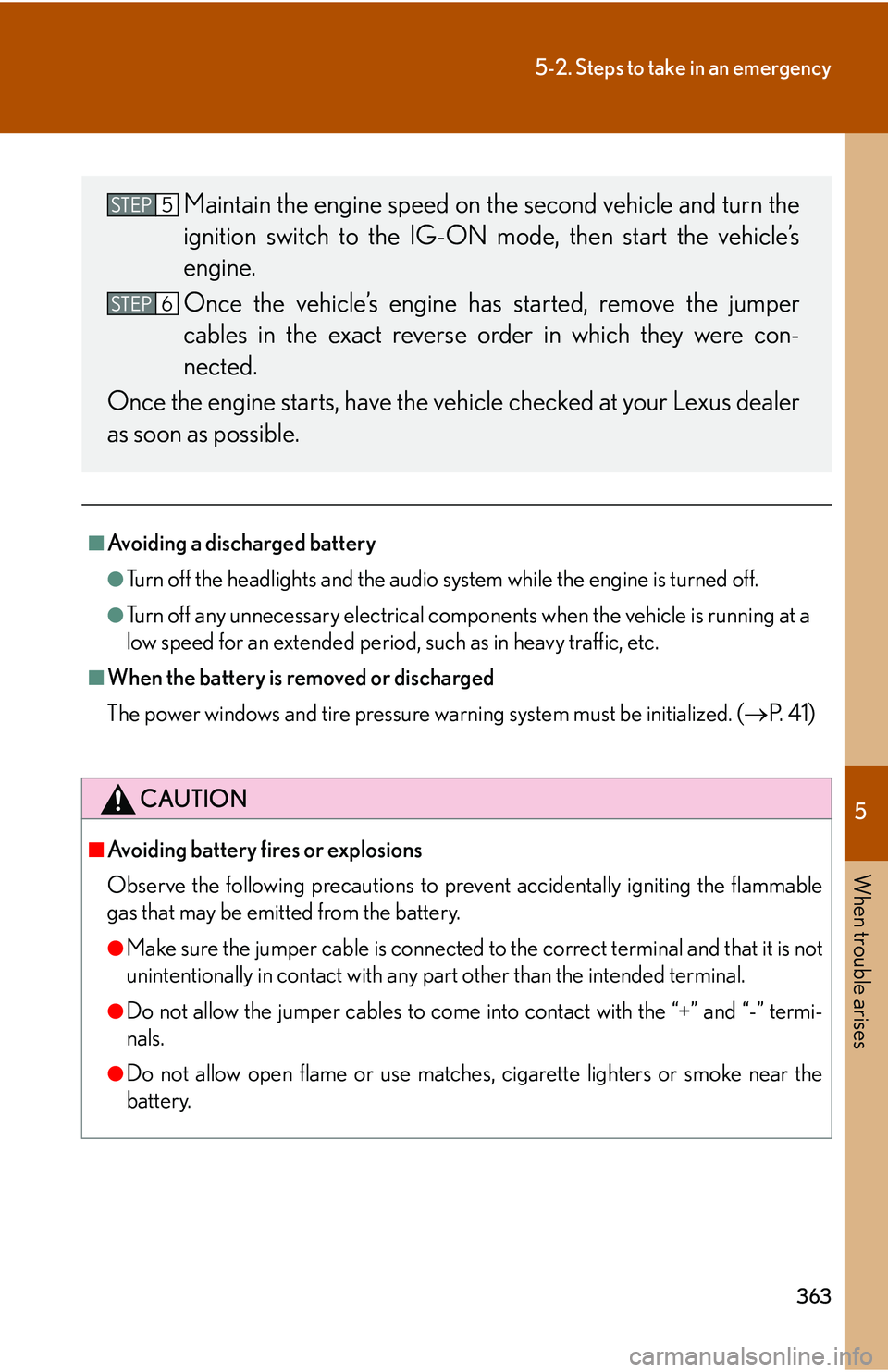

363
5-2. Steps to take in an emergency
■Avoiding a discharged battery
●Turn off the headlights and the audio system while the engine is turned off.
●Turn off any unnecessary electrical compon ents when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■When the battery is removed or discharged
The power windows and tire pressure wa rning system must be initialized.
(P. 4 1 )
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any pa rt other than the intended terminal.
●Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
●Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
Maintain the engine speed on th e second vehicle and turn the
ignition switch to the IG-ON mo de, then start the vehicle’s
engine.
Once the vehicle’s engine ha s started, remove the jumper
cables in the exact reverse ord er in which they were con-
nected.
Once the engine starts, have the ve hicle checked at your Lexus dealer
as soon as possible.STEP5
STEP6

374
6-1. Specifications
Cooling system
Ignition system
Capacity9.6 q t .
(9.1 L, 8.0 lmp.qt.)
Coolant type
Use either of the following.• “Toyota Super Long Life Coolant"
• Similar high-quality ethylene glycol-based non-sili- cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life organic acid technology
Do not use plain water alone.
Spark plug
Make DENSO
Gap
FK20HBR11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
