remote start Lexus IS250 2006 Other Functions / LEXUS 2006 IS350/250 THROUGH APRIL 2006 PROD. OWNER'S MANUAL (OM53508U)

TABLE OF CONTENTSIndex
1-1. Key information .............................. 2Keys ......................................................... 2
1-2. Opening, closing and locking the doors and trunk ..................... 4
Smart access system with push-button start ............................. 4
Wireless remote control ............... 12
Doors..................................................... 15
Trunk...................................................... 19
1-3. Adjustable components ............ 22 Front seats .......................................... 22
Driving position memory ............. 24
Seat position memory ................... 27
Head restraints................................. 29
Seat belts ........................................... 30
Steering wheel (manually adjustable type) ....... 36
Steering wheel (power-adjustable type)............ 37
Anti-glare inside rear view mirror ............................................... 38
Outside rear view mirrors ........... 39
1-4. Opening and closing the windows and moon roof ........... 41
Power windows................................. 41
Moon roof .......................................... 44 1-5. Refueling ........................................ 47
Opening the fuel tank cap........... 47
1-6. Anti-theft system ........................ 50 Engine immobilizer system ........ 50
Alarm.................................................... 52
Theft prevention labels (U.S.A.) ............................................. 54
1-7. Safety information ....................... 55 Correct driving posture ............... 55
SRS airbags ....................................... 57
Child restraint sy stems ................. 68
Installing child restraints ................. 71
2-1. Driving procedures.................... 82 Driving the vehicle .......................... 82
Starting the engine ......................... 89
Automatic Transmission .............. 92
Manual Transmission..................... 96
Turn signal lever............................... 98
Parking brake ................................... 99
2-2. Instrument cluster ..................... 100 Gauges and meters ..................... 100
Indicators and warning lights................................................. 106
Multi-information display........... 109
1Before driving
2When driving

Before driving1
1
1-1. Key information............................ 2Keys....................................................... 2
1-2. Opening, closing and locking the doors and trunk................... 4
Smart access system with push-button start .......................... 4
Wireless remote control............. 12
Doors.................................................. 15
Trunk ................................................... 19
1-3. Adjustable components .......... 22 Front seats ....................................... 22
Driving position memory .......... 24
Seat position memory ................ 27
Head restraints.............................. 29
Seat belts ......................................... 30
Steering wheel (manually adjustable type) .... 36
Steering wheel (power-adjustable type) ......... 37
Anti-glare inside rear view mirror ............................................. 38
Outside rear view mirrors ........ 39 1-4. Opening and closing the
windows and moon roof ........ 41
Power windows ............................... 41
Moon roof ....................................... 44
1-5. Refueling ..................................... 47 Opening the fuel tank cap ........ 47
1-6. Anti-theft system ...................... 50 Engine immobilizer system ...... 50
Alarm ................................................ 52
Theft prevention labels (U.S.A.) .......................................... 54
1-7. Safety information .................... 55 Correct driving posture ............ 55
SRS airbags .................................... 57
Child restraint systems .............. 68
Installing child restraints .............. 71

2
1-1. Key information
Keys
Using the mechanical keyTake out the mechanical key.
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
( P. 4 )
• Operating the wireless remote control function
( P. 1 2 )
Mechanical keys
Key number plate
■When required to leave a key to the vehicle with a parking attendant
Turn the trunk opener main switch OFF an d lock the glove box as circumstances
demand. ( P. 1 9 , 2 0 5 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. ( P. 3 5 8 )

6
1-2. Opening, closing and locking the doors and trunk
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: Once; Unlocked: Twice)
■Conditions affecting operation
The smart access system with push-button start and wireless remote control func-
tion may not operate normally in the following situations.
●Near a TV tower, radio station, electric power plant, airport or other facility that
generates strong radio waves
●When carrying a portable radio, cellular phone or other wireless communica-
tion device
●When multiple electronic keys are in the vicinity
●When the electronic key has come into contact with, or is covered by a metallic
object
●When a wireless key (that emits radio waves) is being used nearby
●When the electronic key has been left ne ar an electrical appliance such as a
personal computer
■Switching the door unlock function
It is possible to set which doors the entry function unlocks.
Turn the engine switch OFF.
When the indicator on the key surface is turned off, push and
hold , , or for approximately 5 seconds while pushing
the button on the key.
STEP1
STEP2

8
1-2. Opening, closing and locking the doors and trunk
■Electronic key battery depletion
●The standard battery life is 1 to 2 years. (The battery becomes depleted even if
the electronic key is not used.) If the smart access system with push-button start
or the wireless remote control function does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when nec-
essary. (  P. 2 9 3 )
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances.
•TVs
• Personal computers
• Recharging cellular phones or cordless phones
• Table lamps
■To operate the system properly
Make sure to carry the electronic key wh en operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected corr ectly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)
■Note for the entry function
●The doors may unlock if a large amount of water splashes on the door handle,
such as in the rain or in a car wash. (The doors will automatically be locked after
approximately 30 seconds if the do ors are not opened and closed.)
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless re mote control to unlock the doors.)
■When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.
■Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the anti-theft system automatically locks the vehicle again.

52
1-6. Anti-theft system
Alarm
Deactivating or stopping the alarmDo one of the following:
● Unlock the doors or trunk using th e entry function or the wireless
remote door lock function.
● Start the engine. (The alarm will be deactivated or stopped after a few
seconds.)
■Items to check before locking the vehicle
To prevent unintended triggering of the alar m, check that there is no one in the vehi-
cle, and that all windows and moon roof are closed before locking the vehicle.
The alarm is triggered if forcible entry is detected (horn, head lights, tail
lights, interior lights and emergency flashers).
To arm the alarm, exit the vehi-
cle, make sure that the doors,
trunk and hood are closed, and
lock all the doors.
The changes will begin operat-
ing automatically after 30 sec-
onds.
The indicator changes from
being on to a flashing pattern
when the system begins to oper-
ate.

235
3-5. Other interior features
3
Interior features
■Programming a Rolling Code system (for U.S.A. owners)
If your device is Rolling Code eq uipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the training button on th e ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
Press the training button.
Press and release the vehicle’s programmed HomeLink
 button
twice. The garage door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
 transceiver and operate the garage door.
Repeat the steps above to prog ram another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U .S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the indicator light on the HomeLink in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cyc le) the device’s remote control
button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans-
ceiver start to flashing rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

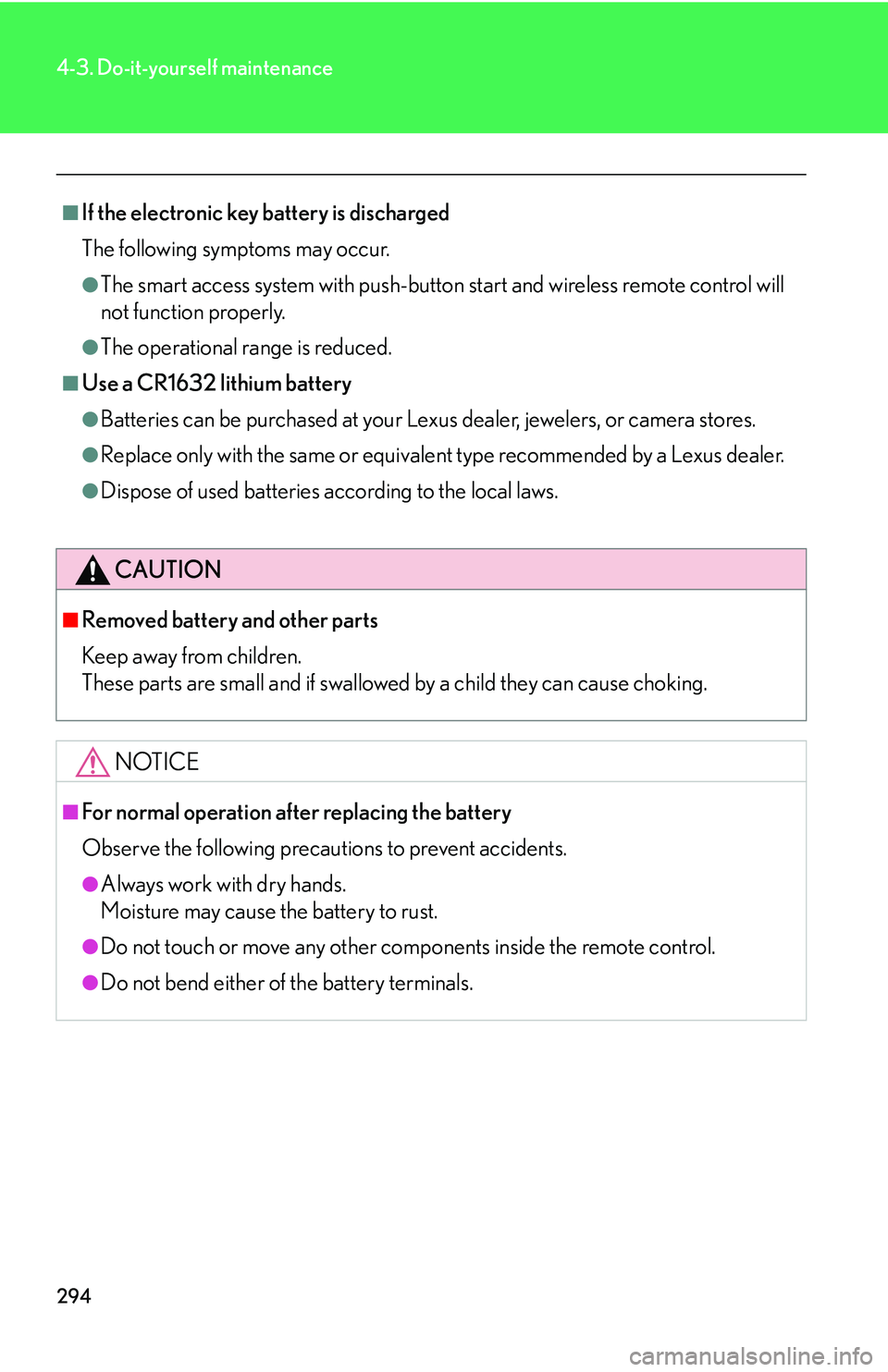

294
4-3. Do-it-yourself maintenance
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.

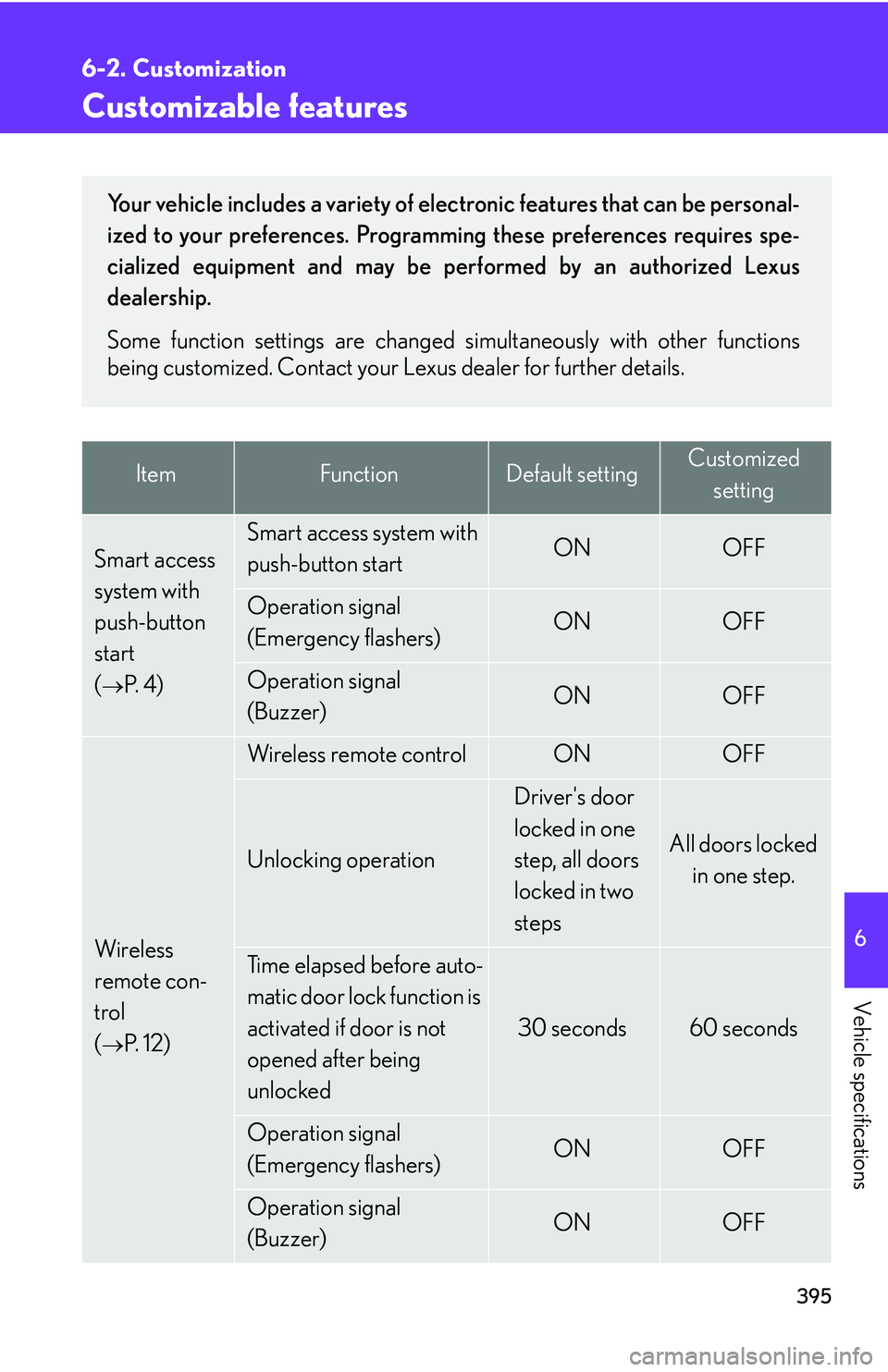

395
6
Vehicle specifications
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart access
system with
push-button
start
(
P. 4 )
Smart access system with
push-button startONOFF
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer)ONOFF
Wireless
remote con-
trol
(
P. 1 2 )
Wireless remote controlONOFF
Unlocking operation
Driver's door
locked in one
step, all doors
locked in two
steps
All doors locked in one step.
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds60 seconds
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer) ONOFF
Your vehicle includes a variety of elec tronic features that can be personal-
ized to your preferences. Programming these preferences requires spe-
cialized equipment and may be performed by an authorized Lexus
dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.

407
Alphabetical index
Front passenger's seat belt reminder light ....................................... 331
Front seats Adjustment ............................................... 22
Driving position memory ..................24
Seat position memory ......................... 27
Front turn signal lights Wattage ................................................. 383
Fuel Capacity..................................................372
Fuel gauge ............................................. 100
Fuel pump shut off system ............ 326
Gas station information ................... 415
Information............................................ 384
Refueling .................................................... 47
Fuel filler door............................................ 47
Fuel pump shut off system .................326
Fuses.......................................................... 295
Garage door opener.......................... 233
Gas station information ....................... 415
Gauges...................................................... 100
Glove box ............................................... 205
Glove box light...................................... 206
Head restraints Adjusting ..................................................29
Headlight aim ........................................ 309
Headlight cleaner .................................. 120
Headlights Discharge headlights precautions ......................................... 316
Replacing light bulbs .........................310
Switch ..........................................................113
Wattage ................................................. 383 Heaters
Seat heaters .............................. 220, 222
Side mirror.............................................. 170
Hill-start assist control ......................... 139
Hood ..........................................................258
Hooks Cargo ......................................................230
Coat..........................................................228
Shopping bag ......................................230
I/M test...................................................... 254
Illuminated entry system ....................202
Indicator lights......................................... 106
Initialization Items to initialize ................................ 399
Inside rear view mirror ..........................38
Interior lights Interior lights .......................................... 201
Switch.......................................................203
Wattage ................................................. 383
Jack Positioning the jack ...........................259
Replacing the wheel ........................ 348
Jack handle..............................................348
Keys Electronic key .............................................2
Engine switch ..........................................89
If you lose your keys ........................ 358
If your electronic key battery is discharged.................................... 359
Key number .................................................2
Keys .................................................................2
Mechanical key ..........................................2
Wireless remote control ..................... 12
G
H
I
J
K
