engine Lexus IS250 2006 Using the audio system / LEXUS 2006 IS350/250 FROM MAY 2006 PROD. (OM53619U) Manual PDF

217
3-5. Other interior features
3
Interior features

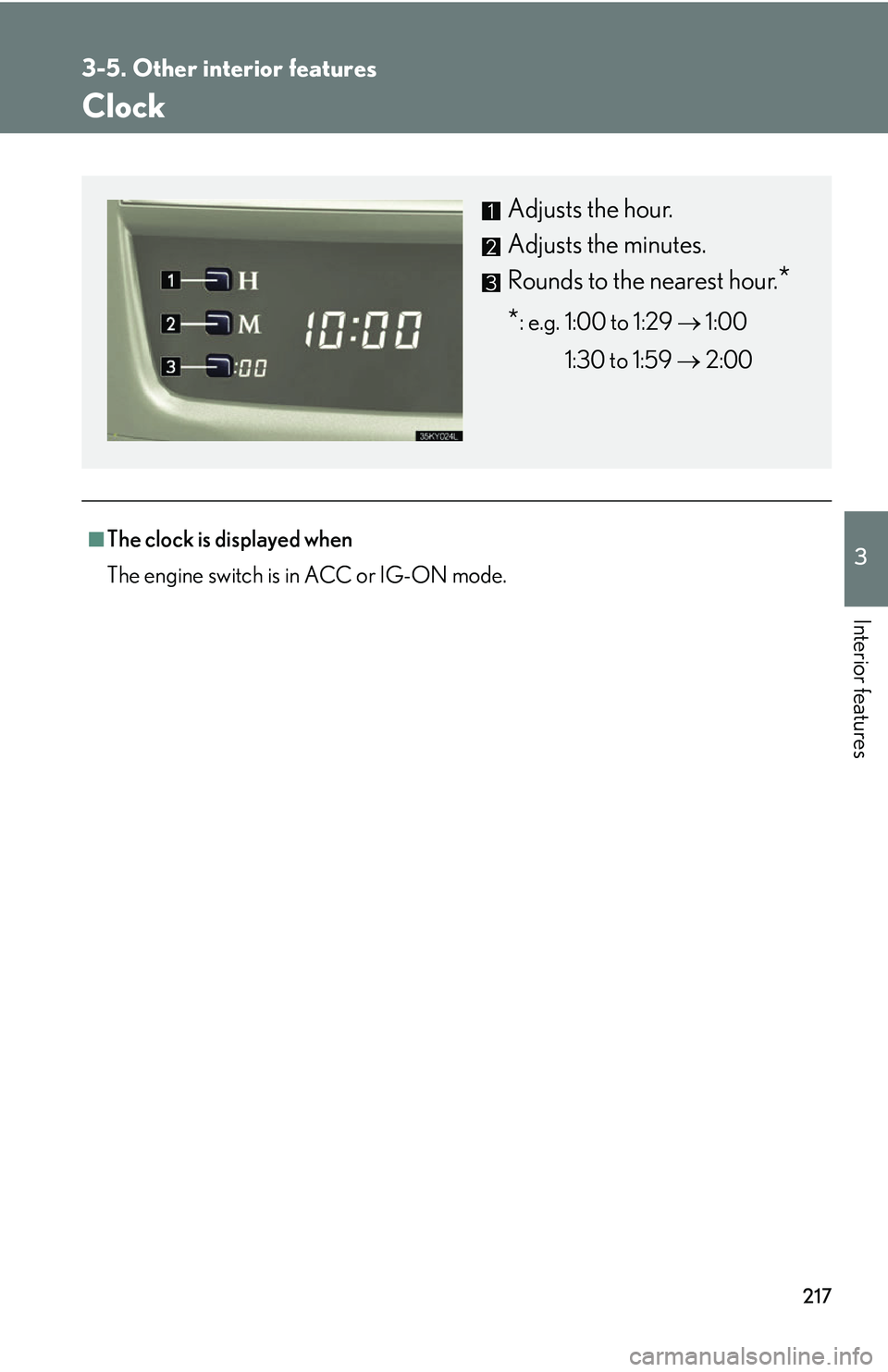

Clock
■The clock is displayed when
The engine switch is in ACC or IG-ON mode.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00

219
3-5. Other interior features
3
Interior features
■Items that can be set using the satellite switches
Lexus parking assist-sensor ( P. 138) ON/OFF
(if equipped)
Tire pressure warning system initialization
( P. 2 8 1 )
ID code selection for tire air pressure system
( P. 2 8 2 )
AFS (Adaptive Front-lighting System) ( P. 1 1 9 )
ON/OFF (if equipped)
Vehicle speed indicator ON/OFF and speed set-
ting ( P. 1 0 7 )
Tacho indicator ON/OFF and engine speed (rpm)
setting ( P. 1 0 8 )

220
3-5. Other interior features
■Changing the settings
Each item is displayed and its setting can be changed only in the following condi-
tions:
Lexus parking assist-sensor: When the engine switch is in IG-ON mode.
Items other than the above: When the engine switch is in IG-ON mode and the
vehicle is stopped.
■Display
The display will return to the original disp lay if the satellite switches are not oper-
ated for an extended period.
Even if the display is in satellite switch mo de, it will switch in the event of a warning
or when the radar cruise control is used. If this occurs, press any of the satellite
switches or DISP switch on the steering wheel to return the display to satellite
switch mode.

222
3-5. Other interior features
Cigarette lighter
■The cigarette lighter can be used when
The engine switch is in ACC or IG-ON mode.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
●Do not hold the cigarette lighter down . It could overheat and cause a fire.
●Do not insert anything other than the cigarette lighter into the outlet.
Push the back part of the lid to
open, and push the cigarette
lighter down.
The cigarette lighter will pop up
when it is ready for use.

223
3-5. Other interior features
3
Interior features
Power outlet
■The power outlet can be used when
The engine switch is in ACC or IG-ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not running.
The power outlet can be used for 12 V accessories that run on less than 10
A.

224
3-5. Other interior features
Seat heaters (if equipped)
■The seat heaters can be used when
The engine switch is in IG-ON mode.
■When not in use
Set the dial to 0. The indicator light turns off.
Heats the seats
The indicator light comes on.
The higher the number, the
warmer the seats become.
Vehicles with an automatic transmissionHeats the seats
The indicator light comes on.
The higher the number, the
warmer the seats become.
Vehicles with a manual transmission
Driver’s
seatFront
passenger’s
seat
Driver’s
seat Front
passenger’s
seat

225
3-5. Other interior features
3
Interior features
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,
cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp objects
(needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the switches off when the engine is not running.

226
3-5. Other interior features
Seat heaters and ventilators (if equipped)
■The seat heaters and ventilators can be used when
The engine switch is in IG-ON mode.
■When not in use
Set the dial to 0. The indicator light turns off.
The seat heaters and ventilators heat the seats and maintain good airflow
by blowing air from the seats.
Heats the seats
The indicator light (red) comes
on.
The higher the number, the
warmer the seats become.
Blows air from the seats
The indicator light (green)
comes on.
The higher the number, the
stronger the airflow becomes.
Heats the seats
The indicator light (red) comes
on.
The higher the number, the
warmer the seats become.
Blows air from the seats
The indicator light (green)
comes on.
The higher the number, the
stronger the airflow becomes.
Driver’s
seat Front
passenger’s
seat
Vehicles with an automatic
transmission
Driver’s
seat Front
passenger’s
seat
Vehicles with a manual trans-
mission

227
3-5. Other interior features
3
Interior features
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,
cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp objects
(needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the switches off when the engine is not running.

229
3-5. Other interior features
3
Interior features
Rear sunshade (if equipped)
■Reverse operation feature
To ensure adequate rear visibility, the sunshade automatically lowers when the gear
is shifted to R.
However, the rear sunshade is raised again if either of the following occurs:
●The switch is pressed again.
●The shift lever is shifted out of R, and the vehicle reaches a speed of 9 mph (15
km/h).
If the engine is turned off when the rear sunshade has been lowered due to the
reverse operation feature, it will not be raised even when the engine is turned on
again and the vehicle reaches a speed of 9 mph (15 km/h). To raise the sunshade
again, press the switch.
■The rear sunshade can be used when
The engine switch is in IG-ON mode.
CAUTION
■When the rear sunshade is being raised or lowered
Do not place fingers or other objects in the fastener section or in the opening.
They may get caught, causing injury.
The rear sunshade can be raised and lowered by operating the switch
shown below.
Raise/lower
