clock Lexus IS250 2006 Using the audio system / LEXUS 2006 IS350/250 FROM MAY 2006 PROD. OWNER'S MANUAL (OM53619U)

TABLE OF CONTENTSIndex
• Bottle holders/door pockets ........................................... 213
3-5. Other interior features............ 215 Sun visors.......................................... 215
Vanity mirror ................................... 216
Clock .................................................. 217
Satellite switches ........................... 218
Ashtrays ............................................ 221
Cigarette lighter ........................... 222
Power outlet ................................... 223
Seat heaters .................................... 224
Seat heaters and ve ntilators .... 226
Armrest ............................................ 228
Rear sunshade ............................... 229
Extended trunk............................... 231
Coat hooks ..................................... 232
Floor mat.......................................... 233
Trunk features................................ 234
Garage door opener .................. 237
Compass........................................... 242
4-1. Maintenance and care............ 248 Cleaning and protecting the vehicle exterior.................. 248
Cleaning and protecting the vehicle interior ................... 250 4-2. Maintenance.............................. 253
Maintenance requirements ..... 253
General maintena nce ................ 255
Emission inspection and maintenance (I/M)
programs ..................................... 258
4-3. Do-it-yourself maintenance............................ 259
Do-it-yourself service precautions .................................. 259
Hood.................................................. 262
Positioning the jack ..................... 263
Engine compartment.................. 265
Tires ................................................... 279
Tire inflation pressure................ 289
Wheels.............................................. 293
Air conditioning filter.................. 295
Electronic key battery ................ 297
Checking and replacing fuses ................................................ 299
Headlight aim.................................. 313
Light bulbs ........................................ 314
5-1. Essential information ............... 322 If your vehicle needs to be towed ....................................... 322
If you think something is wrong ............................................. 329
4Maintenance and care
5When trouble arises

A
Without navigation system
Navigation
system
*1
Clock

P. 217
Audio
system

P. 175
Air conditioning
system
P. 166
Rear window and out-
side rear view mirror
defoggers
P. 174
Security indicator
P. 54, 56
Emergency
flashers
Clock P. 217
Audio system*1
Security indicator
P. 54, 56
Emergency flashers
Air conditioning
system
*1
With navigation system
: If equipped
*1: Refer to “Navigation
System Owner's Manual”.
Rear window and
outside rear view
mirror defoggers
*1

Interior features3
165
3-1. Using the air conditioning system and defogger ........... 166
Automatic air conditioning system ......................................... 166
Rear window and outside rear view mirror defoggers............ 174
3-2. Using the audio system ......... 175 Audio system type ..................... 175
Using the radio ............................ 178
Using the CD player ................. 185
Playing back MP3 and WMA discs................................. 191
Optimal use of the audio system .......................................... 199
Using the AUX adapter ......... 202
Using the steering wheel audio switches ......................... 203
3-3. Using the interior lights ....... 205 Interior lights list........................ 205
• Interior lights and personal lights.......................... 207
3-4. Using the storage features ................................. 209
List of storage features........... 209
• Glove box ................................ 209 • Console boxes ......................... 210
• Overhead console ................... 211
• Cup holders ............................... 212
• Bottle holders/door
pockets ........................................ 213
3-5. Other interior features......... 215 Sun visors ...................................... 215
Vanity mirror ................................. 216
Clock................................................ 217
Satellite switch es ........................ 218
Ashtrays .......................................... 221
Cigarette lighter ........................ 222
Power outlet ................................ 223
Seat heaters ................................ 224
Seat heaters and ventilators .................................. 226
Armrest ......................................... 228
Rear sunshade............................ 229
Extended trunk ........................... 231
Coat hooks .................................. 232
Floor mat ...................................... 233
Trunk features ............................. 234
Garage door opener............... 237
Compass....................................... 242

217
3-5. Other interior features
3
Interior features
Clock
■The clock is displayed when
The engine switch is in ACC or IG-ON mode.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00

269
4-3. Do-it-yourself maintenance
4
Maintenance and care
Wipe the dipstick and reinsert it fully.Low
Full
■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check th e oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
It takes about 1.6 qt. (1.5 L, 1.3 lmp. qt.) to raise the oil level from low to full on the
dipstick.
STEP6
Oil gradeILSAC multi-grade engine oil
ItemsClean funnel
STEP1
STEP2
STEP3

310
4-3. Do-it-yourself maintenance
■Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30APo w e r s e a t
2DOOR DL15A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 AStop lights
5TI & TE20AElectric tilt and telescopic steering
column
6RAD NO.310AAudio
7GAUGE7. 5 AMeter
8IGN10A
SRS airbag system, Lexus link system,
cruise control, steering lock system,
fuel system
9ACC7. 5 A
Lexus link system, clock, air condition-
ing system, audio, display, outside rear
view mirrors, smart access system
with push-button start
10CIG15ACigarette lighter
11PWR OUTLET15APo w e r o u t l e t
12RR DOOR RH20APo w e r w i n d o w s

315
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs■ Headlight high beams
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3

316
4-3. Do-it-yourself maintenance
■Parking lights
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Back-up light
Open the trunk door and remove
the trunk panel cover clips.
STEP1
STEP2
STEP3
STEP1

317
4-3. Do-it-yourself maintenance
4
Maintenance and care
Partly remove the trunk panel
cover and turn bulb bases coun-
terclockwise.
Remove the light bulb.
■ Rear turn signal lights
Open the trunk door and remove
the cover.
Turn the bulb base counterclock-
wise.STEP2
STEP3
STEP1
STEP2

5
When trouble arises
363
5-2. Steps to take in an emergency

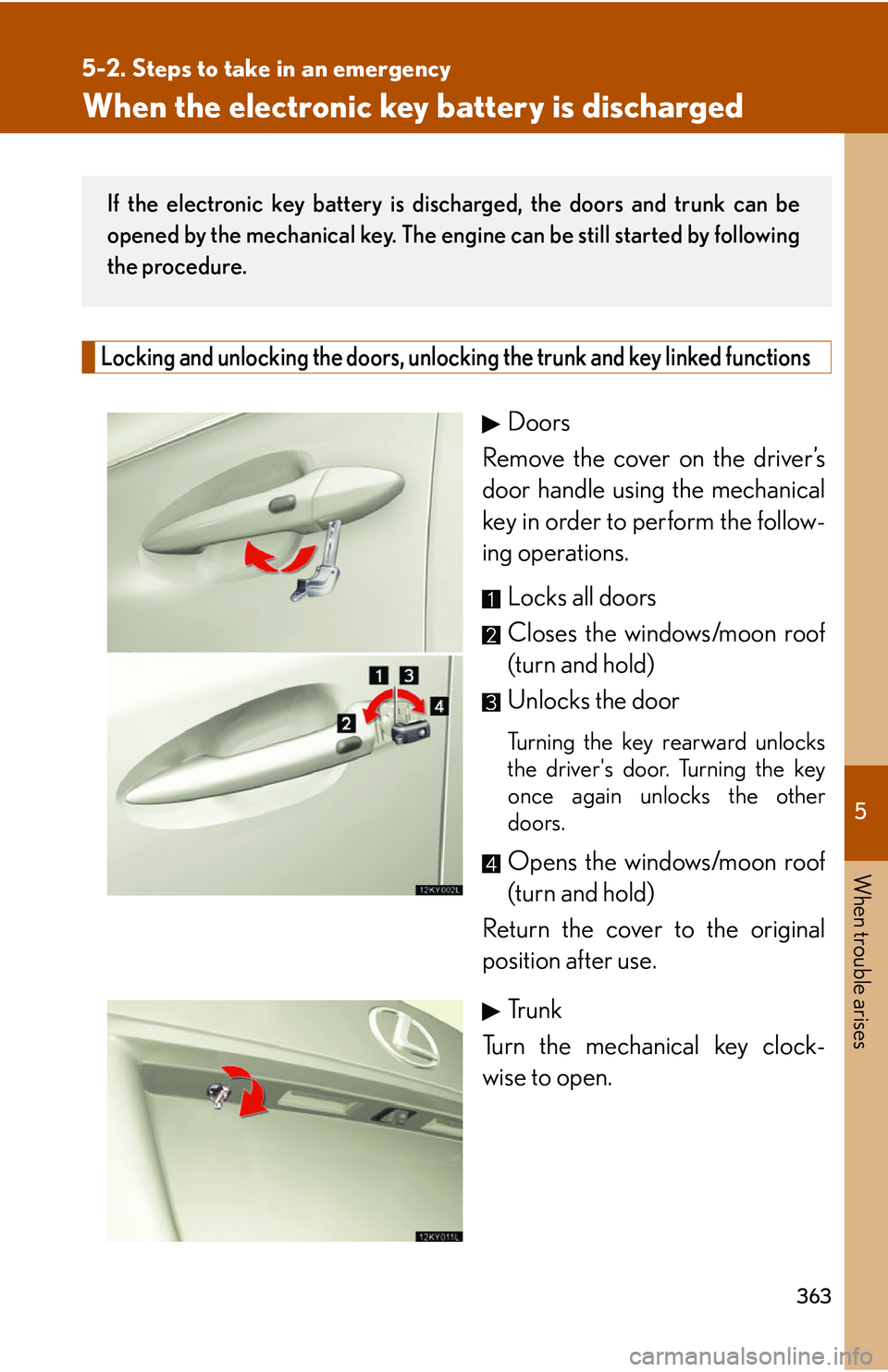

When the electronic key battery is discharged
Locking and unlocking the doors, unlocking the trunk and key linked functions
Doors
Remove the cover on the driver’s
door handle using the mechanical
key in order to perform the follow-
ing operations.
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/moon roof
(turn and hold)
Return the cover to the original
position after use.
Tr u n k
Turn the mechanical key clock-
wise to open.
If the electronic key battery is di scharged, the doors and trunk can be
opened by the mechanical key. The engine can be still started by following
the procedure.
