Page 4 of 437
TABLE OF CONTENTSIndex
• Bottle holders/door pockets ........................................... 213
3-5. Other interior features............ 215 Sun visors.......................................... 215
Vanity mirror ................................... 216
Clock .................................................. 217
Satellite switches ........................... 218
Ashtrays ............................................ 221
Cigarette lighter ........................... 222
Power outlet ................................... 223
Seat heaters .................................... 224
Seat heaters and ve ntilators .... 226
Armrest ............................................ 228
Rear sunshade ............................... 229
Extended trunk............................... 231
Coat hooks ..................................... 232
Floor mat.......................................... 233
Trunk features................................ 234
Garage door opener .................. 237
Compass........................................... 242
4-1. Maintenance and care............ 248 Cleaning and protecting the vehicle exterior.................. 248
Cleaning and protecting the vehicle interior ................... 250 4-2. Maintenance.............................. 253
Maintenance requirements ..... 253
General maintena nce ................ 255
Emission inspection and maintenance (I/M)
programs ..................................... 258
4-3. Do-it-yourself maintenance............................ 259
Do-it-yourself service precautions .................................. 259
Hood.................................................. 262
Positioning the jack ..................... 263
Engine compartment.................. 265
Tires ................................................... 279
Tire inflation pressure................ 289
Wheels.............................................. 293
Air conditioning filter.................. 295
Electronic key battery ................ 297
Checking and replacing fuses ................................................ 299
Headlight aim.................................. 313
Light bulbs ........................................ 314
5-1. Essential information ............... 322 If your vehicle needs to be towed ....................................... 322
If you think something is wrong ............................................. 329
4Maintenance and care
5When trouble arises
Page 265 of 437
Maintenance and care4
247
4-1. Maintenance and care ........ 248Cleaning and protecting the vehicle exterior ................ 248
Cleaning and protecting the vehicle interior ................ 250
4-2. Maintenance .......................... 253 Maintenance requirements ............................ 253
General maintena nce ............. 255
Emission inspection and maintenance (I/M)
programs .................................. 258
4-3. Do-it-yourself maintenance ......................... 259
Do-it-yourself service precautions ............................... 259
Hood............................................... 262
Positioning the jack................... 263
Engine compartment............... 265
Tires ................................................. 279
Tire inflation pressure............... 289
Wheels........................................... 293 Air conditioning filter .............. 295
Electronic key battery .............. 297
Checking and replacing
fuses ............................................. 299
Headlight aim .............................. 313
Light bulbs..................................... 314
Page 332 of 437
314
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 388)
■ Remove the engine compartment cover.
P. 2 6 7
■ Front bulb locations
■ Rear bulb locations
Parking light
Headlight
high beam
Rear turn signal light
Back-up light
Page 333 of 437
315
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs■ Headlight high beams
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3
Page 336 of 437

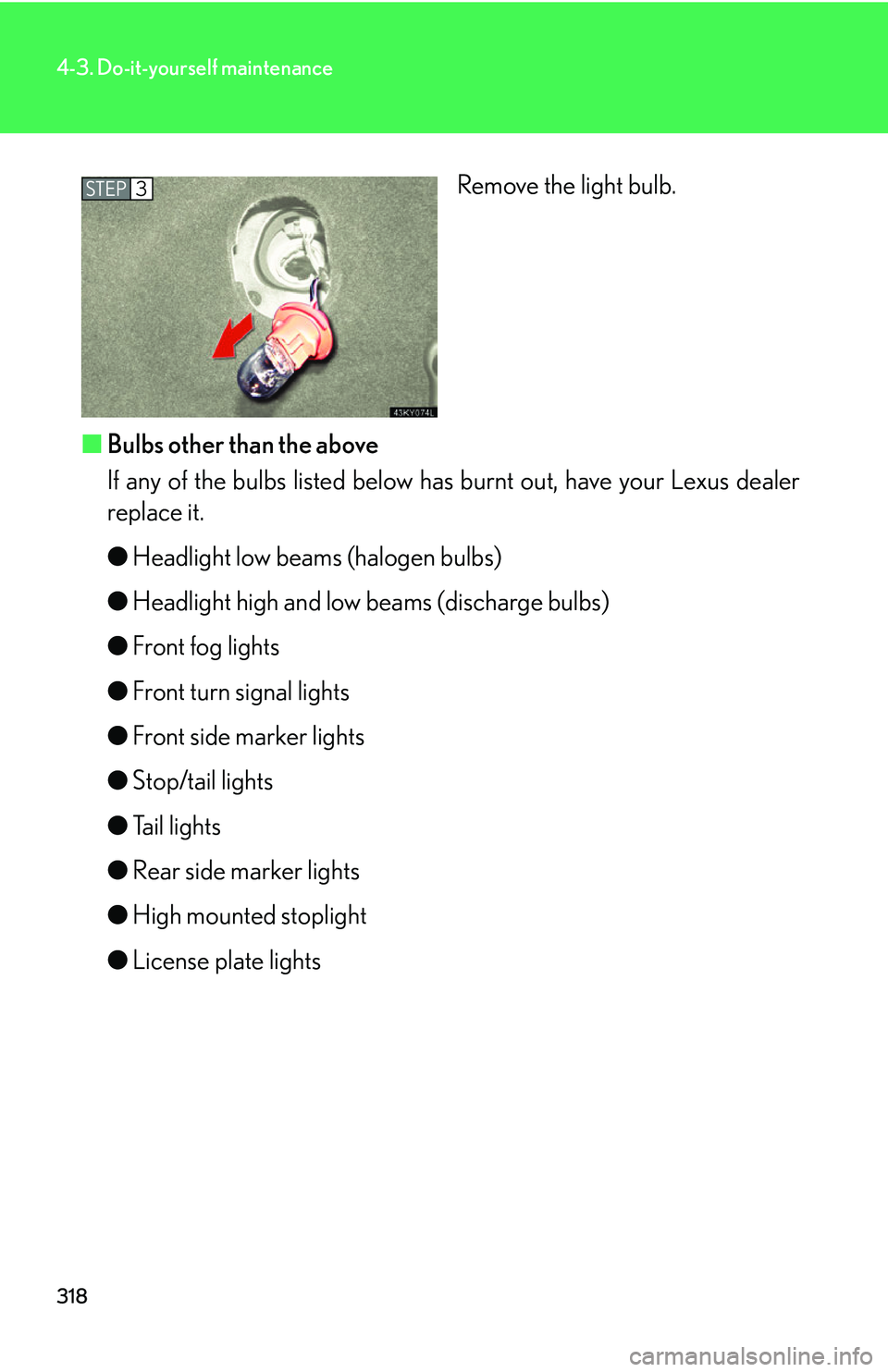

318
4-3. Do-it-yourself maintenance
Remove the light bulb.
■ Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (halogen bulbs)
● Headlight high and low beams (discharge bulbs)
● Front fog lights
● Front turn signal lights
● Front side marker lights
● Stop/tail lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lightsSTEP3
Page 337 of 437
319
4-3. Do-it-yourself maintenance
4
Maintenance and care
■When replacing the front left headlight and parking light bulbs
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more inform ation in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up in side the headlight.
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
Remove the securing bolt and move the
washer fluid filler opening to allow easy
access to the light bulbs.
After replacing the bulbs, make sure to
secure the washer fluid filler opening with the
bolt.
Page 338 of 437
320
4-3. Do-it-yourself maintenance
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water en tering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam headligh t bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■Discharge headlights
●Contact your Lexus dealer be fore replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V wi ll be discharged and could result in
serious injury or death by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
Page 406 of 437
388
6-1. Specifications
Light bulbs
*:If equipped
A: D4S discharge bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: HB3 halogen bulbs
E: Wedge base bulbs (clear)
F: HB4 halogen bulbs
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
High beam
Low/high* beam (discharge bulbs)
Low beam* (halogen bulbs)
9005
D4SH1165
35
55D A B
Front turn signal lights21C
Parking lights1685E
Front fog lights900655F
Trunk light5G
Rear turn signal lights74 4 021E
Back-up lights92116E
Outer foot lights5E
Interior
Vanity lights8E
Interior lights
Front
Rear
10
3.0E
G
Overhead courtesy lights Front
Rear
3.83.0E
G
Door courtesy lights3.8E
Page 429 of 437
411
Alphabetical index
Front passenger's seat belt reminder light ..................................... 335
Front seats Adjustment ...............................................26
Driving position memory ................. 28
Seat position memory .......................... 31
Front turn signal lights Wattage .................................................388
Fuel Capacity.................................................. 377
Fuel gauge ............................................. 105
Fuel pump shut off system ............ 330
Gas station information ................... 419
Information............................................ 389
Refueling ..................................................... 51
Fuel filler door............................................. 51
Fuel pump shut off system ................ 330
Fuses.......................................................... 299
Garage door opener........................... 237
Gas station information ....................... 419
Gauges.......................................................105
Glove box ............................................... 209
Glove box light........................................ 210
Head restraints Adjusting ..................................................33
Headlight aim .......................................... 313
Headlight cleaner .................................. 125
Headlights Discharge headlights precautions ....................................... 320
Replacing light bulbs ......................... 314
Switch ......................................................... 118
Wattage .................................................388 Heaters
Seat heaters .............................. 224, 226
Side mirror...............................................174
Hill-start assist control ......................... 144
Hood .......................................................... 262
Hooks Cargo ...................................................... 234
Coat.......................................................... 232
Shopping bag ...................................... 234
I/M test......................................................258
Identification Engine......................................................375
Vehicle ....................................................375
Illuminated entry system ....................206
Indicator lights............................................ 111
Initialization Items to initialize ................................ 404
Inside rear view mirror .......................... 42
Interior lights Interior lights ........................................ 205
Switch.......................................................207
Wattage ................................................. 388
Jack Positioning the jack ...........................263
Replacing the wheel .........................352
Jack handle.............................................. 352
Keys Electronic key .............................................2
Engine switch .......................................... 94
If you lose your keys .........................362
If your electronic key battery is discharged.....................................363
Key number .................................................2
G
H
I
J
K
Page 430 of 437
412
Alphabetical index
Keys ................................................................. 2
Mechanical key.......................................... 2
Wireless remote control..................... 16
Light bulbs Replacing ................................................. 314
Wattage................................................. 388
Lights Door courtesy lights.........................205
Fog light switch .......................................121
Headlights switch ................................. 118
Interior light switch ............................ 207
Outer foot lights .................................205
Overhead courtesy light................205
Personal light switch ........................ 207
Replacing light bulbs.......................... 314
Scuff lighting .........................................205
Shift lever lighting ..............................205
Turn signal lever .................................. 103
Vanity lights ............................................ 216
Wattage................................................. 388
Load capacity .......................................... 155
Maintenance Do-it-yourself maintenance ......... 259
General maintenance ..................... 255
Maintenance data.............................. 374
Maintenance requirements .......... 253
Manual transmission...............................101
Meter Instrument panel light control ...... 106
Meters ...................................................... 105
Mirrors Inside rear view mirror........................42
Side mirror heater ............................... 174
Side mirrors ............................................. 43 Vanity mirrors ....................................... 216
Moon roof................................................... 48
MP3 disc .......................................................... 191
Multi-information display ........................ 114
Odometer ................................................ 105
Oil Engine oil............................................... 268
Opener Fuel filler door .......................................... 51
Hood ........................................................262
Trunk............................................................ 23
Outer foot lights Outer foot lights................................. 205
Wattage .................................................388
Outside rear view mirrors Adjusting and folding .......................... 43
Driving position memory ..................28
Outside temperature display ............. 115
Overhead console .................................. 211
Overhead courtesy lights Overhead courtesy lights ............. 205
Wattage .................................................388
Overheating, Engine ............................. 369
Parking assist sensors.......................... 138
Parking brake.......................................... 104
Parking lights Replacing light bulbs ......................... 314
Switch ..........................................................118
Wattage .................................................388
PCS (Pre-collision system) ................149
Personal lights Switch .......................................................207
Micro dust and pollen removal mode ........................................................170
L
M
O
P
