transmission Lexus IS250 2006 Using the audio system / LEXUS 2006 IS350/250 QUICK REFERENCE GUIDE

Topic 3
When Driving
23
ETCS Switch (Manual Transmissions)
An indicator comes on when in snow mode.
Press again to return to normal mode.
Lexus Parking Assist-sensor (If Equipped)
■Turning the system on and off
The system can be turned on and off using the satellite switch. ( P. 2 1 )
■Screen display
Sensors are used to detect obstacles near the
vehicle. The distance to a detected obstacle is
shown by the number of indicator bars.
Indicates obstacles detected by the corner
sensors
Indicates obstacles detected by the back sen-
sors
Use the ETCS switch to change to snow mode when starting or accelerating on snow-
covered roads or other slippery surfaces.
The system uses a screen display and buzzer to inform the driver of obstacles near the
vehicle when parking or driving at low speed.
1
2

46
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
Have the malfunction repaired immediately.
Open door warning light
(On the cen-
ter cluster)
Front passenger’s seat belt
reminder light
Low fuel level warning lightLow tire pressure warning
lighta
(On the
instrument cluster)
Driver’s seat belt
reminder light
Master warning light
See the Owner's Manual
Tu r n s i g n a l i n d i c a t o rECT PWR indicator*2
Headlight high beam indicatorCruise control indicator
Headlight indicator (U.S.A.)AFS OFF indicator*1
Tail light indicator (Canada)Lexus parking assist-sensor
indicator
*1
ECT SNOW indicator*2Slip indicator
ETCS SNOW indicator*3
Shift position and shift range indicators*1
*1 : If equipped*2 : For automatic transmissions*3 : For manual transmissions
For further information, re fer to the Owner's Manual.

48
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus

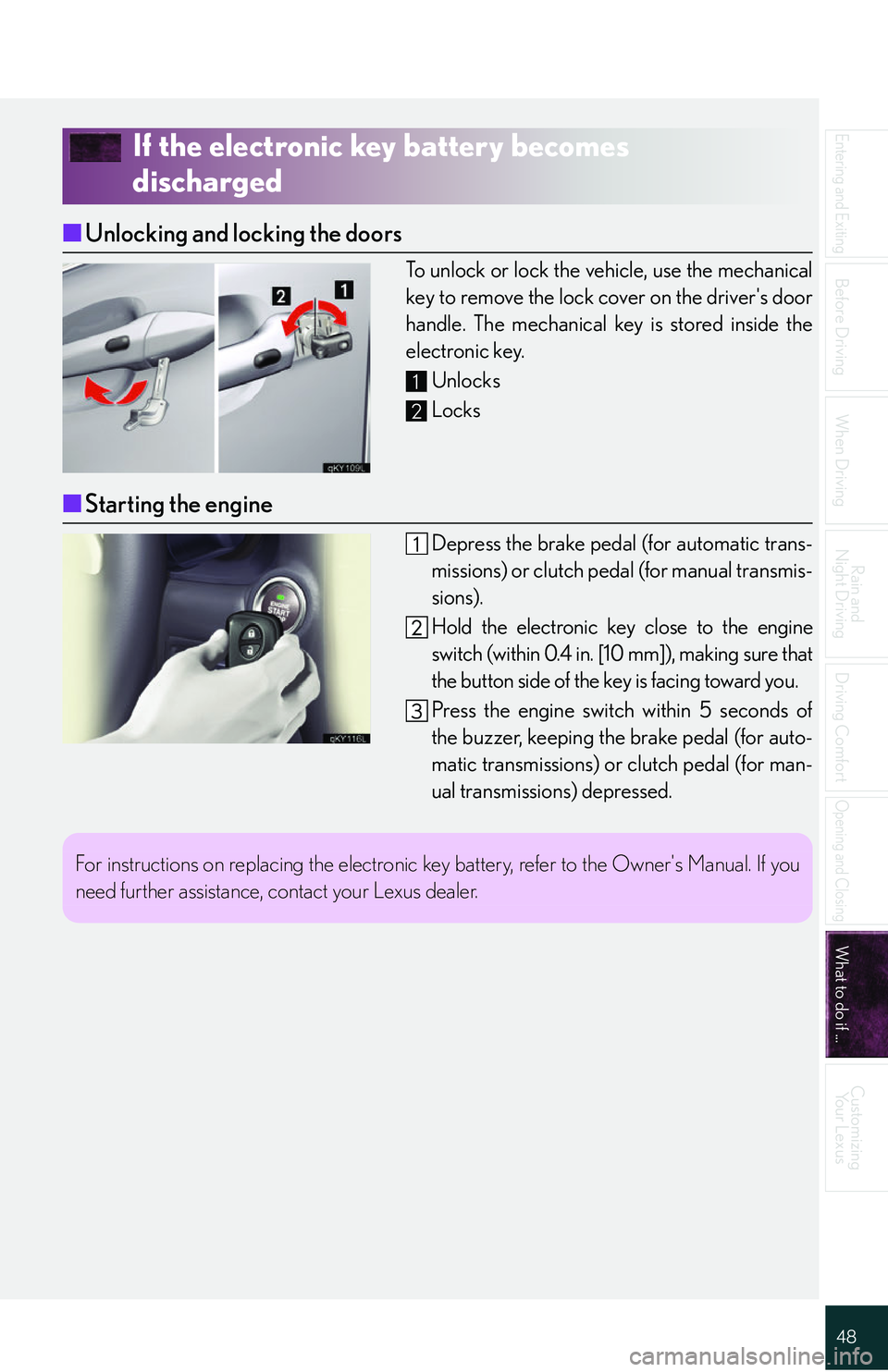

If the electronic key battery becomes
discharged
■ Unlocking and locking the doors
To unlock or lock the vehicle, use the mechanical
key to remove the lock cover on the driver's door
handle. The mechanical key is stored inside the
electronic key.
Unlocks
Locks
■Starting the engine
Depress the brake pedal (for automatic trans-
missions) or clutch pedal (for manual transmis-
sions).
Hold the electronic key close to the engine
switch (within 0.4 in. [10 mm]), making sure that
the button side of the key is facing toward you.
Press the engine switch within 5 seconds of
the buzzer, keeping the brake pedal (for auto-
matic transmissions) or clutch pedal (for man-
ual transmissions) depressed.
1
2
For instructions on replacing the electronic key battery, refer to the Owner's Manual. If you
need further assistance, contact your Lexus dealer.

What to do if ...
49
If the engine doesn't start
Make sure that the correct operating procedures have been followed.Make sure that the brake pedal (for automatic
transmissions) or clutch pedal (for manual trans-
missions) is firmly depressed when attempting to
start the engine. ( P.1 7 )
Automatic transmission
Manual transmission
u tomatic transmissin
Make sure that the steering wheel lock is released.
To release the steering wheel lock, gently turn the
wheel left or right while pressing the engine
switch. (P.9 )
Electronic key alarm
Brake/clutch pedal
Steering wheel lock
If the engine still does not st art, see the Owner's Manual fo r more information or contact
your Lexus dealer.

50
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
Electronic Key Alarm
The electronic key alarm uses an alarm and warn ing messages to indicate that the electronic
key has been used improperly. Take appropri ate measure in response to any warning mes-
sages that are displayed. In some cases, an alarm may sound without an accompanying
warning message. If so, follow the co rrection procedure in the table below.
*Vehicles with an automatic transmission only
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 2 seconds
Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartmentRetrieve the electronic key
from the passenger com-
partment and lock the
doors again.
Tried to exit the vehicle
with the electronic key and
lock the doors without first
turning the engine switch
OFF
Tu r n t h e e n g i n e s w i t c h
OFF and lock the doors
again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic key
from the trunk and close
the trunk lid.
Exterior alarm sounds
once for 10 secondsTried to lock the vehicle
using the entry function
while a door is openClose all of the doors and
lock the doors again.
Interior alarm sounds
continuously*Tried to open the door and
exit the vehicle without
shifting the shift lever to P
Shift the shift lever to P.
Interior alarm pings
continuously
Switched to ACC mode
while the driver's door is
open (Opened the driver's
door when the engine
switch is in ACC mode.)
Tu r n t h e e n g i n e s w i t c h
OFF and close the driver's
door.
Turned the engine switch
OFF while the driver's
door is still open
Close the driver's door.

52
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
ItemFunctionDefault
settingCustomized setting
Door lock
Unlocking using a key
Driver's door
locked in one
step, all doors
locked in two
steps
All doors
locked in one
step.
Speed-detecting automatic
door lock function
(Manual transmissions)
ONOFF
Speed-detecting automatic
door lock function
(Automatic transmissions)
OFFON
Opening driver's door unlocks
all doors
(Manual transmissions)
ONOFF
Opening driver's door unlocks
all doors
(Automatic transmissions)
OFFON
Shifting gears to P unlocks all
doors.ONOFF
Shifting gears to position other
than P locks all doors.ONOFF
Pow e r w i n d o w s
Linked door lock operationONOFF
Linked door key operationOpen and closeOpen only
Close only
Wireless remote control linked
operationONOFF
Moon roof
Linked door lock operationONOFF
Linked door key operationOpen and closeOpen only
Close only
Linked operation of components
when door key is usedSlide onlyTi l t o n l y
Wireless remote control linked
operationONOFF
Linked operation of components
when wireless remote control
used
Slide onlyTi l t o n l y
Automatic light
control system
Light sensor sensitivityLevel 3Levels 1 to 5
Time elapsed before headlights
automatically turn off after
doors are closed
30 seconds
0 seconds
60 seconds
90 seconds
