windshield wipers Lexus IS250 2006 Using the audio system / LEXUS 2006 IS350/250 THROUGH APRIL 2006 PROD. (OM53508U) User Guide

119

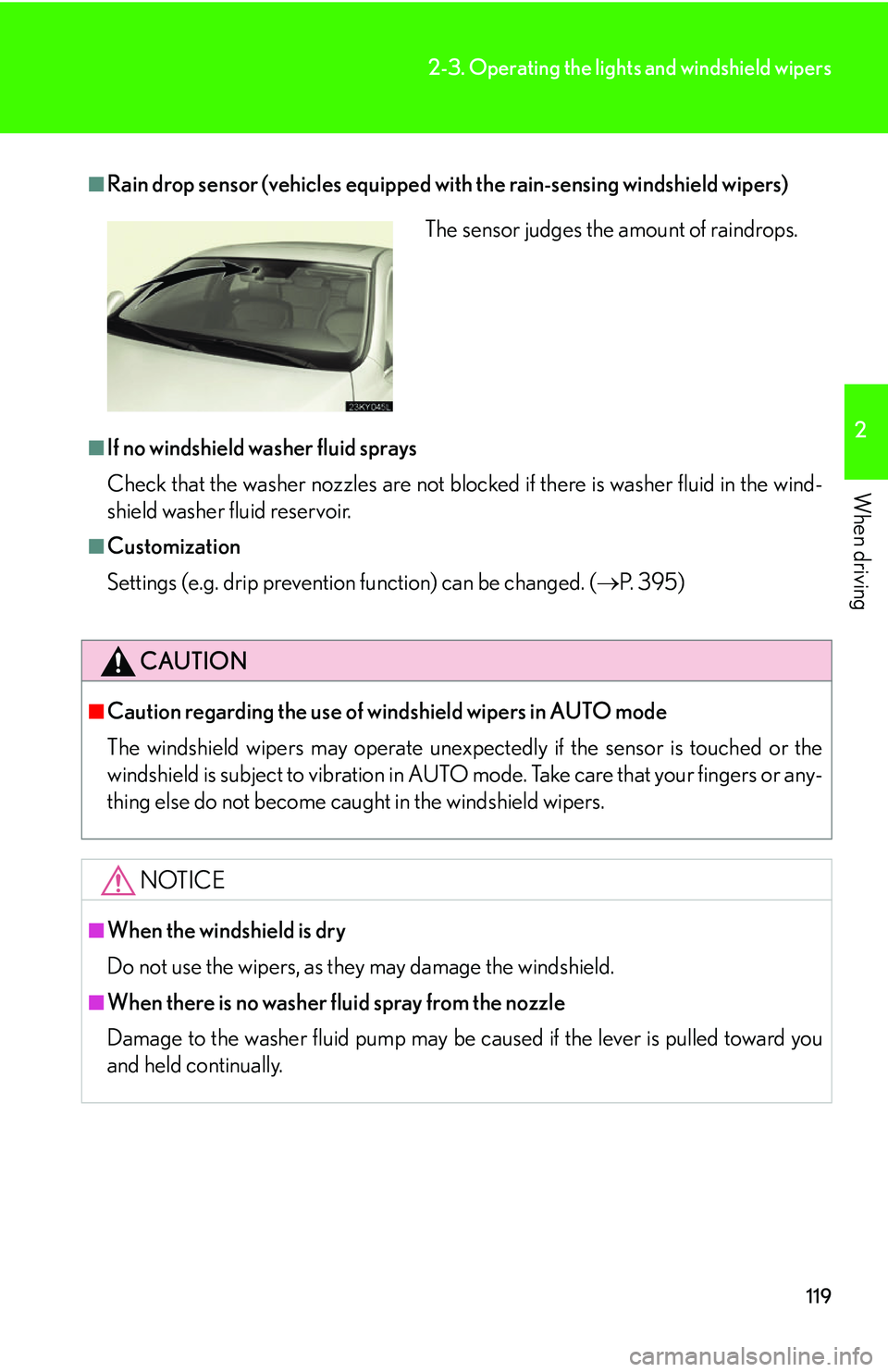

2-3. Operating the lights and windshield wipers
2
When driving
■Rain drop sensor (vehicles equipped with the rain-sensing windshield wipers)
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
■Customization
Settings (e.g. drip prevention function) can be changed. ( P. 3 9 5 )
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers or any-
thing else do not become caugh t in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
The sensor judges the amount of raindrops.

120
2-3. Operating the lights and windshield wipers
Headlight cleaner switch (if equipped)
■The headlight cleaner can be operated when
When the engine switch is in IG-ON mode and the headlight switch is turned ON.
NOTICE
■When the washer fluid tank is empty
Do not use this function when the washer fluid tank is empty. This may cause the
washer fluid pump to overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.

128
2-4. Using other driving systems
The system continues follow-up cruising while adjusting for changes in the
speed of the vehicle ahead in order to maintain the vehicle-to-vehicle dis-
tance set by the driver.
Example of acceleration (when ther e are no longer vehicles driving
slower than the set speed in the lane ahead): When the speed is set to
62 mph (100 km/h) and the vehicle ahead driving at 50 mph (80 km/
h) is out of the lane
When the vehicle ahead of you executes a lane change, the system slowly
accelerates until the set vehicle speed is reached. The system then returns to
fixed speed cruising.
■Dynamic radar cruise control warning lights, display and buzzers
Warning lights, display and buzzers are used to indicate a system malfunction or to
alert you to the need for caution while driving. ( P. 3 3 4 )
■The dynamic radar cruise can be set when
●The shift lever is in D or the 4, 5 or 6 range of S.
●Vehicle speed is between approximately 27 mph (43 km/h) and 87 mph (139
km/h).
■Accelerating
The vehicle can be accelerated normally.
■Automatically canceling vehicle-to-vehicle distance control
Vehicle-to-vehicle distance control driving is automatically canceled in the follow-
ing situations.
●Vehicle speed falls below 25 mph (40 km/h)
●VSC is activated
●The sensor cannot operate correctly because it is covered in some way.*
●The windshield wipers are operating at high speed.*
●The ECT SNOW switch is set to snow mode.*
*
: Vehicle-to-vehicle distance control driving must be reset by turning the ON-OFF button on again.
If vehicle-to-vehicle distance control driving is automatically canceled for any other
reason, there may be a malfunction in the system. Contact your Lexus dealer.

305
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
14RR DOOR LH20APo w e r w i n d o w s
15FR DOOR LH20APo w e r w i n d o w s
16SECURITY7. 5 ASmart access system with push-button
start
17H-LP LVL7. 5 AAFS
18LH-IG10A
Charging system, headlight cleaner,
rear window defogger, electric cool-
ing fans, emergency flashers, turn sig-
nal lights, back-up lights, stop lights,
mirror heaters, sun shade, seat belts,
park assist system, cruise control, air
conditioning system, PTC heater
19FR WIP30AWindshield wipers

5
When trouble arises
343
5-2. Steps to take in an emergency
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashing and then con-tinuously on)
(If equipped)
(Flashing)Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance.
• Switch the driving mode to either the normal or
PWR mode.
• If the windshield wipers are on, turn them off or
set them to either the
intermittent or the slow
mode.
(Flashing)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in radar cruise
mode).
Slow the vehicle by apply-
ing the brakes.
■Changing the engine oil (U.S.A. only)
Make sure to reset the oil change system. ( P. 2 6 4 )
■Warning light display in radar cruise mode
In the following cases, the warning light may not be displayed even if vehicle-to-
vehicle distance closes.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed

398
6-2. Customization
ItemFunctionDefault settingCustomizedsetting
Windshield
wipers and
washer
(
P. 1 1 7 )
Switching operation when
the vehicle is stationaryONOFF
Drip prevention functionONOFF
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Lexus parking
assist-sensor
(
P. 1 3 3 )
Back sensor operation
display and buzzerONOFF
Buzzer volumeLevel 3Level 1 to 5
Illumination
(
P. 2 0 1 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
engine switch turned OFFONOFF
Front foot well lightingONOFF
Shift lever lightingONOFF
Outer foot lightONOFF

412
Alphabetical index
Washer fluid ......................................... 339
Washer Checking ................................................274
Preparing and checking before winter ....................................... 151
Switch .......................................................... 117
Washing and waxing ........................... 244
Weight Cargo capacity..................................... 147
Load limits .............................................. 150
Weight .................................................... 370
Wheels ......................................................289
Window glasses ....................................... 41
Window lock switch ................................ 41
Windows Power windows....................................... 41
Rear window defogger ....................170
Washer ....................................................... 117
Windshield wipers ...................................... 117
Wireless remote control Replacing the battery ...................... 293
WMA disc ................................................ 187
