warning Lexus IS250 2006 Using the audio system / LEXUS 2006 IS350/250 THROUGH APRIL 2006 PROD. (OM53508U) Owner's Guide

231
3-5. Other interior features
3
Interior features
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they are not in
use.
■ Warning triangle storage belt
Loosen
Tighten
■ Luggage mat
Pull the lever upwards when lift-
ing the luggage mat up.
The lever can be hooked on the
edge of the trunk.

237
3-5. Other interior features
3
Interior features
■Before programming
●Install a new battery in the transmitter.
●The battery side of the transmitter must be pointed away from the HomeLink.
■Certification for the garage door opener
This device complies with Part 15 of the FCC Rules and with RSS-210 of the IC
Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
WARNING: This transmitter has been tested and complies with FCC and IC rules.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the device.
CAUTION
■When programming a garage door or other remote control device
The garage door may operate, so ensure people and objects are out of danger to
prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink
 Compatible Transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that canno t detect an obstruction object. A door or
device without these featur es increases the risk of death or serious injury.

250
4-2. Maintenance
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained speciali sts and are kept up to date with the
latest service information. They are well informed about the operations of all
systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been
performed is under warranty coverage. If any problem should arise while your
vehicle is under warranty, your Lexus de aler will promptly take care of it.
CAUTION
■Warning in handling of battery
●Engine exhaust, some of its constituents, and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause can-
cer and birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm. Avoid exposure and wash
any affected area immediately.
●Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after han-
dling. (P. 2 7 1 )
●Used engine oil contains chemicals that have been shown to cause cancer in lab-
oratory animals. Avoid prolonged and repeated contact. Always protect your
skin by washing thorough ly with soap and water.

254
4-2. Maintenance
Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks. The OBD system monitors the oper-
ation of the emission control system.
■ If the electronic engine control system warning light comes on
The OBD system determines that a problem exists somewhere in
the emission control system. Your vehicle may not pass the I/M test
and may need to be repaired. Contact your Lexus dealer to service
the vehicle.
■ Your vehicle may not pass the I/M test:
●When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The electronic engine control sy stem warning light comes on as a
temporary malfunction and your vehicle may not pass the I/M
test.
■ When the electronic engine contro l system warning light goes off
after several driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Lexus dealer to prep are the vehicle for re-testing.

274
4-3. Do-it-yourself maintenance
Washer fluidIf any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.
NOTICE
■When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all accesso-
ries are turned off.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the washer fluid tank.

275
4-3. Do-it-yourself maintenance
4
Maintenance and care
Tires
Replace or rotate tires in accordance with maintenance schedules and
tread wear.
■Checking tires
New tread
Tread wear indicator
Worn tread
The location of tread wear indi-
cators is shown by the TWI or 
marks, etc., molded on the side-
wall of each tire.
Check spare tire condition and
pressure if not rotated.
■ Tire rotation
2WD models with 16-inch tires and AWD models
Rotate the tires in the order
shown.
Lexus recommends tire rotation
in accordance with the mainte-
nance schedule to equalize tire
wear and extend tire life.
Do not fail to initialize the tire
inflation warning system after
tire rotation.
2WD models with 17-inch tires or 18-inch tires
Tires cannot be rotated.
Front

276

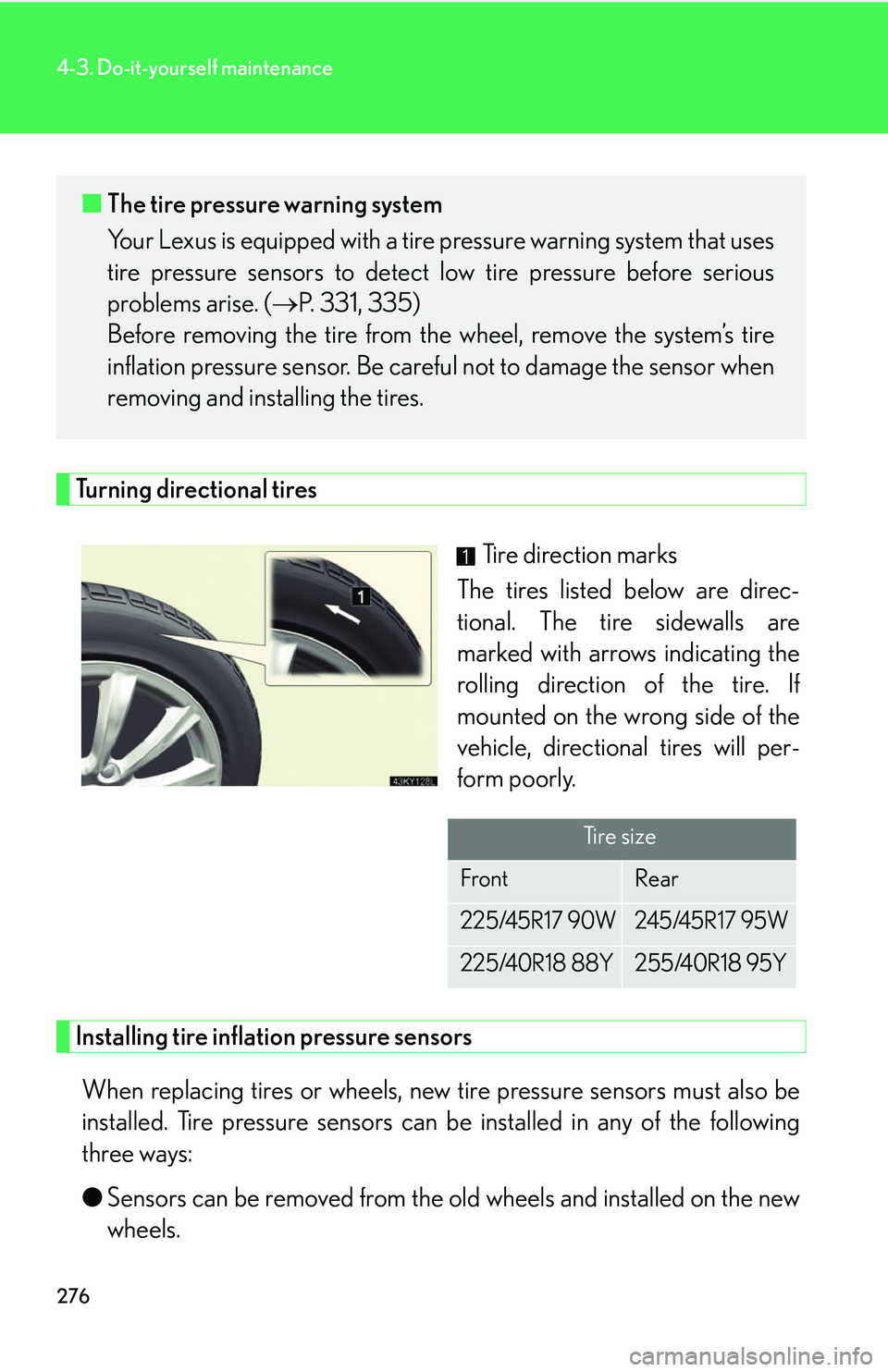

4-3. Do-it-yourself maintenance
Turning directional tiresTire direction marks
The tires listed below are direc-
tional. The tire sidewalls are
marked with arrows indicating the
rolling direction of the tire. If
mounted on the wrong side of the
vehicle, directional tires will per-
form poorly.
Installing tire inflation pressure sensors
When replacing tires or wheels, new tire pressure sensors must also be
installed. Tire pressure sensors ca n be installed in any of the following
three ways:
● Sensors can be removed from the ol d wheels and installed on the new
wheels.
■ The tire pressure warning system
Your Lexus is equipped with a tire pressure warning system that uses
tire pressure sensors to detect low tire pressure before serious
problems arise. ( P. 331, 335)
Before removing the tire from th e wheel, remove the system’s tire
inflation pressure sensor. Be carefu l not to damage the sensor when
removing and installing the tires.
Ti r e s i z e
FrontRear
225/45R17 90W245/45R17 95W
225/40R18 88Y255/40R18 95Y

277
4-3. Do-it-yourself maintenance
4
Maintenance and care
●When replacing only the tire, the sensor already installed on the wheel
does not need to be replaced.
● Replacing both a wheel and its sensor.
When new tire pressure sensors are installed, new sensor ID codes must be
registered in the ECU and tire inflatio n pressure sensor must be initialized.
( P. 277, 278)
Initializing the tire pressure warning system
■ The tire pressure warning system must be initialized in the following
circumstances:
●When the standard tire pressure changes by replacing tires or
wheels
● When tires are rotated.
● When tire pressure sensors are replaced.
● When driving with the tires inflated to a higher than standard tire
pressure.
When the tire pressure warning sy stem is initialized, the current tire
pressure is set as the pressure benchmark.
■ How to initialize the tire pressure warning system
To initialize the system, use the satellite switch. ( P. 214)
Park the vehicle in safe place and turn off the engine.
Adjust the tire pressure to the specified pressure ( P. 3 7 8 )
Turn the engine switch to IG-ON mode.
Make sure to adjust the tire pressure to the specified level. The tire infla-
tion pressure warning system will operate based on this pressure level.
STEP1
STEP2
STEP3

278
4-3. Do-it-yourself maintenance
The tire pressure initialization
setting display
Continue to press the  or 
switch until the initialization setting
display appears.
It may take several minutes to com-
plete the setting. Wait for several
minutes before turning the engine
switch OFF if necessary.
Recording tire pressure settings
Press the ON/OFF button for
more than 3 seconds. At this time,
the tire inflation pressure warning
indicator flashes 3 times and the
message showing that the initial
setting is complete is displayed on
the multi-information display.
Registering and selecting tire inflation pressure sensor ID codesThe tire inflation pressure sensor is equipped with a unique ID code.
To select tire inflation pressure sensor ID codes, use the satellite switch.
( P. 214)
■ Registering ID codes
Two separate sets of ID codes can be registered for each vehicle. This
allows 2 separate sets of settings to be conveniently recorded for all
season and winter tires.
MAIN: The MAIN ID code is used fo r the factory installed tire pres-
sure sensors.
2nd: The 2nd ID code is used for tire inflation pressure sensors associ-
ated with a secondary set of tires.
Make sure to have all tire inflation pressure warning system ID codes regis-
tered by your Lexus dealer. ID codes must be reset when tires or wheels are
replaced.
STEP4

279
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Selecting ID codes
When replacing tires, make sure to select the ID code set that matches
the new tire set. If the incorrect ID code is selected, the tire pressure
warning system will not operate properly.
Tire pressure ID code settings
display
Press  or  repeatedly until the
setting display appears.
Switching ID codes
Press the ON/OFF button to
switch between MAIN and 2nd ID
codes.
■When to replace your vehicle’s tires
Tires should be replaced if:
●You have tire damage such as cuts, splits, cracks deep enough to expose the
fabric or bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the size or
location of a cut or other damage
If you are not sure, consult with your Lexus dealer.
■Tire life
Any tire over 6 years old must be checked by a qualified technician even if they
have seldom or never been used or damage is not obvious.
■If the tread wears down below 0.16 in. (4 mm) on snow tires
The effectiveness of snow tires is lost.
■Low profile tires (vehicles not equipped with 205/55R16 tires)
Generally, low profile tires will wear more rapidly and tire grip performance will be
reduced on snowy and/or icy roads when co mpared to standard tires. Be sure to
use snow tires or tire chains
* on snowy and/or icy roads and drive carefully at a
speed appropriate for road and weather conditions.
*: Tire chains cannot be mounted on 18-inch tires.
