5
When trouble arises
331
5-2. Steps to take in an emergency
Have the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, check
that the warning light turns off.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
ABS warning light
Indicates a malfunction in:
•The ABS; or
• The brake assist system.
Electric power steering system warning light
• Indicates a malfunction in the EPS (Electric Power Steering) system.
Pre-collision system warning light (if equipped)
• Indicates a malfunction in the pre-collision system.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door or a
trunk is not fully closed.
Check that all doors and the
trunk are closed.
Low fuel level warning lightRemaining fuel
(Approximately 2.9 gal. [11 L,
2.4 Imp.gal.] or less)
Refuel the vehicle.
Driver’s seat belt reminder
light (warning buzzer)
*2
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.

5
When trouble arises
333
5-2. Steps to take in an emergency
■If the electronic engine control system warning light comes on while driving
First check the following:
●Is your vehicle low on gas?
If it is, refuel the vehicle immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after taking several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■Front passenger detection sensor and passenger seat belt reminder
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash, even if a passenger is not sitting in
the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.

344
5-2. Steps to take in an emergency
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure re commended by the vehicle manufacturer on
the vehicle placard or tire inflation pressu re label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicl e has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (low tire pressure warning light) when one or more of your tires is
significantly under-inflated. Accordingly, when the low tire pressure telltale (low tire
pressure warning light) illuminates, you shou ld stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle's handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driv er's responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (low tire pressure warning light).

356
5-2. Steps to take in an emergency
If the engine will not start
If the engine will not start, even though correct starting procedures are
being followed (
P. 89), consider each of the following points.
■The engine will not start even when the starter motor operates
normally.
One of the following may be the cause of the problem.
● There may not be sufficient fuel in the vehicle’s tank.
Add fuel to the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures ( P. 89).
● There may be a malfunction in the engine immobilizer system.
( P. 50)
■ The starter motor turns over slow ly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low vol-
ume.
One of the following may be the cause of the problem.
● The battery may be discharged. ( P. 362)
● The battery terminal connections may be loose or corroded.
■ The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( P. 362)
● There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.

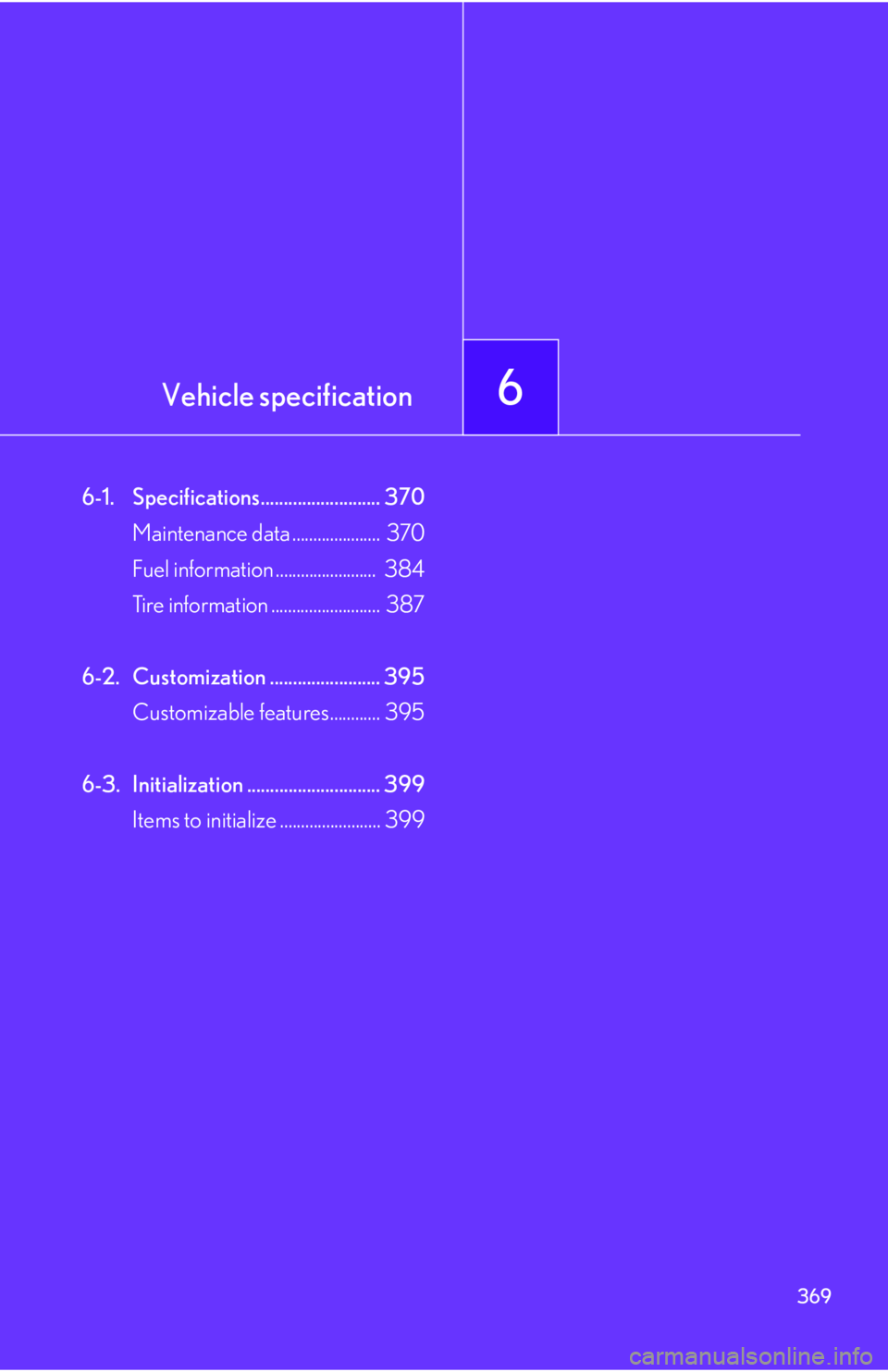

Vehicle specification6
369
6-1. Specifications.......................... 370Maintenance data ..................... 370
Fuel information ........................ 384
Tire information .......................... 387
6-2. Customization ........................ 395 Customizable features............ 395
6-3. Initialization ............................. 399 Items to initialize ........................ 399

372
6-1. Specifications
Engine
Fuel
IS250IS350
Model4GR-FSE2GR-FSE
Ty p e6-cylinder V type,
4-cycle, gasoline6-cylinder V type,
4-cycle, gasoline
Bore and stroke3.27 3.03 in.
(83.0  77.0 mm)3.70  3.27 in.
(94.0  83.0 mm)
Displacement 152.5 cu.in.
(2500 cm3)
210.9 cu.in.
(3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity17.2 gal. (65 L, 14.3 lmp.gal)

373
6-1. Specifications
6
Vehicle specifications
Lubrication system
*: 5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity
●5W oils are for use in areas where the ambient temperature is -3F (-25C) or
above. "10W" oils are for areas where the ambient temperature is -4
F (-20C)
or above. Oils with smaller figures are better for engine starting in cold weather
and fuel efficiency.
● XX-30 indicates oil viscosity. Oils with higher numbers have better sta-
bility at higher temperatures and are good for high-speed driving.
IS250IS350
Oil capacity
(drain and refill)
with filter
2WD models
AWD models
6.6 qt. (6.3 L, 5.5 lmp.qt.)
6.8 qt. (6.4 L, 5.7 lmp.qt.)6.6 qt. (6.3 L, 5.5 lmp.qt.)

without filter
2WD models
AWD models
6.2 qt. (5.9 L, 5.2 lmp.qt.)
6.3 qt. (6.0 L, 5.3 lmp.qt.)6.2 qt. (5.9 L, 5.2 lmp.qt.)
Oil gradeILSAC multi-grade engine oil
Recommended oil
viscosity
Use Lexus approved "Toyota Genuine Motor Oil" or
equivalent to satisfy the above grade and viscosity.
Temperature range anticipated before
next oil change

384
6-1. Specifications
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only acco-
modates the special nozzle on unleaded fuel pumps.
■If premium gasoline is not available
If this premium fuel is not available, you may use unleaded gasoline with an Octane
Rating of 87 or so (Research Octane Number 91).
IS250: The use of such gasoline will cause persistent heavy knocking. If severe, this
will lead to engine damage.
IS350: The use of such gasoline may cause the engine to knock or drastically
reduce output to protect itself while driving with a heavy load. To avoid this, refill the
tank with premium unleaded gasoline as soon as possible.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
Your vehicle must use only unleaded gasoline.
Premium unleaded gasoline with an Octane Rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance.
At minimum, the gasoline you us e should meet the specifications of
ASTM D4814 in the U.S.A. an d CGSB3.5-M93 in Canada.

385
6-1. Specifications
6
Vehicle specifications
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction through better performance.
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
●All gasoline sold in the US contains de tergent additives to clean and/or keep
clean intake systems.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reform ulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Te rtiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Lexus does not recommend blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
●Lexus DOES NOT recommend the use of gasoline containing methanol.
■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancin g additive called MMT (Methylcy clopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the inst rument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.

386
6-1. Specifications
NOTICE
■Notice on gasoline quality
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than that stated
here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knoc king, etc.), discountinue the use of that type of fuel.
■When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle's paint.
