fuel type Lexus IS250 2006 Using the audio system / LEXUS 2006 IS350/250 THROUGH APRIL 2006 PROD. OWNER'S MANUAL (OM53508U)

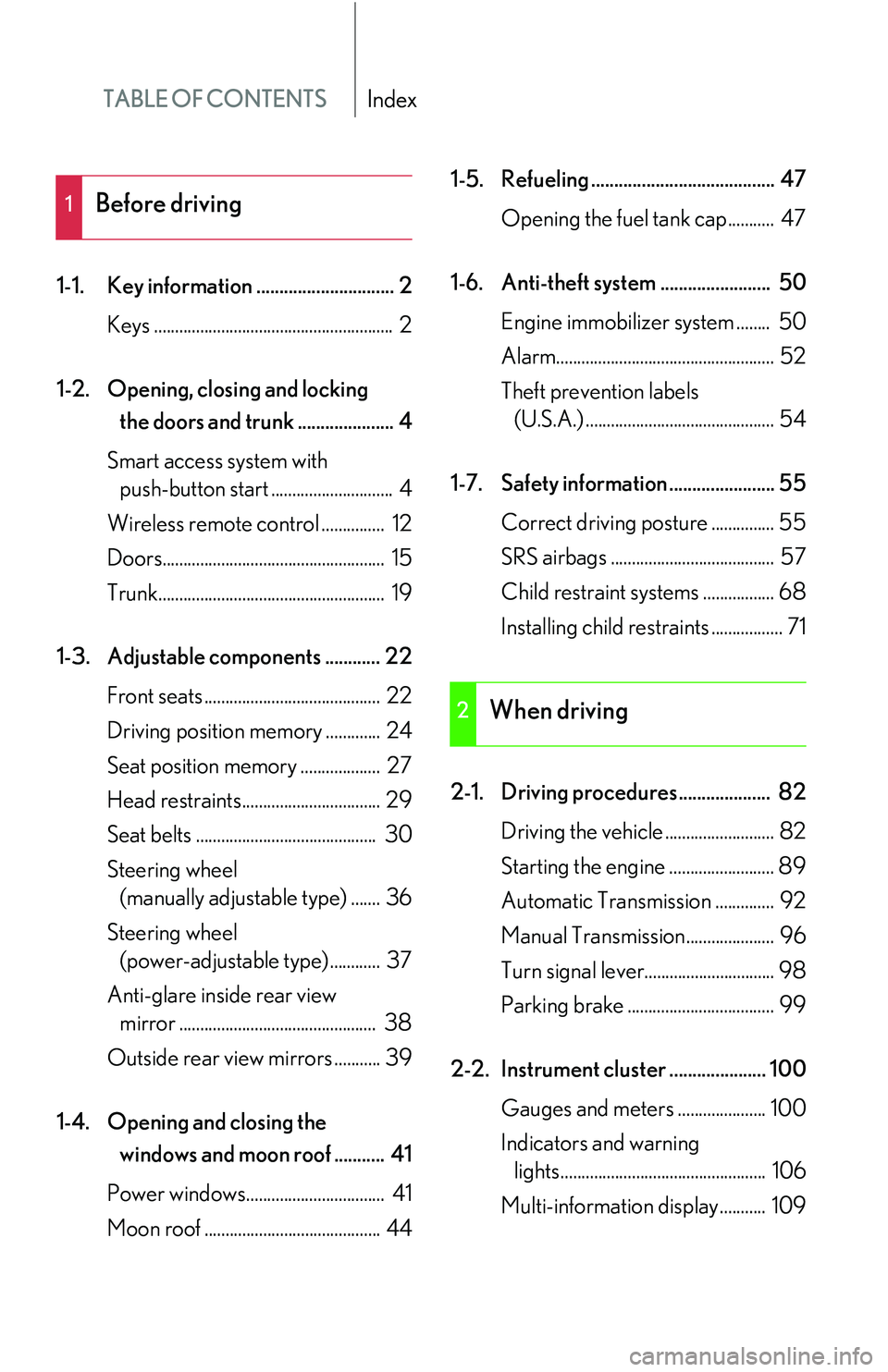

TABLE OF CONTENTSIndex
1-1. Key information .............................. 2Keys ......................................................... 2
1-2. Opening, closing and locking the doors and trunk ..................... 4
Smart access system with push-button start ............................. 4
Wireless remote control ............... 12
Doors..................................................... 15
Trunk...................................................... 19
1-3. Adjustable components ............ 22 Front seats .......................................... 22
Driving position memory ............. 24
Seat position memory ................... 27
Head restraints................................. 29
Seat belts ........................................... 30
Steering wheel (manually adjustable type) ....... 36
Steering wheel (power-adjustable type)............ 37
Anti-glare inside rear view mirror ............................................... 38
Outside rear view mirrors ........... 39
1-4. Opening and closing the windows and moon roof ........... 41
Power windows................................. 41
Moon roof .......................................... 44 1-5. Refueling ........................................ 47
Opening the fuel tank cap........... 47
1-6. Anti-theft system ........................ 50 Engine immobilizer system ........ 50
Alarm.................................................... 52
Theft prevention labels (U.S.A.) ............................................. 54
1-7. Safety information ....................... 55 Correct driving posture ............... 55
SRS airbags ....................................... 57
Child restraint sy stems ................. 68
Installing child restraints ................. 71
2-1. Driving procedures.................... 82 Driving the vehicle .......................... 82
Starting the engine ......................... 89
Automatic Transmission .............. 92
Manual Transmission..................... 96
Turn signal lever............................... 98
Parking brake ................................... 99
2-2. Instrument cluster ..................... 100 Gauges and meters ..................... 100
Indicators and warning lights................................................. 106
Multi-information display........... 109
1Before driving
2When driving

Before driving1
1
1-1. Key information............................ 2Keys....................................................... 2
1-2. Opening, closing and locking the doors and trunk................... 4
Smart access system with push-button start .......................... 4
Wireless remote control............. 12
Doors.................................................. 15
Trunk ................................................... 19
1-3. Adjustable components .......... 22 Front seats ....................................... 22
Driving position memory .......... 24
Seat position memory ................ 27
Head restraints.............................. 29
Seat belts ......................................... 30
Steering wheel (manually adjustable type) .... 36
Steering wheel (power-adjustable type) ......... 37
Anti-glare inside rear view mirror ............................................. 38
Outside rear view mirrors ........ 39 1-4. Opening and closing the
windows and moon roof ........ 41
Power windows ............................... 41
Moon roof ....................................... 44
1-5. Refueling ..................................... 47 Opening the fuel tank cap ........ 47
1-6. Anti-theft system ...................... 50 Engine immobilizer system ...... 50
Alarm ................................................ 52
Theft prevention labels (U.S.A.) .......................................... 54
1-7. Safety information .................... 55 Correct driving posture ............ 55
SRS airbags .................................... 57
Child restraint systems .............. 68
Installing child restraints .............. 71

48
1-5. Refueling
Closing the fuel tank capWhen replacing the fuel tank cap,
turn it until a clicking sound is
heard.
■Fuel types
Use unleaded gasoline. (91 Octane rating [Research Octane Number 96] or
higher)
■Fuel tank capacity
Approximately 17.2 gal. (65 L, 14.3 Imp. gal.)
■When the fuel filler door opener is inoperable
The lever can be used to open the fuel filler
door if the fuel filler door cannot be opened
using the inside switch because the battery is
discharged or for any other reason.

302
4-3. Do-it-yourself maintenance
■Engine compartment (type B)
FuseAmpereCircuit
1FR CTRL-B25AHeadlight high beam, horn
2A/F15AExhaust system
3ETCS10A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
4ALT-S7. 5 ACharging system
5STR LOCK25ASteering lock
6H-LP CLN30AHeadlight cleaner
7A/C COMP7. 5 AAir conditioning system
8DEICER25A
9FR CTRL-AM30AFront fog lights, parking lights, wind-
shield washer
10IG210AIgnition system
11EFI NO.210AFuel system, exhaust system
12H-LP R LWR15AHeadlight low beam (right)
13H-LP L LWR15AHeadlight low beam (left)

372
6-1. Specifications
Engine
Fuel
IS250IS350
Model4GR-FSE2GR-FSE
Ty p e6-cylinder V type,
4-cycle, gasoline6-cylinder V type,
4-cycle, gasoline
Bore and stroke3.27 3.03 in.
(83.0  77.0 mm)3.70  3.27 in.
(94.0  83.0 mm)
Displacement 152.5 cu.in.
(2500 cm3)
210.9 cu.in.
(3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity17.2 gal. (65 L, 14.3 lmp.gal)

385
6-1. Specifications
6
Vehicle specifications
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction through better performance.
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
●All gasoline sold in the US contains de tergent additives to clean and/or keep
clean intake systems.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reform ulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Te rtiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Lexus does not recommend blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
●Lexus DOES NOT recommend the use of gasoline containing methanol.
■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancin g additive called MMT (Methylcy clopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the inst rument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.

386
6-1. Specifications
NOTICE
■Notice on gasoline quality
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than that stated
here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knoc king, etc.), discountinue the use of that type of fuel.
■When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle's paint.

415
GAS STATION INFORMATION
Auxiliary catch leverP. 2 5 8Trunk openerP. 1 9Fuel filler door P. 4 7
Hood lock release lever P. 2 5 8Fuel filler door opener P. 4 7Tire inflation pressureP. 3 7 8
Fuel tank capacity17.2 gal. (65L, 14.3 lmp.gal.)
Fuel typeUnleaded gasoline only P. 48, 372
Cold tire inflation
pressureP. 3 7 8
Engine oil capacity
(Drain and refill)
qt. (L, Imp.qt.)
IS250 IS250
(2WD models) (AWD models) IS350
With filler 6.6 (6.3, 5.5) 6.8 (6.4, 5.7) 6.6 (6.3, 5.5)
Without filler 6.2 (5.9
, 5.2)6.3 (6.0, 5.3) 6.2 (5.9, 5.2)
Engine oil type
Toyota Genuine Motor Oil or equivalent
Oil grade: ILSAC multigrade engine oil P. 373
Recommended oil viscosity: SAE-5W-30
