5
When trouble arises
355
5-2. Steps to take in an emergency
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Installing the spare tireRemove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
STEP4
STEP5
STEP1

356
5-2. Steps to take in an emergency
Install the spare tire and loosely
tighten each nut by hand to
approximately the same amount.
Tighten the wheel nuts until the
tapered portion comes into loose
contact with the disc wheel sheet.
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
STEP2
Disc wheel
sheet
Tapered portion
STEP3
STEP4
STEP5

5
When trouble arises
359
5-2. Steps to take in an emergency
CAUTION
■When using the spare tire
●Remember that your spare tire is specifically designed for use with your vehicle.
Do not use your spare tire on another vehicle.
●Do not use two spare tires simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration and braking, as well as sharp cornering.
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to observe
this precaution may lead to an accident.
NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair.
■Be careful when driving over bumps with the compact spare tire installed on the
vehicle.
The vehicle becomes lower when driving with the compact spare tire compared to
when driving with standard tires. Be careful when driving over uneven road sur-
faces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.

383
6-1. Specifications
6
Vehicle specifications
Steering
Tires and wheelsType A
Free playLess than 1.2 in. (30 mm)
Ti r e s i z e205/55R16 89W, T125/70D17 98M
(spare)
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Driving under normal conditions Front tires:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear tires:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 5.8 psi (40 kPa, 0.4 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar, )
Wheel size16  7JJ, 17  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

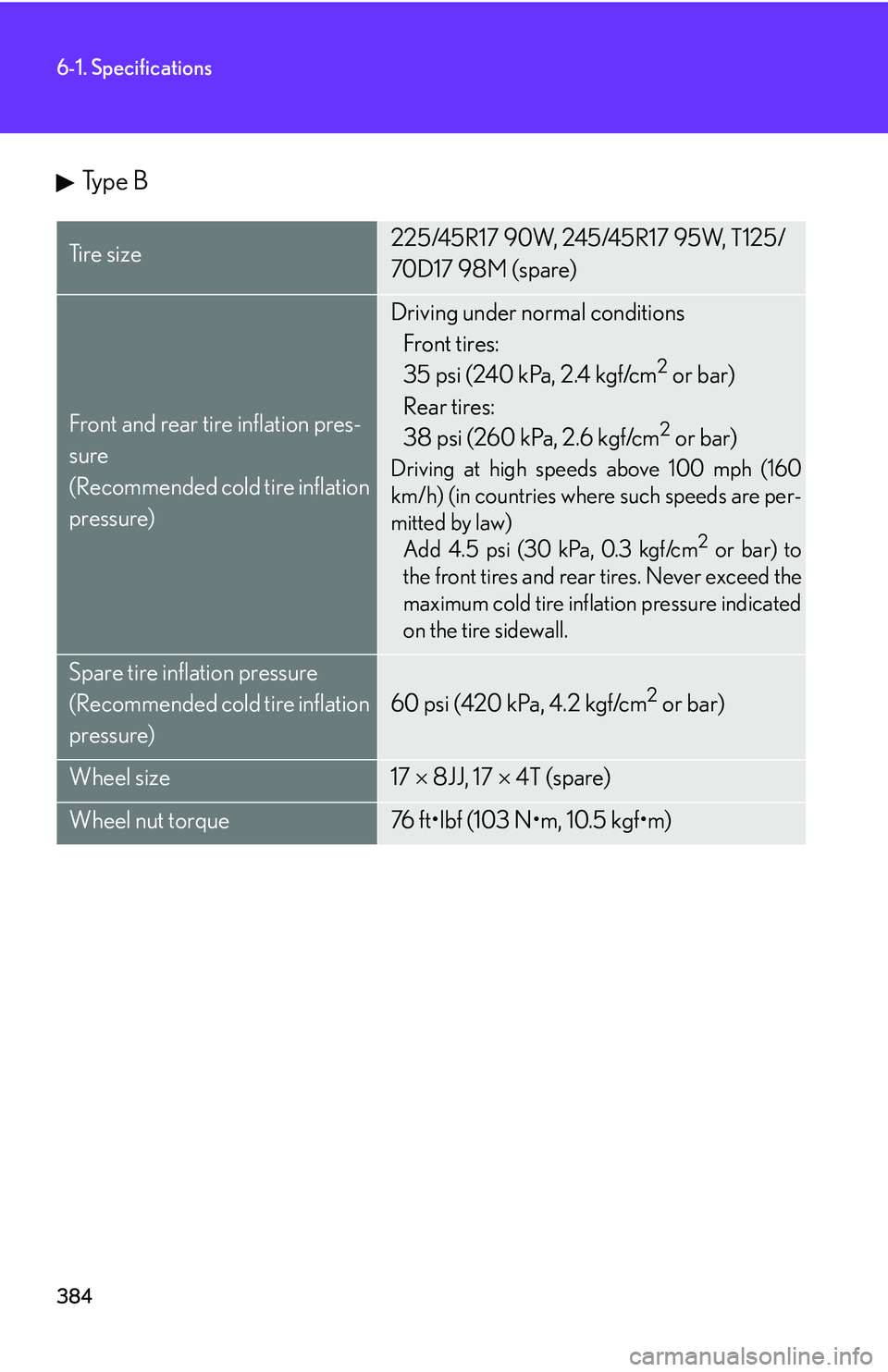

384
6-1. Specifications
Ty p e B
Ti r e s i z e225/45R17 90W, 245/45R17 95W, T125/
70D17 98M (spare)
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Driving under normal conditions Front tires:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear tires:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 4.5 psi (30 kPa, 0.3 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17  8JJ, 17  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

385
6-1. Specifications
6
Vehicle specifications
Type C
Ti r e s i z e225/45R17 91V, 225/45R17 91V, T125/
70D17 98M
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Driving under normal conditionsFront tires:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear tires:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 7.2 psi (50 kPa, 0.5 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17  8JJ, 17  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

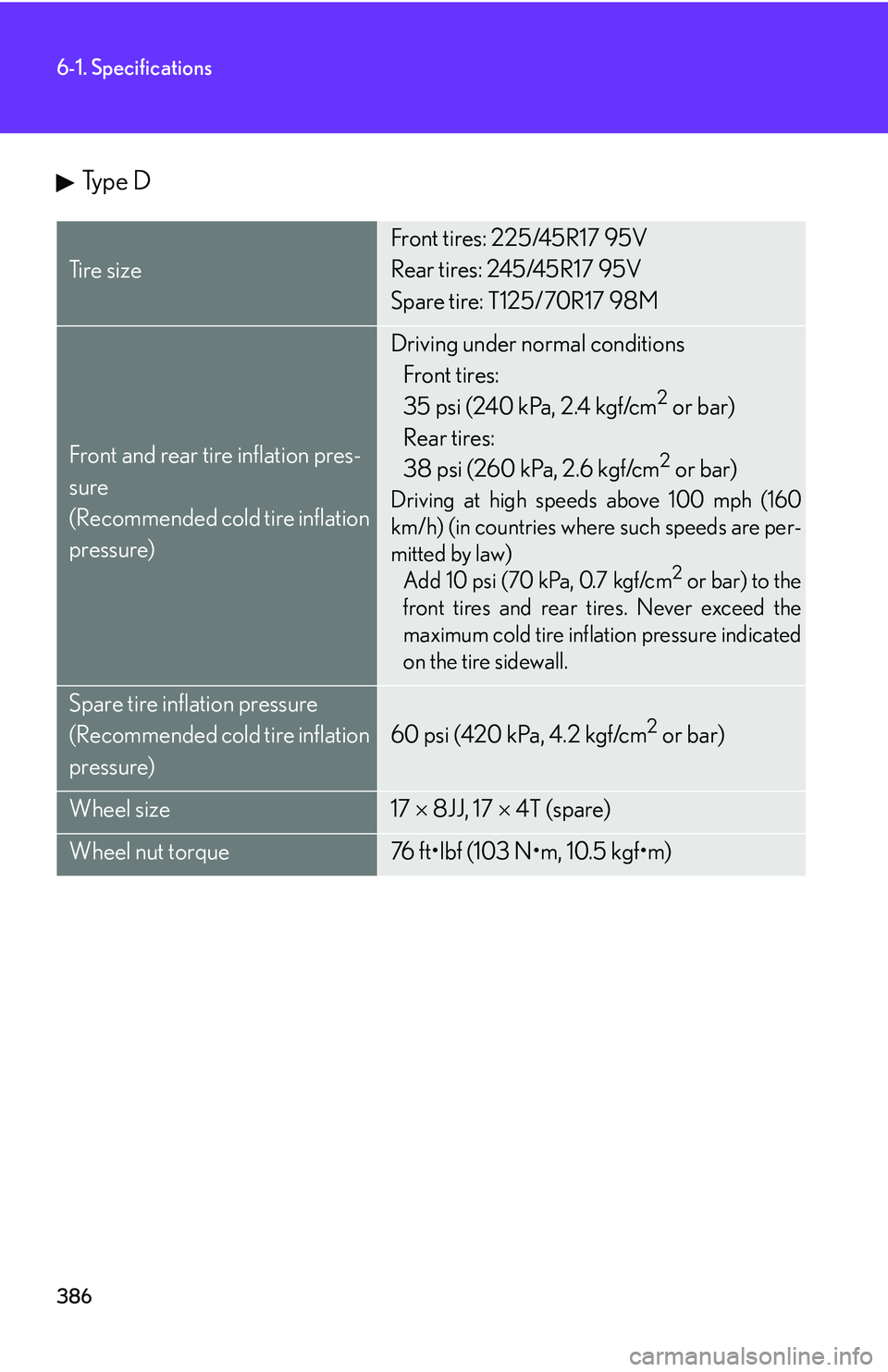

386
6-1. Specifications
Ty p e D
Ti r e s i z e
Front tires: 225/45R17 95V
Rear tires: 245/45R17 95V
Spare tire: T125/70R17 98M
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Driving under normal conditions Front tires:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear tires:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 10 psi (70 kPa, 0.7 kgf/cm
2 or bar) to the
front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17  8JJ, 17  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

387
6-1. Specifications
6
Vehicle specifications
Type E
Ti r e s i z e
Front tires: 225/40R18 88Y
Rear tires: 255/40R18 95Y
Spare tire: T145/70R17 106M
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Driving under normal conditionsFront tires:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear tires:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 7.2 psi (50 kPa, 0.5 kgf/cm
2 or bar) to
the front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size
Front wheels: 18  8J
Rear wheels: 18 8 1 /2J
Spare wheel: 17  4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
