1
2
3
4
5
6
7
iii
Multi-information display ............ 118
2-3. Operating the lights and
windshield wipers .................... 122
Headlight switch ............................ 122
Fog light switch .............................. 125
Windshield wipers and
washer............................................. 126
Headlight cleaner switch .......... 129
2-4. Using other driving
systems ...................................... 130
Cruise control ................................ 130
Dynamic radar cruise
control............................................. 133
Lexus parking assist-sensor...... 142
Driving assist systems.................. 148
PCS (Pre-Collision
System)........................................... 154
2-5. Driving information ................... 157
Cargo and luggage ...................... 157
Vehicle load limits ......................... 160
Winter driving tips .......................... 161
Trailer towing .................................. 165
Dinghy towing
(vehicles with an automatic
transmission) ................................ 166
Dinghy towing
(vehicles with a manual
transmission) ................................ 1673-1. Using the air conditioning
system and defogger .............. 170
Automatic air conditioning
system ............................................. 170
Rear window and outside rear
view mirror defoggers ............. 178
3-2. Using the audio system............. 179
Audio system type ........................ 179
Using the radio............................... 182
Using the CD player.................... 189
Playing back MP3 and
WMA discs................................... 195
Optimal use of the audio
system ............................................ 203
Using the AUX adapter............ 206
Using the steering wheel
audio switches ............................ 207
3-3. Using the interior lights .......... 209
Interior lights list............................ 209
• Interior lights and
personal lights ............................... 211
3-4. Using the storage features..... 213
List of storage features ............... 213
• Glove box ..................................... 213
• Console boxes ............................ 214
• Overhead console .................... 215
• Cup holders.................................. 216
3Interior features

1
2
3
4
5
6
7
v
Fuel pump shut off system ........ 336
Event data recorder .................... 337
5-2. Steps to take in an
emergency .............................. 339
If a warning light turns on or
a warning buzzer
sounds... ....................................... 339
If a warning message is
displayed....................................... 344
If you have a flat tire.................... 358
If the engine will not start .......... 366
If the shift lever cannot be
shifted from P .............................. 367
If you lose your keys ................... 368
When the electronic key
does not operate properly .... 369
If the vehicle battery is
discharged ................................... 372
If your vehicle overheats ........... 375
If the vehicle becomes
stuck................................................ 377
6-1. Specifications............................ 380
Maintenance data ....................... 380
Fuel information ............................ 395
Tire information............................ 398
6-2. Customization .......................... 406
Customizable features .............. 4066-3. Initialization .................................. 411
Items to initialize .............................. 411
Reporting safety defects
for U.S. owners............................ 414
Alphabetical index................................ 416
What to do if... ...................................... 425
6Vehicle specifications
7For US owners
Index

xii

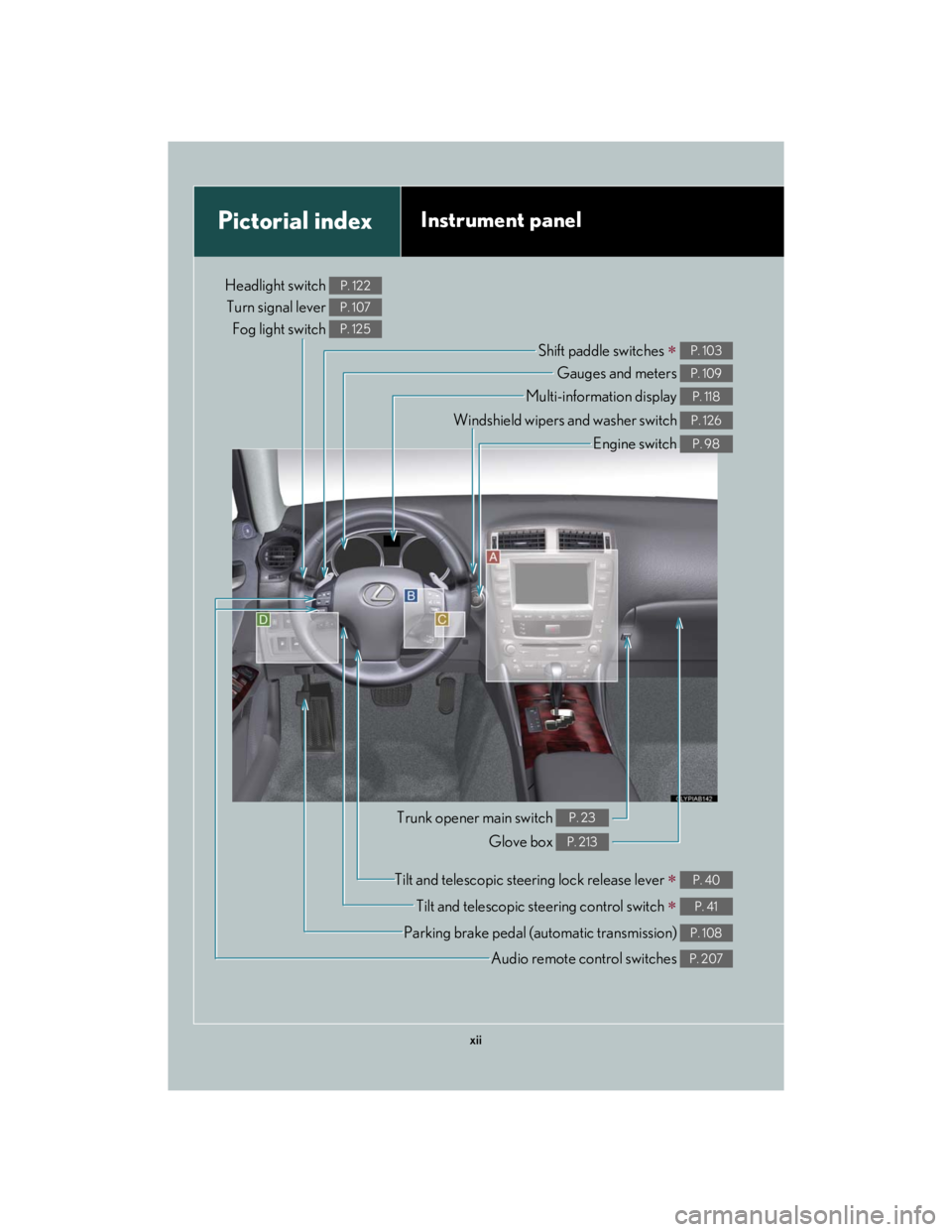

Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 122
P. 107
P. 125
Shift paddle switches  P. 103
Gauges and meters P. 109
Multi-information display P. 118
Windshield wipers and washer switch P. 126
Engine switch P. 98
Trunk opener main switch P. 23
Glove box P. 213
Tilt and telescopic steering lock release lever  P. 40
Tilt and telescopic steering control switch  P. 41
Parking brake pedal (automatic transmission) P. 108
Audio remote control switches P. 207

9
1-2. Opening, closing and locking the doors and trunk
1
Before driving
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step 2.)
■Battery-saving function
In the following circumstances, the entry function is disabled in order to prevent the
vehicle and electronic key batteries from discharging.
●When the entry function has not been used for 2 weeks or more
●When the electronic key has been left within approximately 3 ft. (1 m) of the
vehicle for 10 minutes or more
The system will resume operation when...
●The vehicle is locked using the door handle lock switch.
●The vehicle is locked/unlocked using the wireless remote control function.
(P. 1 6 )
●The vehicle is locked/unlocked using the mechanical key. (P. 3 6 9 )
Multi-information
displayUnlocking doorsBeep
Hold the driver's door handle
to unlock only the driver's
door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors
Hold either front door handle
to unlock all doorsExterior: Beeps twice
Interior: Pings once

12
1-2. Opening, closing and locking the doors and trunk
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures in
response to any warning indications on the multi-information display. (P. 344)
The following table describes circumstances and correction procedures when only
alarms are sounded.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 2
seconds
Tried to lock the doors using
the entry function while the
electronic key is still inside
the passenger compartmentRetrieve the electronic
key from the passenger
compartment and lock
the doors again.
Tried to exit the vehicle with
the electronic key and lock
the doors without first turning
the engine switch OFFTurn the engine switch
OFF and lock the doors
again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic
key from the trunk and
close the trunk lid.
Exterior alarm
sounds once for 10
secondsTried to lock the vehicle using
the entry function while a
door is openClose all of the doors
and lock the doors
again.
Interior alarm
sounds continu-
ously
*
Tried to open the door and
exit the vehicle without shift-
ing the shift lever to P
Shift the shift lever to P.

80
1-7. Safety information
Installing child restraints
Follow the child restraint system manufacturer's instructions. Firmly
secure child restraints to the outside rear seats using a seat belt or a child
restraint lower anchor belt. Attach the top strap when installing a child
restraint.
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt) (P. 3 4 )
Child restraint lower anchor-
ages
Lower anchorages are pro-
vided for the outside rear seats.
(Buttons displaying the location
of the anchorages are attached
to the seats.)
Anchor bracket
(for top strap)
Anchor brackets are provided
for all rear seats.

When driving2
89
2-1. Driving procedures ................. 90
Driving the vehicle ....................... 90
Starting the engine ...................... 98
Automatic Transmission ........... 101
Manual Transmission ................ 105
Turn signal lever .......................... 107
Parking brake ............................... 108
2-2. Instrument cluster................... 109
Gauges and meters .................. 109
Indicators and warning
lights................................................ 115
Multi-information display ......... 118
2-3. Operating the lights and
windshield wipers ................. 122
Headlight switch ......................... 122
Fog light switch............................ 125
Windshield wipers and
washer.......................................... 126
Headlight cleaner switch ........ 1292-4. Using other driving
systems .................................... 130
Cruise control ............................. 130
Dynamic radar cruise
control ......................................... 133
Lexus parking
assist-sensor............................... 142
Driving assist systems............... 148
PCS (Pre-Collision
System)........................................ 154
2-5. Driving information................ 157
Cargo and luggage.................... 157
Vehicle load limits ...................... 160
Winter driving tips ....................... 161
Trailer towing................................ 165
Dinghy towing
(vehicles with an
automatic transmission) ....... 166
Dinghy towing
(vehicles with a manual
transmission) .............................. 167

104
2-1. Driving procedures
■Gear position display when driving in S mode
The current gear is displayed on the multi-information display. (P. 1 2 1 )
■Downshifting restrictions warning buzzer (in the S mode)
To help ensure safety and driving performance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever or shift paddle switch is operated. (The warning buzzer will
sound twice.)
■When driving with the cruise control system or dynamic radar cruise control sys-
tem
The engine brake will not operate in the S mode, even when downshifting to 5 or 4.
(P. 130, 133)
■SNOW mode automatic deactivation
SNOW mode is automatically deactivated if the engine switch is turned off after
driving in SNOW mode.
■If the shift lever cannot be shifted from P
P. 3 6 7
■If the indicator does not come on even after shifting the shift lever to S
This may indicate a malfunction in the automatic transmission system. Have the
vehicle inspected by your Lexus dealer immediately.
(In this situation, the vehicle will operate as if the shift lever is in D.)
■AI-SHIFT
The AI-SHIFT automatically shifts the gear to the optimal position according to the
driver performance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the D position. (Shift-
ing the shift lever to the S position cancels the function.)

109
2
When driving
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer and the tachometer gauge display may
differ depending on the model/type.

The following gauges, meters and display illuminate when the engine
switch is in IG-ON mode.
Speedometer
Displays the vehicle speed.
Multi-information display
P. 118
Tachometer
Displays the engine speed in revolutions per minute.
Tacho indicator
When the set engine speed is reached while driving, this ring-shaped indi-
cators comes on in yellow. The indicator comes on in red when the engine
speed reaches a dangerous range.
Engine coolant temperature gauge
Displays the engine coolant temperature.

110
2-2. Instrument cluster
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
Odometer and trip meter
●Odometer
Displays the total distance the vehicle has been driven.
●Trip meter
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Speed indicator
When the set speed is reached while driving, this ring-shaped indicator
comes on in yellow. The indicator comes on in red when the vehicle speed
reaches the dangerous range.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter and trip meter reset button
Switches between odometer and trip meter displays. Pushing and holding
the button will reset the trip meter when the trip meter is being displayed.
