garage door opener Lexus IS250 2008 Owner's Manual

TABLE OF CONTENTSIndex
08_IS350/250_U_(L/O_0708)
4
3-4. Using the storage features .... 236List of storage features............... 236
• Glove box..................................... 236
• Console boxes ........................... 237
• Overhead console................... 238
• Cup holders................................. 239
• Bottle holders/door pockets ................................ 241
3-5. Other interior features........... 242 Sun visors......................................... 242
Vanity mirror .................................. 243
Clock ................................................. 244
Satellite switches .......................... 245
Ashtrays .......................................... 248
Cigarette lighter ........................... 249
Power outlet .................................. 250
Seat heaters ..................................... 251
Seat heaters and ventilators ..................................... 253
Armrest ............................................ 255
Rear sunshade ............................... 256
Trunk storage extension........... 258
Coat hooks ..................................... 259
Floor mat......................................... 260
Trunk features................................. 261
Garage door opener.................. 264
Compass........................................... 269 4-1. Maintenance and care............ 274
Cleaning and protecting the vehicle exterior .......................... 274
Cleaning and protecting the vehicle interior............................ 277
4-2. Maintenance............................. 280 Maintenance requirements.............................. 280
General maintenance ................ 282
Emission inspection and maintenance (I/M)
programs ..................................... 285
4-3. Do-it-yourself maintenance............................ 286
Do-it-yourself service precautions .................................. 286
Hood................................................. 289
Positioning a floor jack.............. 290
Engine compartment.................. 292
Tires .................................................. 306
Tire inflation pressure.................. 316
Wheels............................................. 320
Air conditioning filter.................. 322
Electronic key battery ................ 325
Checking and replacing fuses ................................................ 327
Headlight aim.................................. 341
Light bulbs ....................................... 342
4Maintenance and care

08_IS350/250_U_(L/O_0708)

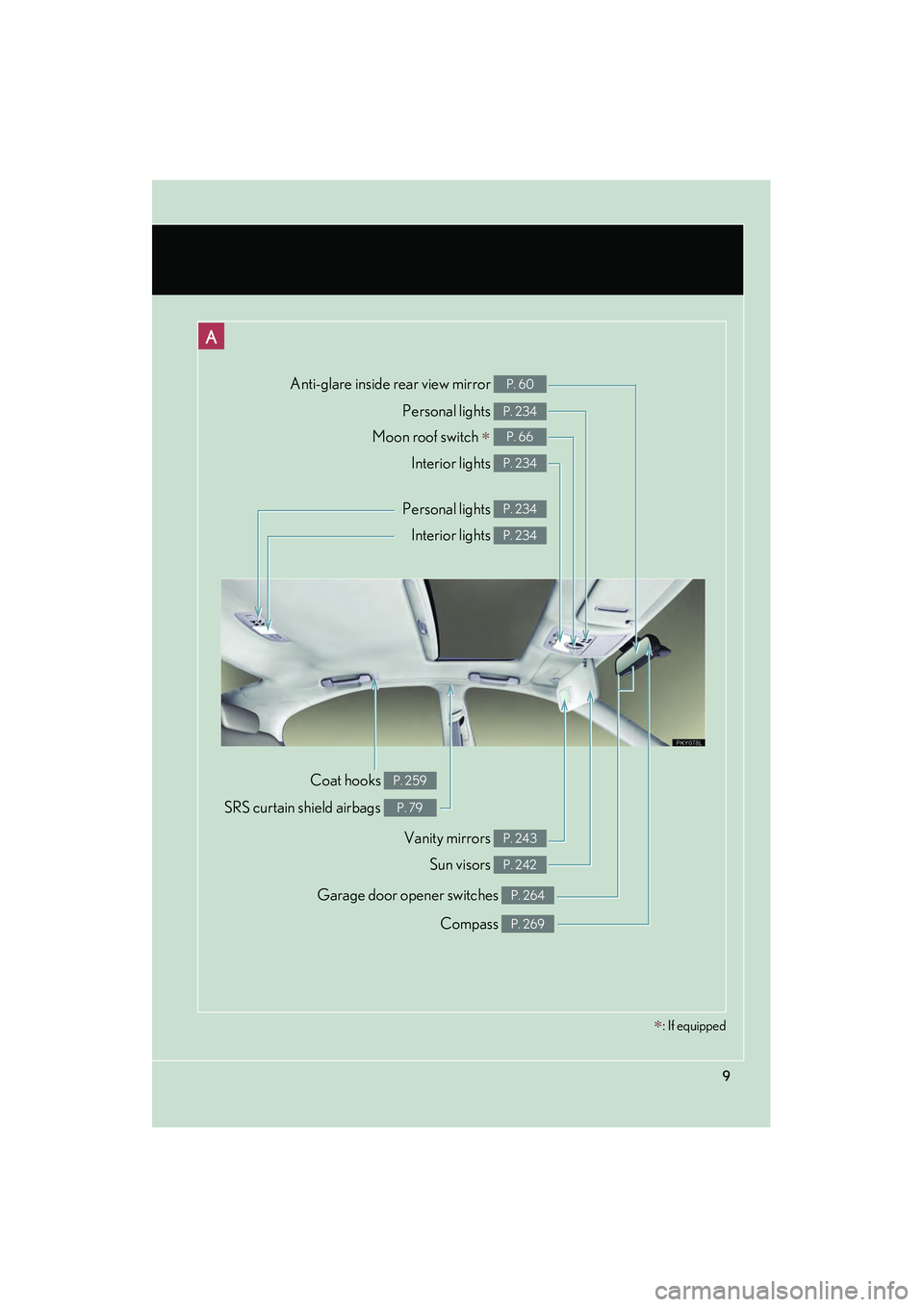

9
Compass P. 269
Garage door opener switches P. 264
Anti-glare inside rear view mirror P. 60
Personal lights P. 234
Moon roof switch ∗ P. 66
Interior lights P. 234
Vanity mirrors P. 243
Personal lights P. 234
Interior lights P. 234
Sun visors P. 242
Coat hooks P. 259
SRS curtain shield airbags P. 79
A
∗: If equipped

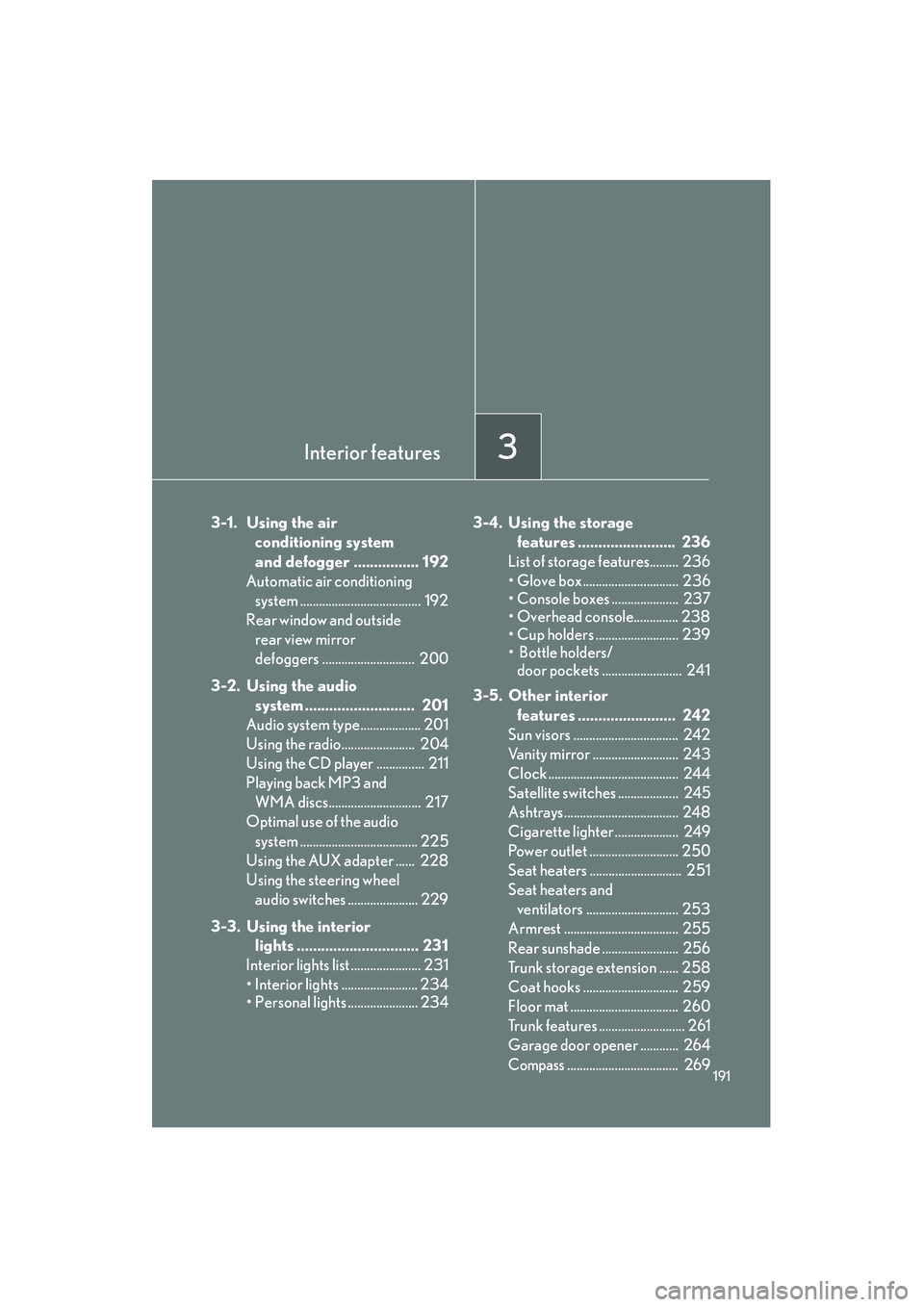

Interior features3
191
08_IS350/250_U_(L/O_0708)
3-1. Using the air conditioning system
and defogger ................ 192
Automatic air conditioning system ...................................... 192
Rear window and outside rear view mirror
defoggers ............................. 200
3-2. Using the audio system ........................... 201
Audio system type................... 201
Using the radio....................... 204
Using the CD player ............... 211
Playing back MP3 and WMA discs............................. 217
Optimal use of the audio
system ..................................... 225
Using the AUX adapter ...... 228
Using the steering wheel audio switches ...................... 229
3-3. Using the interior lights .............................. 231
Interior lights list ...................... 231
• Interior lights ........................ 234
• Personal lights ...................... 234 3-4. Using the storage
features ........................ 236
List of storage features......... 236
• Glove box .............................. 236
• Console boxes ..................... 237
• Overhead console.............. 238
• Cup holders .......................... 239
• Bottle holders/ door pockets ......................... 241
3-5. Other interior features ........................ 242
Sun visors ................................. 242
Vanity mirror ........................... 243
Clock ......................................... 244
Satellite switches ................... 245
Ashtrays.................................... 248
Cigarette lighter .................... 249
Power outlet ............................ 250
Seat heaters ............................. 251
Seat heaters and ventilators ............................. 253
Armrest .................................... 255
Rear sunshade ........................ 256
Trunk storage extension ...... 258
Coat hooks .............................. 259
Floor mat .................................. 260
Trunk features ........................... 261
Garage door opener ............ 264
Compass................................... 269

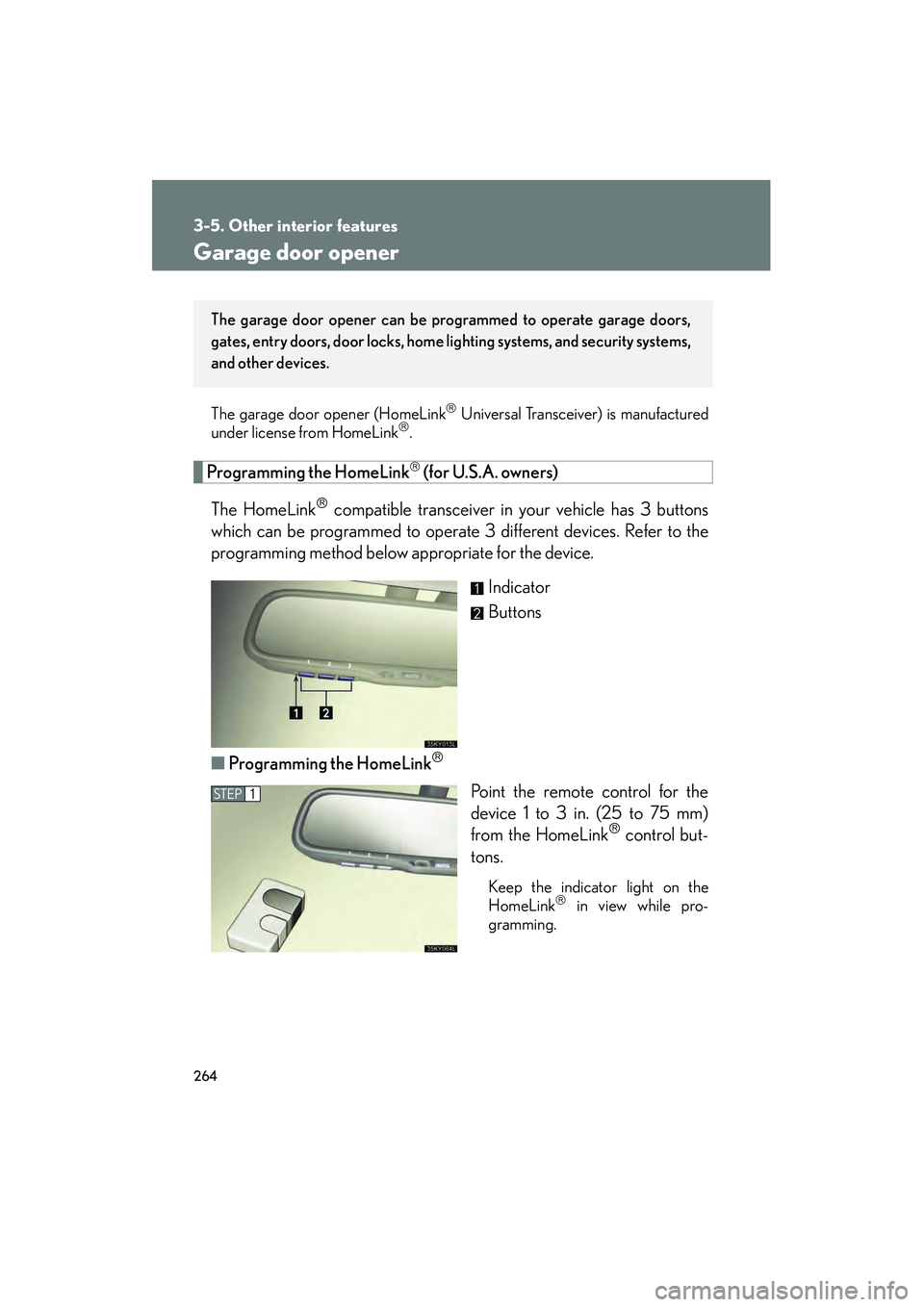

264
3-5. Other interior features
08_IS350/250_U_(L/O_0708)
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufactured
under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
 compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
■ Programming the HomeLink

Point the remote control for the
device 1 to 3 in. (25 to 75 mm)
from the HomeLink
 control but-
tons.
Keep the indicator light on the
HomeLink in view while pro-
gramming.
The garage door opener can be pr ogrammed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.
STEP1

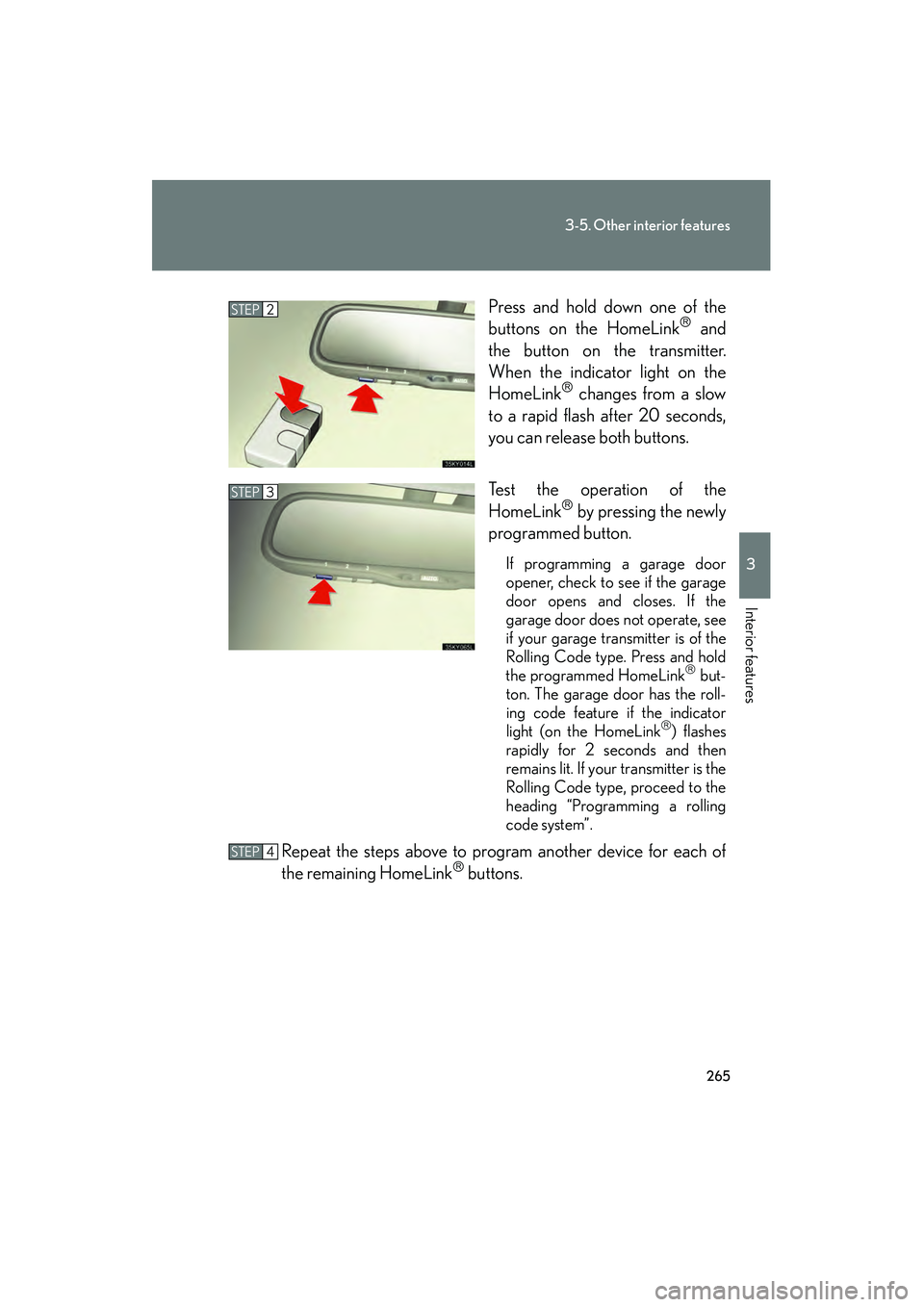

265
3-5. Other interior features
3
Interior features
08_IS350/250_U_(L/O_0708)Press and hold down one of the
buttons on the HomeLink
 and
the button on the transmitter.
When the indicator light on the
HomeLink
 changes from a slow
to a rapid flash after 20 seconds,
you can release both buttons.
Test the operation of the
HomeLink
 by pressing the newly
programmed button.
If programming a garage door
opener, check to see if the garage
door opens and closes. If the
garage door does not operate, see
if your garage transmitter is of the
Rolling Code type. Press and hold
the programmed HomeLink
 but-
ton. The garage door has the roll-
ing code feature if the indicator
light (on the HomeLink
) flashes
rapidly for 2 seconds and then
remains lit. If your transmitter is the
Rolling Code type, proceed to the
heading “Programming a rolling
code system”.
Repeat the steps above to program another device for each of
the remaining HomeLink buttons.
STEP2
STEP3
STEP4

266
3-5. Other interior features
08_IS350/250_U_(L/O_0708)■
Programming a Rolling Code system (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the training button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
Press the training button.
Press and release the vehicle’s programmed HomeLink
 button
twice. The garage door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
 transceiver and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U.S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the indicator light on the HomeLink in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote control
button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans-
ceiver start to flashing rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

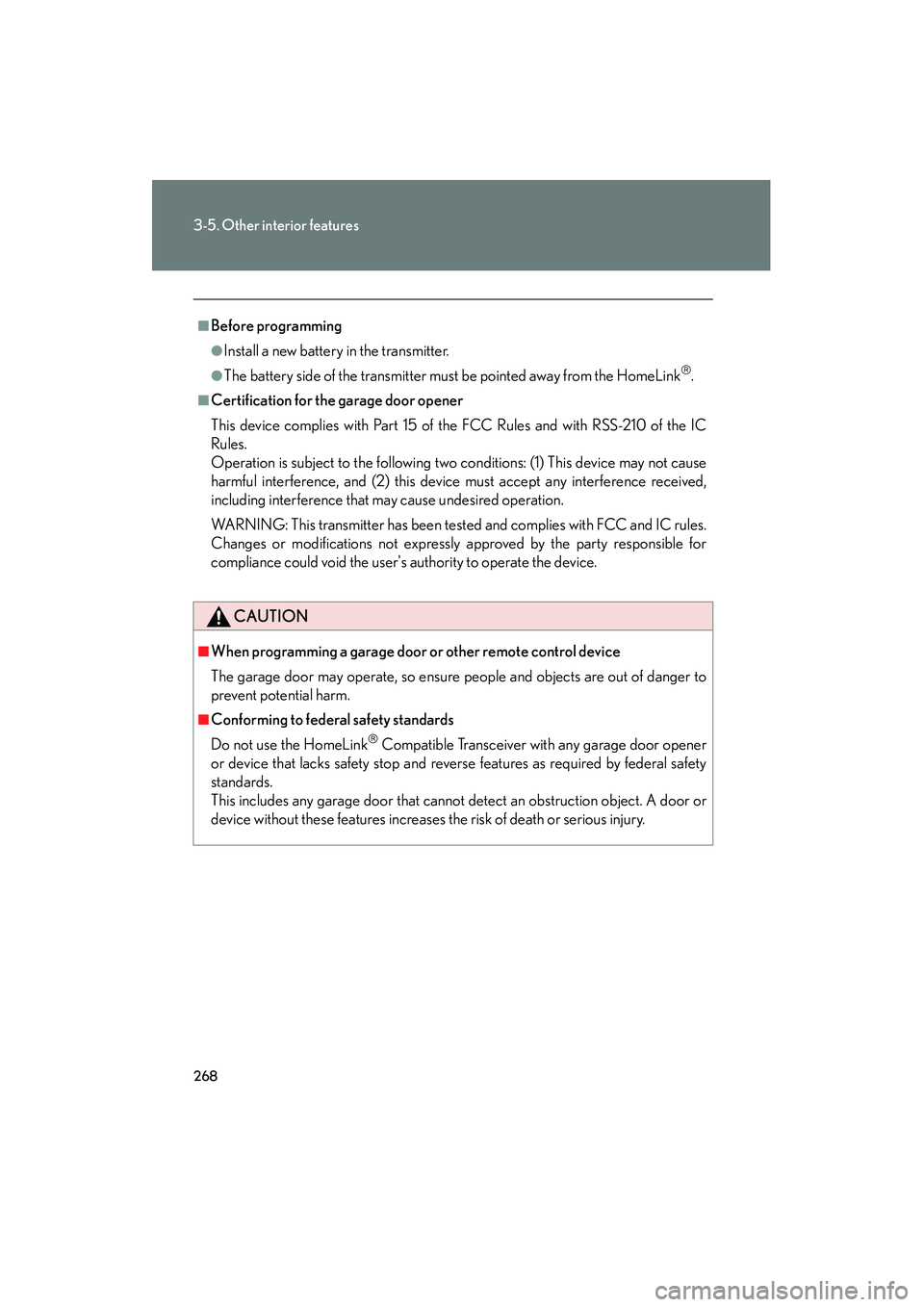

268
3-5. Other interior features
08_IS350/250_U_(L/O_0708)
■Before programming
●Install a new battery in the transmitter.
●The battery side of the transmitter must be pointed away from the HomeLink.
■Certification for the garage door opener
This device complies with Part 15 of the FCC Rules and with RSS-210 of the IC
Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
WARNING: This transmitter has been tested and complies with FCC and IC rules.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the device.
CAUTION
■When programming a garage door or other remote control device
The garage door may operate, so ensure people and objects are out of danger to
prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink
 Compatible Transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that cannot detect an obstruction object. A door or
device without these features increases the risk of death or serious injury.

451
Alphabetical index
08_IS350/250_U_(L/O_0708)
Engine coolantCapacity.....................................................411
Checking ............................................... 299
Preparing and checking
before winter......................................183
Engine coolant temperature
gauge .......................................................130
Engine immobilizer system .................. 72
Engine oil Capacity...................................................410
Checking ............................................... 295
Preparing and checking
before winter......................................183
Engine oil maintenance data ........... 298
EPS............................................................... 170
Event data recorder ............................ 358
First-aid kit storage belt....................... 261
Floor mat.................................................. 260
Fluid
Brake .........................................................301
Washer ...................................................305
Fog lights Switch ........................................................ 146
Wattage ................................................. 420
Foot well lighting .................................... 231
Front fog lights Switch ........................................................ 146
Wattage ................................................. 420
Front passenger occupant
classification system ........................... 90
Front passenger's seat belt
reminder light ......................................362 Front seats
Adjustment ............................................... 44
Driving position memory .................. 46
Seat position memory ........................ 49
Front turn signal lights Switch........................................................ 128
Wattage..................................................420
Fuel
Capacity ................................................ 409
Fuel gauge.............................................. 130
Fuel pump shut off system............. 357
Gas station information ................. 460
Information ..............................................421
Refueling....................................................69
Fuel door ..................................................... 69
Fuel filler door ........................................... 69
Fuel pump shut off system ................. 357
Fuses .......................................................... 327
Garage door opener .......................... 264
Gas station information......................460
Gauges ...................................................... 130
Glove box ................................................ 236
Glove box light ...................................... 237
Head restraints Adjusting ....................................................51
Headlight aim .......................................... 341
Headlight cleaner ....................................151
F
G
H
