oil level Lexus IS250 2008 Owner's Manual

1
2
3
4
5
6
7
08_IS350/250_U_(L/O_0708)
5
5-1. Essential information .............. 350If your vehicle needs to be towed............................................. 350
If you think something is wrong ............................................. 356
Fuel pump shut off system ........ 357
Event data recorder ................... 358
5-2. Steps to take in an emergency .............................. 360
If a warning light turns on or a warning buzzer
sounds... ....................................... 360
If a warning message is displayed....................................... 369
If you have a flat tire.................... 382
If the engine will not start ........... 391
If the shift lever cannot be shifted from P .............................. 392
If you lose your keys .................... 393
If the electronic key does not operate properly ....................... 394
If the vehicle battery is discharged ................................... 397
If your vehicle overheats .......... 400
If the vehicle becomes stuck................................................ 402 6-1. Specifications............................ 406
Maintenance data (fuel, oil level, etc.) ................................ 406
Fuel information............................. 421
Tire information ............................ 424
6-2. Customization .......................... 436 Customizable features .............. 436
6-3. Initialization ................................ 441 Items to initialize ............................ 441
Reporting safety defects for U.S. owners ........................................... 444
Abbreviation list ................................... 446
Alphabetical index............................... 448
What to do if... ....................................... 458
5When trouble arises6Vehicle specifications
7For US owners
Index

116
2-1. Driving procedures
08_IS350/250_U_(L/O_0708)
NOTICE
■If you hear a squealing or scraping noise (brake pad wear limit indicators)
Have your Lexus dealer check and replace the brake pads as soon as possible.
The rotor damage can result if the pads are not replaced when needed.
Front brake only: Moderate levels of the brake pad and disc wear allow enhanced
front braking power. As a result, the discs may wear more quickly than conventional
brake discs. Therefore, when replacing the brake pads, Lexus recommends that you
also have the thickness of the discs measured.
It is dangerous to drive the vehicle when the wear limits of the brake pads and/or
that of the brake discs are exceeded.
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually press the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds.
●The vehicle will behave abnormally.
Replace a flat tire with a new one. ( →P. 3 8 4 )
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle.
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have your Lexus dealer check the following.
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, transmission,
differential, etc.
●Lubricant condition for the propeller shaft, bearings and suspension joints (where
possible) and the function of all joints, bearings, etc.

183
2-5. Driving information
2
When driving
08_IS350/250_U_(L/O_0708)
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
● Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
• Have a service technician inspect the level and specific gravity
of battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the specified size and the same brand, and that
chains match the size of the tires.
■Before driving the vehicle
Perform the following according to the driving conditions.
● Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumulated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.

282
4-2. Maintenance
08_IS350/250_U_(L/O_0708)
General maintenance
Engine compartment
ItemsCheck points
BatteryMaintenance-free. (→P. 3 0 2 )
Brake fluidAt the correct level? (→P. 3 0 1 )
Engine coolantAt the correct level? (→P. 2 9 9 )
Engine oilAt the correct level? (→P. 2 9 5 )
Exhaust systemNo fumes or strange sounds?
Radiator/condenser/hosesNot blocked with foreign matter?
(
→P. 3 0 1 )
Wa s h e r f l u i dAt the correct level? (→P. 3 0 5 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide” or “Owners
Manual Supplement”. It is recommended that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

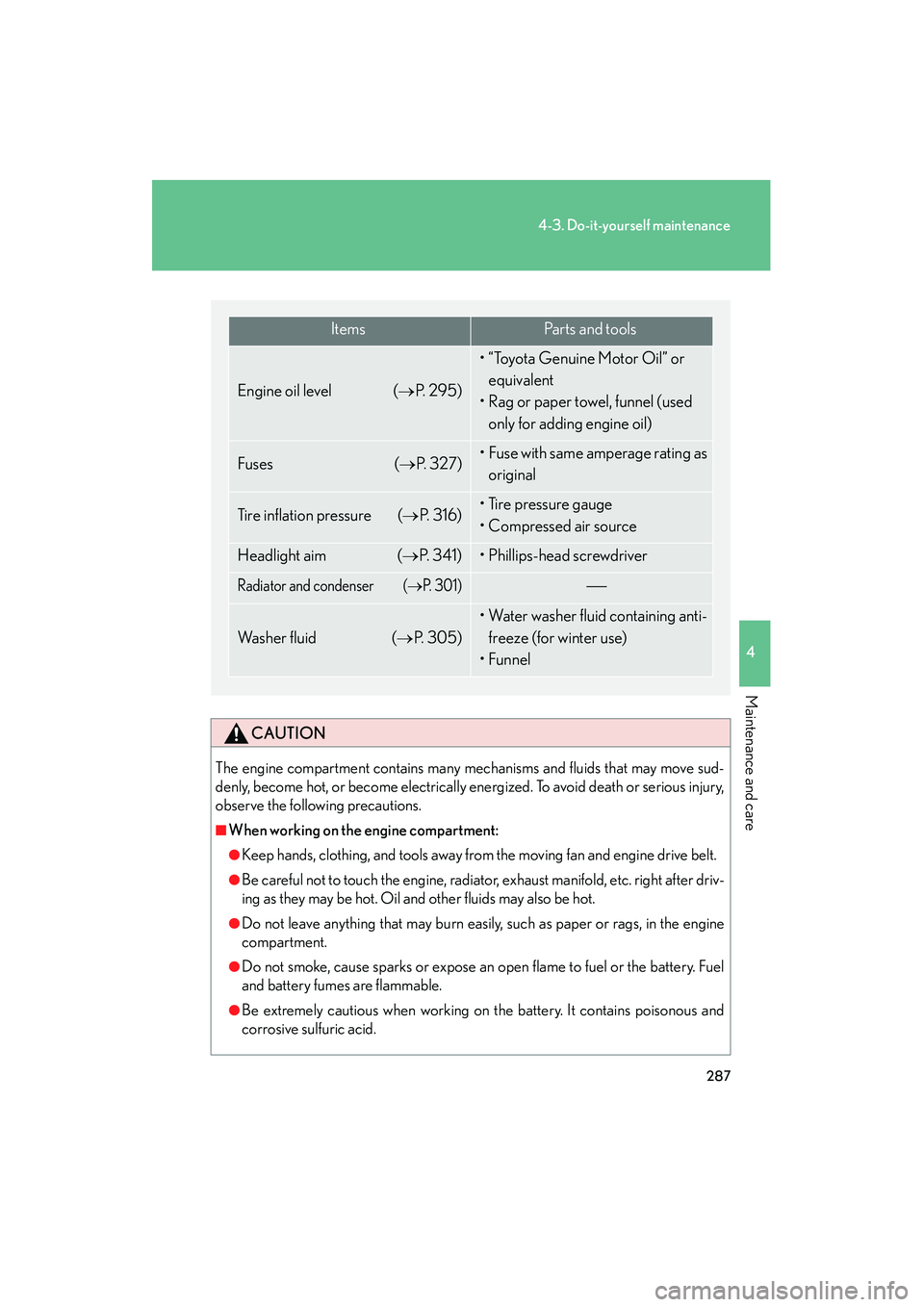

287
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0708)
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precautions.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
ItemsParts and tools
Engine oil level (→P. 2 9 5 )
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses (→P. 3 2 7 )• Fuse with same amperage rating as
original
Tire inflation pressure (→P. 316)• Tire pressure gauge
• Compressed air source
Headlight aim (→P. 3 4 1 )• Phillips-head screwdriver
Radiator and condenser (→P. 3 0 1 )
Wa s h e r f l u i d (→P. 3 0 5 )
• Water washer fluid containing anti-freeze (for winter use)
•Funnel

292
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0708)
Engine compartment
IS350
Battery (→P. 302)
Engine oil level dipstick (→P. 295)
Engine oil filler cap (→P. 295)
Brake fluid reservoir (→P. 301)
Fuse boxes ( →P. 327)Washer fluid tank
(→P. 305)
Electric cooling fans
Condenser ( →P. 3 0 1 )
Radiator ( →P. 3 0 1 )
Engine coolant reservoir (→P. 299)

293
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0708)
IS250
Battery (→P. 302)
Engine oil level dipstick (→P. 295)
Engine oil filler cap (→P. 295)
Brake fluid reservoir (→P. 301)
Fuse boxes ( →P. 327)Washer fluid tank
(→P. 305)
Electric cooling fans
Condenser ( →P. 3 0 1 )
Radiator ( →P. 3 0 1 )
Engine coolant reservoir (→P. 299)

295
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0708)
Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the engine, wait
a few minutes for the oil to drain back into the bottom of the
engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Wipe the dipstick and reinsert it fully. Low
Full
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

296
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0708)■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil. Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
It takes about 1.6 qt. (1.5 L, 1.3 lmp.qt.) to raise the oil level from low to full on the
dipstick.
Oil gradeILSAC multi-grade engine oil
ItemsClean funnel
STEP1
STEP2
STEP3

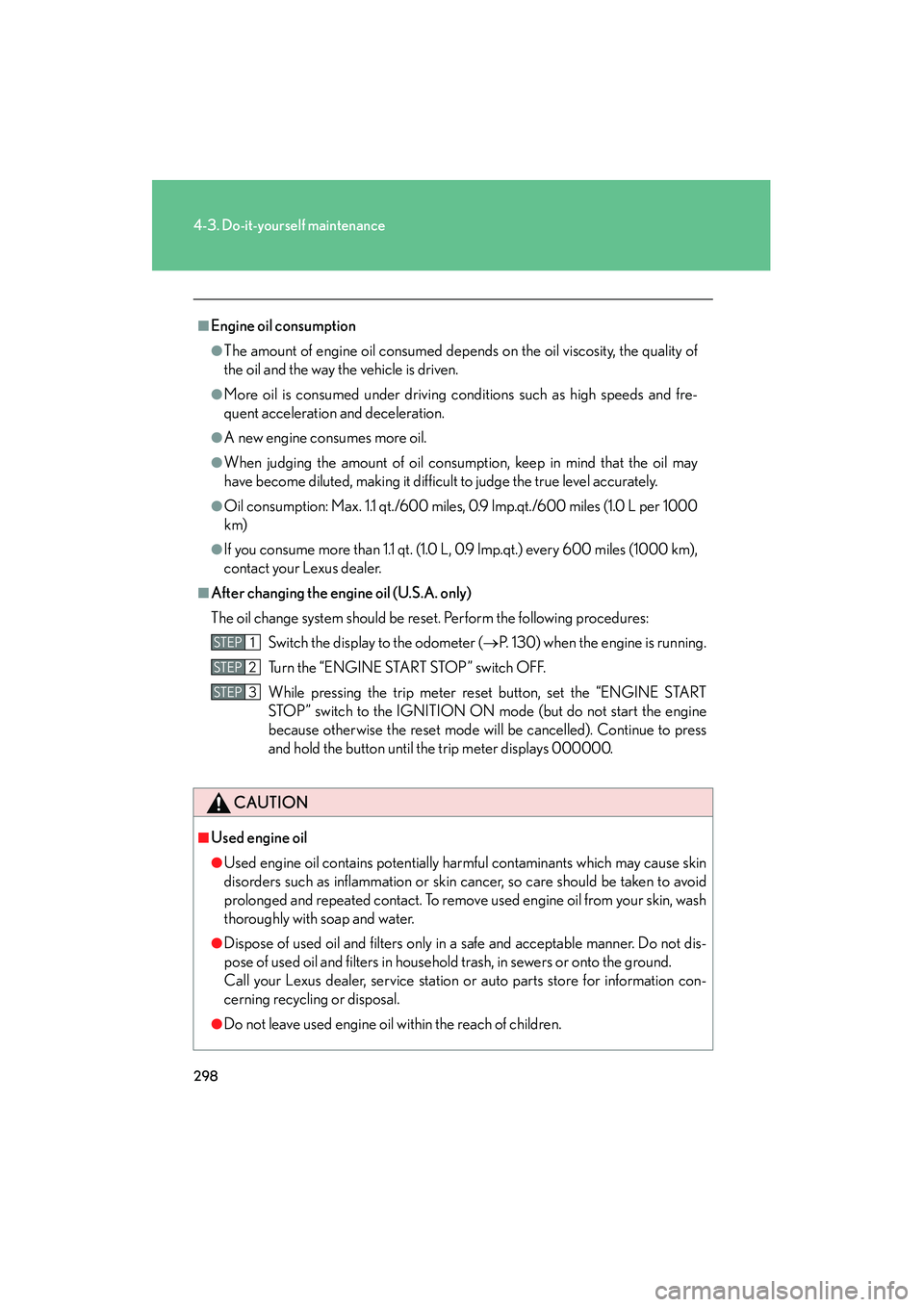

298
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0708)
■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the quality of
the oil and the way the vehicle is driven.
●More oil is consumed under driving conditions such as high speeds and fre-
quent acceleration and deceleration.
●A new engine consumes more oil.
●When judging the amount of oil consumption, keep in mind that the oil may
have become diluted, making it difficult to judge the true level accurately.
●Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per 1000
km)
●If you consume more than 1.1 qt. (1.0 L, 0.9 lmp.qt.) every 600 miles (1000 km),
contact your Lexus dealer.
■After changing the engine oil (U.S.A. only)
The oil change system should be reset. Perform the following procedures:Switch the display to the odometer (
→P. 130) when the engine is running.
Turn the “ENGINE START STOP” switch OFF.
While pressing the trip meter reset button, set the “ENGINE START
STOP” switch to the IGNITION ON mode (but do not start the engine
because otherwise the reset mode will be cancelled). Continue to press
and hold the button until the trip meter displays 000000.
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in household trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
STEP1
STEP2
STEP3
