oil temperature Lexus IS250 2008 Owner's Manual

295
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0708)
Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the engine, wait
a few minutes for the oil to drain back into the bottom of the
engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Wipe the dipstick and reinsert it fully. Low
Full
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

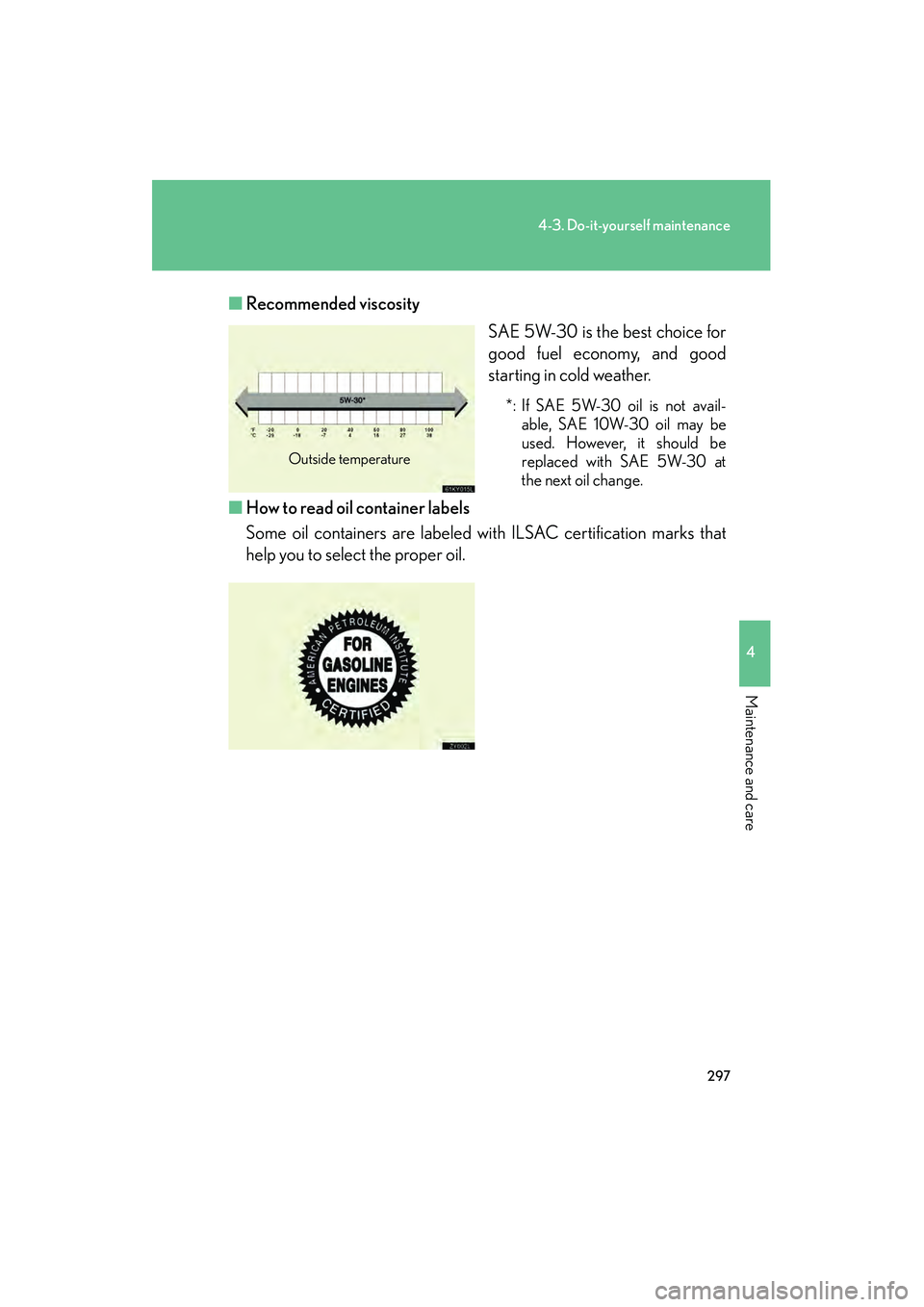

297
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0708)■
Recommended viscosity
SAE 5W-30 is the best choice for
good fuel economy, and good
starting in cold weather.
*: If SAE 5W-30 oil is not avail-able, SAE 10W-30 oil may be
used. However, it should be
replaced with SAE 5W-30 at
the next oil change.
■ How to read oil container labels
Some oil containers are labeled with ILSAC certification marks that
help you to select the proper oil.
Outside temperature

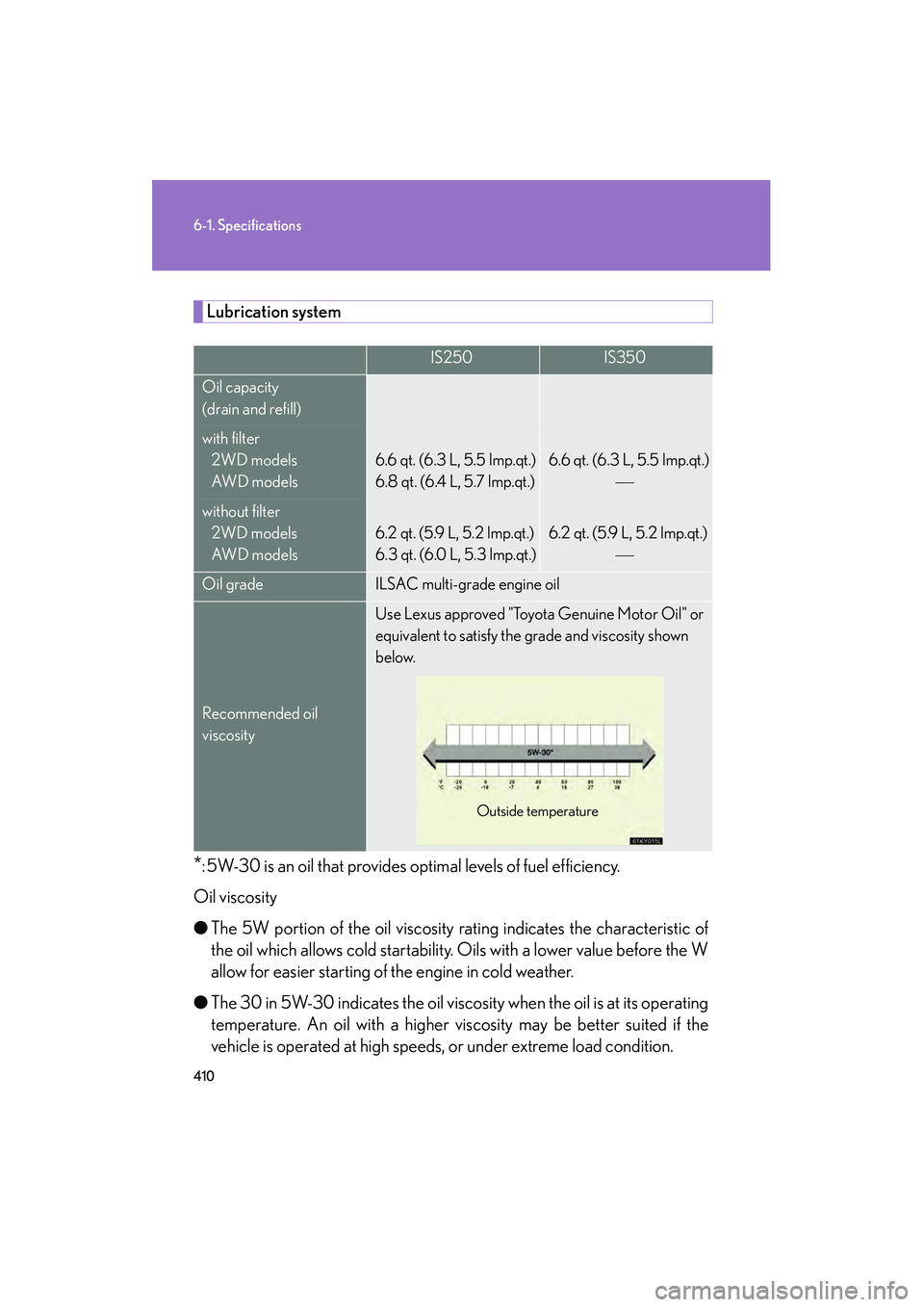

410
6-1. Specifications
08_IS350/250_U_(L/O_0708)
Lubrication system
*: 5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity
● The 5W portion of the oil viscosity rating indicates the characteristic of
the oil which allows cold startability. Oils with a lower value before the W
allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load condition.
IS250IS350
Oil capacity
(drain and refill)
with filter
2WD models
AWD models
6.6 qt. (6.3 L, 5.5 lmp.qt.)
6.8 qt. (6.4 L, 5.7 lmp.qt.)6.6 qt. (6.3 L, 5.5 lmp.qt.)

without filter
2WD models
AWD models
6.2 qt. (5.9 L, 5.2 lmp.qt.)
6.3 qt. (6.0 L, 5.3 lmp.qt.)6.2 qt. (5.9 L, 5.2 lmp.qt.)

Oil gradeILSAC multi-grade engine oil
Recommended oil
viscosity
Use Lexus approved "Toyota Genuine Motor Oil" or
equivalent to satisfy the grade and viscosity shown
below.
Outside temperature

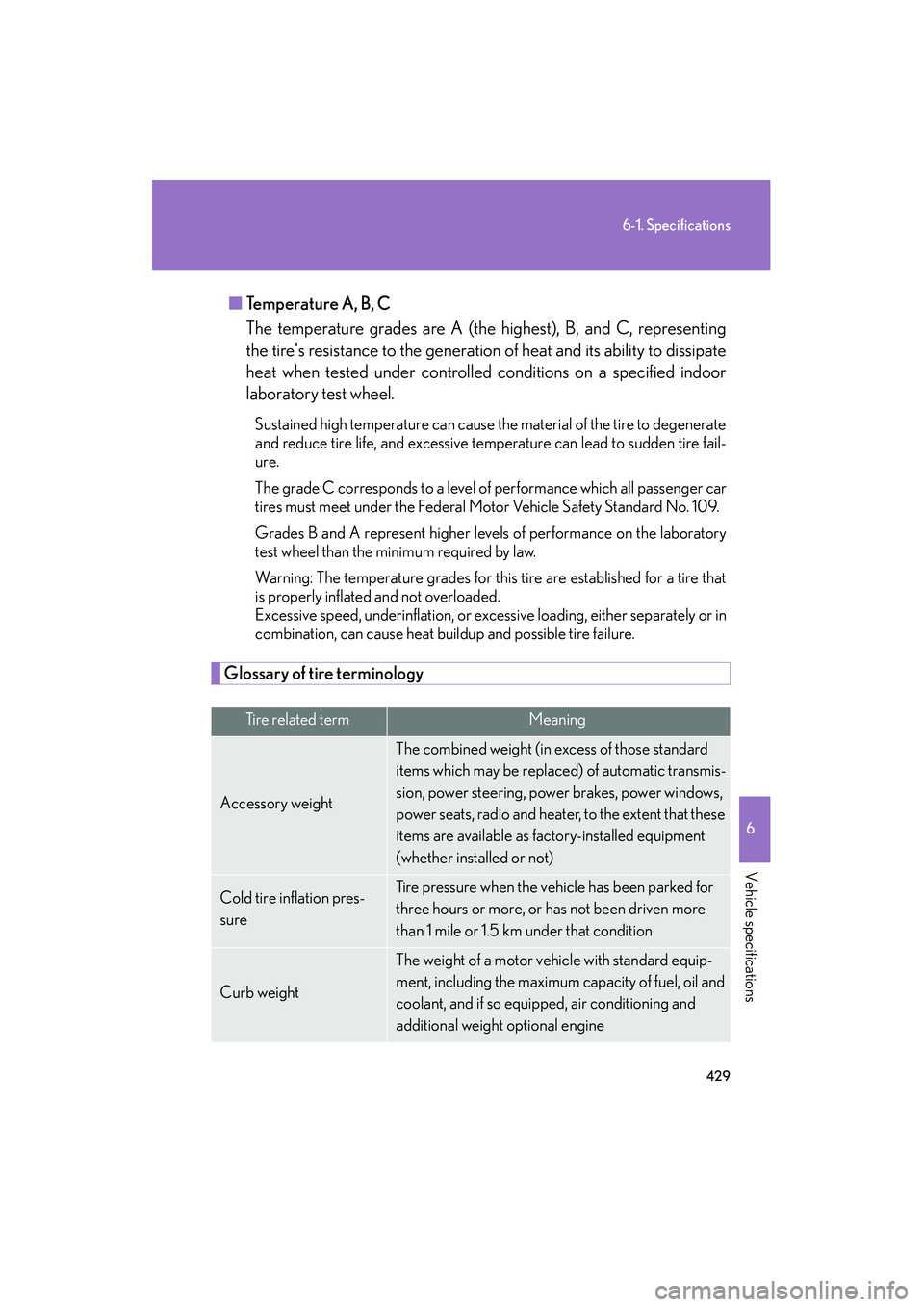

429
6-1. Specifications
6
Vehicle specifications
08_IS350/250_U_(L/O_0708)■
Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire's resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine

451
Alphabetical index
08_IS350/250_U_(L/O_0708)
Engine coolantCapacity.....................................................411
Checking ............................................... 299
Preparing and checking
before winter......................................183
Engine coolant temperature
gauge .......................................................130
Engine immobilizer system .................. 72
Engine oil Capacity...................................................410
Checking ............................................... 295
Preparing and checking
before winter......................................183
Engine oil maintenance data ........... 298
EPS............................................................... 170
Event data recorder ............................ 358
First-aid kit storage belt....................... 261
Floor mat.................................................. 260
Fluid
Brake .........................................................301
Washer ...................................................305
Fog lights Switch ........................................................ 146
Wattage ................................................. 420
Foot well lighting .................................... 231
Front fog lights Switch ........................................................ 146
Wattage ................................................. 420
Front passenger occupant
classification system ........................... 90
Front passenger's seat belt
reminder light ......................................362 Front seats
Adjustment ............................................... 44
Driving position memory .................. 46
Seat position memory ........................ 49
Front turn signal lights Switch........................................................ 128
Wattage..................................................420
Fuel
Capacity ................................................ 409
Fuel gauge.............................................. 130
Fuel pump shut off system............. 357
Gas station information ................. 460
Information ..............................................421
Refueling....................................................69
Fuel door ..................................................... 69
Fuel filler door ........................................... 69
Fuel pump shut off system ................. 357
Fuses .......................................................... 327
Garage door opener .......................... 264
Gas station information......................460
Gauges ...................................................... 130
Glove box ................................................ 236
Glove box light ...................................... 237
Head restraints Adjusting ....................................................51
Headlight aim .......................................... 341
Headlight cleaner ....................................151
F
G
H

453
Alphabetical index
08_IS350/250_U_(L/O_0708)
MaintenanceDo-it-yourself maintenance ......... 286
General maintenance ..................... 282
Maintenance data .............................406
Maintenance requirements ..........280
Manual transmission............................. 126
Meter Instrument panel light control .........131
Meters .......................................................130
Micro dust and pollen filter ................ 196
Mirrors Inside rear view mirror ...................... 60
Side mirror heater .............................200
Side mirrors............................................... 61
Vanity mirrors ..................................... 243
Moon roof ...................................................66
MP3 disc ................................................... 217
Multi-information display.................... 139
Odometer .................................................130
Oil Engine oil ............................................... 295
Opener Fuel filler door ........................................ 69
Hood ....................................................... 289
Trunk ............................................................. 41
Outer foot lights Outer foot lights................................... 231
Wattage ................................................. 420
Outside rear view mirrors
Adjusting and folding ........................... 61
Mirror position memory ....................46
Outside temperature display............140
Overhead console .............................. 238 Overhead courtesy lights
Overhead courtesy lights ................231
Wattage ..................................................420
Overheating, Engine.......................... 400
Parking assist sensors .......................... 164
Parking brake .......................................... 129
Parking lights
Replacing light bulbs ........................ 342
Switch........................................................ 143
Wattage ..................................................420
PCS ..............................................................176
Personal lights Switch....................................................... 234
Power outlet............................................250
Power windows ........................................ 64
Pre-collision system...............................176
Radar cruise control............................. 155
Radiator ..................................................... 301
Radio .......................................................... 204
RDS ............................................................205
Rear sunshade ....................................... 256
Rear turn signal lights Replacing light bulbs ........................ 342
Wattage ..................................................420
Rear view mirror Compass................................................269
Rear window defogger ..................... 200
Replacing Electronic key battery ......................325
Fuses......................................................... 327
Light bulbs ............................................. 342
Reporting safety defects for
U.S. owners .......................................... 444M
O
P
R
