parking Lexus IS250 2008 Owner's Manual

TABLE OF CONTENTSIndex
08_IS350/250_U_(L/O_0708)
2
1-1. Key information ........................... 20Keys ...................................................... 20
1-2. Opening, closing and locking the doors and trunk .................. 22
Smart access system with push-button start .......................... 22
Wireless remote control .............. 34
Doors.................................................... 37
Trunk...................................................... 41
1-3. Adjustable components (seats, mirrors,
steering wheel) .......................... 44
Front seats .......................................... 44
Driving position memory ............. 46
Seat position memory ................... 49
Head restraints.................................. 51
Seat belts ............................................ 52
Steering wheel (manually adjustable type) ...... 58
Steering wheel (power-adjustable type)............ 59
Anti-glare inside rear view mirror ................................................ 60
Outside rear view mirrors ............ 61 1-4. Opening and closing the
windows and moon roof .......... 64
Power windows................................ 64
Moon roof .......................................... 66
1-5. Refueling ........................................ 69 Opening the fuel tank cap........... 69
1-6. Theft deterrent system............... 72 Engine immobilizer system ......... 72
Alarm.................................................... 74
Theft prevention labels (U.S.A.) ............................................. 76
1-7. Safety information ....................... 77 Correct driving posture ............... 77
SRS airbags ....................................... 79
Front passenger occupant classification system .................... 90
Child restraint systems ................. 95
Installing child restraints ............... 98
2-1. Driving procedures................... 108 Driving the vehicle ........................ 108
Engine (ignition) switch ................ 117
Automatic Transmission ............ 122
Manual Transmission................... 126
Turn signal lever............................. 128
Parking brake ................................. 129
1Before driving
2When driving

1
2
3
4
5
6
7
08_IS350/250_U_(L/O_0708)
3

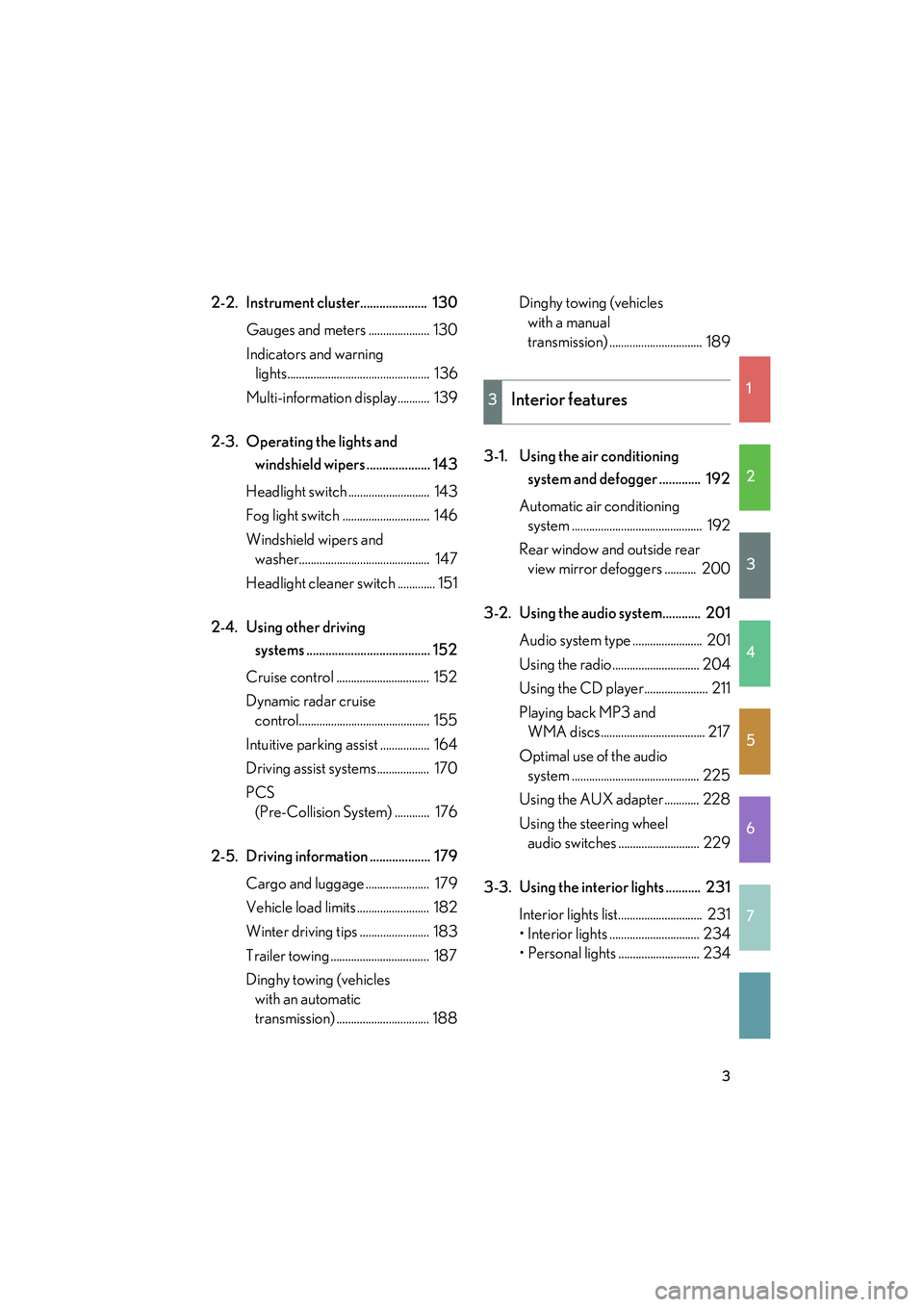

2-2. Instrument cluster..................... 130Gauges and meters ..................... 130
Indicators and warning lights................................................. 136
Multi-information display ........... 139
2-3. Operating the lights and windshield wipers .................... 143
Headlight switch ............................ 143
Fog light switch .............................. 146
Windshield wipers and washer............................................. 147
Headlight cleaner switch ............. 151
2-4. Using other driving systems ....................................... 152
Cruise control ................................ 152
Dynamic radar cruise control............................................. 155
Intuitive parking assist ................. 164
Driving assist systems.................. 170
PCS (Pre-Collision System) ............ 176
2-5. Driving information ................... 179 Cargo and luggage ...................... 179
Vehicle load limits ......................... 182
Winter driving tips ........................ 183
Trailer towing .................................. 187
Dinghy towing (vehicles with an automatic
transmission) ................................ 188 Dinghy towing (vehicles
with a manual
transmission) ................................ 189
3-1. Using the air conditioning system and defogger ............. 192
Automatic air conditioning system ............................................. 192
Rear window and outside rear view mirror defoggers ........... 200
3-2. Using the audio system............ 201 Audio system type ........................ 201
Using the radio.............................. 204
Using the CD player...................... 211
Playing back MP3 and WMA discs.................................... 217
Optimal use of the audio system ............................................ 225
Using the AUX adapter............ 228
Using the steering wheel audio switches ............................ 229
3-3. Using the interior lights ........... 231 Interior lights list............................. 231
• Interior lights ............................... 234
• Personal lights ............................ 234
3Interior features

08_IS350/250_U_(L/O_0708)
6
Headlights (high beam) P. 143
Pictorial indexExterior
Turn signal lights P. 128
Fog lights P. 146
Side marker lights P. 143
Headlights (low and high ∗ beam)

P. 143
Hood P. 289
Parking lights P. 143
Windshield wipers P. 147
Moon roof ∗ P. 66
Outside rear view mirrors
P. 61

08_IS350/250_U_(L/O_0708)
11

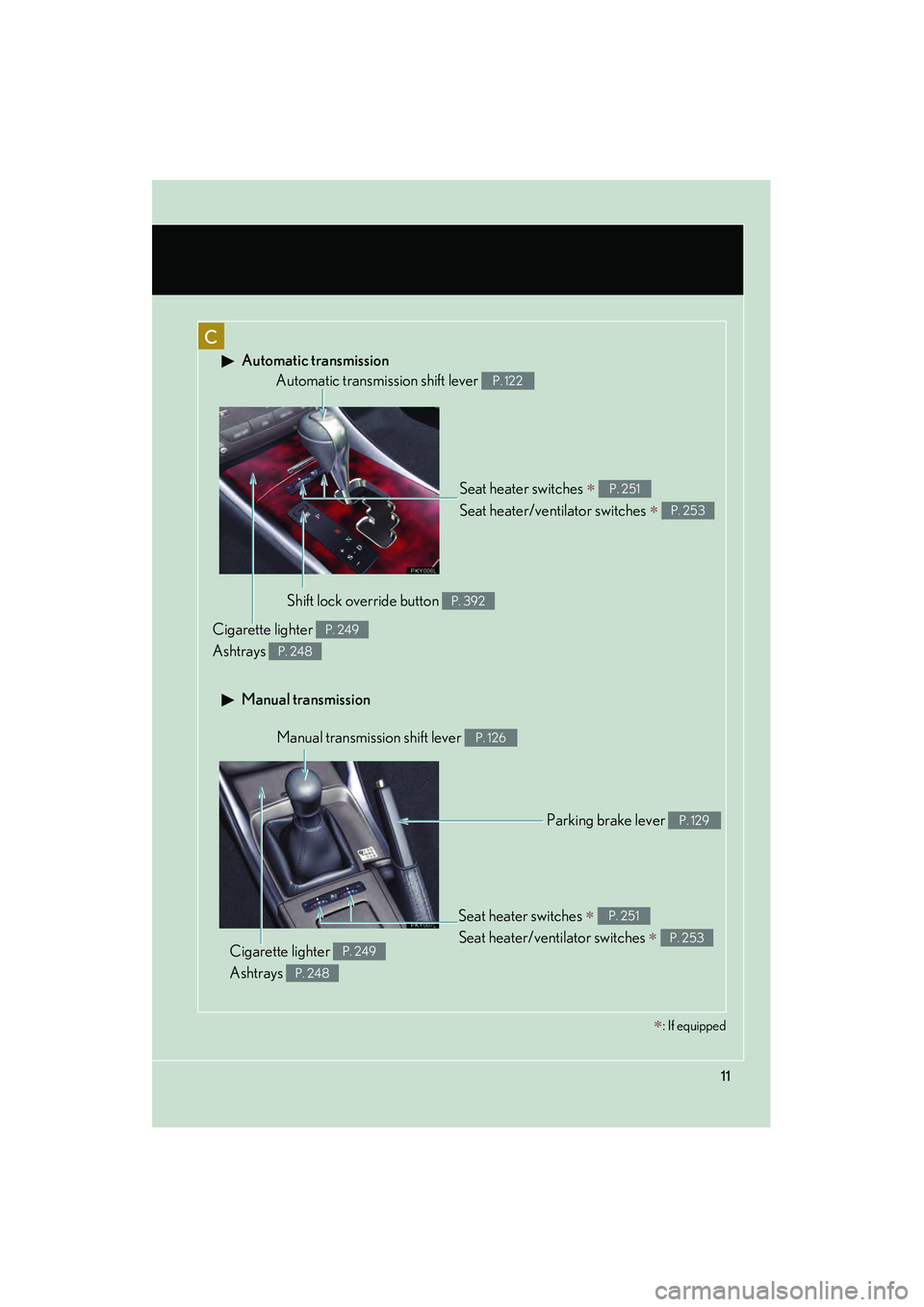

C
Automatic transmission
Manual transmission
Seat heater switches ∗
Seat heater/ventilator switches
∗
P. 251
P. 253
Automatic transmission shift lever P. 122
Shift lock override button P. 392
Cigarette lighter
Ashtrays P. 249
P. 248
Manual transmission shift lever P. 126
Parking brake lever P. 129
Cigarette lighter
Ashtrays P. 249
P. 248
Seat heater switches ∗
Seat heater/ventilator switches
∗
P. 251
P. 253
∗: If equipped

08_IS350/250_U_(L/O_0708)
12
Pictorial indexInstrument panel
Headlight switch Turn signal lever Fog light switch P. 143
P. 128
P. 146
Shift paddle switches ∗ P. 124
Gauges and meters P. 130
Multi-information display P. 139
Windshield wipers and washer switch P. 147
“ENGINE START STOP” switch P. 117
Trunk opener main switch P. 41
Glove box P. 236
Tilt and telescopic steering lock release lever ∗ P. 58
Tilt and telescopic steering control switch ∗ P. 59
Parking brake pedal (automatic transmission) P. 129
Audio remote control switches P. 229

21
1-1. Key information
1
Before driving
08_IS350/250_U_(L/O_0708)
■When required to leave a key to the vehicle with a parking attendant
Turn the trunk opener main switch off and lock the glove box as circumstances
demand. (→P. 4 1 , 2 3 6 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. (→ P. 393)
NOTICE
■To prevent key damage
●Do not subject the keys to strong shocks, expose them to high temperatures by
placing them in direct sunlight, or get them wet.
●Do not expose the keys to electromagnetic materials or attach any material that
blocks electromagnetic waves to the key surface.
●Do not disassemble the electronic key.

46
1-3. Adjustable components (seats, mirrors, steering wheel)
08_IS350/250_U_(L/O_0708)
Driving position memory (if equipped)
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button. It is also possible to set this function to activate auto-
matically when the doors are unlocked.
Three different driving positions can be entered into memory.
■ Entering a position to memory
Vehicles with an automatic transmission: Check that the shift lever is
set in P.
Vehicles with a manual transmission: Check that the parking brake is
set.
Switch to IGNITION ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions. While pushing the “SET” button,
push button “1”, “2” or “3” until
the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3

47
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
08_IS350/250_U_(L/O_0708)
Linking driving position memory with door unlock operation
Record your driving position to button “1”, “2” or “3” before performing
the following.
Turn the “ENGINE START STOP” switch OFF and close the
driver's door. Press and hold the desired button
(“1”, “2” or “3”) while pressingon the wireless remote con-
trol until the signal beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver ’s
door is opened.
■ Recalling the memorized position
Vehicles with an automatic transmission: Check that the shift lever is
set in P.
Vehicles with a manual transmission: Check that the parking brake is
set.
Switch to IGNITION ON mode. Push button “1”, “2” or “3” to
recall the memorized position.
STEP1
STEP2
STEP1
STEP2

49
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
08_IS350/250_U_(L/O_0708)
Seat position memory (if equipped)
Your preferred front passenger seat position can be memorized and
recalled with the touch of a button.
Three different seat positions can be entered into memory.
■ Entering a position to memory
Vehicles with an automatic transmission: Check that the shift lever is
set in P.
Vehicles with a manual transmission: Check that the parking brake is
set.
Switch to IGNITION ON mode.
Adjust the front passenger seat to the desired position. While pushing the “SET” button,
push button “1”, “2” or “3” until
the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■Recalling the memorized position
Vehicles with an automatic transmission: Check that the shift lever is
set in P.
Vehicles with a manual transmission: Check that the parking brake is
set.
Push button “1”, “2” or “3” to
recall the memorized position.
STEP1
STEP2
STEP3

62
1-3. Adjustable components (seats, mirrors, steering wheel)
08_IS350/250_U_(L/O_0708)

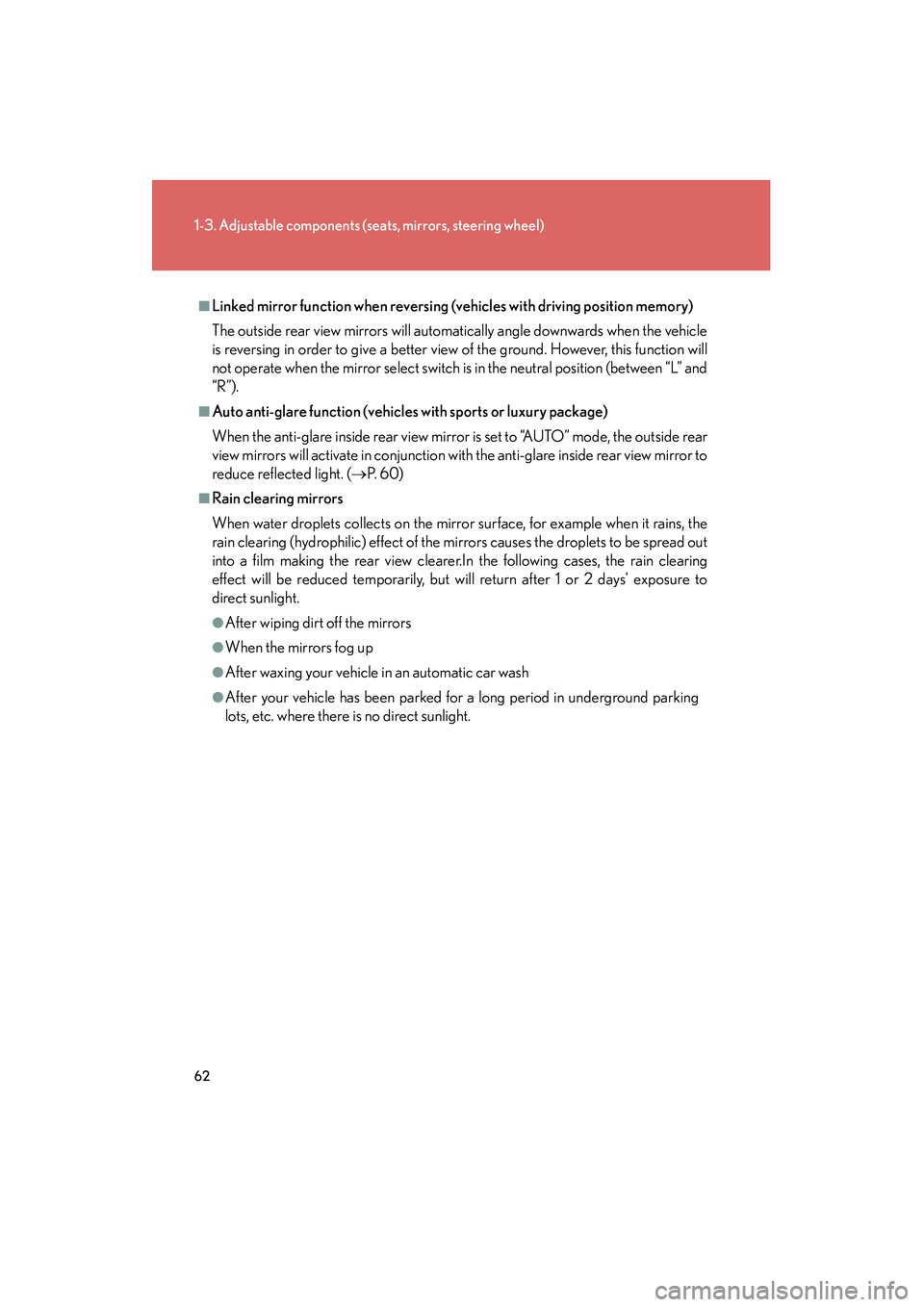

■Linked mirror function when reversing (vehicles with driving position memory)
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).
■Auto anti-glare function (vehicles with sports or luxury package)
When the anti-glare inside rear view mirror is set to “AUTO” mode, the outside rear
view mirrors will activate in conjunction with the anti-glare inside rear view mirror to
reduce reflected light. ( →P. 60)
■Rain clearing mirrors
When water droplets collects on the mirror surface, for example when it rains, the
rain clearing (hydrophilic) effect of the mirrors causes the droplets to be spread out
into a film making the rear view clearer.In the following cases, the rain clearing
effect will be reduced temporarily, but will return after 1 or 2 days' exposure to
direct sunlight.
●After wiping dirt off the mirrors
●When the mirrors fog up
●After waxing your vehicle in an automatic car wash
●After your vehicle has been parked for a long period in underground parking
lots, etc. where there is no direct sunlight.
