sensor Lexus IS250 2008 Quick Guide

Topic 2
Before Driving
15
Anti-glare Inside Rear View Mirror
To turn AUTO mode ON/OFF, press the AUTO
button.
The indicator comes on when AUTO mode is
turned ON.
Steering Wheel
■ Manually adjustable type
To adjust the steering wheel, press the lever down
and move the steering wheel to the desired posi-
tion. Lock the steering wheel in place by pulling
the lever up.
■ Power-adjustable type
Up
Down
Aw a y f r o m t h e d r i v e r
Toward the driver
The anti-glare mirror uses a sensor to detect light from vehicles behind and automatically
reduces glare.
1
2
3
4
The power-adjustable type steering wheel retracts automatically when the “ENGINE
START STOP” switch is turned OFF to allow for easy exit and entry. The steering wheel
returns automatically to its previously set position when the “ENGINE START STOP”
switch is switched to ACCESSORY or IGNITION ON mode.

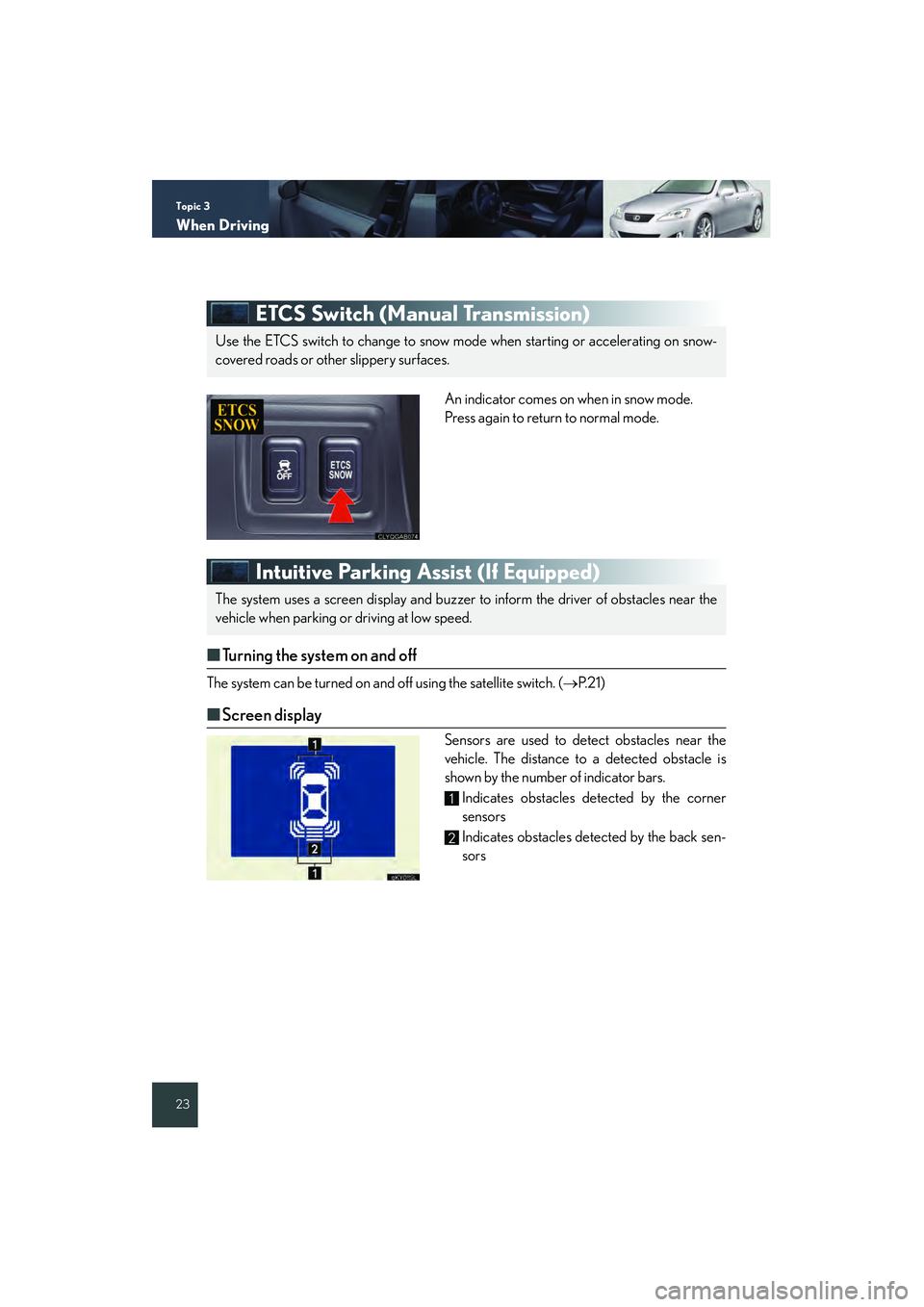

Topic 3
When Driving
23
ETCS Switch (Manual Transmission)
An indicator comes on when in snow mode.
Press again to return to normal mode.
Intuitive Parking Assist (If Equipped)
■Turning the system on and off
The system can be turned on an d off using the satellite switch. (→P. 2 1 )
■Screen display
Sensors are used to detect obstacles near the
vehicle. The distance to a detected obstacle is
shown by the number of indicator bars.
Indicates obstacles detected by the corner
sensors
Indicates obstacles dete cted by the back sen-
sors
Use the ETCS switch to change to snow mode when starting or accelerating on snow-
covered roads or other slippery surfaces.
The system uses a screen display and buzzer to inform the driver of obstacles near the
vehicle when parking or driving at low speed.
1
2

48
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
Have the malfunction repaired immediately.
Open door warning lightFront passenger’s seat belt
reminder light
Low fuel level warning lightTire pressure warning light
aDriver’s seat belt
reminder lightMaster warning light
See the Owner's Manual
Tu r n s i g n a l i n d i c a t o rCruise control indicator
Headlight high beam indicatorAFS OFF indicator*1
Headlight indicator (U.S.A.)Front fog light indicator
Tail light indicator (Canada)Lexus parking assist-sensor
indicator
*1
ECT SNOW indicator*2Slip indicator
ETCS SNOW indicator*3SRS airbag cut-off indicator
ECT PWR indicator*2VSC OFF indicator*1
Shift position and shift range indicators*1
*1 : If equipped*2 : Vehicles with automatic transmission*3 : Vehicles with manual transmission
For further information, re fer to the Owner's Manual.

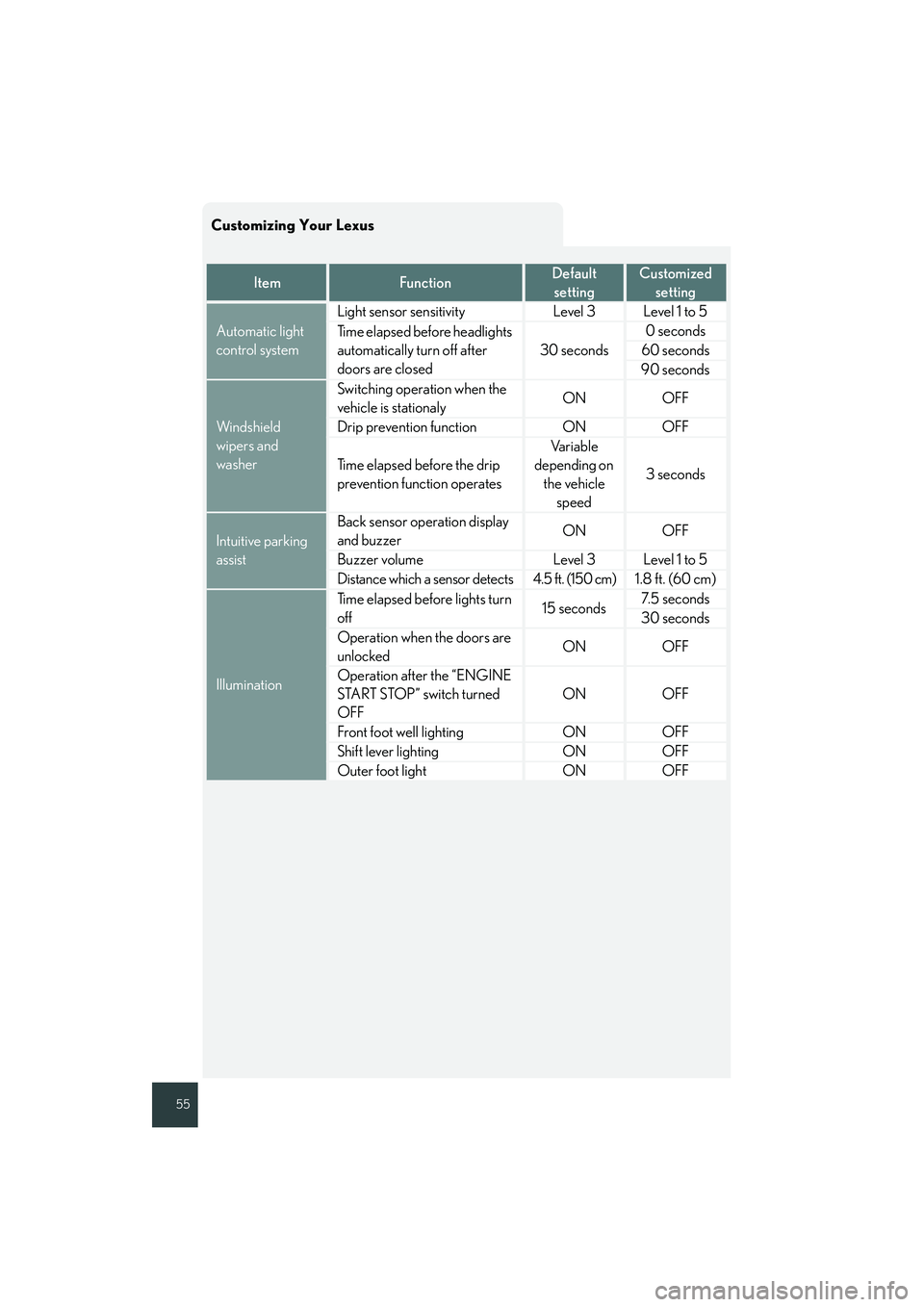

55
Customizing Your Lexus
ItemFunctionDefault settingCustomized setting
Automatic light
control system
Light sensor sensitivityLevel 3Level 1 to 5
Time elapsed before headlights
automatically turn off after
doors are closed
30 seconds
0 seconds
60 seconds
90 seconds
Windshield
wipers and
washer
Switching operation when the
vehicle is stationalyONOFF
Drip prevention functionONOFF
Time elapsed before the drip
prevention function operates
Va r i a b l e
depending on the vehicle speed
3 seconds
Intuitive parking
assist
Back sensor operation display
and buzzerONOFF
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor detects4.5 ft. (150 cm)1.8 ft. (60 cm)
Illumination
Time elapsed before lights turn
off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the doors are
unlockedONOFF
Operation after the “ENGINE
START STOP” switch turned
OFF
ONOFF
Front foot well lightingONOFF
Shift lever lightingONOFF
Outer foot lightONOFF
