trunk Lexus IS250 2008 Quick Guide

Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
2
Driving Comfort
Topic 5
Opening and Closing
Topic 6
What to do if ...
Customizing Your LexusResponding to warning/indicator lights
and other problems that may arise.
A list of features that can be customized.
Rain and Night Driving
Topic 4
●Headlights P. 2 7
●Fog LightsP. 2 8
●Windshield Wipers and
Wa s h e r P. 2 8
●Headlight Cleaner P. 2 9
●Rear Window and Outside Rear
View Mirror Defoggers P. 2 9
●Instrument Panel Light ControlP. 2 9
●Interior LightsP. 4 0
●Rear Sunshade P. 4 0
●CompassP. 4 0
●Trunk Storage Extension P. 4 1
●Luggage MatP. 4 1
●Door LocksP. 4 3
●Po w e r Wi n d o w s P. 4 4
●Moon RoofP. 4 4
●Fuel Tank Cap P. 4 5
●HoodP. 4 5
●Tr u n kP. 4 6
●Audio System P. 3 1
●Air Conditioning System P. 3 4
●Garage Door OpenerP. 3 5
●AshtraysP. 3 7
●Seat Heaters/Seat Heaters
and Ventilators P. 3 7
●Console BoxesP. 3 8
●Glove BoxP. 3 9
●Cup Holders P. 3 9
Depending on specifications, the vehi cle shown in the illustration may
differ from your vehicle in terms of color and equipment.

3
OverviewInstrument Panel
Shift paddle switches ∗ P.18
Headlight switch Turn signal lever Fog light switch P.27
P.22
P.28
Headlight cleaner switch ∗ P.29
Rear sunshade switch ∗ P.40
Inside door lock button P.43
Fuel filler door opener P.45
Driving and seat position
memory switches
∗ P.13
Door lock switches P.43
Power window switches P.44
Window lock switch P.44
Outside rear view
mirror switches
P.14
Trunk opener P.46
Hood release lever P.45
Parking brake pedal
(automatic transmission)
P.19
Satellite switches P.21
Tilt and telescopic steering lock release lever
∗ P.15Tilt and telesc opic steering
control switch
∗ P.15
Multi-information
display
P.20

4
Shift paddle switches ∗ P.18
Windshield wipers and
washer switch
P.28
Engine (ignition) switch P.17
Air conditioning system P.34
Emergency flasher switch P.22
Rear window and outside rear
view mirror defoggers
P.29
Security indicator light P.9
Audio system P.31
Glove box P.39
Trunk opener main switch P.46
See P.5.
Cruise control switch
P.24, 25
Distance switch ∗ P.25
ECT switch (automatic transmission)
ETCS switch (manual transmission)P.22
P.23
∗ : If equipped

Topic 1
Entering and Exiting
7
Keys
■Electronic key
Smart access system with push-button start
(→ P. 8 , 1 7 )
■Mechanical key
● Locks and unlocks the doors
● Opens the trunk
● Locks and unlocks the glove box
The mechanical key is stored inside the electronic
key. To extract the key, release the latch and pull.
■ Wireless remote control
Press: locks all doors
Press once: unlocks the driver's door
Press twice: unlocks all doors
Press and hold: opens the windows and moon
roof
Press and hold: opens the trunk
Press and hold: sounds the alarm
(Use the alarm to attract attention to the vehi-
cle in order to help deter break-ins. To stop the
alarm, press any button on the wireless remote
control.)1
2
3
4

Topic 1
Entering and Exiting
8
Entering and Exiting
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
Before DrivingBefore Driving
Smart Access System with Push-button Start
■ Entering the vehicle
To unlock the vehicle, simply grasp either of the
front door handles.
■ Exiting the vehicle
To lock the vehicle, press the lock button on either
of the front door handles.
■ Opening the trunk
To open the trunk, press and hold the trunk
release button.
The smart access system with push-button start allows you to enter and exit the vehicle
or start the engine by simply carrying th e electronic key in your pocket or bag.
For details on starting the engine, see page 17.
For details on what to do when the electronic key does not operate properly, see page 50.

Topic 1
Entering and Exiting
9
Theft Deterrent System
■Engine immobilizer system
The engine immobilizer system prevents the
engine from being started in the event that an
attempt is made to start the vehicle using an
unregistered key.
The security indicator light flashes to indicate that
the system is set.
■ Alarm
The system sounds the alarm and flashes lights when forcible entry is detected.
To set the alarm: lock all the doors from outside the ve hicle. The security indicator light
comes on to indicate that the alarm is in it s preparation state. When the indicator light
begins to flash, the system is armed.
To deactivate or stop the alarm: turn the “ENGINE START STOP” switch to ACCESSORY
or IGNITION ON mode, or unlock the doors or trunk using the electronic key or the wire-
less remote control.
■ Steering lock
The steering wheel locks when the “ENGINE
START STOP” switch is in OFF.
The theft deterrent system includes the followi ng features to help protect your vehicle from
theft.

Driving ComfortTopic 5
Audio System .......................................................... 31
Air Conditioning System .................................... 34
Garage Door Opener ........................................ 35
Ashtrays................................................................... 37
Seat Heaters / Seat Heaters and
Ventilators .............................................................. 37
Console Boxes....................................................... 38
Glove Box ............................................................... 39
Cup Holders........................................................... 39
Interior Lights......................................................... 40
Rear Sunshade ...................................................... 40
Compass.................................................................. 40
Trunk Storage Extension..................................... 41
Luggage Mat........................................................... 41

Topic 5
Driving Comfort
41

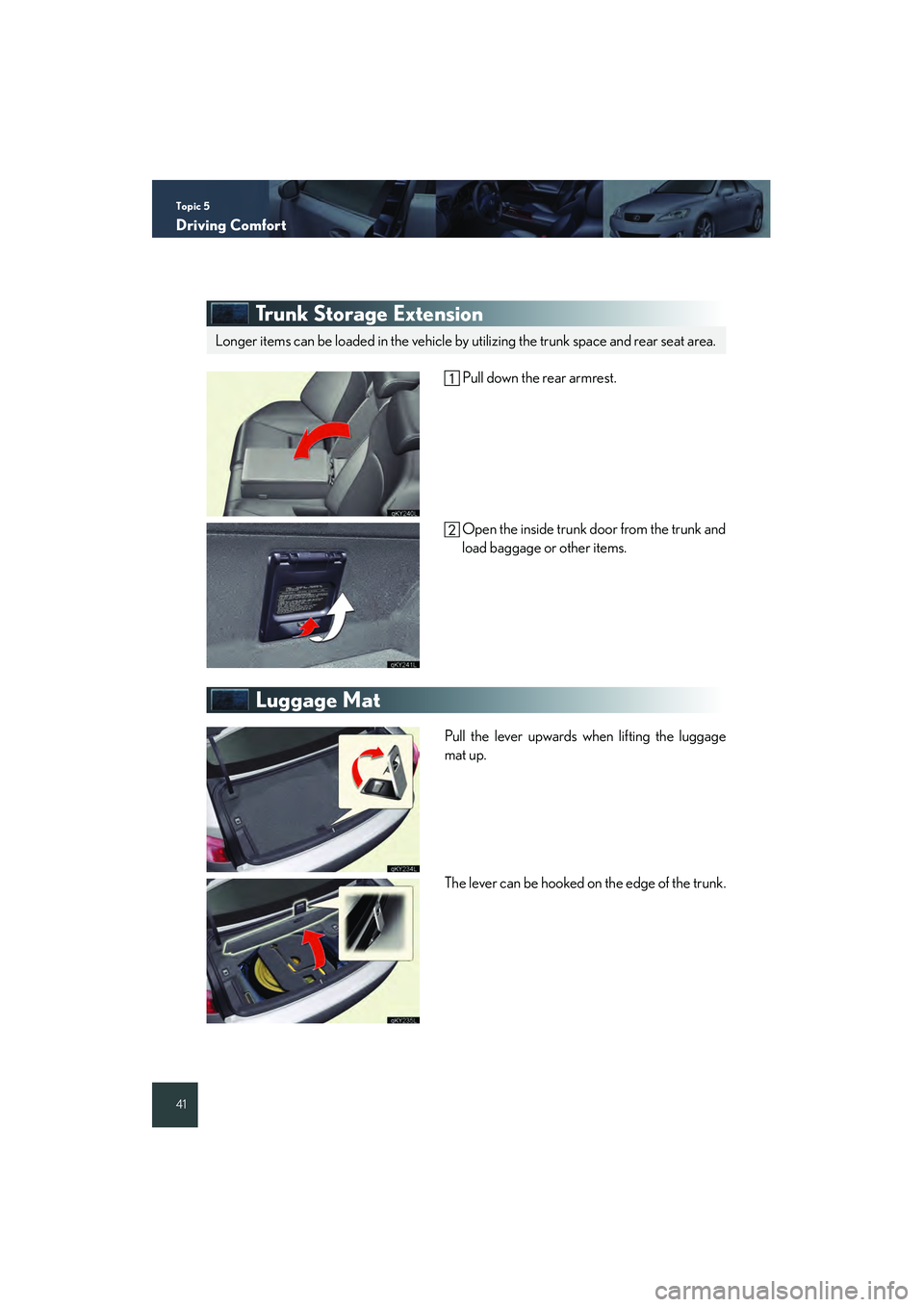

Trunk Storage Extension
Pull down the rear armrest.Open the inside trunk door from the trunk and
load baggage or other items.
Luggage Mat
Pull the lever upwards when lifting the luggage
mat up.
The lever can be hooked on the edge of the trunk.
Longer items can be loaded in the vehicle by utilizing the trunk space and rear seat area.

Opening and ClosingTopic 6
Door Locks ............................................................. 43
Power Windows .................................................... 44
Moon Roof .............................................................. 44
Fuel Tank Cap........................................................ 45
Hood ......................................................................... 45
Trunk......................................................................... 46

Topic 6
Opening and Closing
46
Entering and Exiting
Before DrivingBefore Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and ClosingOpening and Closing
What to do if ...
Customizing Your Lexus
Tr u n k
■ Trunk opener
To open the trunk from inside the cabin, simply
press the trunk opener.
To disable the trunk opener, turn OFF the main
switch in the glove box.
ON
OFF
When the trunk opener is disabled, the trunk can-
not be opened using the wireless remote control
or the entry function.
■ Entry function and wireless remote control
→ P. 7 , 8
1
2
