Lexus IS250 2009 Owner's Manual

340
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0808)
Wheels
■When replacing wheels
The wheels of your Lexus are equipped with tire pressure warning valves and trans-
mitters that allow the tire pressure warning system to provide advanced warning in
the event of a loss in tire inflation pressure. Whenever wheels are replaced, the tire
pressure warning valves and transmitters must be installed. (

P. 3 2 7 )
If a wheel is bent, cracked or heavily corroded, it should be replaced. Oth-
erwise, the tire may separate from the wheel or cause loss of handling con-
trol.
■Wheel selection
When replacing wheels, care should be taken to ensure that they
are equivalent to those removed in load capacity, diameter, rim
width, and offset.
Replacement wheels are available at your Lexus dealer.
Lexus does not recommend using:
●Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
■ Aluminum wheel precautions
●Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Lexus genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.

341
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0808)
CAUTION
■When replacing wheels
●Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in loss of handling control.
●Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident, causing death or serious injury.
NOTICE
■Replacing tire inflation pressure warning valves and transmitters
●Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by your Lexus dealer or other
qualified service shop. In addition, make sure to purchase your tire pressure
warning valves and transmitters at your Lexus dealer.
●Ensure that only Genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-
genuine wheels.

342
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0808)
Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to main-
tain air conditioning efficiency.
■ Removal method
Set the air conditioning system to recirculated mode.
The air conditioning filter case cannot be removed with the system in
the outside air mode.
Turn the “ENGINE START STOP” switch OFF.
Open the glove box. Lift and
remove the partition.
Remove the filter cover.
Remove the filter case.
STEP1
STEP2
STEP3
STEP4
STEP5

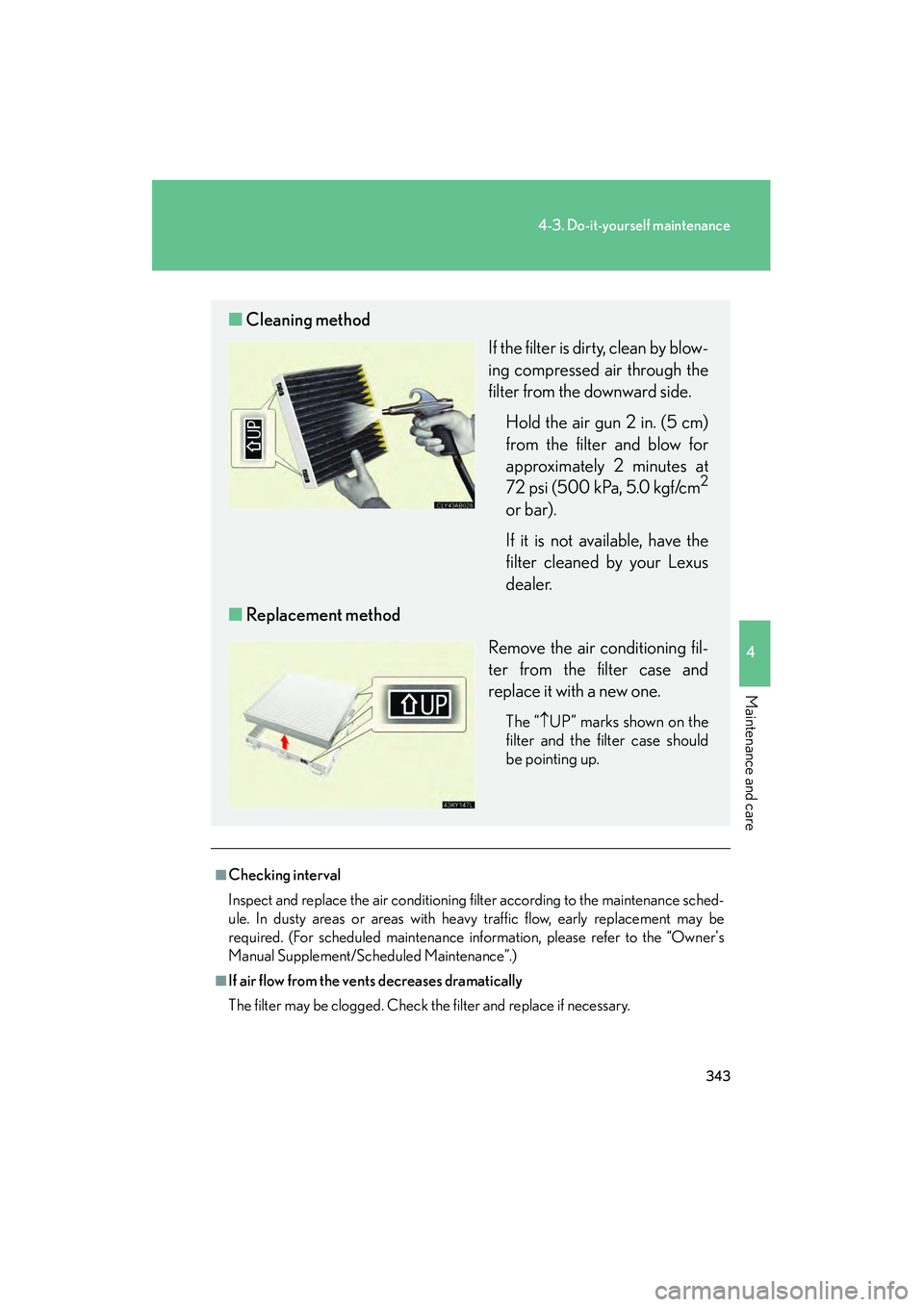

343
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0808)
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance sched-
ule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the “Owner's
Manual Supplement/Scheduled Maintenance”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
■Cleaning method
If the filter is dirty, clean by blow-
ing compressed air through the
filter from the downward side.
Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at
72 psi (500 kPa, 5.0 kgf/cm
2
or bar).
If it is not available, have the
filter cleaned by your Lexus
dealer.
■ Replacement method
Remove the air conditioning fil-
ter from the filter case and
replace it with a new one.
The “
UP” marks shown on the
filter and the filter case should
be pointing up.

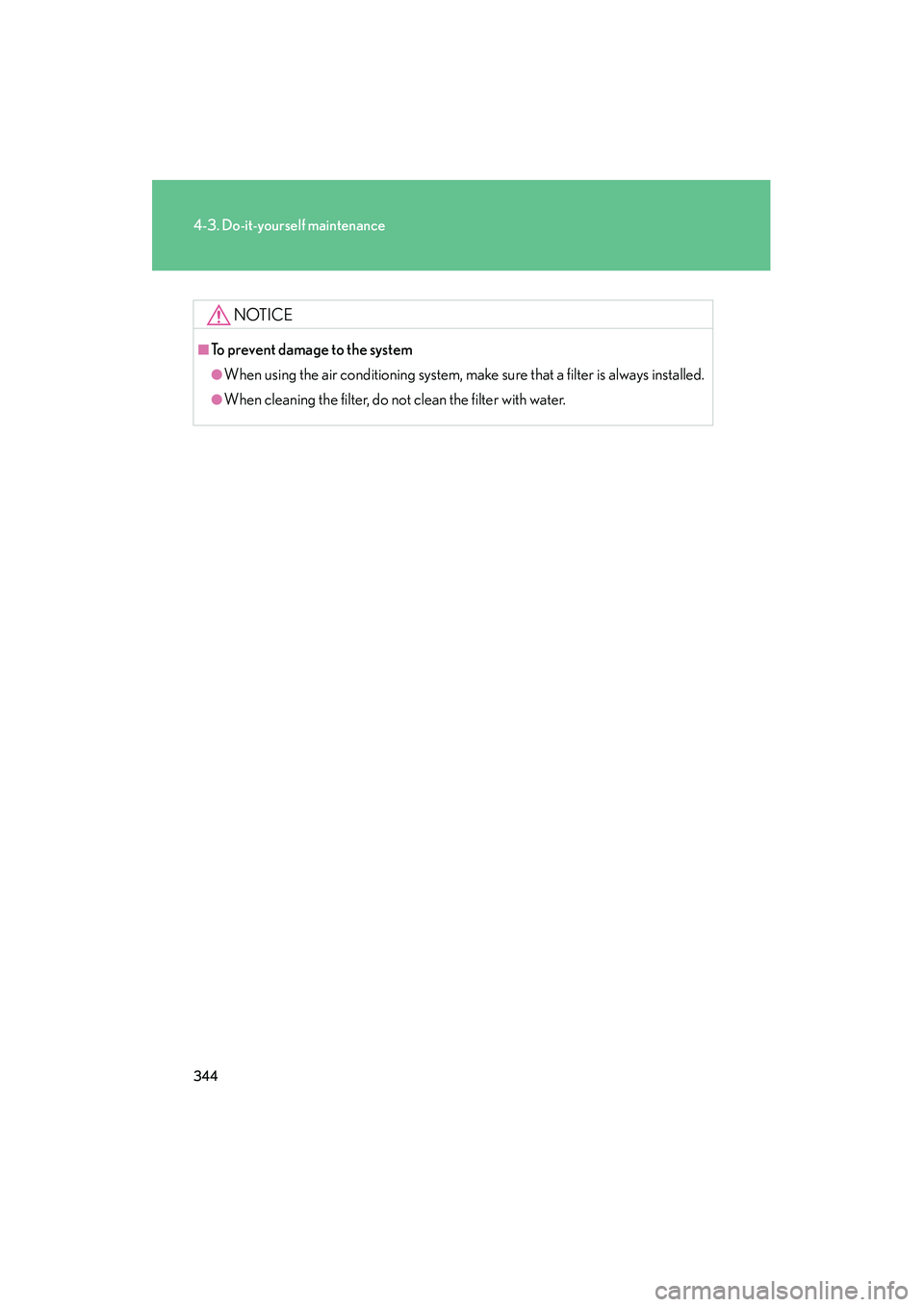

344
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0808)
NOTICE
■To prevent damage to the system
●When using the air conditioning system, make sure that a filter is always installed.
●When cleaning the filter, do not clean the filter with water.

345
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0808)
Electronic key battery
Replace the battery with a new one if it is discharged.
■You will need th e following items:
● Flathead screwdriver
● Small Phillips-head screwdriver
● Lithium battery (CR1632)
■ Replacing the battery
Take out the mechanical key.
Remove the cover.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
STEP1
STEP2
STEP3

346
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0808)
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer
can replace the battery for you.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.

347
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0808)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
Engine compartment (type B fuse box): Remove the engine
compartment cover. (
P. 312)
Open the fuse box cover.
Engine compartment (type A fuse box)
Push the tabs in and lift the lid
off.
Engine compartment (type B fuse box) Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3

348
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0808)
Driver's side instrument panelRemove the lid.
Passenger's side instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
(
P. 351) for details about which fuse to check. Remove the fuse with the pull-
out tool.
STEP4
STEP5

349
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0808)
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Lexus dealer.
STEP6
