5
When trouble arises

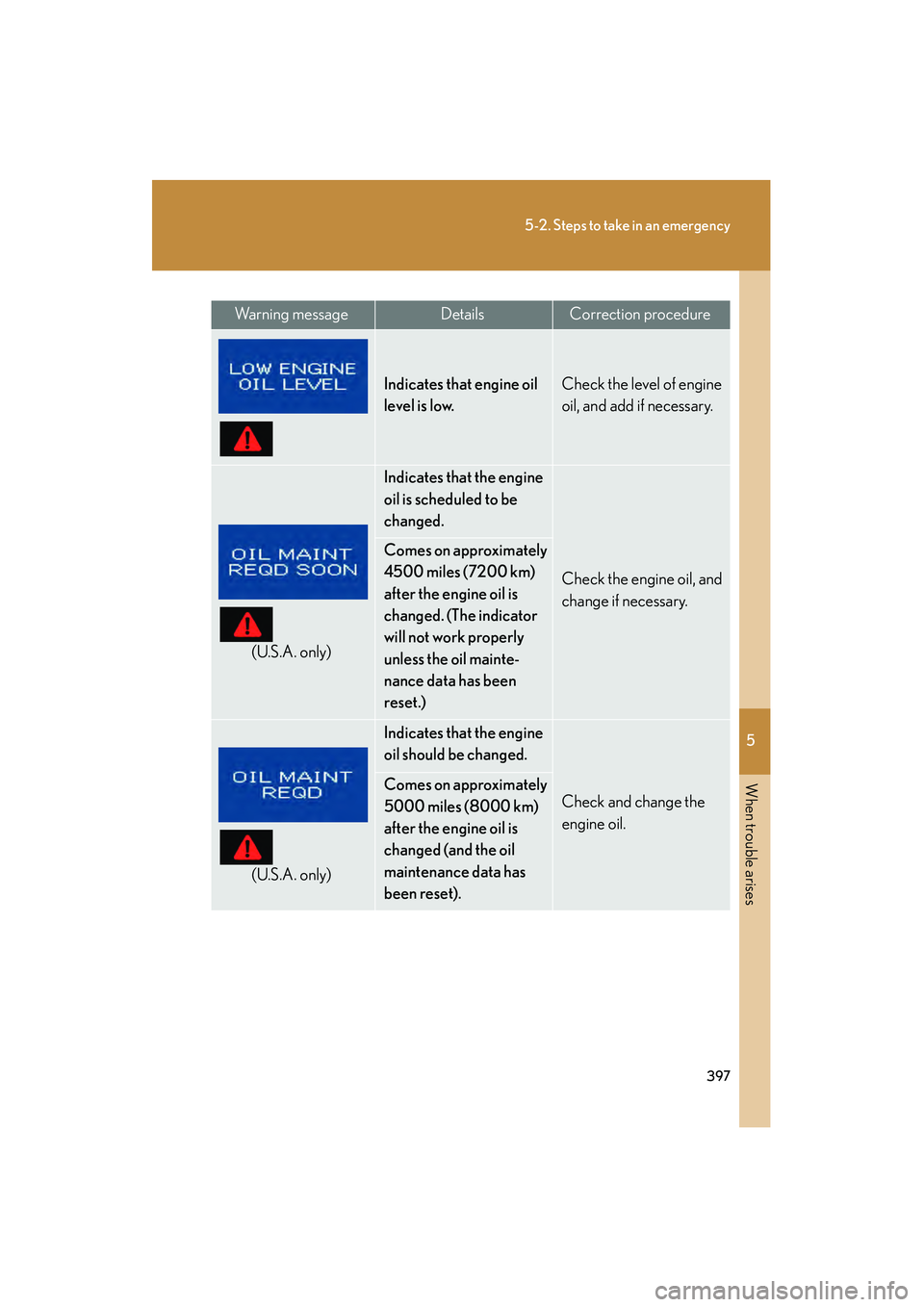

397
5-2. Steps to take in an emergency
08_IS350/250_U_(L/O_0808)
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that engine oil
level is low.Check the level of engine
oil, and add if necessary.
(U.S.A. only)
Indicates that the engine
oil is scheduled to be
changed.
Check the engine oil, and
change if necessary.
Comes on approximately
4500 miles (7200 km)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance data has been
reset.)
(U.S.A. only)
Indicates that the engine
oil should be changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).

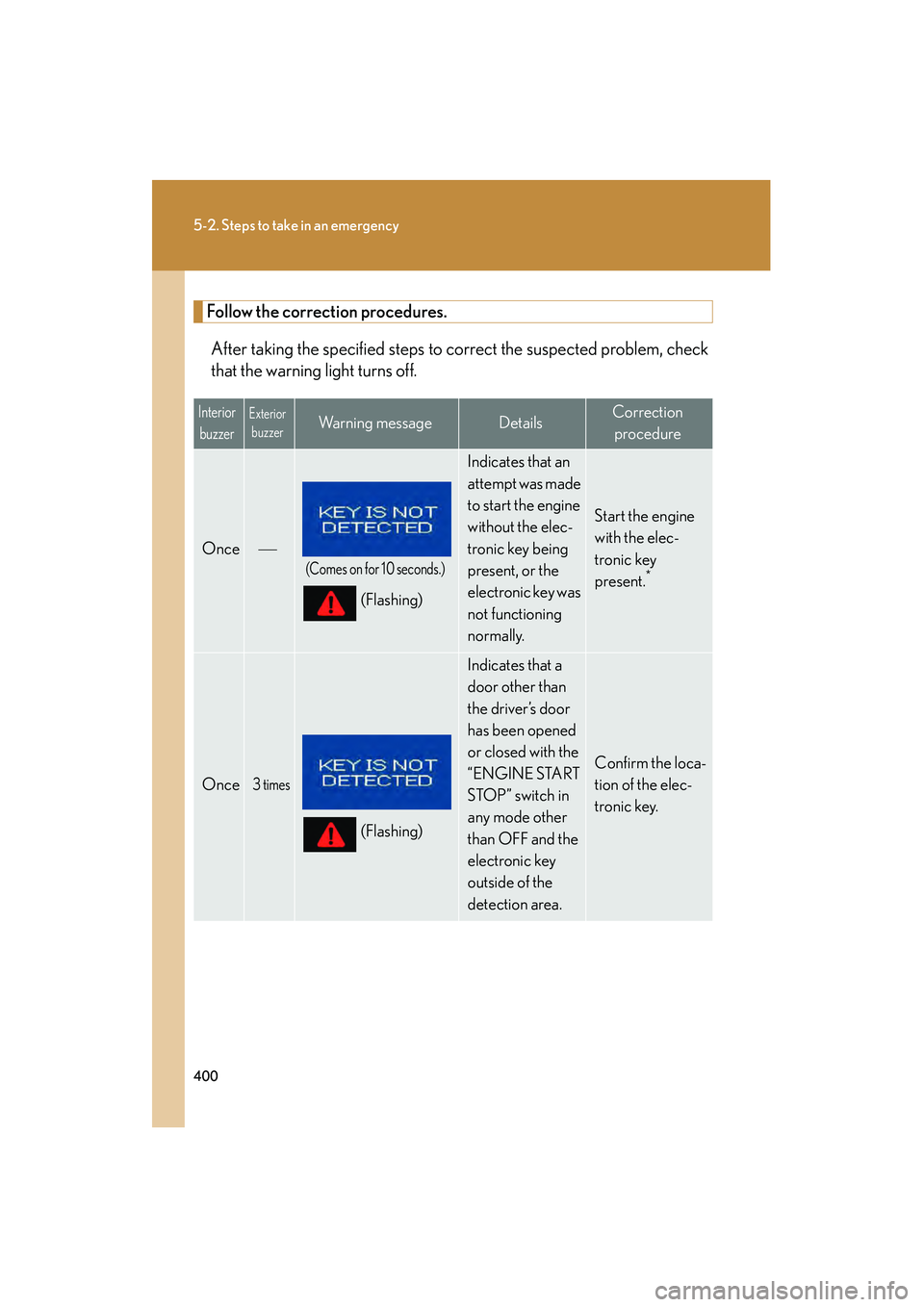

400
5-2. Steps to take in an emergency
08_IS350/250_U_(L/O_0808)
Follow the correction procedures.After taking the specified steps to correct the suspected problem, check
that the warning light turns off.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
Once
(Comes on for 10 seconds.)
(Flashing)
Indicates that an
attempt was made
to start the engine
without the elec-
tronic key being
present, or the
electronic key was
not functioning
normally.
Start the engine
with the elec-
tronic key
present.
*
Once3 times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
or closed with the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Confirm the loca-
tion of the elec-
tronic key.

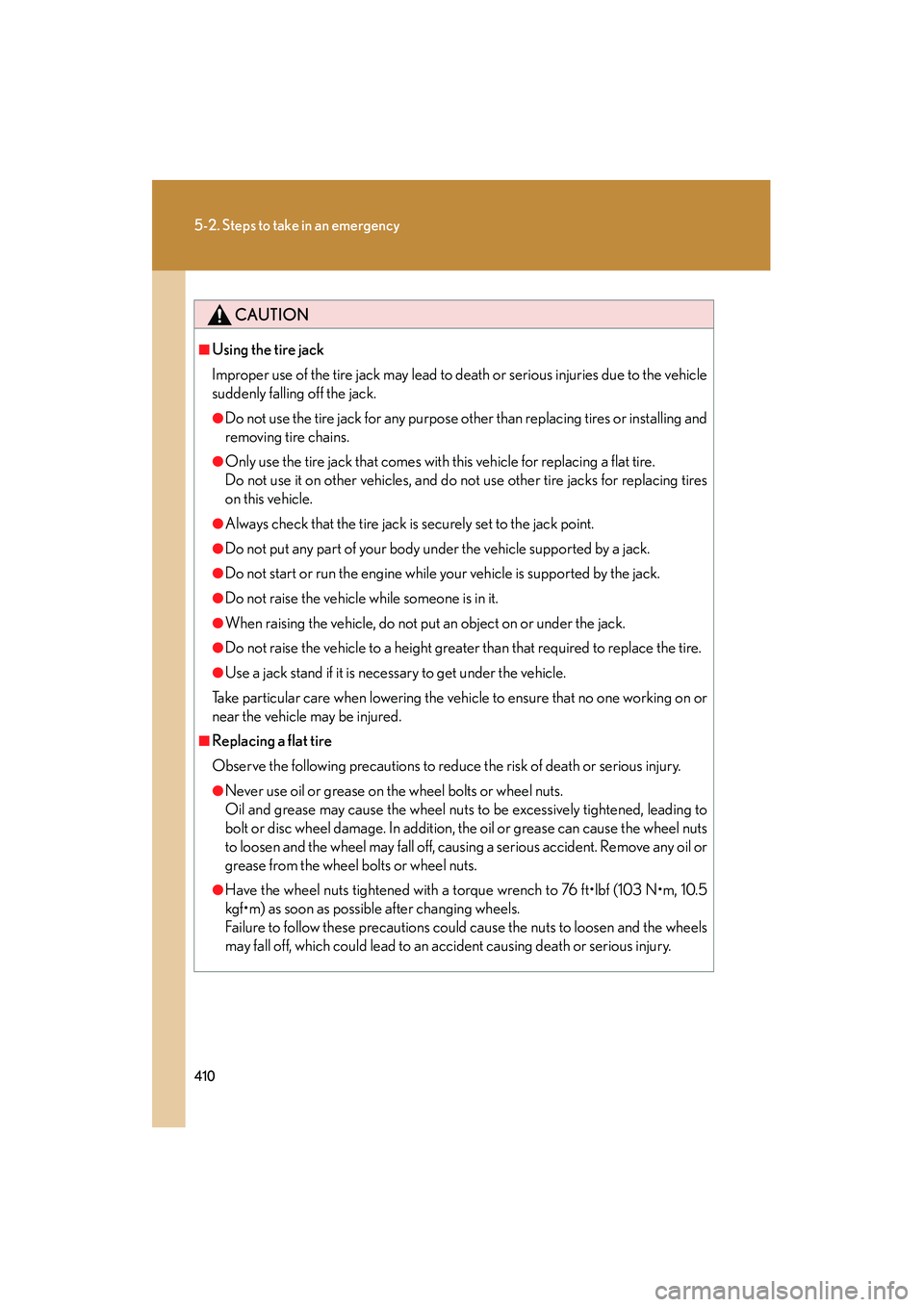

410
5-2. Steps to take in an emergency
08_IS350/250_U_(L/O_0808)
CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the vehicle
suddenly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the jack.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle may be injured.
■Replacing a flat tire
Observe the following precautions to reduce the risk of death or serious injury.
●Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, leading to
bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts
to loosen and the wheel may fall off, causing a serious accident. Remove any oil or
grease from the wheel bolts or wheel nuts.
●Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5
kgf•m) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and the wheels
may fall off, which could lead to an accident causing death or serious injury.

414
5-2. Steps to take in an emergency
08_IS350/250_U_(L/O_0808)

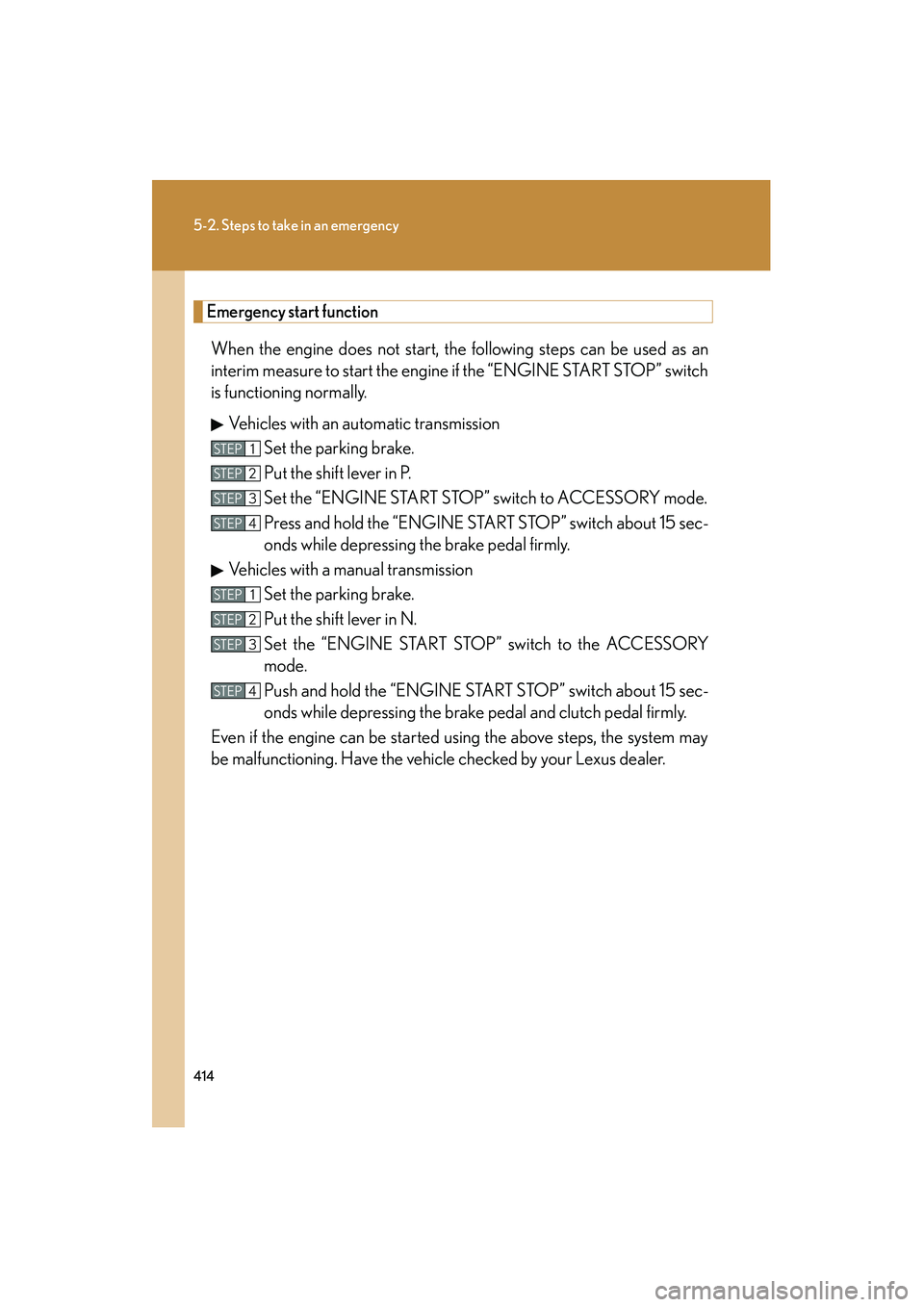

Emergency start function
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the “ENGINE START STOP” switch
is functioning normally.Vehicles with an automatic transmission Set the parking brake.
Put the shift lever in P.
Set the “ENGINE START STOP” switch to ACCESSORY mode.
Press and hold the “ENGINE START STOP” switch about 15 sec-
onds while depressing the brake pedal firmly.
Vehicles with a manual transmission Set the parking brake.
Put the shift lever in N.
Set the “ENGINE START STOP” switch to the ACCESSORY
mode.
Push and hold the “ENGINE START STOP” switch about 15 sec-
onds while depressing the brake pedal and clutch pedal firmly.
Even if the engine can be started using the above steps, the system may
be malfunctioning. Have the vehicle checked by your Lexus dealer.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

422
5-2. Steps to take in an emergency
08_IS350/250_U_(L/O_0808)
■Avoiding a discharged battery
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any part other than the intended terminal.
●Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
●Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
Maintain the engine speed on the second vehicle and turn the
“ENGINE START STOP” switch to IGNITION ON mode,
then start the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Lexus dealer
as soon as possible.STEP5
STEP6

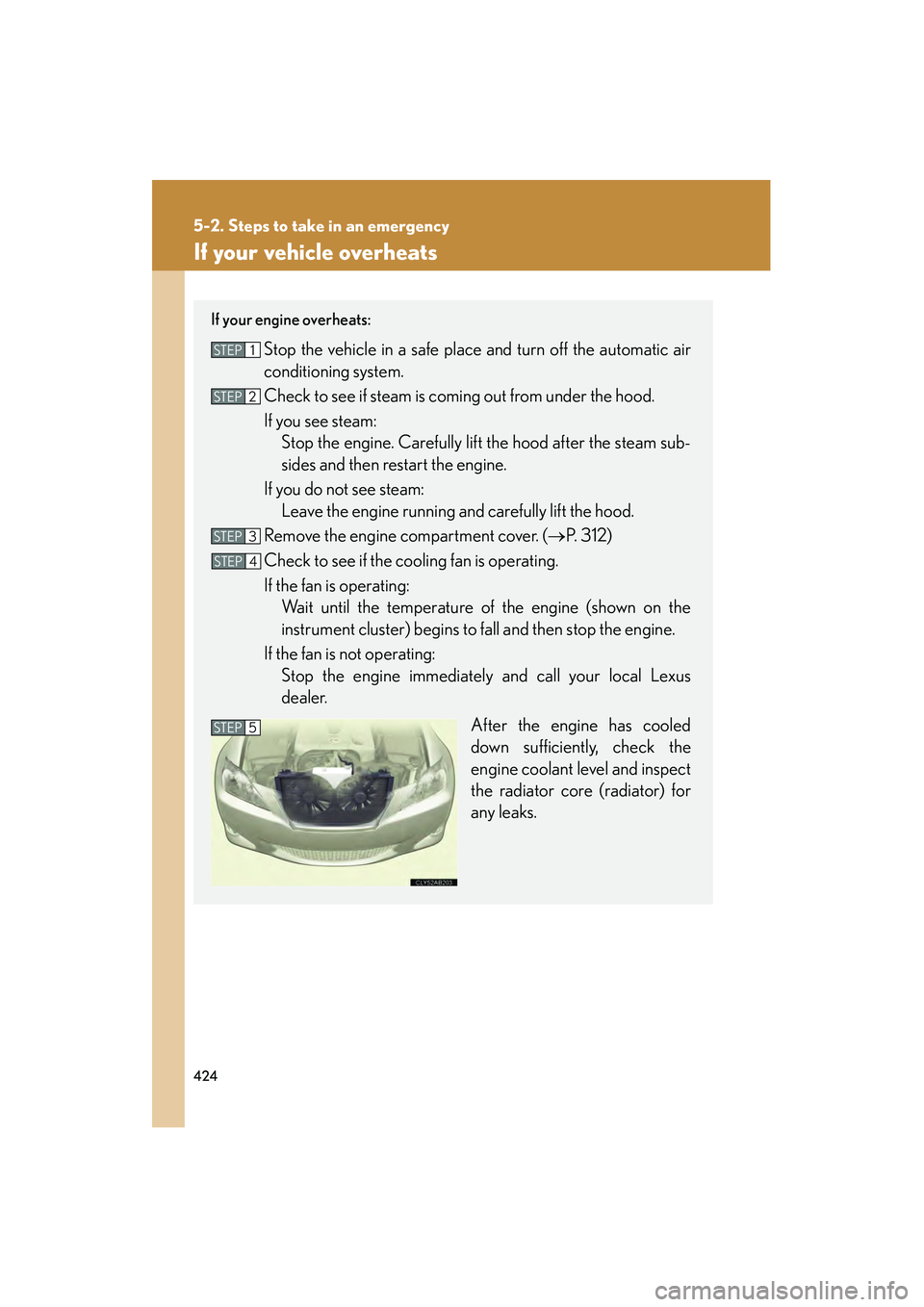

424
5-2. Steps to take in an emergency
08_IS350/250_U_(L/O_0808)
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine. Carefully lift the hood after the steam sub-
sides and then restart the engine.
If you do not see steam: Leave the engine running and carefully lift the hood.
Remove the engine compartment cover. (
P. 312)
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the temperature of the engine (shown on the
instrument cluster) begins to fall and then stop the engine.
If the fan is not operating: Stop the engine immediately and call your local Lexus
dealer.
After the engine has cooled
down sufficiently, check the
engine coolant level and inspect
the radiator core (radiator) for
any leaks.STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises

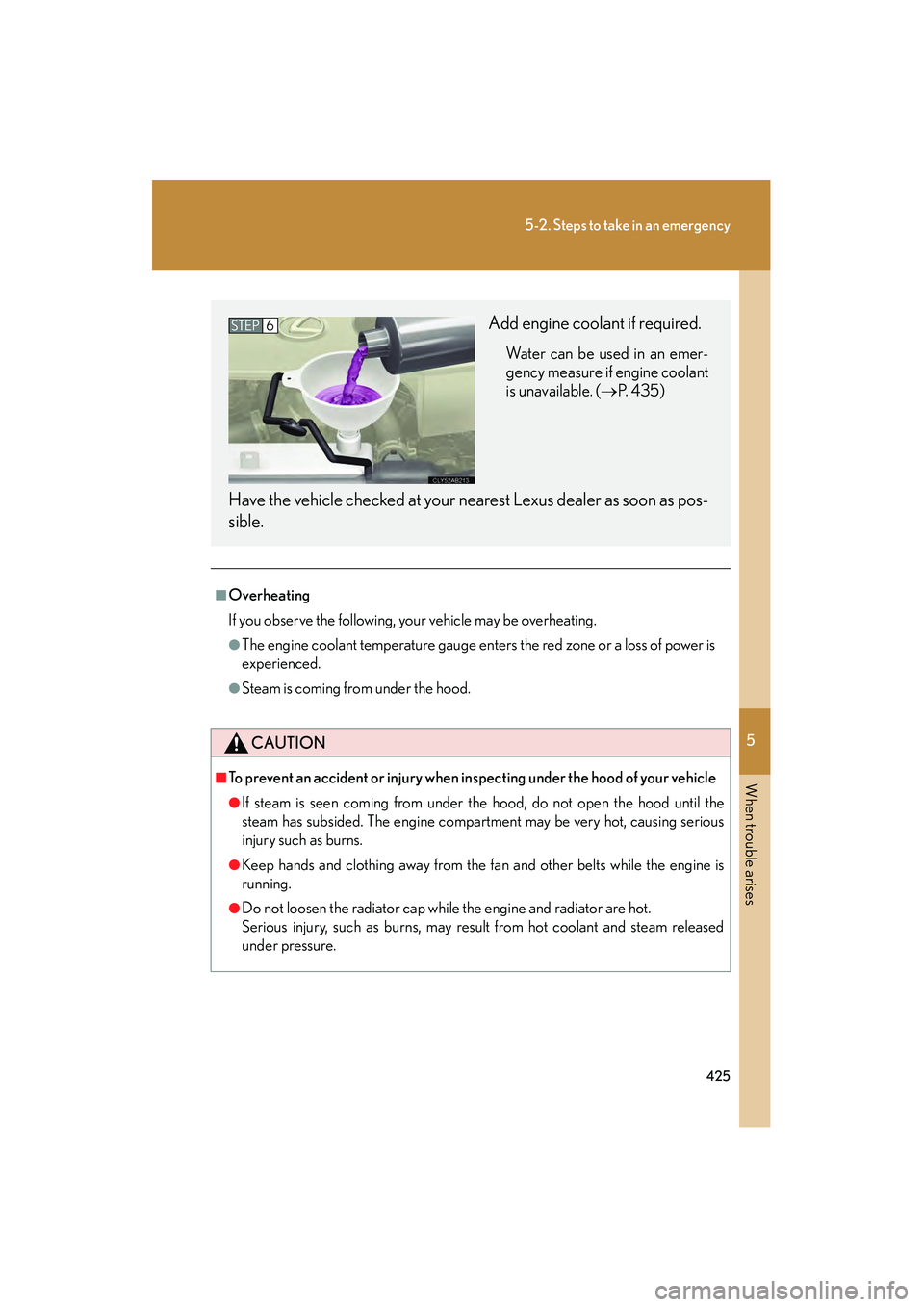

425
5-2. Steps to take in an emergency
08_IS350/250_U_(L/O_0808)
■Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injury such as burns.
●Keep hands and clothing away from the fan and other belts while the engine is
running.
●Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add engine coolant if required.
Water can be used in an emer-
gency measure if engine coolant
is unavailable. (

P. 4 3 5 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6

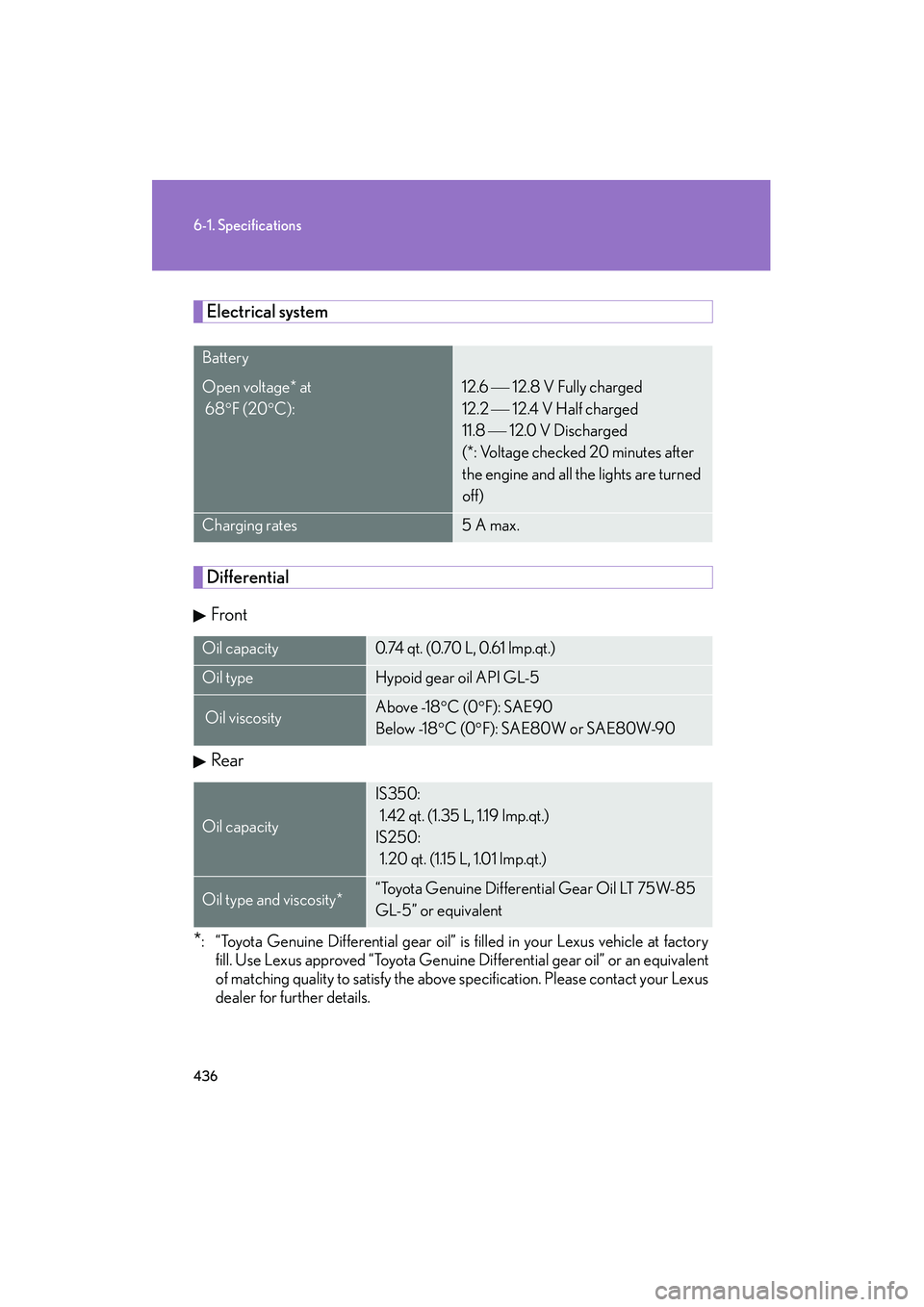

436
6-1. Specifications
08_IS350/250_U_(L/O_0808)
Electrical system
Differential
Front
Rear
*: “Toyota Genuine Differential gear oil” is filled in your Lexus vehicle at factory fill. Use Lexus approved “Toyota Genuine Differential gear oil” or an equivalent
of matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.
Battery
Open voltage* at
68
F (20C):
12.6
12.8 V Fully charged
12.2

12.4 V Half charged
11.8

12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights are turned
off)
Charging rates5 A max.
Oil capacity0.74 qt. (0.70 L, 0.61 lmp.qt.)
Oil typeHypoid gear oil API GL-5
Oil viscosityAbove -18C (0F): SAE90
Below -18
C (0F): SAE80W or SAE80W-90
Oil capacity
IS350: 1.42 qt. (1.35 L, 1.19 lmp.qt.)
IS250:
1.20 qt. (1.15 L, 1.01 lmp.qt.)
Oil type and viscosity*“Toyota Genuine Differential Gear Oil LT 75W-85
GL-5” or equivalent

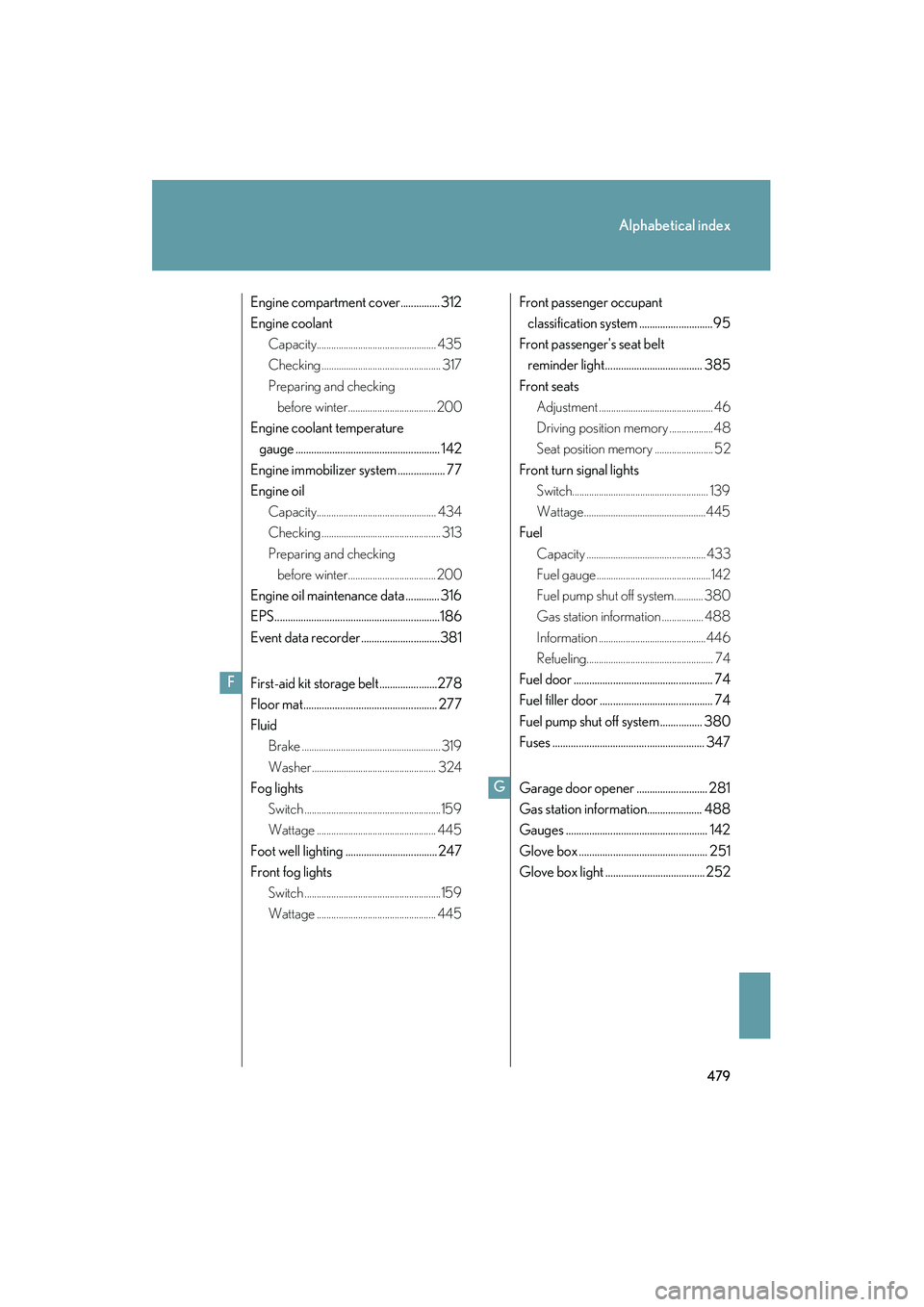

479
Alphabetical index
08_IS350/250_U_(L/O_0808)
Engine compartment cover............... 312
Engine coolant
Capacity................................................. 435
Checking ................................................. 317
Preparing and checking before winter....................................200
Engine coolant temperature gauge ....................................................... 142
Engine immobilizer system .................. 77
Engine oil
Capacity................................................. 434
Checking ................................................. 313
Preparing and checking
before winter....................................200
Engine oil maintenance data ............. 316
EPS...............................................................186
Event data recorder ..............................381
First-aid kit storage belt......................278
Floor mat................................................... 277
Fluid
Brake ......................................................... 319
Washer ................................................... 324
Fog lights
Switch ........................................................159
Wattage ................................................. 445
Foot well lighting ................................... 247
Front fog lights
Switch ........................................................159
Wattage ................................................. 445
Front passenger occupant classification system ............................ 95
Front passenger's seat belt reminder light..................................... 385
Front seats
Adjustment ............................................... 46
Driving position memory ..................48
Seat position memory ........................ 52
Front turn signal lights
Switch........................................................ 139
Wattage..................................................445
Fuel
Capacity .................................................433
Fuel gauge...............................................142
Fuel pump shut off system............ 380
Gas station information ................. 488
Information ............................................446
Refueling.................................................... 74
Fuel door ..................................................... 74
Fuel filler door ........................................... 74
Fuel pump shut off system ................ 380
Fuses .......................................................... 347
Garage door opener ........................... 281
Gas station information..................... 488
Gauges ...................................................... 142
Glove box ................................................. 251
Glove box light ...................................... 252F
G

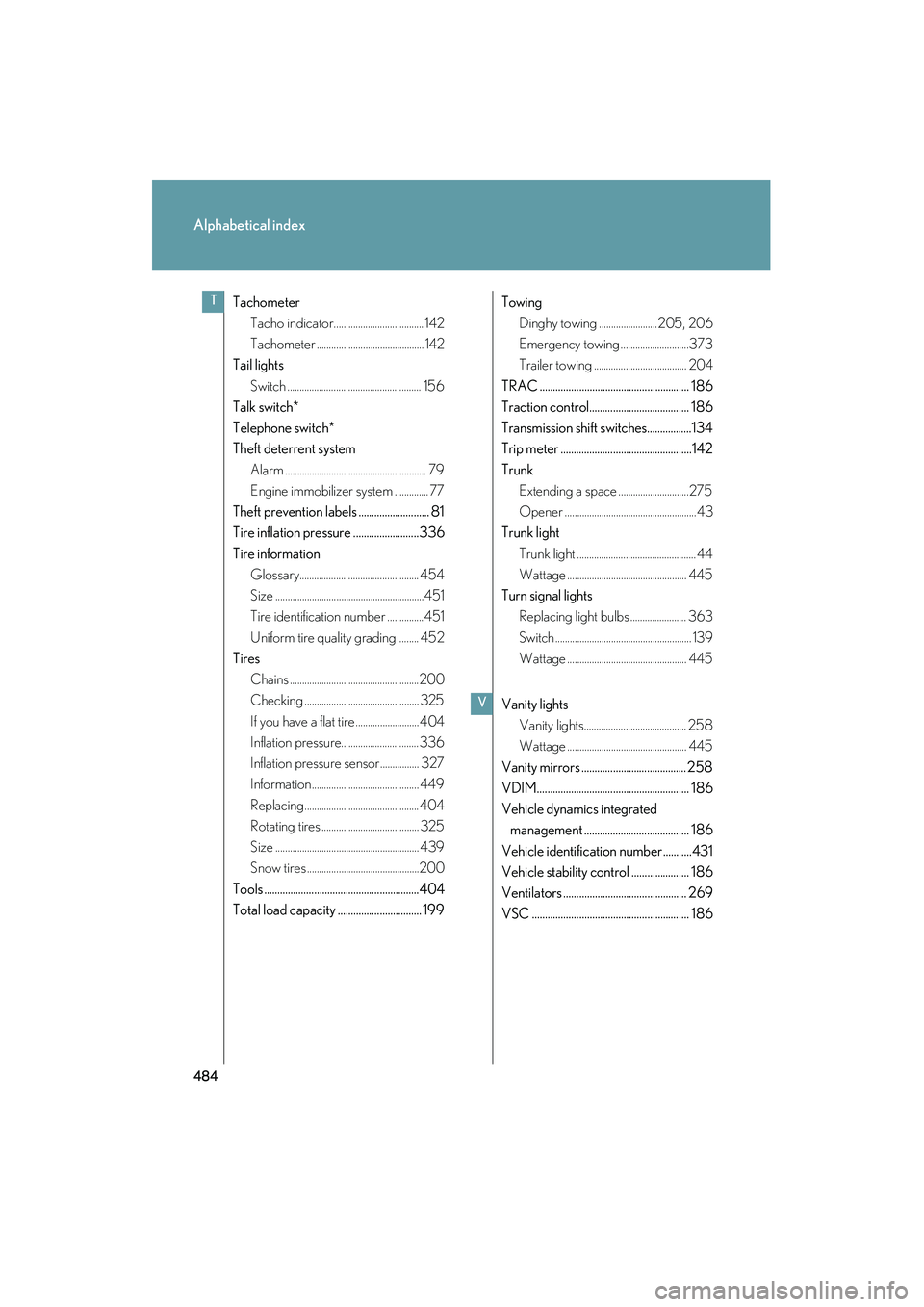

484
Alphabetical index
08_IS350/250_U_(L/O_0808)
Tachometer
Tacho indicator..................................... 142
Tachometer ............................................ 142
Tail lights
Switch ....................................................... 156
Talk switch*
Telephone switch*
Theft deterrent system
Alarm .......................................................... 79
Engine immobilizer system .............. 77
Theft prevention labels ........................... 81
Tire inflation pressure .........................336
Tire information
Glossary................................................. 454
Size .............................................................451
Tire identification number ...............451
Uniform tire quality grading ......... 452
Tires
Chains .....................................................200
Checking ............................................... 325
If you have a flat tire ..........................404
Inflation pressure................................ 336
Inflation pressure sensor................ 327
Information............................................ 449
Replacing ...............................................404
Rotating tires ........................................ 325
Size ........................................................... 439
Snow tires ..............................................200
Tools ...........................................................404
Total load capacity ................................ 199Towing
Dinghy towing ........................205, 206
Emergency towing ............................373
Trailer towing ...................................... 204
TRAC ......................................................... 186
Traction control...................................... 186
Transmission shift switches.................134
Trip meter ..................................................142
Trunk
Extending a space .............................275
Opener ...................................................... 43
Trunk light
Trunk light ................................................. 44
Wattage ................................................. 445
Turn signal lights
Replacing light bulbs ....................... 363
Switch ........................................................ 139
Wattage ................................................. 445
Vanity lights
Vanity lights.......................................... 258
Wattage ................................................. 445
Vanity mirrors ........................................ 258
VDIM.......................................................... 186
Vehicle dynamics integrated
management ........................................ 186
Vehicle identification number ...........431
Vehicle stability control ...................... 186
Ventilators ............................................... 269
VSC ............................................................ 186
T
V
