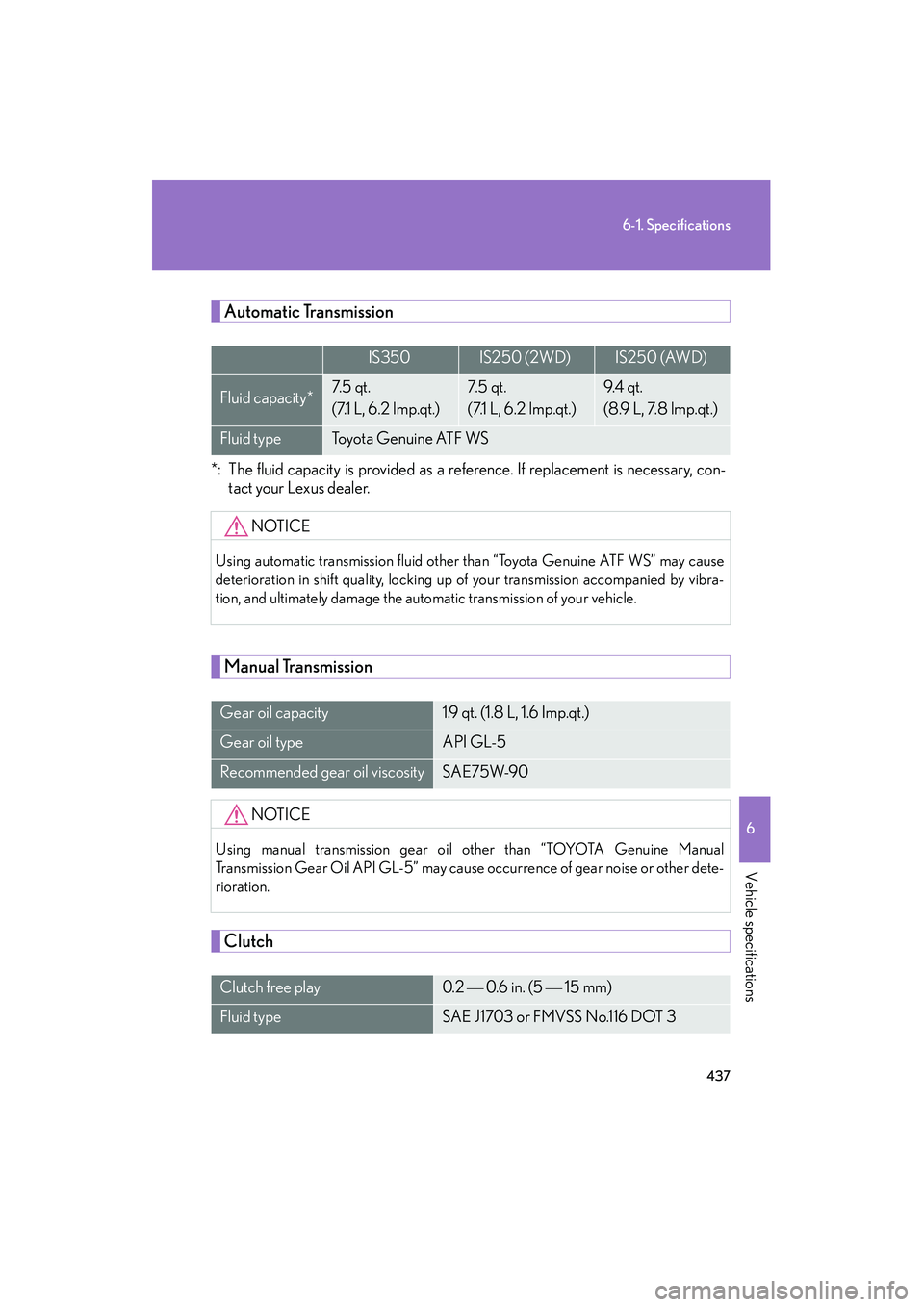

6-1. Specifications
6
Vehicle specifications
08_IS350/250_U_(L/O_0808)
Automatic Transmission
*: The fluid capacity is provided as a reference. If replacement is necessary, con-
tact your Lexus dealer.
Manual Transmission
Clutch
IS350IS250 (2WD)IS250 (AWD)
Fluid capacity*7. 5 q t .
(7.1 L, 6.2 lmp.qt.)7. 5 q t .
(7.1 L, 6.2 lmp.qt.)9.4 qt.
(8.9 L, 7.8 lmp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by vibra-
tion, and ultimately damage the automatic transmission of your vehicle.
Gear oil capacity1.9 qt. (1.8 L, 1.6 Imp.qt.)
Gear oil typeAPI GL-5
Recommended gear oil viscositySAE75W-90
NOTICE
Using manual transmission gear oil other than “TOYOTA Genuine Manual
Transmission Gear Oil API GL-5” may cause occurrence of gear noise or other dete-
rioration.
Clutch free play0. 2  0.6 in. (5  15 mm)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3

438
6-1. Specifications
08_IS350/250_U_(L/O_0808)
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).
*3: Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N, 20.4kgf).
Pe d a l c l e a r a n c e *1
IS 350
IS 250
Manual transmission
Automatic transmission4.13 in. (105 mm) Min.
4.09 in. (104 mm) Min.
4.3 in. (108 mm) Min.
Pedal free play0.04  0.08 in. (1.0  2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *2/
lever travel
*3
Pedal type
Lever type7  9 clicks
4
 6 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3

476
08_IS350/250_U_(L/O_0808)
