washer fluid Lexus IS250 2009 Owner's Manual

163
2-3. Operating the lights and windshield wipers
2
When driving
08_IS350/250_U_(L/O_0808)
■Rain drop sensor (vehicles with the rain-sensing windshield wipers)
■Outside rear view mirror defogger activation linked to windshield wiper opera-
tion
The outside rear view mirror defogger automatically turns on when you operate the
windshield wipers.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
■Customization that can be configured at Lexus dealer
Settings (e.g. drip prevention function) can be changed.
(Customizable features

P. 4 6 1 )
CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in “AUTO” mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
The sensor judges the amount of raindrops.

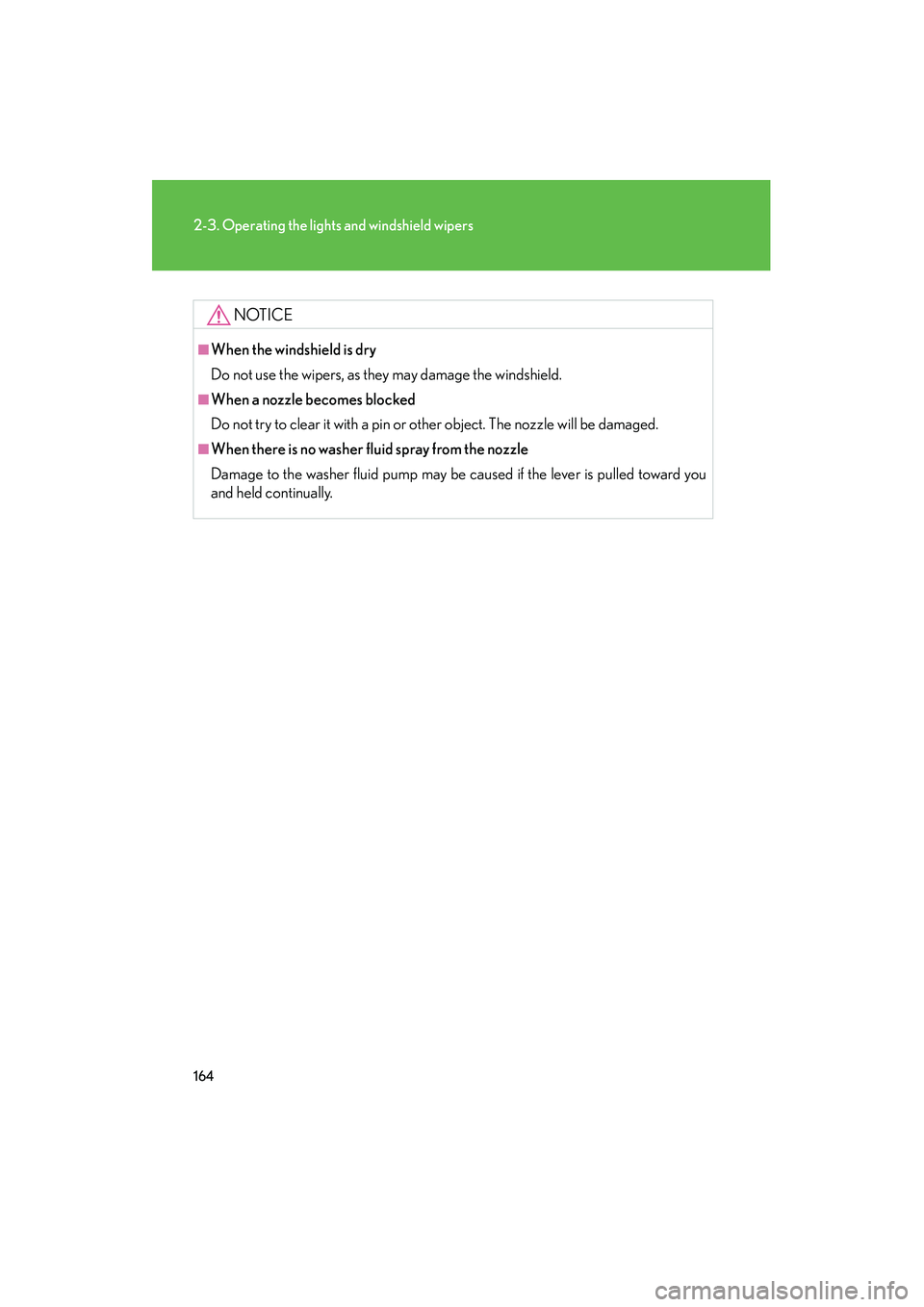

164
2-3. Operating the lights and windshield wipers
08_IS350/250_U_(L/O_0808)
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.

165
2-3. Operating the lights and windshield wipers
2
When driving
08_IS350/250_U_(L/O_0808)
Headlight cleaner switch
■The headlight cleaner can be operated when
When the “ENGINE START STOP” switch is in IGNITION ON mode and the
headlight switch is turned on.
■Windshield washer linked operation
When the windshield washer is operated with the “ENGINE START STOP” switch
in IGNITION ON mode and the headlights on, the headlight cleaner will operate
once. (

P. 160)
NOTICE
■When the washer fluid tank is empty
Do not use this function when the washer fluid tank is empty. This may cause the
washer fluid pump to overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.
: If equipped

200
2-5. Driving information
08_IS350/250_U_(L/O_0808)
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the level and specific gravity of
battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the specified size and the same brand, and that
chains match the size of the tires.
■ Before driving the vehicle
Perform the following according to the driving conditions.
●Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumulated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.

305
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0808)
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precautions.
■When working on the engine compartment
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
ItemsParts and tools
Engine oil level (
P. 313)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses (
P. 3 4 7 )• Fuse with same amperage rating as
original
Tire inflation pressure (
P. 3 3 6 )• Tire pressure gauge
• Compressed air source
Headlight aim (
P. 3 6 1 )• Phillips-head screwdriver
Radiator and condenser (
P. 3 1 9 )

Wa s h e r f l u i d (
P. 3 2 4 )
• Water washer fluid containing anti-freeze (for winter use)
•Funnel

310
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0808)
Engine compartment
IS350
Battery (
P. 321)
Engine oil level dipstick (
P. 313)
Engine oil filler cap (
P. 313)
Brake fluid reservoir (
P. 319)
Fuse boxes (
P. 3 4 7 )Washer fluid tank
(
P. 324)
Electric cooling fans
Condenser (
P. 319)
Radiator (
P. 319)
Engine coolant reservoir (
P. 317)

311
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0808)
IS250
Battery (
P. 321)
Engine oil level dipstick (
P. 313)
Engine oil filler cap (
P. 313)
Brake fluid reservoir (
P. 319)
Fuse boxes (
P. 3 4 7 )Washer fluid tank
(
P. 324)
Electric cooling fans
Condenser (
P. 319)
Radiator (
P. 319)
Engine coolant reservoir (
P. 317)

324
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0808)
Washer fluidIf any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.
NOTICE
■When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all accesso-
ries are turned off.
CAUTION
■When refilling the washer fluid
Do not refill the washer fluid when the engine is hot or running, as the washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the washer fluid tank.

368
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0808)
■When replacing the front left headlight and parking light bulbs
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED front side marker lights, side turn signal lights, tail lights, stop/tail lights, high
mounted stoplight, rear side marker lights and license plate lights
The front side marker lights, side turn signal lights, tail lights, stop/tail lights, high
mounted stoplight, rear side marker lights and license plate lights consist of a num-
ber of LEDs. If any of the LEDs burn out, take your vehicle to your Lexus dealer to
have the light replaced. Remove the securing bolt and move the
washer fluid filler opening to allow easy
access to the light bulbs.
After replacing the bulbs, make sure to
secure the washer fluid filler opening with the
bolt.

396
5-2. Steps to take in an emergency
08_IS350/250_U_(L/O_0808)
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that the trunk is
not fully closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
(If equipped)
Indicates that the moon
roof is not fully closed
(with the “ENGINE
START STOP” switch
OFF and the driver’s
door opened).
Close the moon roof.
Indicates that the parking
brake is still engaged.
flashes and a
buzzer sounds to indi-
cate that the parking
brake is still engaged
(with the vehicle having
reached a speed of 3
mph [5 km/h]).
Release the parking
brake.
Indicates that the washer
fluid level is low.Add washer fluid.
