Interior features
3-3. Using the interior lights
Interior lights list
Your Lexus is equipped with the illuminated entry system to assist in enter-
ing the vehicle. Owing to the function of the system, the lights shown in the
following illustration automatically turn on/off according to the presence of
the electronic key, whether the doors are locked/unlocked, whether the
doors are opened/closed, and the “ENGINE START STOP” switch mode.
Front personal lights ( P. 2 4 9 )
Front interior light ( P. 2 4 9 )
Front overhead courtesy light
Rear personal lights ( P. 2 4 9 )
Rear interior light
Rear overhead courtesy light
Shift lever light (when “ENGIN E START STOP” switch is in
ACCESSORY or IGNITION ON mode)
Front foot well lighting

248
3-3. Using the interior lights
■To prevent the battery from being discharged
If the overhead courtesy lights and interior lights remain on when the door is not
fully closed and the interior light switch (door position on/off) is on, the lights will go
off automatically after 20 minutes.
■Customization that can be configured at Lexus dealer
Setting (e.g. The time elapsed before lights turn off) can be changed. (Customiz-
able features
P. 4 6 1 )
Front door courtesy light
Front scuff lighting (if equipped)
Outer foot lights
Turning the instrument panel light contro l knob fully to the left disables the
shift lever lighting and front foot well lighting.

249
3-3. Using the interior lights
3
Interior features
Interior lightsModels without a moon roof Door position on/off
On/off
Models with a moon roof Door position on/off
On/off
Personal lights
Front (models without a moon roof) On/off
Interior lights and personal lights

250
3-3. Using the interior lights
Front (models with a moon roof)On/off
Rear On/off
Pe r s o n a l l i g h t s

294
4-1. Maintenance and care
NOTICE
■To protect your vehicle’s painted surfaces
Do not use organic cleaners such as benzene or gasoline.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.
■To prevent damage to the windshield wiper arms
When lifting the wiper arms away from th e windshield, pull the driver side wiper
arm upward first, and repeat for the passenger side. When returning the wipers to
their original position, do so from the passenger side first.
■When using an automatic car wash (vehicles with the rain-sensing windshield
wipers only)
Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wipers
may operate and the wiper blades may be
damaged.Off

301
4-2. Maintenance
4
Maintenance and care
Vehicle interior
ItemsCheck points
Accelerator pedal• Moves smoothly (without uneven pedal effort or catching)?
Automatic transmission “Park”
mechanism• Can the vehicle be hold securely on an incline with the shift lever in
P?
Brake pedal
• Moves smoothly?
• Does it have appropriate clearance and correct amount of free play?
Brakes
• Not pull to one side when applied?
• Loss of brake effectiveness?
• Spongy feeling brake pedal?
• Pedal almost touches floor?
Head restraints• Move smoothly and lock securely?
Indicators/buzzers• Function properly?
Lights
• Do all the lights come on?
• Headlights aimed correctly? ( P. 3 6 1 )
Pa r k i n g b r a ke
• Moves smoothly?
• Can hold the vehicle securely on
an incline?
Seat belts
• Does the seat belt system operate smoothly?
• Are the belts undamaged?
Seats• Do the seat controls operate prop- erly?

351
4-3. Do-it-yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings■ Engine compartment (type A fuse box)
FuseAmpereCircuit
1PWR HTR25 A
2TURN-HAZ15 AEmergency flashers, turn signals
3IG2 MAIN20 AIG2, IGN, GAUGE
4RAD NO.230 AAudio
5D/C CUT20 ADOME, MPX-B
6RAD NO.130 AAudio
7MPX-B10 A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, horn, power door lock system,
power windows, power seats, electric
tilt and telescopic steering column,
meter, smart access system with push-
button start, outside rear view mirrors,
air conditioning system, security sys-
tem
8DOME10 AInterior lights, meter
9CDS10 AElectric cooling fans

353
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
27GLW PLG250 APTC heater
28E/G-AM60 AHeadlight cleaners, front fog lights,
parking lights, air conditioning system
29LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.1,
A/C, FUEL/OPEN, PSB, FR WIP,
H-LP LVL, LH-IG, ECU-IG LH,
PANEL, TAIL, MIR HTR,
FR S/HTR LH

354
4-3. Do-it-yourself maintenance

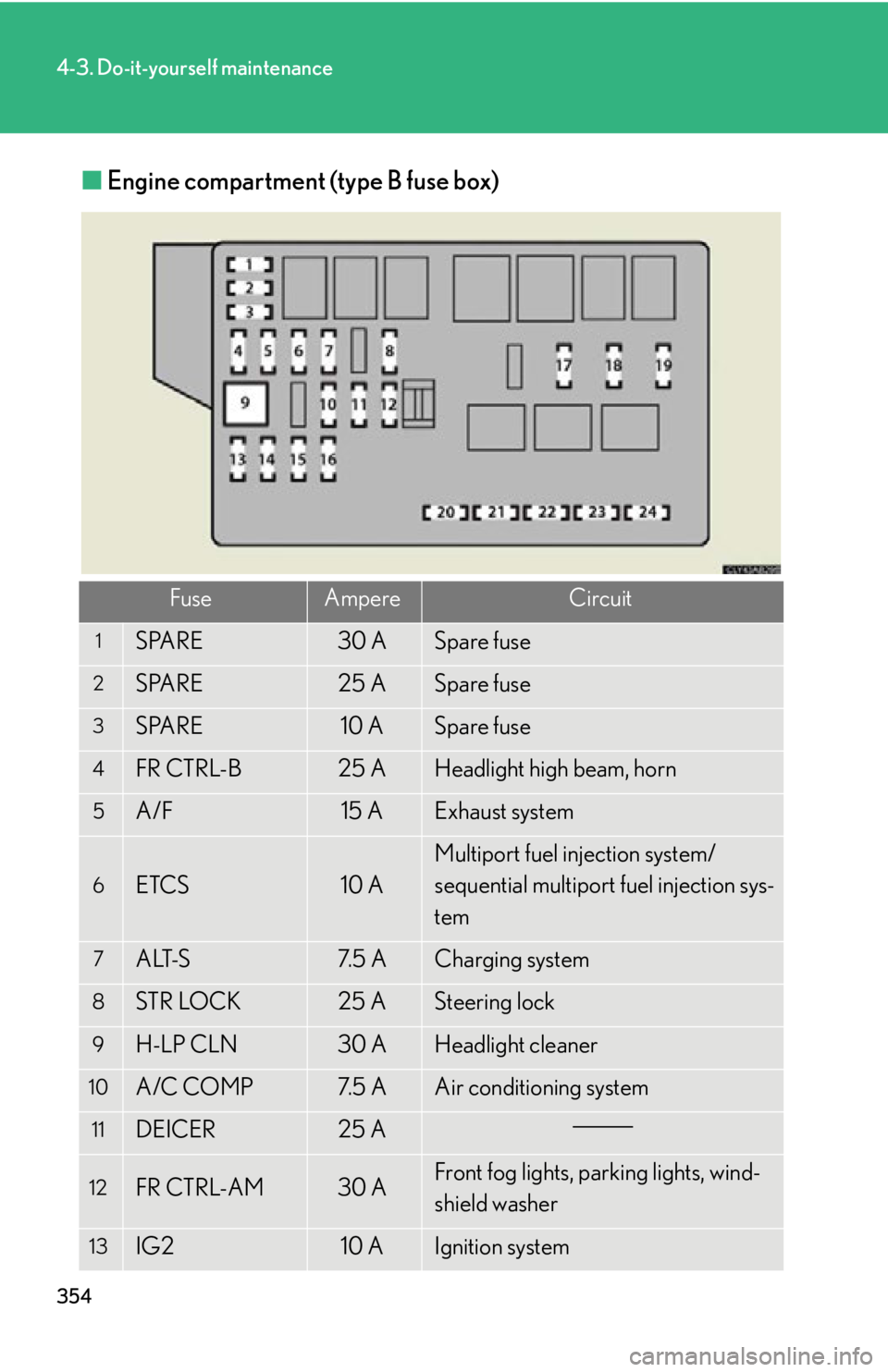

■Engine compartment (type B fuse box)
FuseAmpereCircuit
1SPARE30 ASpare fuse
2SPARE25 ASpare fuse
3SPARE10 ASpare fuse
4FR CTRL-B25 AHeadlight high beam, horn
5A/F15 AExhaust system
6ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
7ALT-S7. 5 ACharging system
8STR LOCK25 ASteering lock
9H-LP CLN30 AHeadlight cleaner
10A/C COMP7. 5 AAir conditioning system
11DEICER25 A
12FR CTRL-AM30 AFront fog lights, parking lights, wind-
shield washer
13IG210 AIgnition system

355
4-3. Do-it-yourself maintenance
4
Maintenance and care
14EFI NO.210 AFuel system, exhaust system
15H-LP R LWR15 AHeadlight low beam (right)
16H-LP L LWR15 AHeadlight low beam (left)
17F/ P M P25 AFuel system
18EFI25 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
19INJ20 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
20H-LP UPR15 AHeadlight high beams
21HORN10 AHorns
22WA S H E R20 AWindshield washer
23FR TAIL10 AParking lights
24FR FOG15 AFront fog lights
FuseAmpereCircuit
