tow Lexus IS250 2009 Specifications / LEXUS 2009 IS350/250 (OM53669U) Owner's Guide

376
5-1. Essential information
Towing with a sling-type truck
CAUTION
■Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing. This may
lead to accidents that cause serious injury or even death.
NOTICE
■To prevent body damage
Do not tow with a sling type truck, either from the front or rear.

5
When trouble arises
377
5-1. Essential information
Towing with a wheel lift-type truckFrom the front Vehicles with an automatic trans-
mission: Use a towing dolly under
the rear wheels.
Vehicles with a manual transmis-
sions: We recommend to use a
towing dolly under the rear wheels.
When not using a towing dolly,
release the parking brake and shift
the shift lever to N.
From the rear (2WD models)Switch to ACCESSORY mode so
that the steering wheel is
unlocked.
From the rear (AWD models) Use a towing dolly under the front
wheel.

378
5-1. Essential information
Using a flat bed truckIf your Lexus is transported by a
flat bed truck, it should be tied
down at the locations shown in the
illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45 .
Do not overly tighten the tie downs
or the vehicle may be damaged.
NOTICE
■To prevent causing serious damage to the transmission
(vehicles with an automatic transmission)
Never tow this vehicle from the front with the rear wheels on the ground.
■To prevent damaging the vehicle
●Do not tow the vehicle from the rear with the “ENGINE START STOP” switch
OFF.
The steering lock mechanism is not st rong enough to hold the front wheel
straight.
●When raising the vehicle from the rear, ensure adequate ground clearance for
towing at the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed from the rear.

404
5-2. Steps to take in an emergency

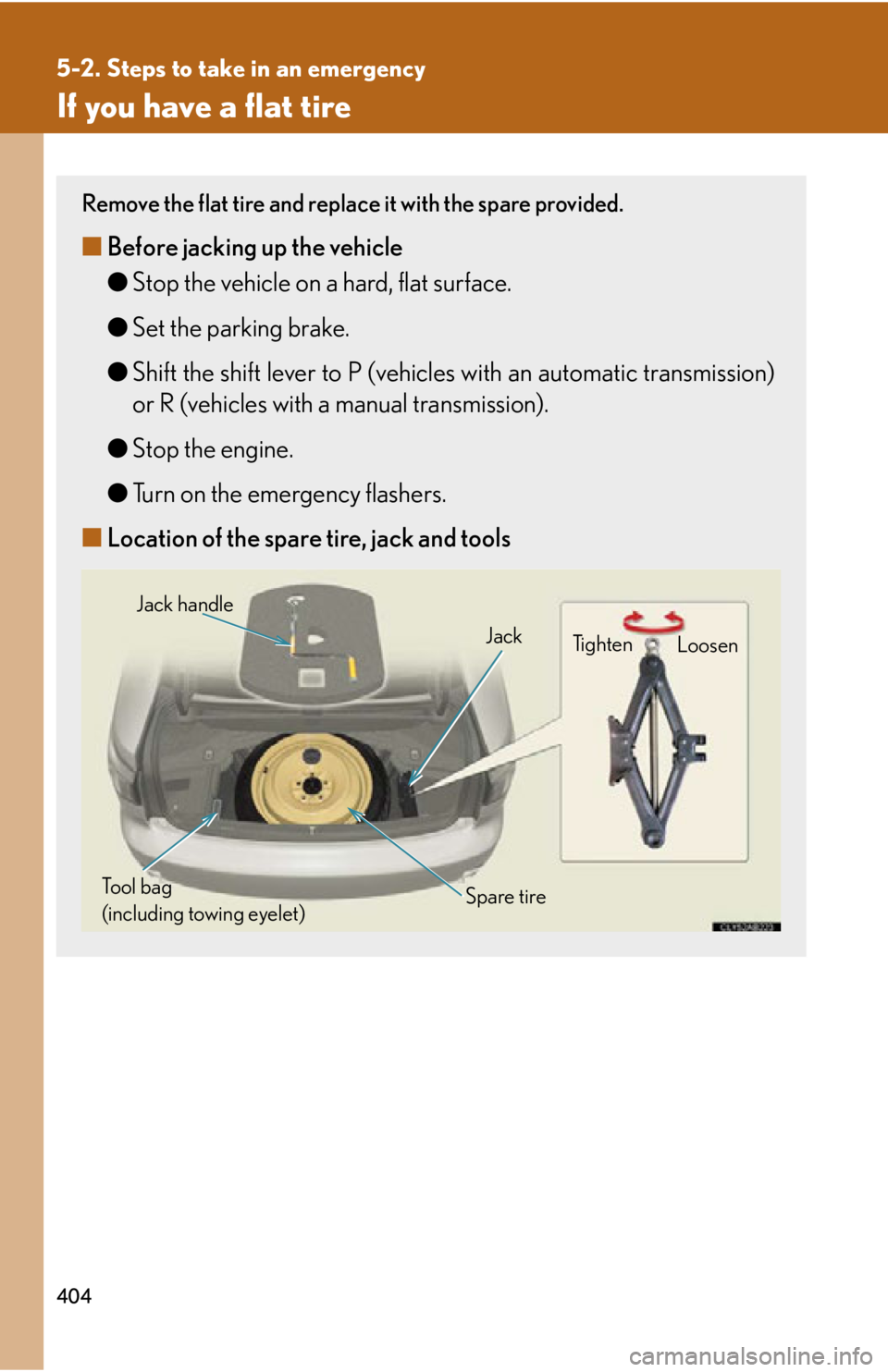

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (vehicle s with an automatic transmission)
or R (vehicles with a manual transmission).
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Tool bag
(including towing eyelet) Jack
Jack handle
Spare tire
Ti g h t e nLoosen

408
5-2. Steps to take in an emergency
Install the spare tire and loosely
tighten each nut by hand to
approximately the same amount.
Tighten the wheel nuts until the
tapered portion comes into loose
contact with the disc wheel seat.
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
STEP2
Disc wheel
seat
Tapered portion
STEP3
STEP4
STEP5

428
5-2. Steps to take in an emergency
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
●If the vehicle remains stuck after trying these procedures, the vehicle may require
towing to be freed.

478
Alphabetical index
Cruise controlCruise control .......................................166
Dynamic radar cruise control .......170
Cup holder ..............................................254
Curtain shield airbags............................84
Customizable features ........................ 461
Daytime running light system ........... 157
Defogger Rear window ..........................................218
Side mirror ..............................................218
Dimension ................................................430
Dinghy towing ............................ 205, 206
Display Dynamic radar cruise control .......170
Satellite switch mode .......................260
Trip information ....................................152
Warning message............................. 392
Do-it-yourself maintenance .............304
Door courtesy lights Door courtesy lights..........................247
Wattage.................................................. 445
Door pockets..........................................256
Doors Door glasses ........................................... 69
Door lock.................................24, 36, 39
Side mirrors ............................................. 66
Driver's seat belt reminder light .... 385
Driving Correct posture .................................... 82
Procedures .............................................. 116
Driving position memory ......................48 Electric power steering....................... 186
Electronic key
If the electronic key does not operate properly.............................. 417
Emergency, in case of If the engine will not start ................. 413
If the shift lever cannot be shifted from P..................................... 415
If the vehicle has discharged battery ................................................... 421
If the warning buzzer sounds...... 383
If the warning light turns on.......... 383
If the warning message is displayed .............................................392
If you have a flat tire ........................ 404
If you lose your keys .......................... 416
If you think something is wrong ...................................................379
If the electronic key does not operate properly.............................. 417
If your vehicle becomes stuck ..... 427
If your vehicle needs to be towed ....................................................373
If your vehicle overheats.................424
Emergency flashers Switch ....................................................... 372
Engine Compartment ....................................... 310
Engine switch ........................................ 126
Hood ....................................................... 307
How to start the engine ................... 126
Identification number ........................ 431
If the engine will not start ................. 413
Ignition switch ....................................... 126
Overheating .........................................424
D
E

484
Alphabetical index
TachometerTacho indicator..................................... 142
Tachometer ............................................ 142
Tail lights Switch ....................................................... 156
Talk switch*
Telephone switch*
Theft deterrent system Alarm .......................................................... 79
Engine immobilizer system .............. 77
Theft prevention labels ........................... 81
Tire inflation pressure .........................336
Tire information Glossary................................................. 454
Size .............................................................451
Tire identification number ...............451
Uniform tire quality grading ......... 452
Tires Chains .....................................................200
Checking ............................................... 325
If you have a flat tire ..........................404
Inflation pressure................................ 336
Inflation pressure sensor................ 327
Information............................................ 449
Replacing ...............................................404
Rotating tires ........................................ 325
Size ........................................................... 439
Snow tires ..............................................200
Tools ...........................................................404
Total load capacity ................................ 199 Towing
Dinghy towing ........................205, 206
Emergency towing ............................373
Trailer towing ...................................... 204
TRAC ......................................................... 186
Traction control...................................... 186
Transmission shift switches.................134
Trip meter ..................................................142
Trunk Extending a space .............................275
Opener ...................................................... 43
Trunk light Trunk light ................................................. 44
Wattage ................................................. 445
Turn signal lights Replacing light bulbs ....................... 363
Switch ........................................................ 139
Wattage ................................................. 445
Vanity lights Vanity lights.......................................... 258
Wattage ................................................. 445
Vanity mirrors ........................................ 258
VDIM.......................................................... 186
Vehicle dynamics integrated management ........................................ 186
Vehicle identification number...........431
Vehicle stability control ...................... 186
Ventilators ............................................... 269
VSC ............................................................ 186T
V
