seat adjustment Lexus IS250 2009 Specifications / LEXUS 2009 IS350/250 OWNER'S MANUAL (OM53669U)

46
1-3. Adjustable components (seats, mirrors, steering wheel)

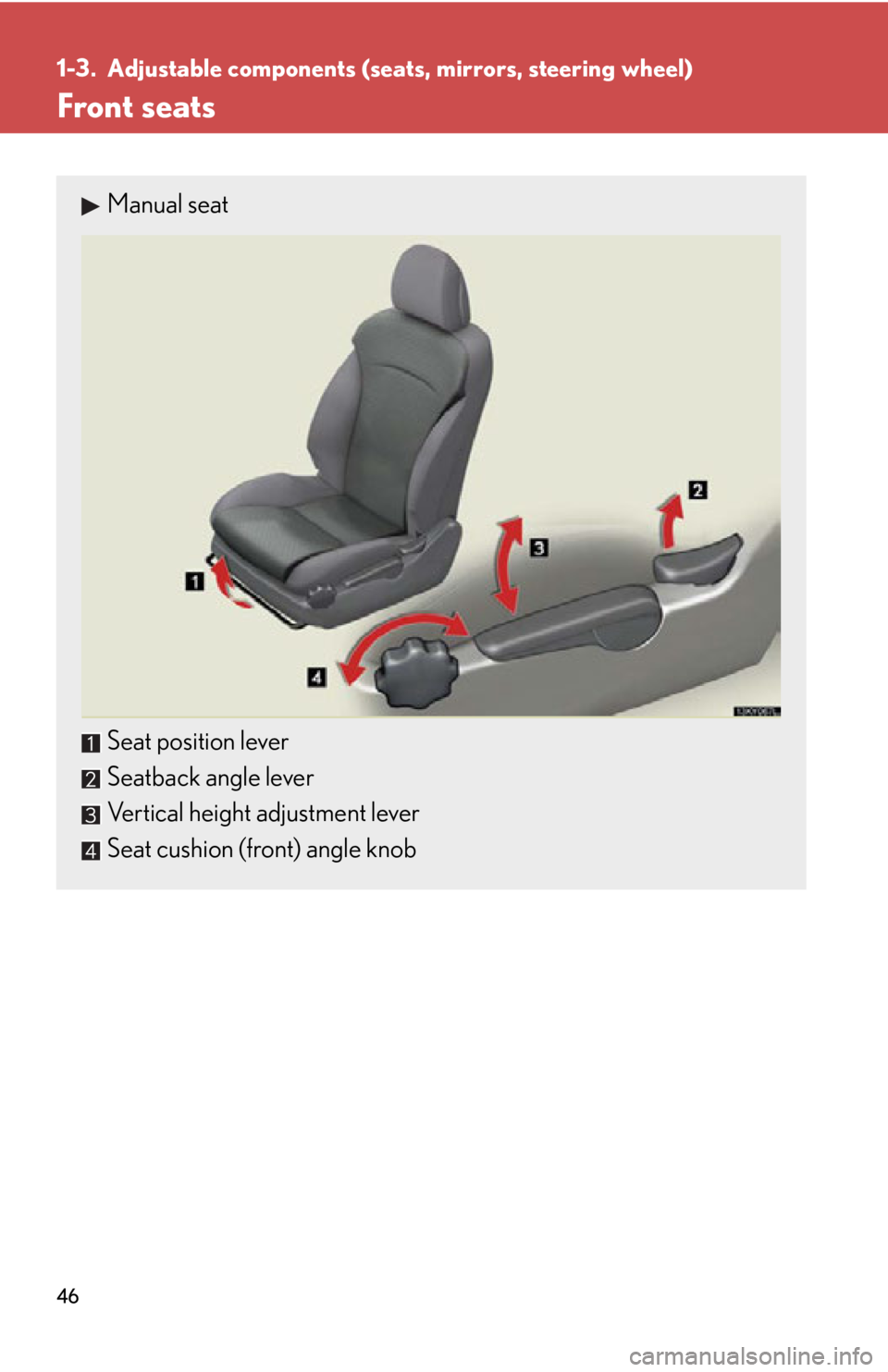

Front seats
Manual seat
Seat position lever
Seatback angle lever
Vertical height adjustment lever
Seat cushion (front) angle knob

47
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CAUTION
■Seat adjustment
●Do not recline the seat more than necessary when the vehicle is in motion to
reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
●Manual seat only: After adjusting the seat , make sure that the seat is locked in
position.
Power seat
Seat position switch
Seatback angle switch
Seat cushion (front) angle switch
Vertical height adjustment switch
Lumbar support switch

51
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
■Canceling the linked door unlock operation
Turn the “ENGINE START STOP” switch OFF and close the driver's door.
Using the wireless remote control: While pushing the “SET” button, press on the wireless remote control until the signal beeps.
Using the door lock switch: While pressing the “SET” button, press the
lock or unlock side on the door lock switch until the signal beeps.
■Operating the driving position memory after turning the “ENGINE START
STOP” switch OFF
Memorized positions (except for the steering wheel positions) can be activated up
to 180 seconds after the driver's door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the “SET” button.
●Push button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
■If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
STEP1
STEP2

53
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
■Operating the seat position memory after turning the “ENGINE START STOP”
switch OFF
Memorized position can be activated up to 180 seconds after the front passenger
door is opened, even after turning the “ENGINE START STOP” switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the “SET” button.
●Push button “1”, “2” or “3”.
●Adjust the seat position using the switches.
■If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that th e seat does not strike the rear passenger.

54
1-3. Adjustable components (seats, mirrors, steering wheel)
Head restraints
■Removing the head restraints (front and center rear seat)
Vertical adjustmentUp
Down
Front and center rear seat: Push
the head restraint down while
pushing the lock release button.
Folding operation (outside rear
seats)
To stow the head restraint by
folding it forward, pull the head
restraint up while pushing the
lock release button. Only the
button on the right stay (when
facing the front of the vehicle)
can be used to fold the head
restraint forward.
Lock release button
Lock release button
Pull the head restraint up while pushing the
lock release button.

64
1-3. Adjustable components (seats, mirrors, steering wheel)
■The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■Automatic adjustment of the steering position (vehicles with driving position
memory)
A desired steering position can be entered to memory and recalled automatically
by the driving position memory. ( P. 4 8 )
■Customization that can be configured at Lexus dealer
It is possible to deactivate the auto tilt-away function.
(Customizable featuresP. 4 6 1 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.

66
1-3. Adjustable components (seats, mirrors, steering wheel)
Outside rear view mirrors
■The mirrors can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. (P. 2 1 8 )
■Folding back the mirrors
■One-touch adjustment of the mirror angle
(vehicles with driving position memory)
A desired mirror face angle can be entere d to memory and adjusted with the touch
of a button. ( P. 4 8 )
Mirror angle can be adjusted using the switch.
Select a mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up, down,
in, or out using the switch
Push back in the direction of the vehicle's
rear.

83
1-7. Safety information
1
Before driving
CAUTION
■While driving
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint, increasing the risk of death or
serious injury to the driver or passenger.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident. The adjustment
mechanism may also be damaged.
■Adjusting the seat position:
●Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.

361
4-3. Do-it-yourself maintenance
4
Maintenance and care

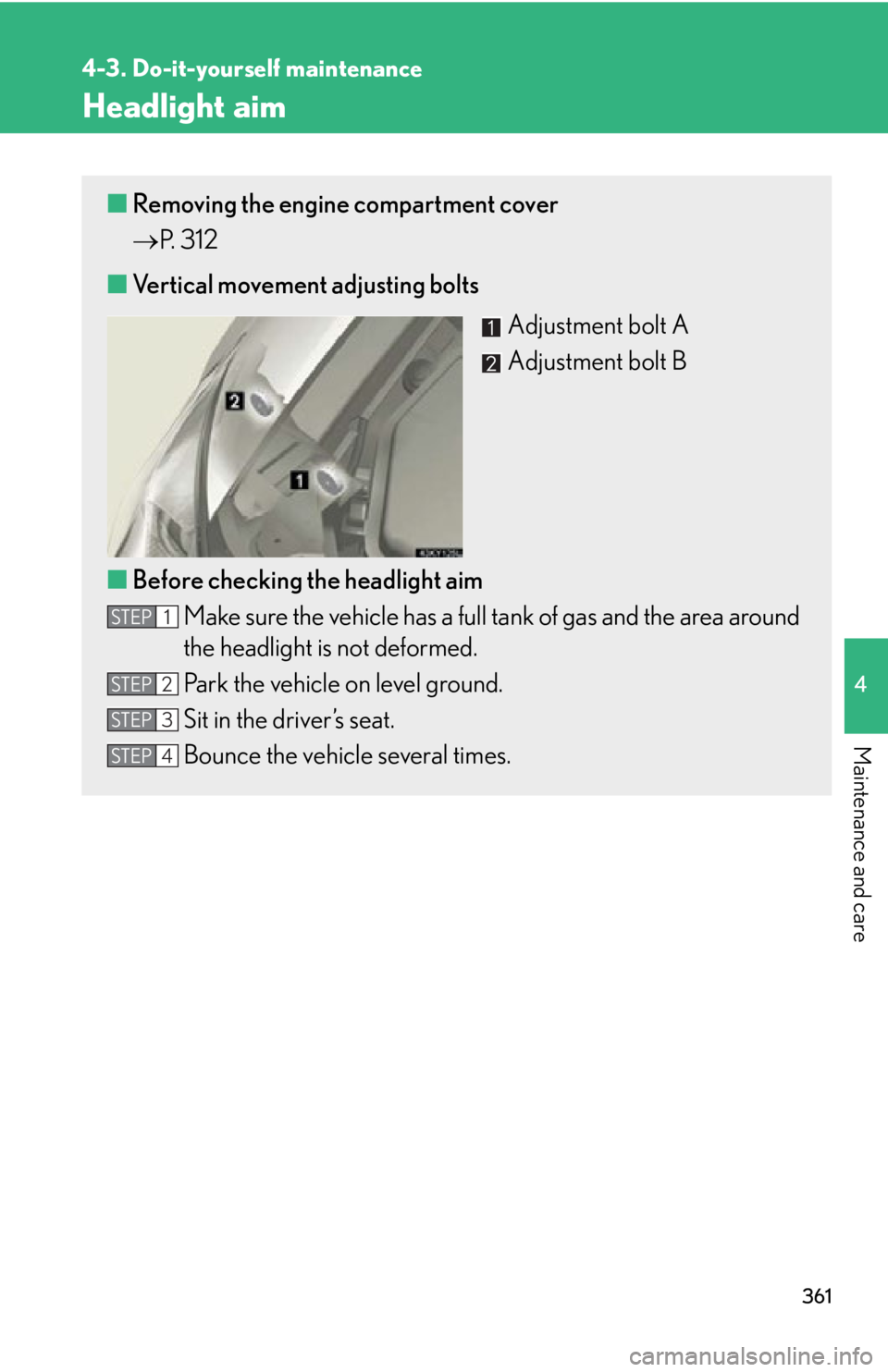

Headlight aim
■Removing the engine compartment cover
 P. 3 1 2
■ Vertical movement adjusting bolts
Adjustment bolt A
Adjustment bolt B
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
STEP1
STEP2
STEP3
STEP4

479
Alphabetical index
Engine compartment cover............... 312
Engine coolantCapacity................................................. 435
Checking ................................................. 317
Preparing and checking before winter ....................................200
Engine coolant temperature gauge ....................................................... 142
Engine immobilizer system .................. 77
Engine oil Capacity................................................. 434
Checking ................................................. 313
Preparing and checking before winter ....................................200
Engine oil maintenance data ............. 316
EPS...............................................................186
Event data recorder..............................381
First-aid kit storage belt......................278
Floor mat................................................... 277
Fluid Brake ......................................................... 319
Washer ................................................... 324
Fog lights Switch ........................................................159
Wattage ................................................. 445
Foot well lighting ................................... 247
Front fog lights Switch ........................................................159
Wattage ................................................. 445 Front passenger occupant
classification system ............................ 95
Front passenger's seat belt reminder light..................................... 385
Front seats Adjustment ............................................... 46
Driving position memory ..................48
Seat position memory ........................ 52
Front turn signal lights Switch........................................................ 139
Wattage ..................................................445
Fuel Capacity .................................................433
Fuel gauge...............................................142
Fuel pump shut off system............ 380
Gas station information ................. 488
Information ............................................446
Refueling.................................................... 74
Fuel door ..................................................... 74
Fuel filler door ........................................... 74
Fuel pump shut off system ................ 380
Fuses .......................................................... 347
Garage door opener ........................... 281
Gas station information..................... 488
Gauges ...................................................... 142
Glove box ................................................. 251
Glove box light ...................................... 252
F
G
