Lexus IS250 2009 Specifications / LEXUS 2009 IS350/250 QUICK GUIDE (OM53689U) Service Manual

Topic 5
Driving Comfort
41

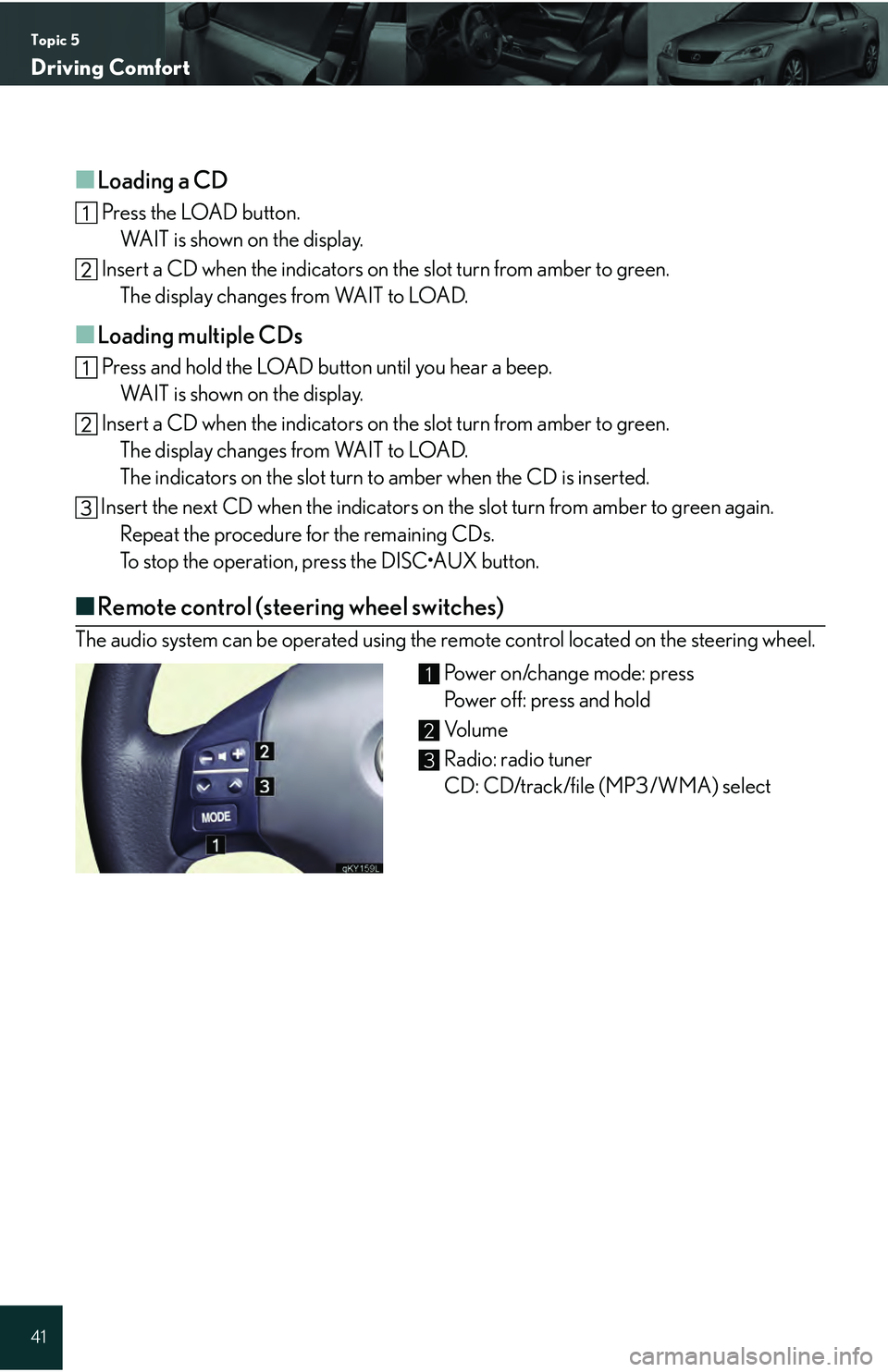

■Loading a CD
Press the LOAD button.WAIT is shown on the display.
Insert a CD when the indicators on the slot turn from amber to green.
The display changes from WAIT to LOAD.
■Loading multiple CDs
Press and hold the LOAD button until you hear a beep. WAIT is shown on the display.
Insert a CD when the indicators on the slot turn from amber to green.
The display changes from WAIT to LOAD.
The indicators on the slot turn to amber when the CD is inserted.
Insert the next CD when the indicators on the slot turn from amber to green again.
Repeat the procedure for the remaining CDs.
To stop the operation, press the DISC•AUX button.
■ Remote control (steering wheel switches)
The audio system can be operated using the remote control located on the steering wheel.
Power on/change mode: press
Power off: press and hold
Vo l u m e
Radio: radio tuner
CD: CD/track/file (MP3/WMA) select
1
2
3

Topic 5
Driving Comfort
42
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
Before Driving
Air Conditioning System (wit hout navigation system)
Owners of models equipped with a navigation system should refer to the “Navigation System
Owner's Manual”.
■Using the automatic mode
Press the AUTO button.
Adjust the temperature using the TEMP but-
tons.
■Adjusting the temperature in DUAL mode
In DUAL mode, driver and passenger side tem-
perature settings can be adjusted separately.
Press the DUAL button.
Adjust the driver side temperature using the
TEMP buttons, and the passenger side temper-
ature using the PASSENGER TEMP buttons.
Driver side temperature control
Switch to automatic mode
Driver side temperature display
OFF button
Fan speed controls
Air flow controls Passenger side temperature display
Micro dust and pollen filter
Passenger side temperature control
Windshield defog/defrost
Outside air/recirculated air mode switch
A/C switch
Dual mode switch1
2
3
4
5
6
7
8
9
10
11
12
13

Topic 5
Driving Comfort
43

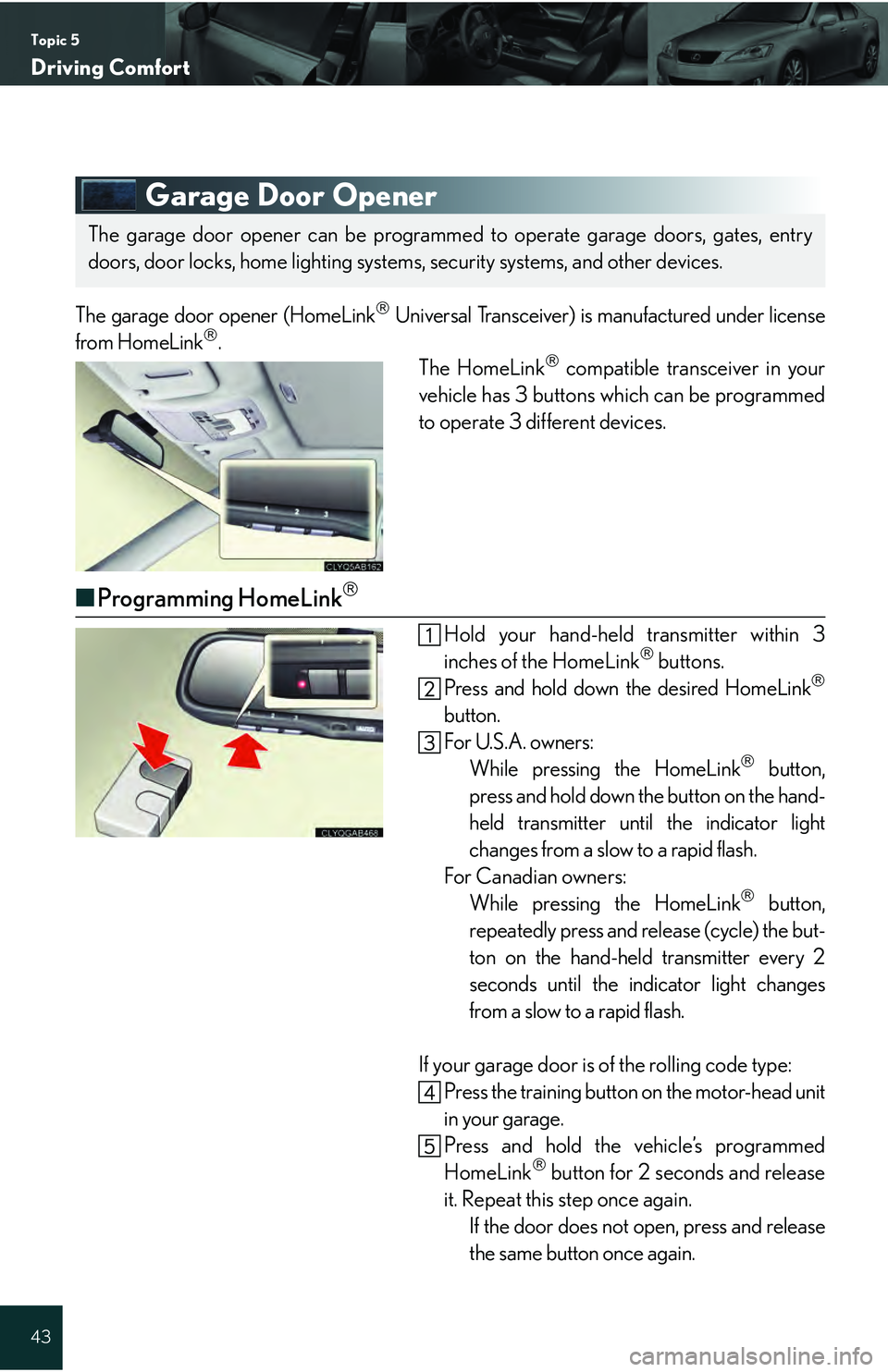

Garage Door Opener
The garage door opener (HomeLink Universal Transceiver) is manufactured under license
from HomeLink. The HomeLink compatible transceiver in your
vehicle has 3 buttons which can be programmed
to operate 3 different devices.
■ Programming HomeLink
Hold your hand-held transmitter within 3
inches of the HomeLink buttons.
Press and hold down the desired HomeLink
button.
For U.S.A. owners: While pressing the HomeLink
 button,
press and hold down the button on the hand-
held transmitter until the indicator light
changes from a slow to a rapid flash.
For Canadian owners: While pressing the HomeLink
 button,
repeatedly press and release (cycle) the but-
ton on the hand-held transmitter every 2
seconds until the indicator light changes
from a slow to a rapid flash.
If your garage door is of the rolling code type: Press the training button on the motor-head unit
in your garage.
Press and hold the vehicle’s programmed
HomeLink
 button for 2 seconds and release
it. Repeat this step once again. If the door does not open, press and release
the same button once again.
The garage door opener can be programmed to operate garage doors, gates, entry
doors, door locks, home lighting system s, security systems, and other devices.

Topic 5
Driving Comfort
44
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
Before Driving

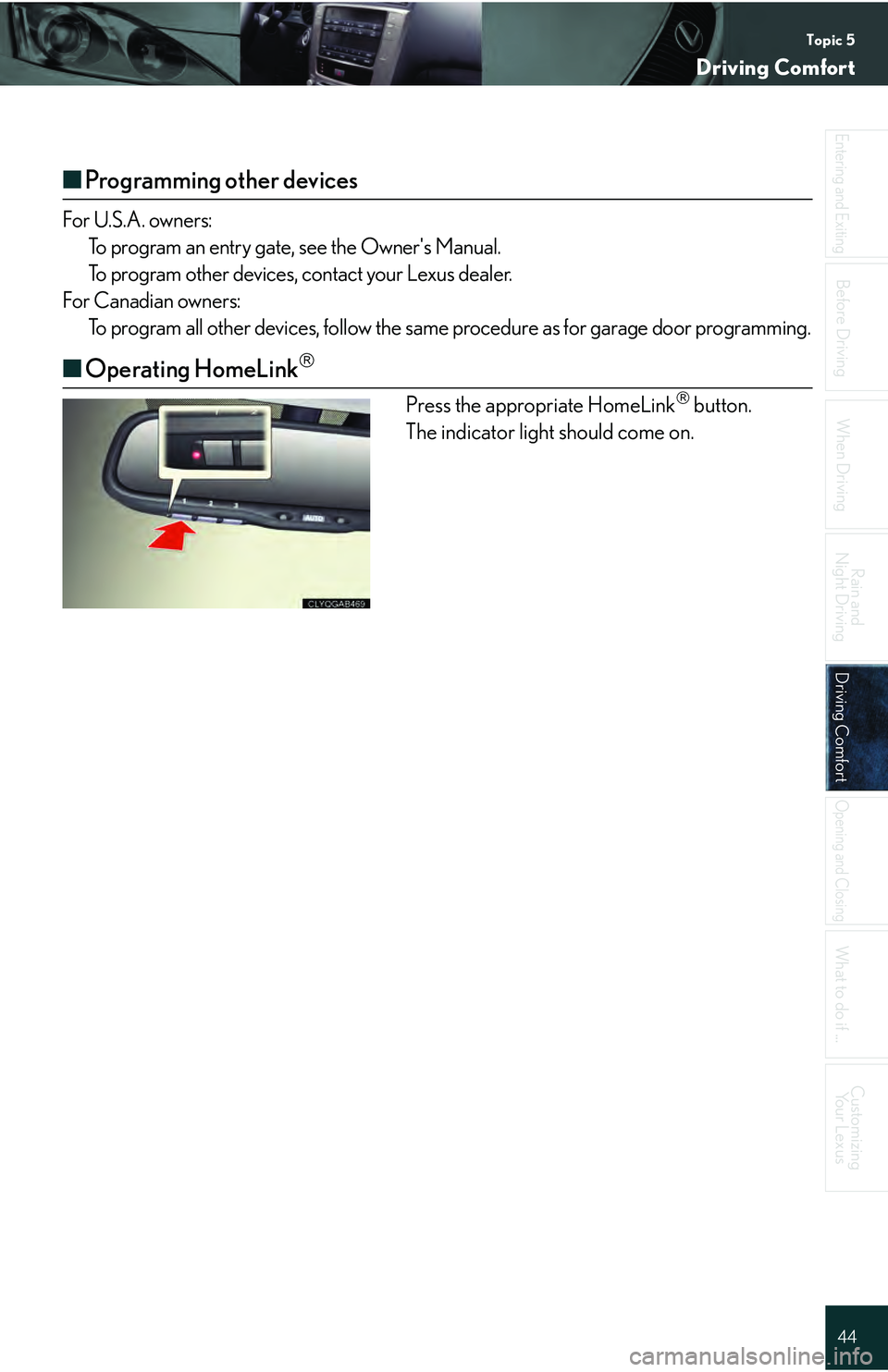

■ Programming other devices
For U.S.A. owners:
To program an entry gate, see the Owner's Manual.
To program other devices, contact your Lexus dealer.
For Canadian owners: To program all other devices, follow the same procedure as for garage door programming.
■Operating HomeLink
Press the appropriate HomeLink button.
The indicator light should come on.

Topic 5
Driving Comfort
45

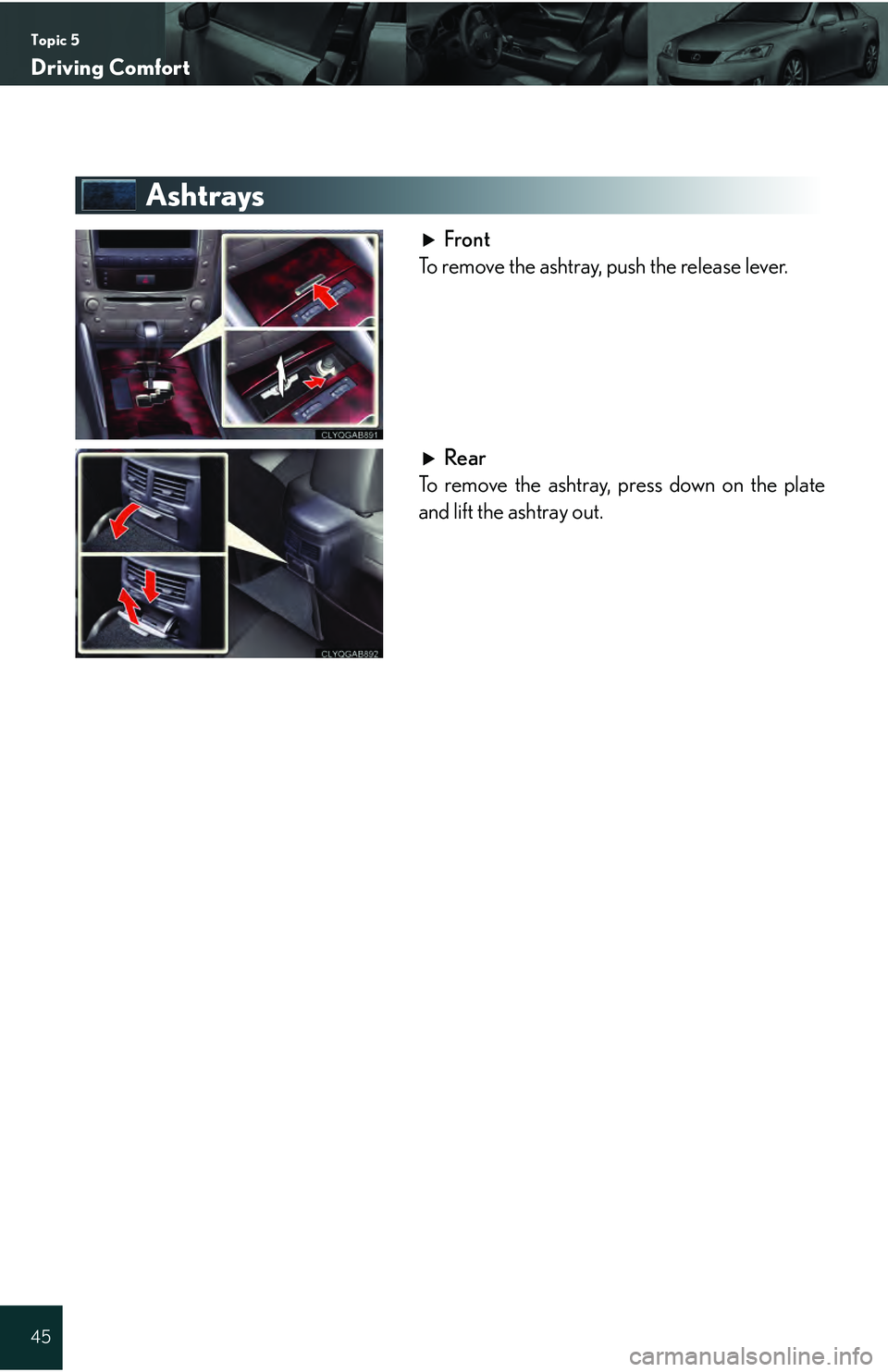

Ashtrays
Front
To remove the ashtray, push the release lever.
Rear
To remove the ashtray, press down on the plate
and lift the ashtray out.

Topic 5
Driving Comfort
46
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
Before Driving

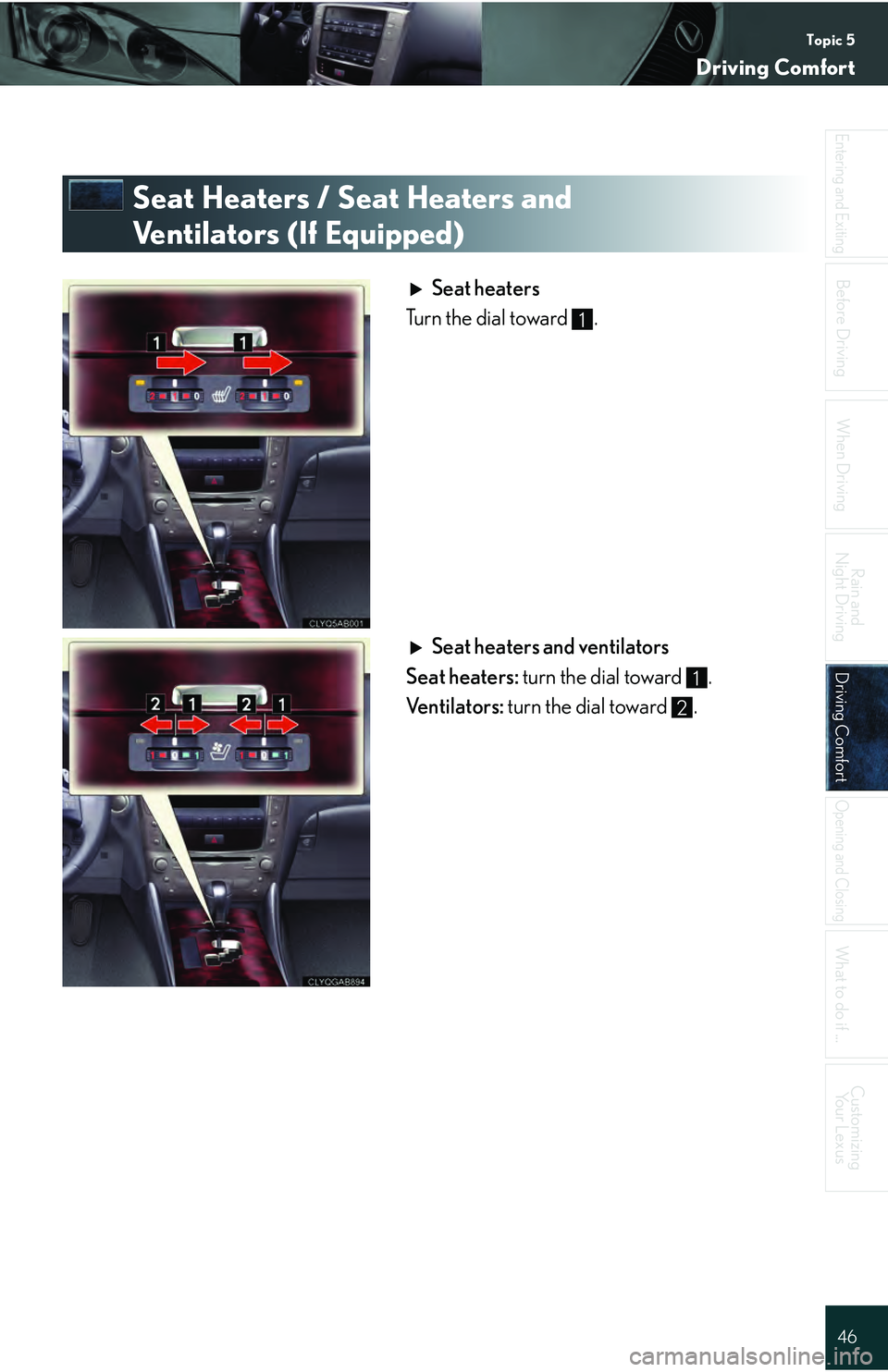

Seat Heaters / Se at Heaters and
Ventilators (If Equipped)
Seat heaters
Turn the dial toward .
Seat heaters and ventilators
Seat heaters: turn the dial toward .
Ventilators: turn the dial toward .
1
1
2

Topic 5
Driving Comfort
47

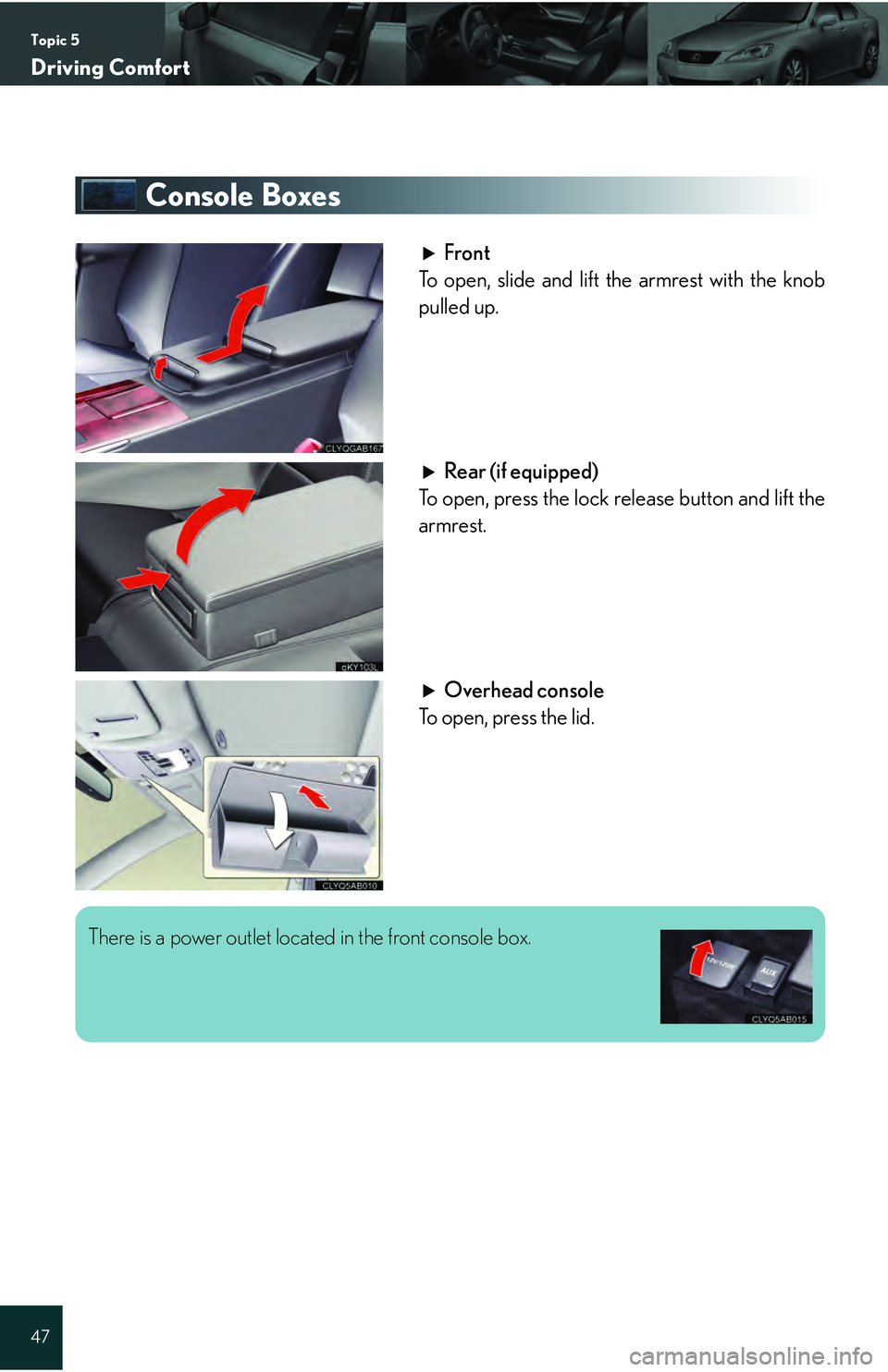

Console Boxes
Front
To open, slide and lift the armrest with the knob
pulled up.
Rear (if equipped)
To open, press the lock release button and lift the
armrest.
Overhead console
To open, press the lid.
There is a power outlet locate d in the front console box.

Topic 5
Driving Comfort
48
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
Before Driving

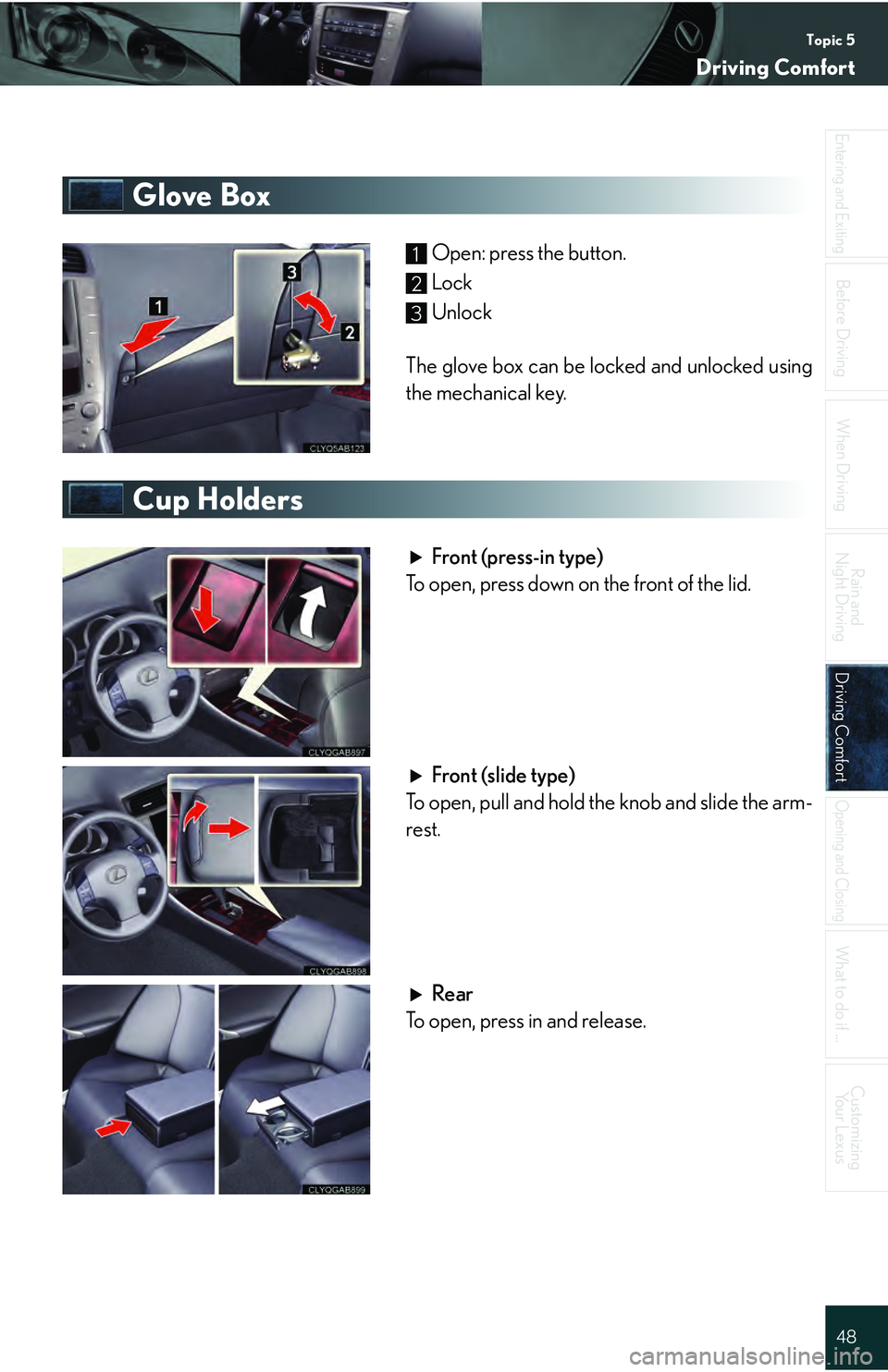

Glove Box
Open: press the button.
Lock
Unlock
The glove box can be locked and unlocked using
the mechanical key.
Cup Holders
Front (press-in type)
To open, press down on the front of the lid.
Front (slide type)
To open, pull and hold the knob and slide the arm-
rest.
Rear
To open, press in and release.
1
2
3

Topic 5
Driving Comfort
49

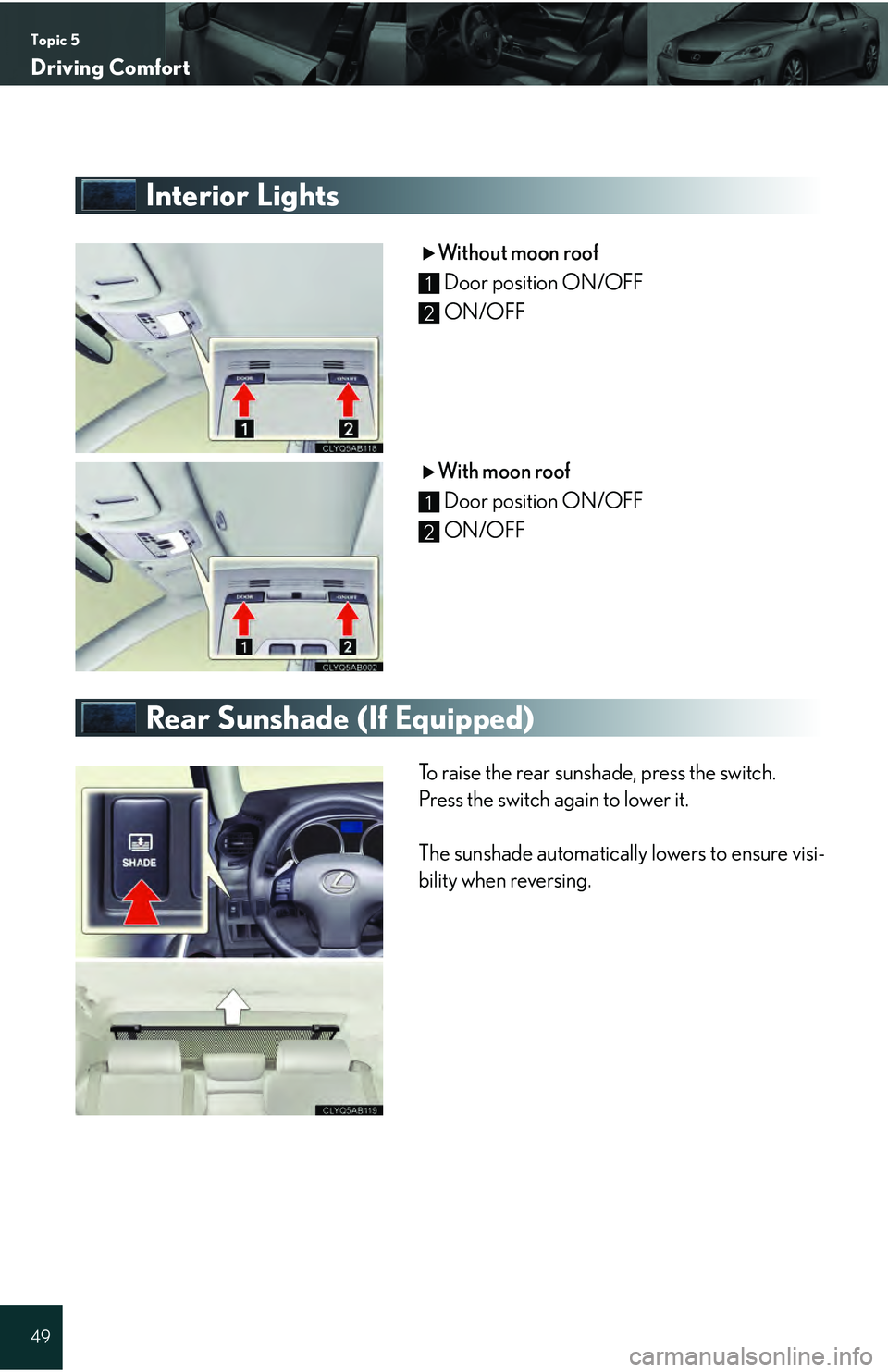

Interior Lights
Without moon roofDoor position ON/OFF
ON/OFF
With moon roof Door position ON/OFF
ON/OFF
Rear Sunshade (If Equipped)
To raise the rear sunshade, press the switch.
Press the switch again to lower it.
The sunshade automatically lowers to ensure visi-
bility when reversing.
1
2
1
2

Topic 5
Driving Comfort
50
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing Yo u r L e x u s
Before Driving

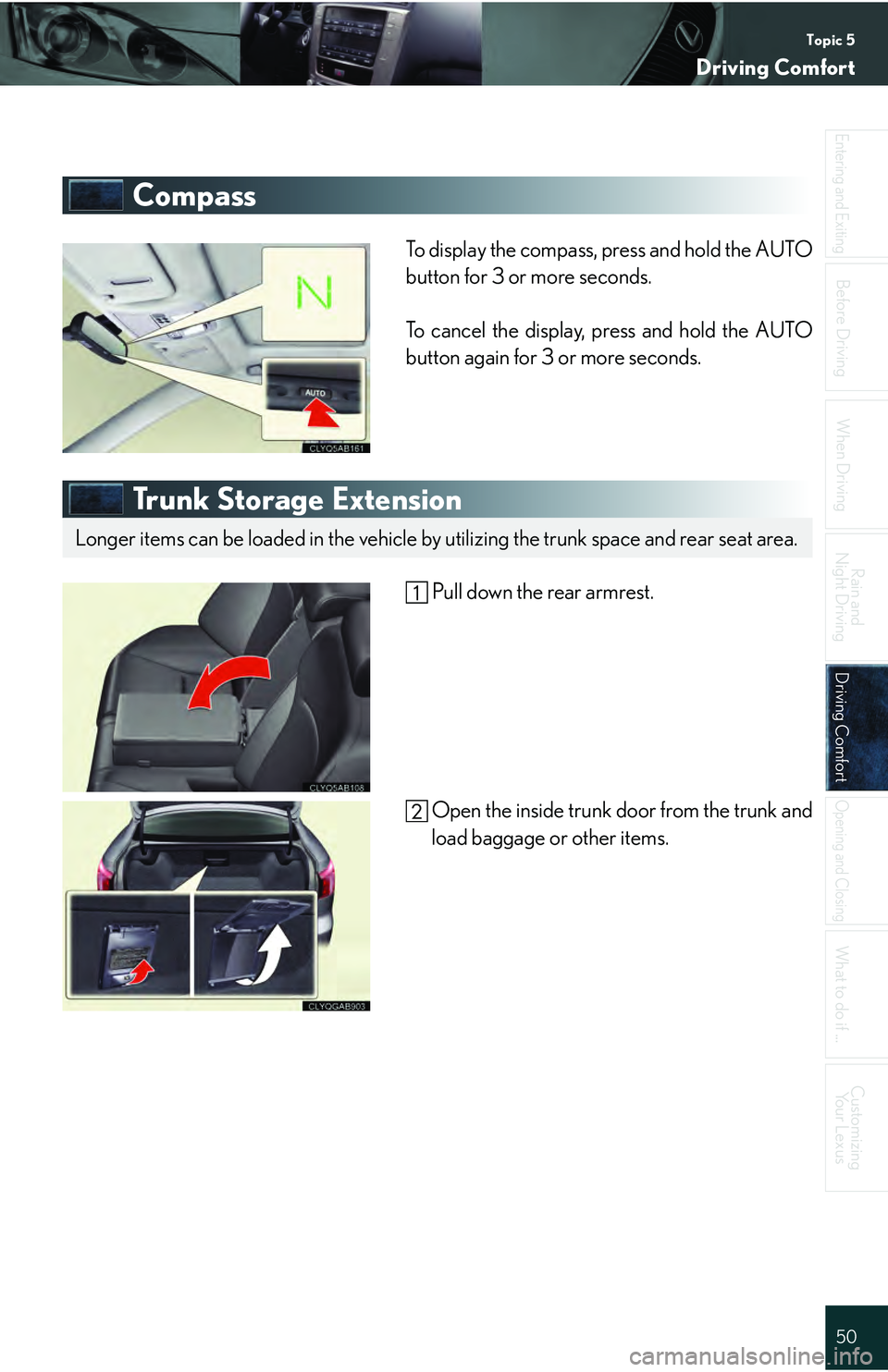

Compass
To display the compass, press and hold the AUTO
button for 3 or more seconds.
To cancel the display, press and hold the AUTO
button again for 3 or more seconds.
Tr u n k S t o r a g e E x t e n s i o n
Pull down the rear armrest.
Open the inside trunk door from the trunk and
load baggage or other items.
Longer items can be loaded in the vehicle by utilizing the trunk space and rear seat area.
