15
Without navigation system (type A)
Clock

P. 341
Audio
system

P. 230
Air conditioning
system
P. 220
Rear window and out-
side rear view mirror
defoggers
P. 228
Security indicator
P. 86, 88
Emergency
flasher switch
P. 460
: If equipped
A
Clock

P. 341
Audio
system

P. 230
Air conditioning
system
P. 220
Rear window and out-
side rear view mirror
defoggers
P. 228
Security indicator
P. 86, 88
Emergency
flasher switch
P. 460
Without navigation system (type B)

16
Navigation
system
*1
Clock P. 341
Audio system*1
Security indicator
P. 86, 88
Emergency flasher
switch
P. 460
Air conditioning
system
*1
With navigation system (type A)Rear window and
outside rear view
mirror defoggers
*1
A
Pictorial indexInstrument panel
Navigation
system
*1
Clock P. 341
Audio system*1
Security indicator
P. 86, 88
Emergency flasher
switch
P. 460
Air conditioning
system
*1
With navigation system (type B)Rear window and
outside rear view
mirror defoggers
*1

17
Type B Type A
Telephone switch *2P. 302

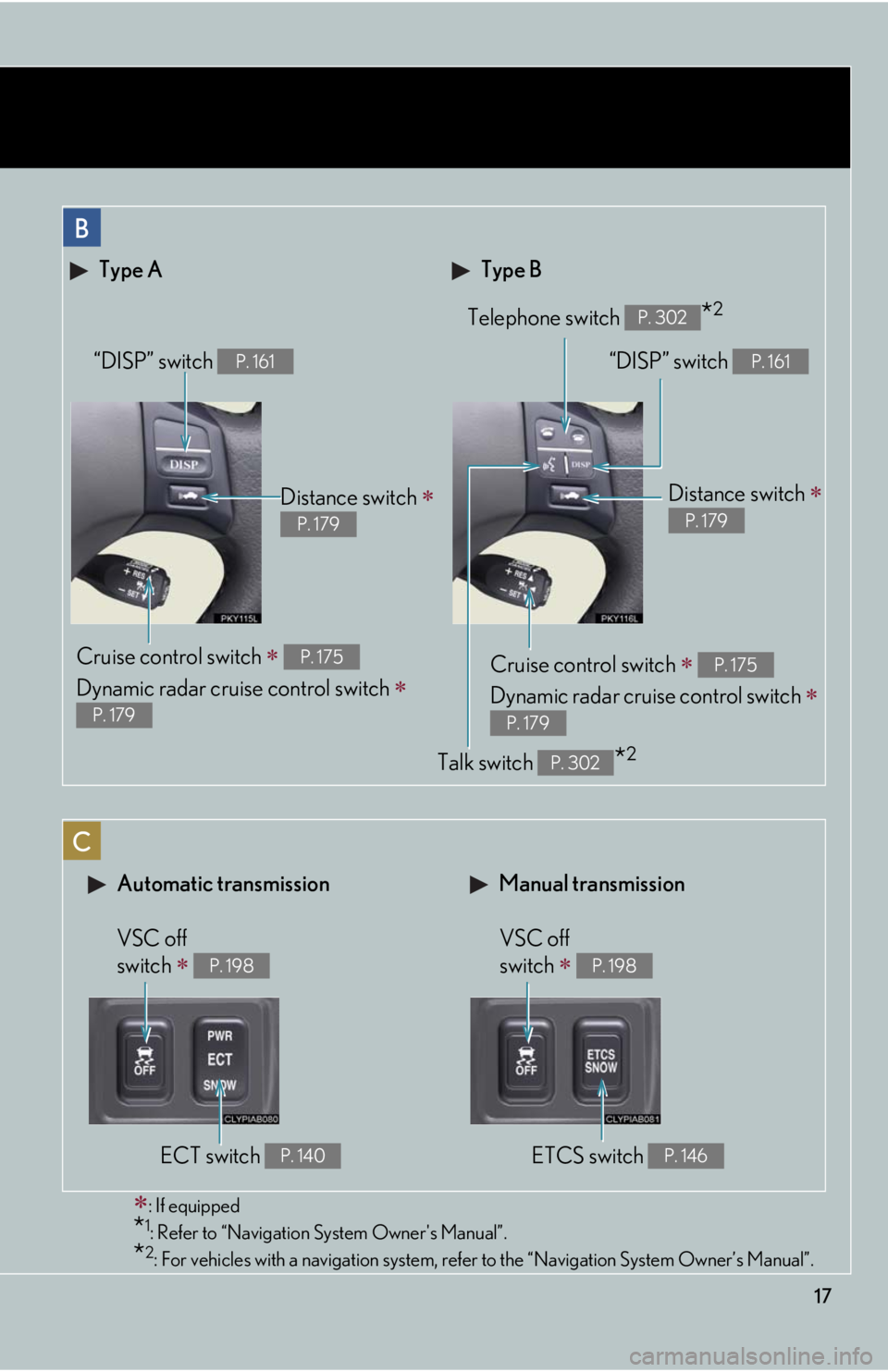

Cruise control switch 
Dynamic radar cruise control switch

P. 175
P. 179
Distance switch 
P. 179
“DISP” switch P. 161
Talk switch *2P. 302
“DISP” switch P. 161
Distance switch 
P. 179
Cruise control switch 
Dynamic radar cruise control switch

P. 175
P. 179
Automatic transmission Manual transmission
VSC off
switch
 P. 198
ECT switch P. 140
VSC off
switch
 P. 198
ETCS switch P. 146
B
C
: If equipped
*1: Refer to “Navigation System Owner's Manual”.
*2: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

192
2-4. Using other driving systems
Intuitive parking assist
The distance to obstacles measured by the sensors is communicated via
the multi-information display and a buzzer when parallel parking or
maneuvering into a garage. Always check the surrounding area when
using this system.
With navigation system
For vehicles equipped with a navigation system, refer to the separate “Navi-
gation System Owner’s Manual” for further details.
Without navigation system
■Types of sensors
Front corner sensors
Rear corner sensors
Back sensors
■Multi-information display (P. 1 6 0 )
Front corner sensor opera-
tion
Rear corner sensor operation
Back sensor operation

: If equipped

220
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature setting.
Press to switch to automatic mode. (IS350 only)
Automatically switches between outside air and recirculated air modes.
Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner's Manual”.
Without navigation system
Automatic mode Driver’s side temperature
setting displayChanges the air outlets used
OffFan speedAirflow display
Fan speed display
Passenger’s side
temperature setting display
Micro dust and
pollen filter
Driver's side
temperature control
Air conditioning on/off
Outside air or recirculated modeWindshield defoggerPassenger’s side
temperature control
Dual operation
STEP1
STEP2

230
3-2. Using the audio system

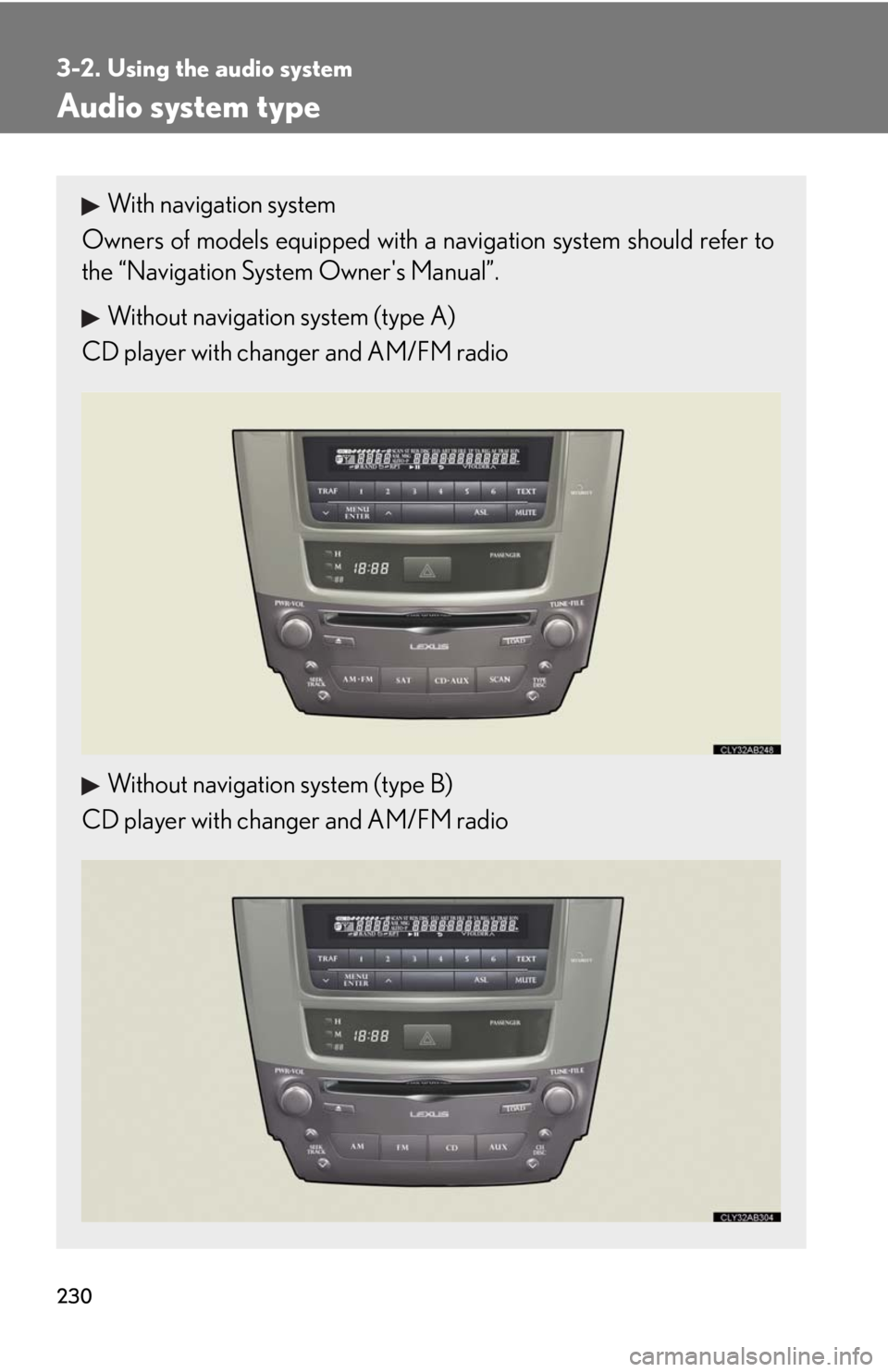

Audio system type
With navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Without navigation system (type A)
CD player with changer and AM/FM radio
Without navigation system (type B)
CD player with changer and AM/FM radio

280
3-3. Using the Bluetooth® audio system
Bluetooth® audio system
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable player) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without cables. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Vehicles with a navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the Bluetooth® audio systemP. 2 8 3
Operating a Bluetooth® enabled portable playerP. 2 8 8
Setting up a Bluetooth® enabled portable playerP. 2 9 1
Bluetooth® audio system setupP. 2 9 7
: If equipped

298
3-4. Using the hands-free phone system (for mobile phones)

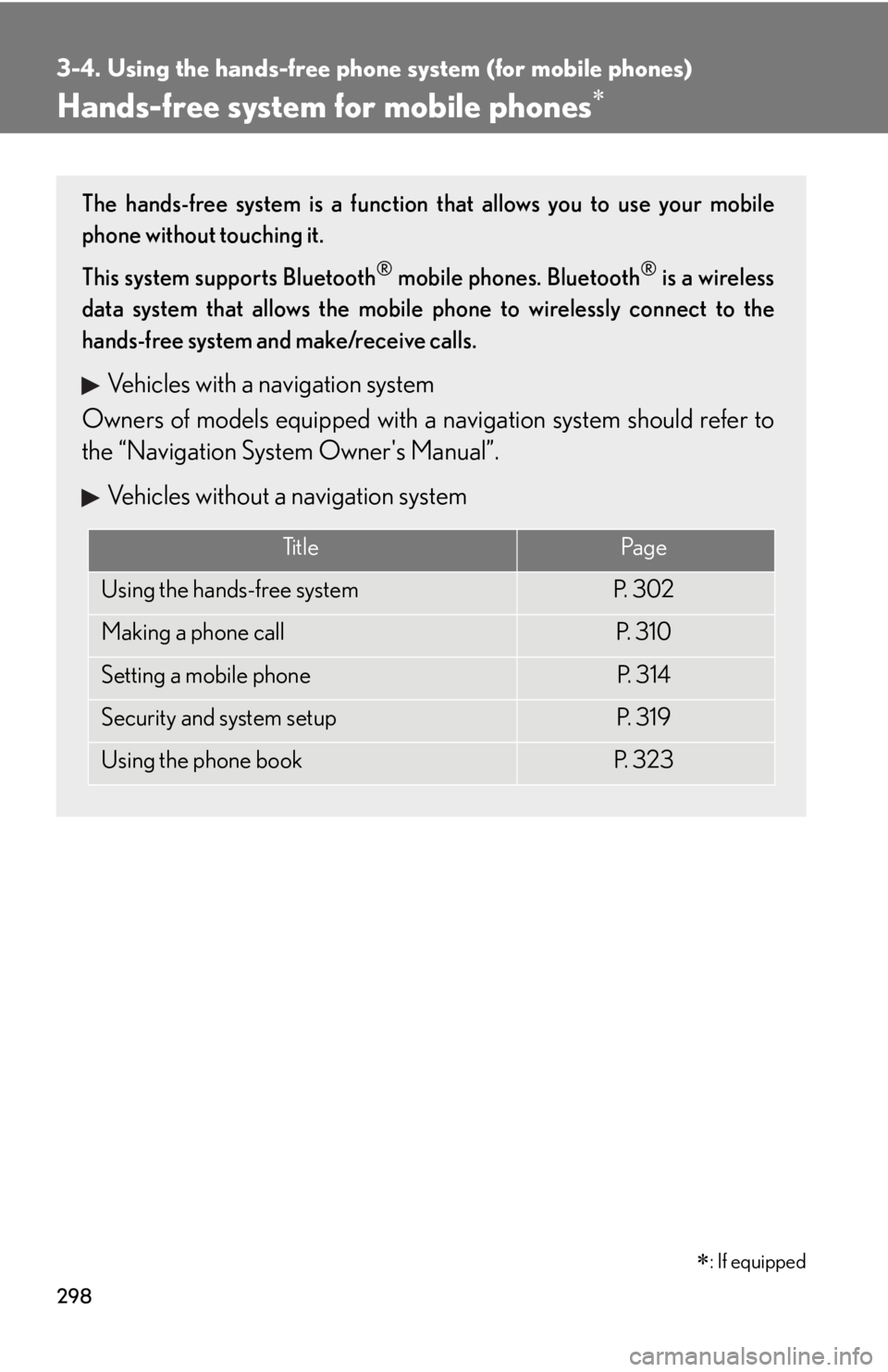

Hands-free system for mobile phones
The hands-free system is a function that allows you to use your mobile
phone without touching it.
This system supports Bluetooth
® mobile phones. Bluetooth® is a wireless
data system that allows the mobile phone to wirelessly connect to the
hands-free system and make/receive calls.
Vehicles with a navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the hands-free systemP. 3 0 2
Making a phone callP. 3 1 0
Setting a mobile phoneP. 3 1 4
Security and system setupP. 3 1 9
Using the phone bookP. 3 2 3

: If equipped

448
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
13FR DOOR RH20 APower windows, outside rear view
mirrors
14AM27. 5 ASmart access system with push-button
start
15RH-IG7. 5 A
Seat belts, intuitive parking assist,
automatic transmission, seat heater
and ventilator
16FR S/HTR RH15 ASeat heaters and ventilators
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, AWD system, out-
side rear view mirrors, VDIM, air con-
ditioning system, pre-collision seat
belt, electric tilt and telescopic steer-
ing, power windows, navigation sys-
tem
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 4 5 2 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.

5
When trouble arises
499
5-2. Steps to take in an emergency
CAUTION
■When using the spare tire
●Remember that your compact spare tire is specifically designed for use with your
vehicle. Do not use your compact spare tire on another vehicle.
●Do not use two compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration and braking, as well as sharp cornering.
■Speed limit when using the spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to observe
this precaution may lead to an accident causing death or serious injury.
■When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
●ABS & brake assist
●VSC
●TRAC
●EPS
●VDIM
●Navigation system (if equipped)
●Intuitive parking assist (if equipped)
●Dynamic radar cruise control (if equipped)
●Cruise control (if equipped)
●PCS (if equipped)
●AFS (if equipped)
Also, not only can the following system not be utilized fully, it may actually negatively
effect the drive-train components:
●AWD system (if equipped)
