clock Lexus IS250 2010 Owner's Manual

1
2
3
4
5
6
7
IS350/250_U
5
3-6. Using the storage featuresList of storage features............... 333
• Glove box .................................... 333
• Console boxes ........................... 334
• Overhead console .................. 335
• Cup holders................................. 336
•Bottle holders/door pockets .............................. 338
3-7. Other interior features Sun visors......................................... 339
Vanity mirrors............................... 340
Clock .................................................. 341
Satellite switches .......................... 342
Ashtrays ........................................... 345
Cigarette lighter ........................... 346
Power outlet ................................... 347
Seat heaters................................... 348
Seat heaters and ventilators ...................................... 351
Armrest ............................................ 354
Rear sunshade .............................. 355
Trunk storage extension ........... 357
Coat hooks .................................... 358
Floor mat.......................................... 359
Trunk features............................... 360
Garage door opener.................. 363
Compass.......................................... 369
Safety Connect ............................. 373 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior................... 382
Cleaning and protecting the vehicle interior ................... 385
4-2. Maintenance Maintenance requirements.............................. 388
General maintenance ............... 390
Emission inspection and maintenance (I/M)
programs ...................................... 393
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................................. 394
Hood ................................................. 397
Positioning a floor jack.............. 398
Engine compartment................. 400
Tires .................................................... 414
Tire inflation pressure................. 425
Wheels ............................................. 429
Air conditioning filter................... 431
Electronic key battery ................ 434
Checking and replacing fuses ................................................ 436
Headlight aim ............................... 450
Light bulbs....................................... 452
4Maintenance and care

IS350/250_U
15
Without navigation system (type A)
Clock

P. 341
Audio
system

P. 230
Air conditioning
system
P. 220
Rear window and out-
side rear view mirror
defoggers
P. 228
Security indicator
P. 86, 88
Emergency
flasher switch
P. 460
∗: If equipped
A
Clock

P. 341
Audio
system

P. 230
Air conditioning
system
P. 220
Rear window and out-
side rear view mirror
defoggers
P. 228
Security indicator
P. 86, 88
Emergency
flasher switch
P. 460
Without navigation system (type B)

IS350/250_U
16
Navigation
system
*1
Clock P. 341
Audio system*1
Security indicator
P. 86, 88
Emergency flasher
switch
P. 460
Air conditioning
system
*1
With navigation system (type A)Rear window and
outside rear view
mirror defoggers
*1
A
Pictorial indexInstrument panel
Navigation
system
*1
Clock P. 341
Audio system*1
Security indicator
P. 86, 88
Emergency flasher
switch
P. 460
Air conditioning
system
*1
With navigation system (type B)Rear window and
outside rear view
mirror defoggers
*1

Interior features3
219
IS350/250_U
3-5. Using the interior lightsInterior lights list ..................... 329
• Interior lights ......................... 331
• Personal lights ....................... 331
3-6. Using the storage features
List of storage features ........ 333
• Glove box .............................. 333
• Console boxes ..................... 334
• Overhead console .............. 335
• Cup holders .......................... 336
• Bottle holders/ door pockets......................... 338 3-7. Other interior features
Sun visors ................................. 339
Vanity mirrors ......................... 340
Clock .......................................... 341
Satellite switches ................... 342
Ashtrays.................................... 345
Cigarette lighter .................... 346
Power outlet ............................ 347
Seat heaters ............................ 348
Seat heaters and ventilators .............................. 351
Armrest .................................... 354
Rear sunshade ........................ 355
Trunk storage extension ...... 357
Coat hooks .............................. 358
Floor mat .................................. 359
Trunk features ......................... 360
Garage door opener ............ 363
Compass .................................. 369
Safety Connect ...................... 373

341
3-7. Other interior features
3
Interior features
IS350/250_U
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00

404
4-3. Do-it-yourself maintenance
IS350/250_U■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection→ P. 5 2 2
Oil quantity
(Low → Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3

447
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS350/250_U■
Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 AStop lights
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO.310 AAudio
7GAUGE7. 5 AMeter
8IGN10 ASRS airbag system, cruise control,
steering lock system, fuel system
9ACC7. 5 A
Lexus link system, clock, air condition-
ing system, audio, display, outside rear
view mirrors, smart access system
with push-button start
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t
12RR DOOR RH20 APo w e r w i n d o w s

453
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS350/250_U
Replacing light bulbs■ Headlight high beams
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3

454
4-3. Do-it-yourself maintenance
IS350/250_U■

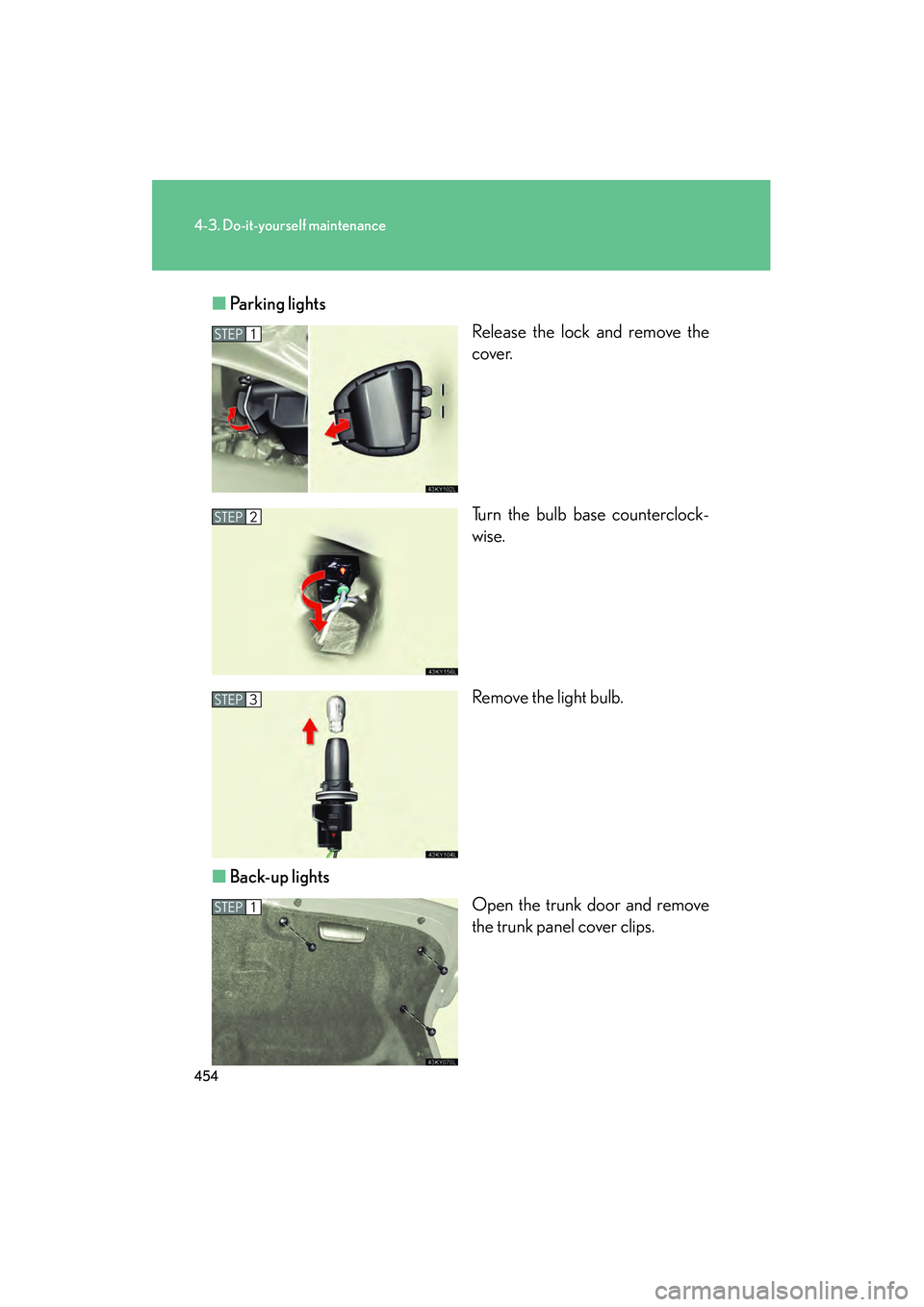

Parking lights
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Back-up lights
Open the trunk door and remove
the trunk panel cover clips.
STEP1
STEP2
STEP3
STEP1

455
4-3. Do-it-yourself maintenance
4
Maintenance and care

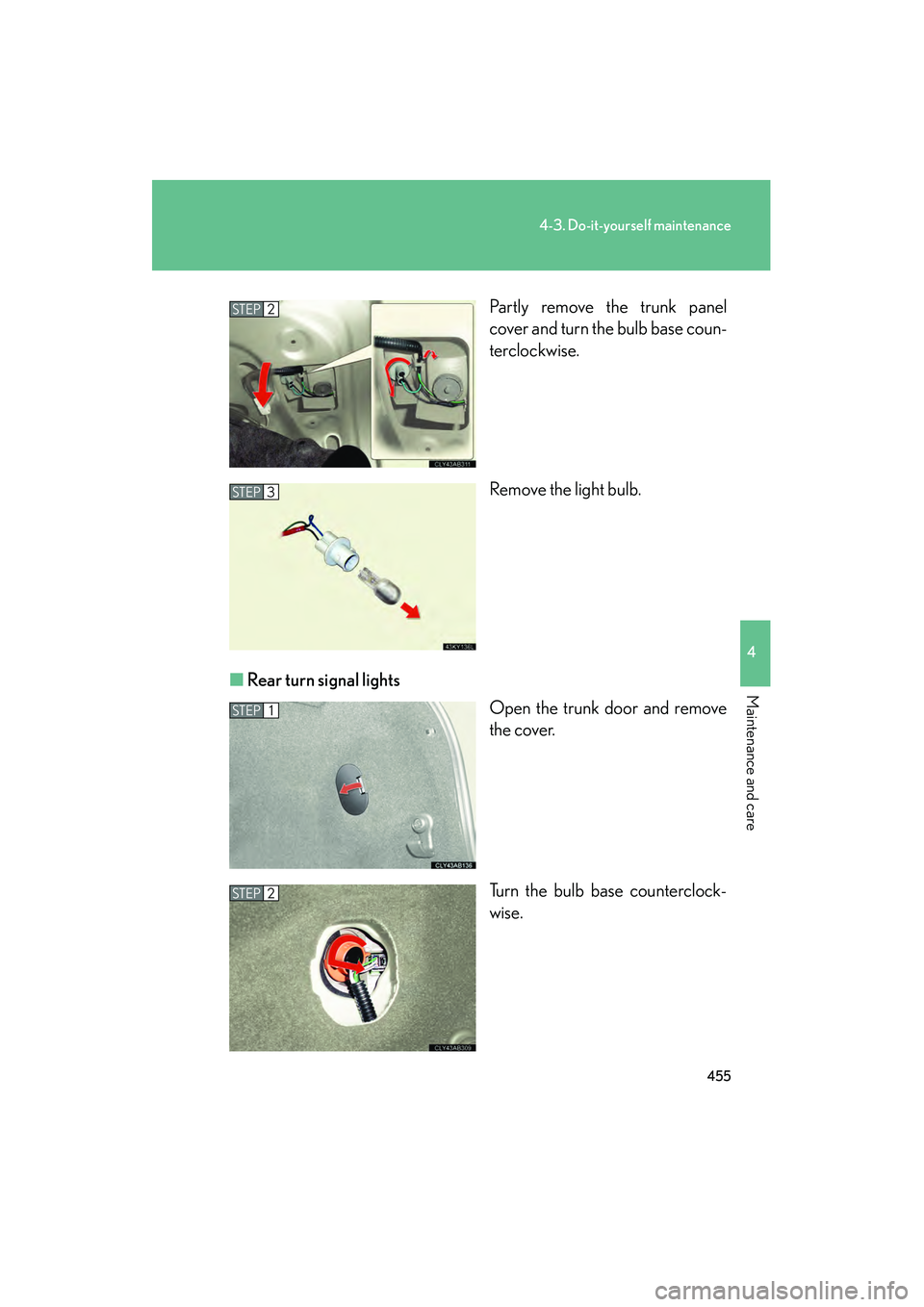

IS350/250_UPartly remove the trunk panel
cover and turn the bulb base coun-
terclockwise.
Remove the light bulb.
■ Rear turn si gnal lights
Open the trunk door and remove
the cover.
Turn the bulb base counterclock-
wise.
STEP2
STEP3
STEP1
STEP2
