service indicator Lexus IS250 2010 Owner's Manual

373
3-7. Other interior features
3
Interior features
IS350/250_U
Safety Connect∗
∗: If equipped
Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embedded cellular technology to pro-
vide safety and security features to subscribers. Safety Connect is sup-
ported by Lexus’ designated response center, which operates 24 hours per
day, 7 days per week.
Safety Connect service is available by subscription on select, telematics
hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be bound by the
Telematics Subscription Service Agreement and its Terms and Conditions,
as in effect and amended from time to time, a current copy of which is avail-
able at Lexus.com. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.
■ System components
Microphone
LED light indicators
“SOS” button

376
3-7. Other interior features
IS350/250_U
Safety Connect LED light IndicatorsWhen the “ENGINE START STOP” switch is turned to IGNITION ON
mode, the red indicator light comes on for 2 seconds then turns off.
Afterward, the green indicator light comes on, indicating that the service
is active.
The following indicator light patterns indicate specific system usage con-
ditions:
● Green indicator light on = Active service
● Green indicator light flashing = Safety Connect call in process
● Red indicator light (except at vehicle start-up) = System malfunction
(contact your Lexus dealer)
● No indicator light (off) = Safety Connect service not active
Safety Connect services
■ Automatic Collis ion Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to speak
with the vehicle occupants to assess the level of emergency. If the
occupants are unable to communicate, the agent automatically treats
the call as an emergency, contacts the nearest emergency services
provider to describe the situation, and requests that assistance be sent
to the location.

393
4-2. Maintenance
4
Maintenance and care
IS350/250_U

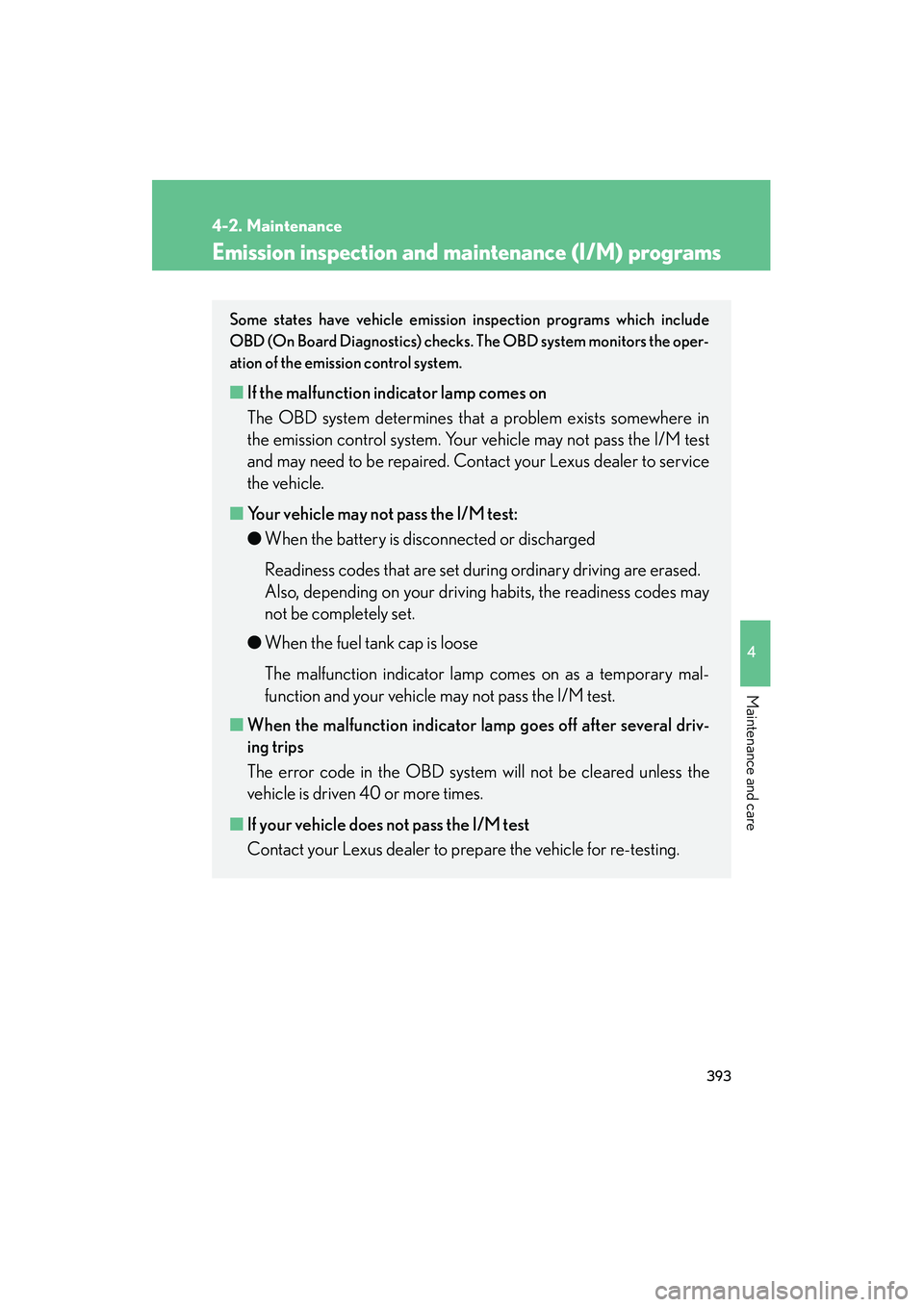

Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks. The OBD system monitors the oper-
ation of the emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere in
the emission control system. Your vehicle may not pass the I/M test
and may need to be repaired. Cont act your Lexus dealer to service
the vehicle.
■ Your vehicle may not pass the I/M test:
●When the battery is disconnected or discharged
Readiness codes that are set du ring ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■ When the malfunction indicator la mp goes off after several driv-
ing trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Lexus dealer to prepare the vehicle for re-testing.

536
6-1. Specifications
IS350/250_U
■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the inst rument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
●IS250: Use of unleaded gasoline with an octane rating lower than 91 may result
in engine knocking. Persistent knocking can lead to engine damage and should
be corrected by refueling with higher octane unleaded gasoline.
●IS350: Use of unleaded gasoline with an octane rating lower than 91 may result
in engine knocking and significantly reduced performance. Persistent knocking
can lead to engine damage and should be corrected by refueling with higher
octane unleaded gasoline.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle's paint.

570
Alphabetical index
IS350/250_U
Parking assist sensors .......................... 190
Parking brake .......................................... 148
Parking lightsReplacing light bulbs........................ 452
Switch ....................................................... 165
Wattage.................................................. 533
PCS ............................................................202
Personal lights Switch ........................................................ 331
Power outlet............................................ 347
Power windows ........................................ 76
Pre-collision system.............................202
Radar cruise control ............................. 179
Radiator ................................................... 408
Radio .......................................................... 233
RDS ............................................................235
Rear sunshade .......................................355
Rear turn signal lights Replacing light bulbs........................ 452
Wattage.................................................. 533
Rear view mirror
Compass ............................................... 369
Rear window defogger.......................228
Replacing Electronic key battery...................... 434
Fuses ........................................................ 436
Light bulbs............................................. 452
Reporting safety defects for U.S. owners ......................................... 558 Safety Connect ..................................... 373
Scuff lights................................................ 329
Seat belts
Adjusting the seat belt ........................63
Automatic locking retractor ............64
Child restraint system
installation .............................................. 113
Cleaning and maintaining
the seat belts .................................... 386
Emergency locking retractor..........64
How to wear your seat belt .............62
How your child should wear
the seat belt.......................................... 65
Pregnant women,
proper seat belt use .........................64
Reminder light......................................473
Seat belt extenders.............................. 65
Seat belt pretensioners ......................63
Seat heaters ..................................348, 351
Seat position memory............................ 57
Seat ventilators ....................................... 351
Seating capacity.................................... 209
Seats Adjustment ................................................ 51
Adjustment precautions ....................52
Child seats/child restraint
system installation .............................. 113
Cleaning ................................................ 385
Driver’s seat position memory .......53
Front passenger seat position
memory ..................................................57
Head restraint ........................................ 59
Properly sitting in the seat.................. 91
Seat heaters ...............................348, 351
Ventilated seats.................................... 351
Service reminder indicators .............157P
R
S
