TABLE OF CONTENTSIndex
2
1-1. Key information
Keys ...................................................... 24
1-2. Opening, closing and locking
the doors and trunk
Smart access system with
push-button start .......................... 28
Wireless remote control .............. 40
Doors.................................................... 43
Trunk..................................................... 47
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ........................................... 51
Driving position memory
(driver’s seat) ................................. 53
Seat position memory
(front passenger’s seat) ............. 57
Head restraints................................. 59
Seat belts ............................................ 62
Steering wheel (manually
adjustable type)............................. 69
Steering wheel
(power-adjustable type)............ 70
Anti-glare inside rear view
mirror ................................................ 72
Outside rear view mirrors ........... 731-4. Opening and closing the
windows and moon roof
Power windows................................ 76
Moon roof .......................................... 79
1-5. Refueling
Opening the fuel tank cap........... 83
1-6. Theft deterrent system
Engine immobilizer system ......... 86
Alarm................................................... 88
Theft prevention labels
(U.S.A.) ............................................. 90
1-7. Safety information
Correct driving posture ................ 91
SRS airbags ....................................... 93
Front passenger occupant
classification system .................. 104
Child restraint systems ............... 109
Installing child restraints ............... 113

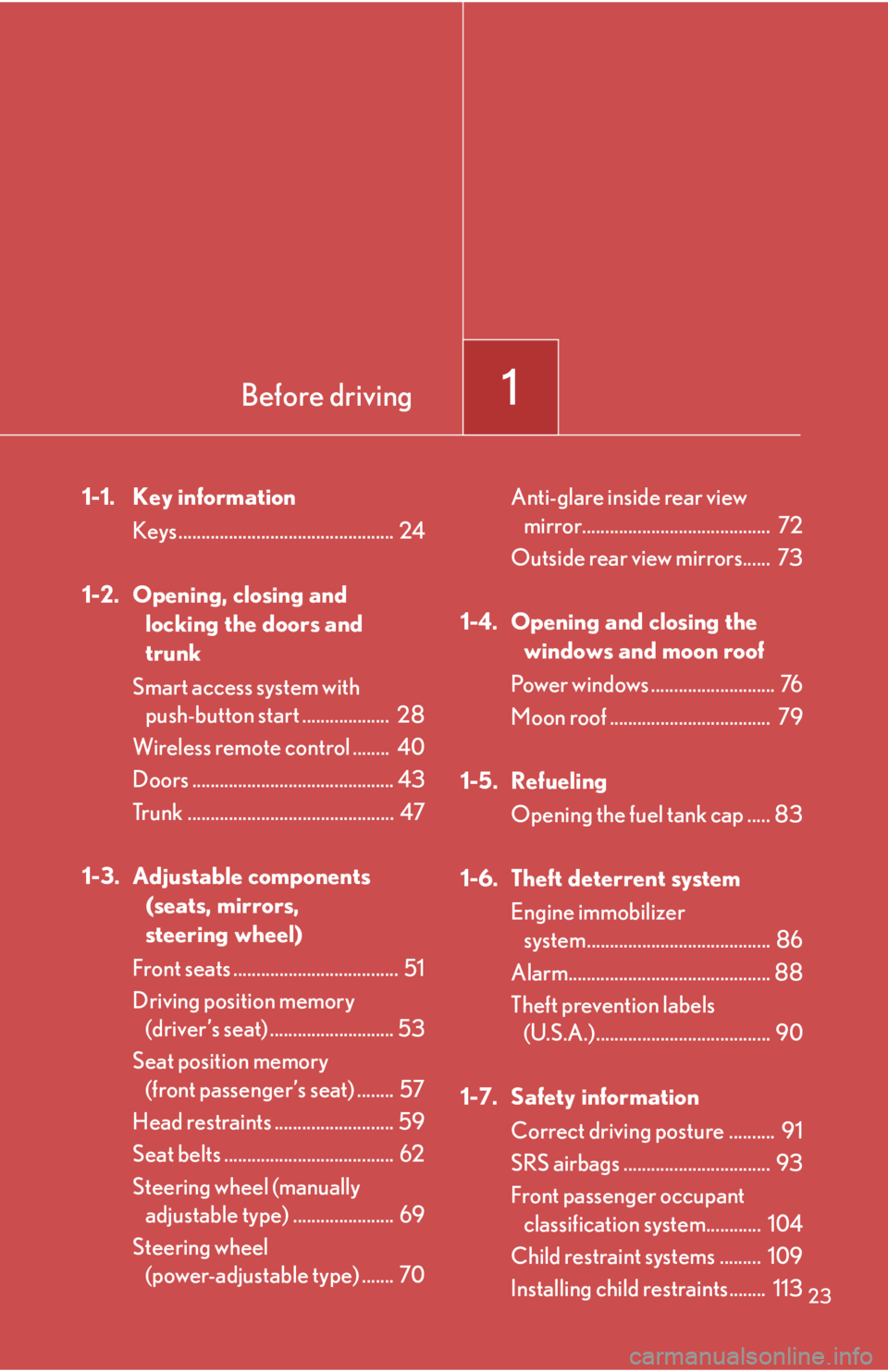

1Before driving

Before driving1
23
1-1. Key information
Keys ............................................... 24
1-2. Opening, closing and
locking the doors and
trunk
Smart access system with
push-button start ................... 28
Wireless remote control ........ 40
Doors ............................................ 43
Trunk ............................................. 47
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats .................................... 51
Driving position memory
(driver’s seat) ........................... 53
Seat position memory
(front passenger’s seat) ........ 57
Head restraints .......................... 59
Seat belts ..................................... 62
Steering wheel (manually
adjustable type) ...................... 69
Steering wheel
(power-adjustable type) ....... 70Anti-glare inside rear view
mirror......................................... 72
Outside rear view mirrors...... 73
1-4. Opening and closing the
windows and moon roof
Power windows ........................... 76
Moon roof ................................... 79
1-5. Refueling
Opening the fuel tank cap ..... 83
1-6. Theft deterrent system
Engine immobilizer
system........................................ 86
Alarm............................................ 88
Theft prevention labels
(U.S.A.)...................................... 90
1-7. Safety information
Correct driving posture .......... 91
SRS airbags ................................ 93
Front passenger occupant
classification system............ 104
Child restraint systems ......... 109
Installing child restraints........ 113

24
1-1. Key information
Keys
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart access
system with push-button start
(P. 2 8 )
• Operating the wireless
remote control function
(P. 4 0 )
Mechanical keys
Key number plate
■Card key (if equipped)
Electronic key
Operating the smart access sys-
tem with push-button start
(P. 2 8 )
Mechanical key

34
1-2. Opening, closing and locking the doors and trunk
■Battery-saving function
In the following circumstances, the entry function is disabled in order to prevent the
vehicle and electronic key batteries from discharging.
●When the entry function has not been used for a month or more
●When the electronic key has been left within approximately 3 ft. (1 m) of the
vehicle for 10 minutes or more
The system will resume operation when
●The vehicle is locked using the door handle lock switch.
●The vehicle is locked/unlocked using the wireless remote control function.
(P. 4 0 )
●The vehicle is locked/unlocked using the mechanical key. (P. 505)
■Electronic key battery depletion
●The standard battery life is 1 to 2 years. (The card key battery life is about a year
and a half.)
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (P. 4 8 8 )
●The battery becomes depleted even if the electronic key is not used because
the key always transmits radio waves. If the smart access system with push-but-
ton start or the wireless remote control does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when nec-
essary.
( P. 434)
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field.
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
•Glass top ranges
• Table lamps

35
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the
rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, rear package tray or floor, or in
the glove box when the engine is started or “ENGINE START STOP” switch
modes are changed.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to start the
engine if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door handle,
such as in the rain or in a car wash. (The doors will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless remote control to unlock the doors.)
●A sudden approach to the effective range or door handle operation may prevent
the doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.
■When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.

54
1-3. Adjustable components (seats, mirrors, steering wheel)
Linking driving position memory with door unlock operation
Record your driving position to button “1”, “2” or “3” before performing
the following.
Using the wireless remote control
Turn the “ENGINE START STOP” switch OFF and close the
driver's door.
While the desired button (“1”, “2”
or “3”) press on the wireless
remote control until the signal
beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
Open one of the doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.
(P. 8 8 )
Push button “1”, “2” or “3” to
recall the memorized position. STEP2
STEP1
STEP2
STEP3

55
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Using the door lock switch
Carry only the key (including the card key
) to which you want to link
the driving position. If 2 or more keys are in the vehicle, the driving
position cannot be linked properly.
Turn the “ENGINE START STOP” switch OFF and close the
driver's door.
While pressing the desired button
(“1”, “2” or “3”), press the lock or
unlock side on the driver’s door
lock switch until the signal beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver's
door is opened.
: If equipped
STEP1
STEP2

56
1-3. Adjustable components (seats, mirrors, steering wheel)
■Canceling the linked door unlock operation
Turn the “ENGINE START STOP” switch OFF and close the driver's door.
Using the wireless remote control: While pushing the “SET” button, press
on the wireless remote control until the signal beeps.
Using the door lock switch: While pressing the “SET” button, press the
lock or unlock side on the door lock switch until the signal beeps.
■Operating the driving position memory after turning the “ENGINE START
STOP” switch OFF
Memorized positions (except for the steering wheel position) can be activated up
to 180 seconds after the driver's door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the “SET” button.
●Push button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
■If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
STEP1
STEP2

88
1-6. Theft deterrent system
Alarm
The system sounds the alarm and flashes the lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations.
●A locked door or trunk is unlocked or opened in any way other
than using the entry function, wireless remote door lock function
or mechanical key with the alarm being set.
●The hood is opened with the alarm being set.
■Setting the alarm system
Close the doors, trunk and
hood, and lock all doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors or trunk using the entry function, wireless
remote door lock function or mechanical key.
●Turn the “ENGINE START STOP” switch to the ACCESSORY or
IGNITION ON mode or start the engine. (The alarm will be
deactivated or stopped after a few seconds.)

365
3-7. Other interior features
3
Interior features
■Programming a Rolling Code system (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the learn button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor.
Refer to the operation manual supplied with the garage door opener
motor for the location of the learn button.
Press the learn button.
Following this step, you have 30 seconds in which to initiate step 3
below.
Press and hold the vehicle's programmed HomeLink button for
2 seconds and release it. Repeat this step once again. The garage
door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door opener motor should now recognize
the HomeLink
 signal and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink buttons.
■Programming an entry gate (for U.S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the HomeLink indicator light in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote control
button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans-
ceiver start to flashing rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4
