brake Lexus IS250 2010 Using The Bluetooth Audio System / LEXUS 2010 IS350/250 QUICK GUIDE OWNERS MANUAL (OM53812U)

2
Manual Transmission........................................................................................................................... 19
Moon Roof ..............................................................................................................................................54
Multi-information Display .................................................................................................................20
Outside Rear View Mirrors.............................................................................................................. 13
Parking Brake ......................................................................................................................................... 19
Power Windows ...................................................................................................................................54
Rear Sunshade ...................................................................................................................................... 46
Rear Window and Outside Rear View Mirror Defoggers ................................................ 32
Safety Connect ..................................................................................................................................... 49
Satellite Switches................................................................................................................................... 21
Seat belts................................................................................................................................................... 12
Seat Heaters / Seat Heaters and Ventilators .......................................................................... 43
Seats (Manual) ......................................................................................................................................... 9
Seats (Power) ......................................................................................................................................... 10
Smart Access System with Push-button Start ............................................................................ 7
Steering Wheel ...................................................................................................................................... 14
Theft Deterrent System ........................................................................................................................8
Trunk..........................................................................................................................................................56
Trunk Storage Extension .................................................................................................................. 47
Turn Signal Lever ................................................................................................................................. 22
Windshield Wipers and Washer ...................................................................................................30

3
OverviewInstrument Panel
Shift paddle switches (automatic transmission)
P.16
Headlight switch
Turn signal lever
Fog light switch P.28
P.22
P.29
Headlight cleaner switch  P.32
Rear sunshade switch  P.46
Inside door lock button P.53
Fuel filler door opener P.55
Driving and seat position
memory switches
 P.11
Power window switches P.54
Window lock switch P.54
Outside rear view
mirror switches
P.13
Trunk opener P.56
Hood release lever P.55
Parking brake pedal
(automatic transmission)
P.19
Satellite switches P.21
Tilt and telescopic steering lock
release lever
 P.14Tilt and telescopic steering
control switch
 P.14
Multi-information
display
P.20
Door lock switches P.53

5
OverviewInstrument Panel
Seat heaters/seat heaters
and ventilators
 P.43
Automatic transmission
shift lever
P.16
Ashtrays  P.42
Cup holders P.45
Ashtrays  P.42
Manual transmission
shift lever
P.19
Parking brake lever P.19
Seat heaters/seat heaters
and ventilators
 P.43
Cup holders P.45
Automatic transmission
Manual transmission
 : If equipped

15
Engine (ignition) Switch
■Starting the engine
Automatic transmission
Make sure the parking brake is engaged and the
shift lever is in P.
Depress the brake pedal.
The “ENGINE START STOP” switch indi-
cator light turns green.
Press the “ENGINE START STOP” switch.
Manual transmission
Make sure the parking brake is engaged and the
shift lever is in N.
Depress the clutch pedal.
The “ENGINE START STOP” switch indi-
cator light turns green.
Press the “ENGINE START STOP” switch.
■Stopping the engine
Engage the parking brake and shift the shift lever to P (for automatic transmission) or N
(for manual transmission).
Press the “ENGINE START STOP” switch.
With the electronic key on your person, the engine can be started by simply pressing the
“ENGINE START STOP” switch, while depressing the brake pedal or clutch pedal.
(The mechanical key cannot be used to start the engine.)

16
■Changing power modes
To change power modes without turning on the engine, press the “ENGINE START STOP”
switch without depressing the brake pedal (for automatic transmission) or the clutch pedal
(for manual transmission). The modes can be changed in the following order:
Automatic Transmission (If Equipped)
■Shift positions
PPa r k
RReverse
NNeutral (drive not engaged)
DDrive
SS mode
The vehicle can only be shifted out of P when
the “ENGINE START STOP” switch is in
IGNITION ON mode and the brake pedal is
depressed.
ACCE SSORY modeIGNITION ON mode
(Indicator light: amber) OFF
(Indicator light: off)

19
Manual Transmission (If Equipped)
To operate the shift lever, the clutch pedal must be
fully depressed.
To shift into R, the ring on the shift lever must be
pulled up.
Shift the shift lever to R only when the vehicle is
stationary.
Parking Brake
■Automatic transmission
To set the parking brake: firmly depress the park-
ing brake pedal.
To release the parking brake: depress the park-
ing brake pedal again.
■Manual transmission
To set the parking brake: pull the parking
brake lever firmly upward.
To release the parking brake: press and
hold the lock release button and lift the lever
slightly before lowering it as far as it will go.
U.S.A. Canada
U.S.A. Canada
1
234

What to do if ...
57
List of Warning/Indicator Lights
The units used on the speedometer, the tachometer gauge display, indicators and warning
lights may differ depending on the model / type.
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
(Canada)Brake system warning light
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)
(Canada)Malfunction
indicator lamp
Electric power steering
warning light
Pre-collision system
warning light*1
SRS warning light(Flashing and
then continu-
ously on)Tire pressure warning light
(U.S.A.)
(Canada)ABS warning light
For further information, refer to the Owner's Manual.

What to do if ...
59
If the electronic key does not operate
properly
■Unlocking and locking the doors
To unlock or lock the vehicle, use the mechanical
key to remove the lock cover on the driver's door
handle. The mechanical key is stored inside the
electronic key.
Unlocks
Locks
■Starting the engine
Depress the brake pedal (for automatic trans-
mission) or clutch pedal (for manual transmis-
sion).
Touch the Lexus emblem side of the electronic
key to the “ENGINE START STOP” switch.
Press the “ENGINE START STOP” switch
within 10 seconds of the buzzer, keeping the
brake pedal (for automatic transmission) or
clutch pedal (for manual transmission)
depressed.
1
2
If the electronic key battery becomes depleted, replace it with a new battery. For instruc-
tions on replacing the battery, refer to the Owner's Manual. If you need further assistance,
contact your Lexus dealer.

60

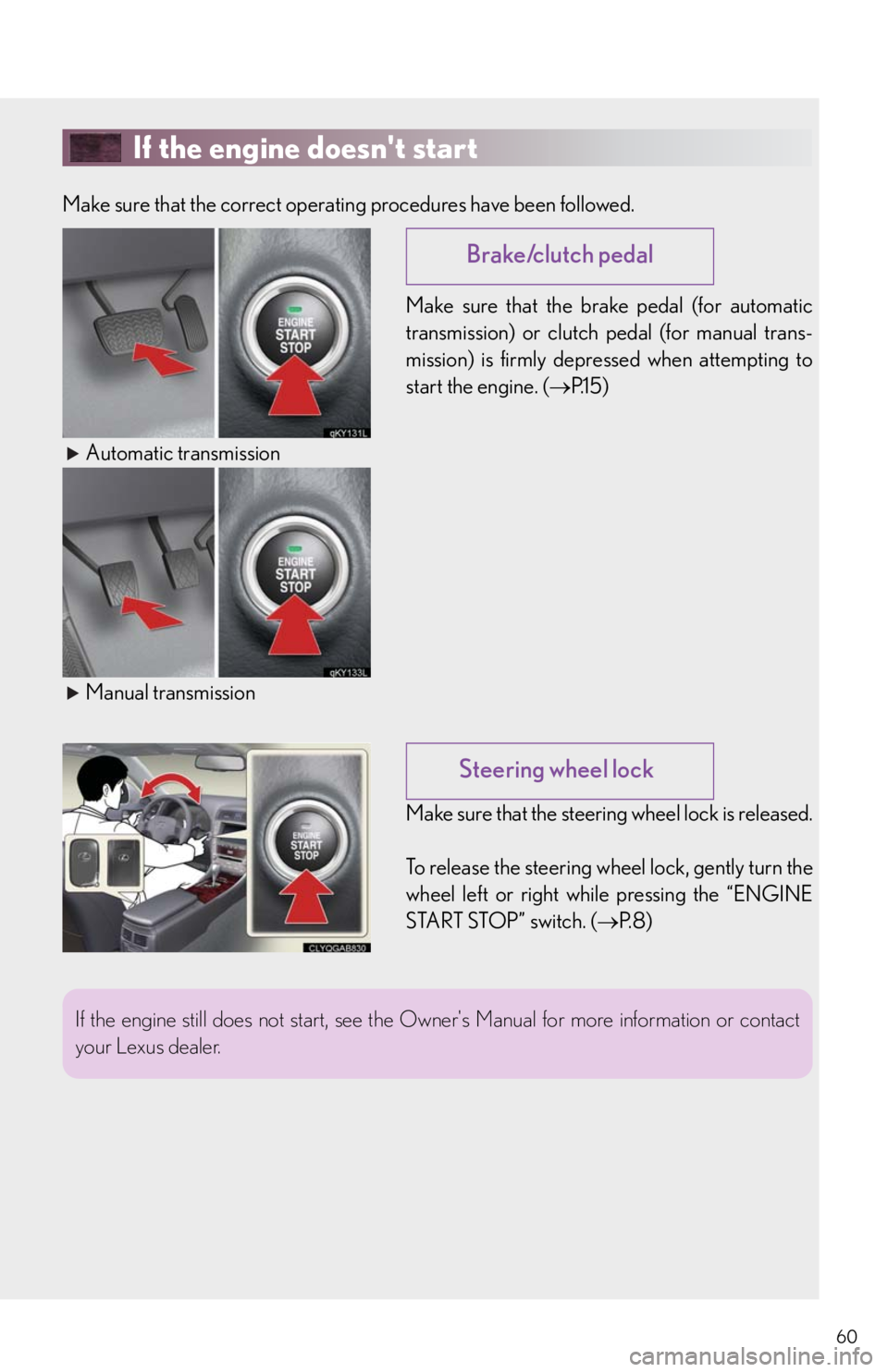

If the engine doesn't start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal (for automatic
transmission) or clutch pedal (for manual trans-
mission) is firmly depressed when attempting to
start the engine. (P.1 5 )
Automatic transmission
Manual transmission
Make sure that the steering wheel lock is released.
To release the steering wheel lock, gently turn the
wheel left or right while pressing the “ENGINE
START STOP” switch. (P. 8 )
Brake/clutch pedal
Steering wheel lock
If the engine still does not start, see the Owner's Manual for more information or contact
your Lexus dealer.
