8
Headlights (high beam) P. 165
Pictorial indexExterior
Turn signal lights P. 147
Fog lights P. 168
Side marker lights P. 165
Headlights (low/high  beam)

P. 165
Hood P. 397
Parking lights P. 165
Windshield wipers P. 169
Moon roof  P. 79
Outside rear view
mirrors
P. 73
Turn signal lights
P. 147

158
2-2. Instrument cluster
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(P. 1 4 7 )
(vehicles with
an automatic
transmission)
“ECT SNOW” indicator
(P. 1 4 0 )
Headlight high beam indi-
cator (P. 1 6 5 )
(vehicles with
a manual
transmission)
“ETCS SNOW” indicator
(P. 1 4 6 )
(U.S.A.)
Headlight indicator
(P. 1 6 5 )
(vehicles with
an automatic
transmission)
“ECT PWR” indicator
(P. 1 4 0 )
(Canada)
Tail light indicator
(P. 1 6 5 ) Cruise control indicator
(P. 1 7 5 )
Front fog light indicator
(P. 1 6 8 )
(if equipped)
“AFS OFF” indicator
(P. 166)
(vehicles with an automatic trans-
mission)
Shift position and shift range indica-
tors (P. 1 3 9 )
(if equipped)
Intuitive parking assist
indicator (P. 1 9 0 )
Slip indicator (P. 1 9 7 )
VSC off indicator
(P. 1 9 8 )
SRS airbag on-off indica-
tor (P. 1 0 4 )
*
*
*
*

165
2
When driving
2-3. Operating the lights and windshield wipers
Headlight switch
Turning on the high beam headlights
With the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the head-
lights on or off.
The headlights can be operated manually or automatically.
The side marker, parking,
tail, license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights, parking
lights and other lights
turn on and off automati-
cally.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode)
U.S.A.Canada

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Engine compartment (type B fuse box)
FuseAmpereCircuit
1SPARE30 ASpare fuse
2SPARE25 ASpare fuse
3SPARE10 ASpare fuse
4FR CTRL-B25 AHeadlight high beams, horn
5A/F15 AExhaust system
6ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
7ALT-S7. 5 ACharging system
8TEL10 ALexus Enform
9STR LOCK25 ASteering lock
10H-LP CLN30 AHeadlight cleaner
11A/C COMP7. 5 AAir conditioning system
12DEICER25 AWindshield wiper de-icer
13FR CTRL-AM30 AFront fog lights, parking lights, wind-
shield washer

444
4-3. Do-it-yourself maintenance
14IG210 AIgnition system
15EFI NO.210 AFuel system, exhaust system
16H-LP R LWR15 AHeadlight low beam (right)
17H-LP L LWR15 AHeadlight low beam (left)
18F/ P M P25 AFuel system
19EFI25 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
20INJ20 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
21H-LP UPR15 AHeadlight high beams
22HORN10 AHorns
23WA S H E R20 AWindshield washer
24FR TAIL10 AParking lights
25FR FOG15 AFront fog lights
FuseAmpereCircuit

452
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 5 3 4 )
■Removing the engine compartment cover
P. 4 0 2
■Front bulb locations
■Rear bulb locations
Parking light
Headlight
high beam
Rear turn signal light Back-up light

453
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■Headlight high beams
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3

456
4-3. Do-it-yourself maintenance
Remove the light bulb.
■Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (halogen bulbs)
●Headlight high and low beams (discharge bulbs)
●Front fog lights
●Front turn signal lights
●Front side marker lights
●Side turn signal lights
●Stop/tail lights
●Tail lights
●Rear side marker lights
●High mounted stoplight
●License plate lightsSTEP3

458
4-3. Do-it-yourself maintenance
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■Discharge headlights (if equipped)
●Contact your Lexus dealer before replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result in
serious injury or death by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

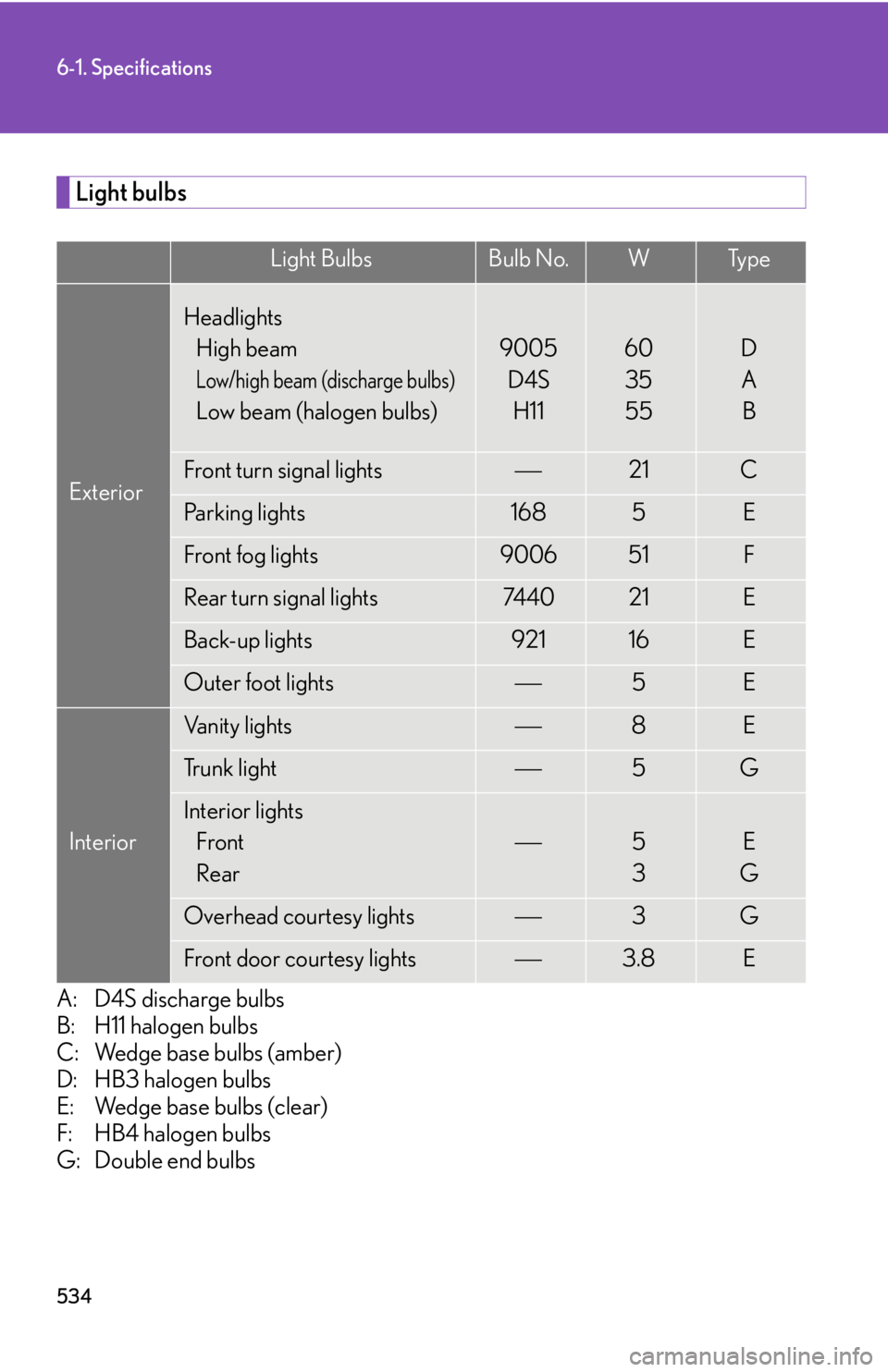

534
6-1. Specifications
Light bulbs
A: D4S discharge bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: HB3 halogen bulbs
E: Wedge base bulbs (clear)
F: HB4 halogen bulbs
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
High beam
Low/high beam (discharge bulbs)
Low beam (halogen bulbs)
9005
D4S
H1160
35
55D
A
B
Front turn signal lights21C
Parking lights1685E
Front fog lights900651F
Rear turn signal lights74 4 021E
Back-up lights92116E
Outer foot lights5E
Interior
Vanity lights8E
Trunk light5G
Interior lights
Front
Rear
5
3E
G
Overhead courtesy lights3G
Front door courtesy lights3.8E
