roof Lexus IS250 2011 Instrument Cluster / LEXUS 2011 IS250/IS350 OWNERS MANUAL (OM53839U)

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ...................................................... 24
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 28
Wireless remote control .............. 40
Doors.................................................... 43
Trunk..................................................... 47
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ........................................... 51
Driving position memory (driver’s seat) ................................. 53
Head restraints................................. 57
Seat belts ............................................ 60
Steering wheel (manually adjustable type)............................. 67
Steering wheel (power-adjustable type)............ 68
Anti-glare inside rear view mirror ................................................ 70
Outside rear view mirrors ........... 72 1-4. Opening and closing the
windows and moon roof
Power windows................................ 75
Moon roof .......................................... 78
1-5. Refueling Opening the fuel tank cap........... 82
1-6. Theft deterrent system Engine immobilizer system ........ 85
Alarm.................................................... 87
Theft prevention labels (U.S.A.) ............................................. 90
1-7. Safety information Correct driving posture ................ 91
SRS airbags ....................................... 93
Front passenger occupant classification system .................. 104
Child restraint sy stems ............... 109
Installing child re straints ............... 113
1Before driving

8
Pictorial indexExterior
Turn signal lights P. 147
Fog lights P. 168
Side marker lights P. 165
Headlights P. 165
Hood P. 383
Parking lights P. 165
Windshield wipers P. 169
Moon roof  P. 78
Outside rear viewmirrors
P. 72
Turn signal lights
P. 147
Daytime running lights
P. 166

11

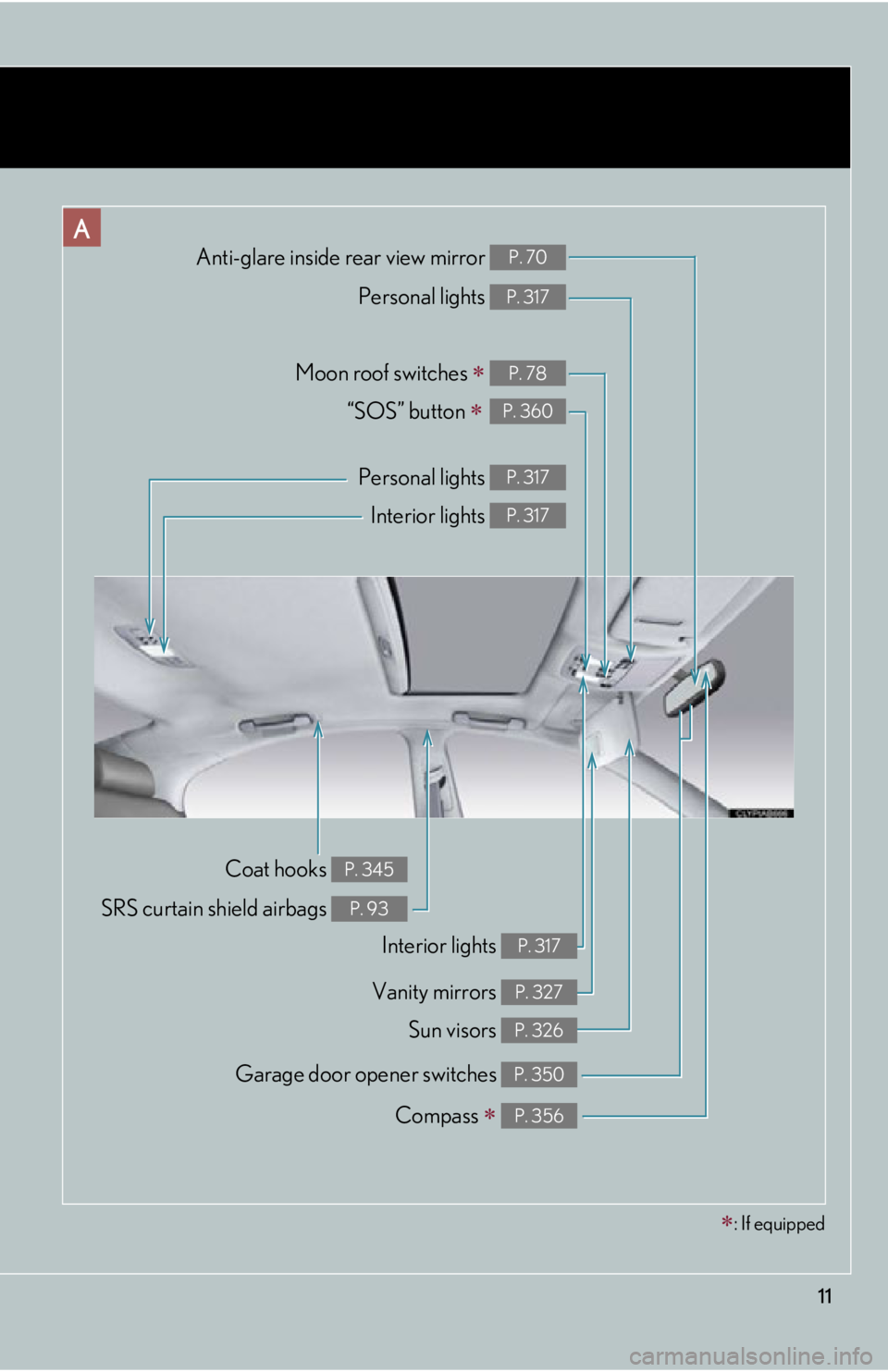

Anti-glare inside rear view mirror P. 70
Personal lights P. 317
Moon roof switches  P. 78
Personal lights P. 317
Interior lights P. 317
Coat hooks P. 345
SRS curtain shield airbags P. 93
A
“SOS” button P. 360
Compass  P. 356
Garage door opener switches P. 350
Vanity mirrors P. 327
Sun visors P. 326
Interior lights P. 317
: If equipped

21
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full at tention to driving. Anything that distracts
the driver, such as adjusting controls, ta lking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehi cle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or othe r features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to children.

Before driving1
23

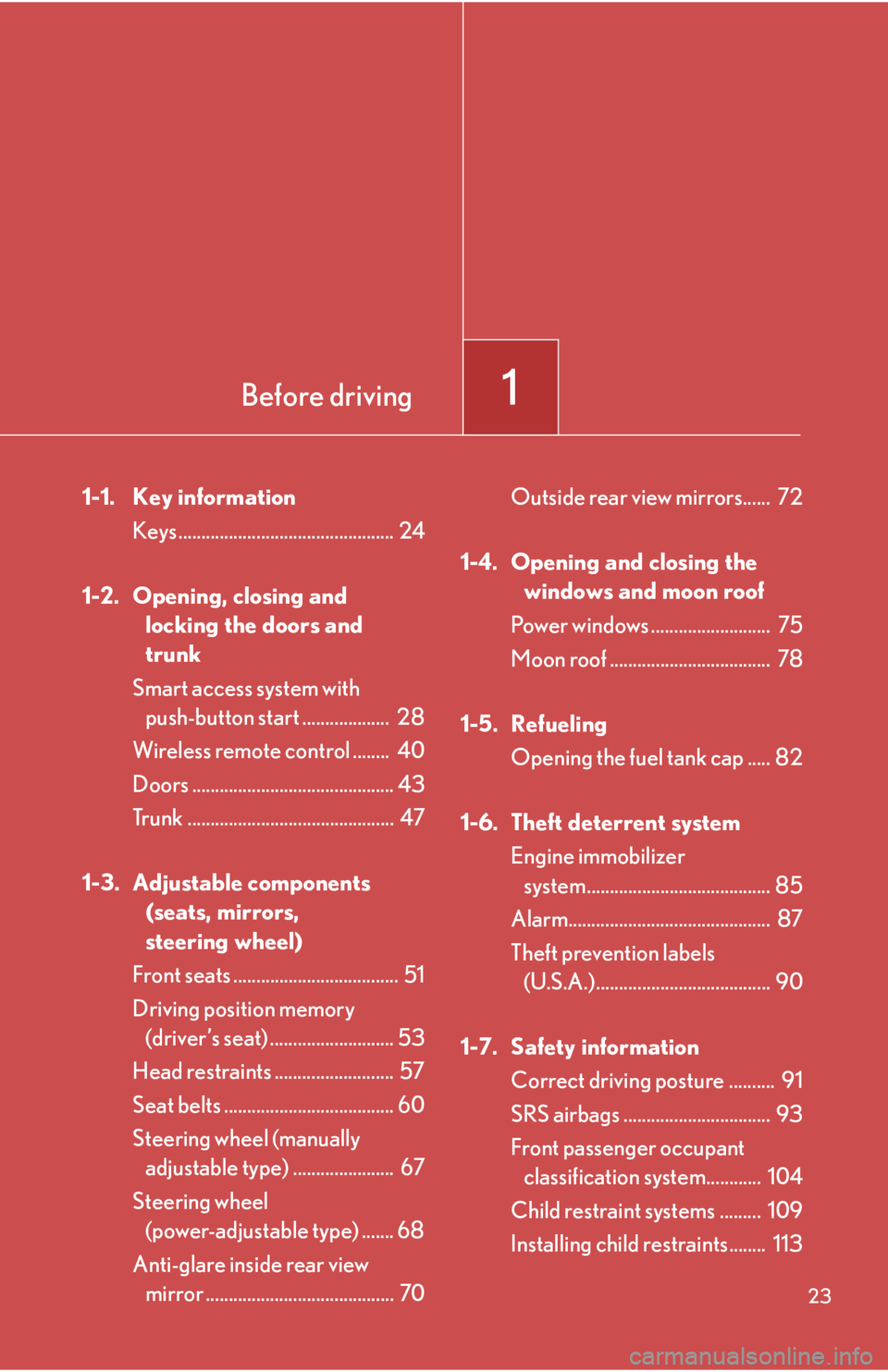

1-1. Key informationKeys ............................................... 24
1-2. Opening, closing and locking the doors and
trunk
Smart access system with push-button start ................... 28
Wireless remote control ........ 40
Doors ............................................ 43
Trunk ............................................. 47
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats .................................... 51
Driving position memory (driver’s seat) ........................... 53
Head restraints .......................... 57
Seat belts ..................................... 60
Steering wheel (manually adjustable type) ...................... 67
Steering wheel (power-adjustable type) ....... 68
Anti-glare inside rear view mirror ......................................... 70 Outside rear view mirrors...... 72
1-4. Opening and closing the windows and moon roof
Power windows .......................... 75
Moon roof ................................... 78
1-5. Refueling Opening the fuel tank cap ..... 82
1-6. Theft deterrent system Engine immobilizer system........................................ 85
Alarm............................................ 87
Theft prevention labels (U.S.A.)...................................... 90
1-7. Safety information Correct driving posture .......... 91
SRS airbags ................................ 93
Front passenger occupant classification system............ 104
Child restraint systems ......... 109
Installing child restraints........ 113

26
1-1. Key information
●The card key is not waterproof.
■When required to leave a key to the vehicle with a parking attendant
Turn the trunk opener main switch off and lock the glove box as circumstances
demand. (P. 4 7 , 3 2 0 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. ( P. 4 9 3 )
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc, ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves
that could interfere with the operation of the aircraft.
●If the battery cover is not installed and
the battery falls out or if the battery was
removed because the key got wet, rein-
stall the battery with the positive termi-
nal facing the Lexus emblem.

40
1-2. Opening, closing and locking the doors and trunk

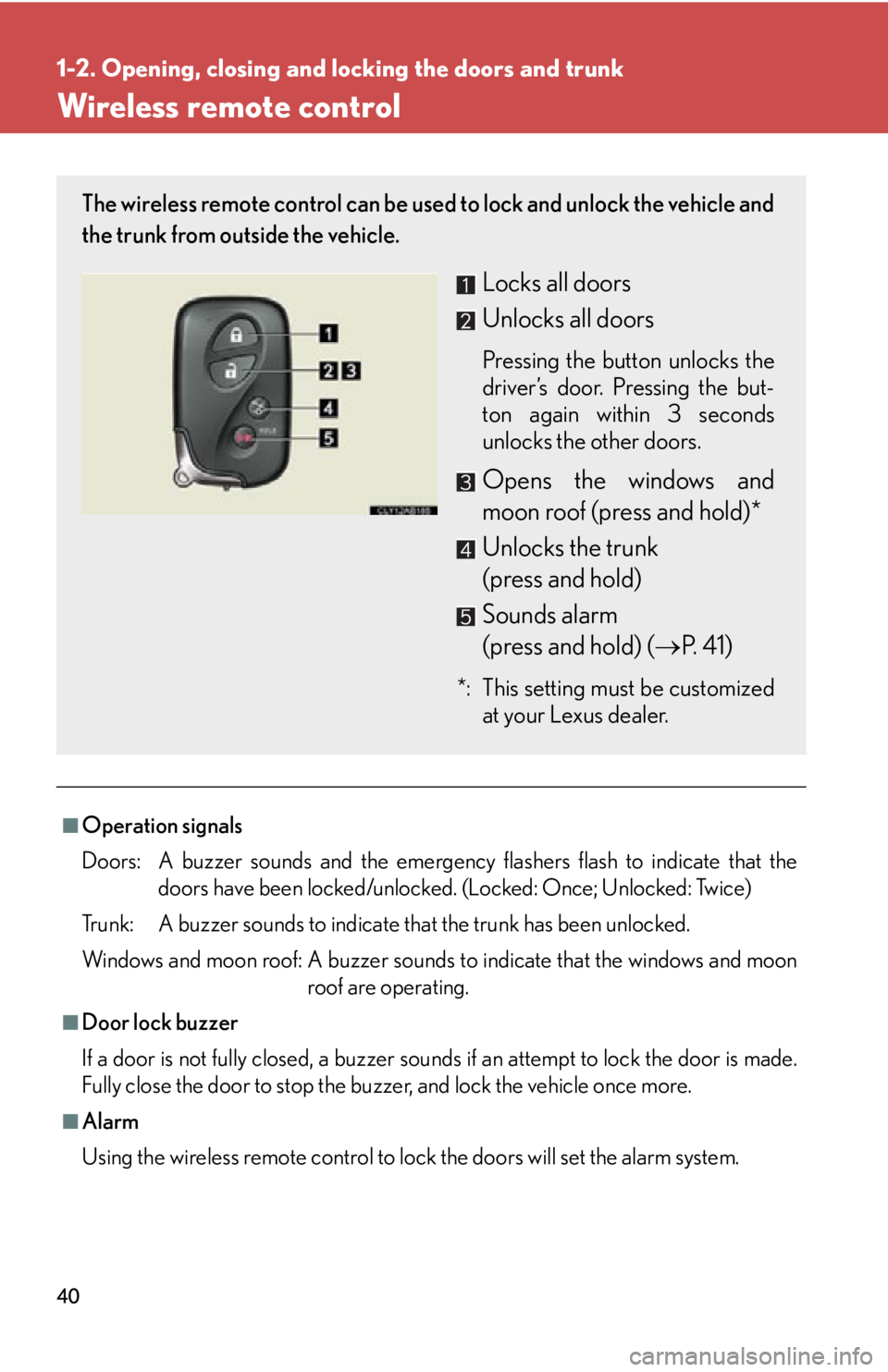

Wireless remote control
■Operation signals
Doors: A buzzer sounds and the emergenc y flashers flash to indicate that the
doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Trunk: A buzzer sounds to indicate that the trunk has been unlocked.
Windows and moon roof: A buzzer sounds to indicate that the windows and moon
roof are operating.
■Door lock buzzer
If a door is not fully closed, a buzzer sounds if an attempt to lock the door is made.
Fully close the door to stop the buzzer, and lock the vehicle once more.
■Alarm
Using the wireless remote control to lock the doors will set the alarm system.
The wireless remote control can be used to lock and unlock the vehicle and
the trunk from outside the vehicle.
Locks all doors
Unlocks all doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 3 seconds
unlocks the other doors.
Opens the windows and
moon roof (press and hold)*
Unlocks the trunk
(press and hold)
Sounds alarm
(press and hold) ( P. 4 1 )
*: This setting must be customized
at your Lexus dealer.

75
1
Before driving
1-4. Opening and closing the windows and moon roof

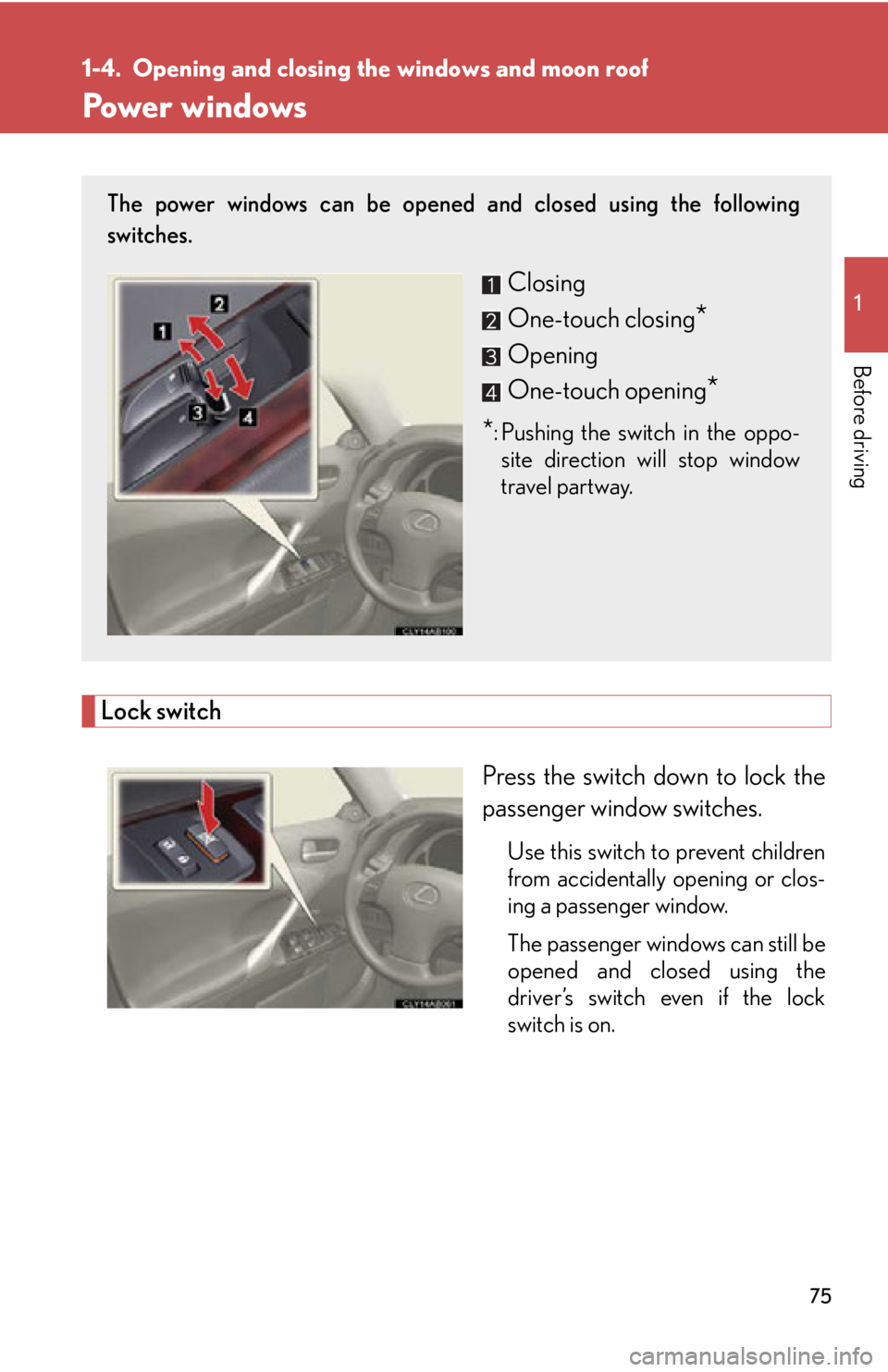

Power windows
Lock switch
Press the switch down to lock the
passenger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The passenger windows can still be
opened and closed using the
driver’s switch even if the lock
switch is on.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*: Pushing the switch in the oppo-site direction will stop window
travel partway.

76
1-4. Opening and closing the windows and moon roof
■The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Operating the power windows after turning the “ENGINE START STOP” switch
OFF
The power windows can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. They cannot, however, be operated once either front door is opened.
■Jam protection function
If an object becomes caught between th e window and the window frame, window
travel is stopped and the window is opened slightly.
■When the power window does not close normally
If the jam protection function is oper ating abnormally and a window cannot be
closed, perform the following operations using the power window switch on the rel-
evant door.
●After stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closin g position while the “ENGINE START
STOP” switch is in IGNITION ON mode.
●If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following procedure.
Hold the power window switch in the one-touch closing position. Con-
tinue holding the switch for a further 6 seconds after the window has
closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by your Lexus dealer.
STEP1
STEP2
STEP3

77
1-4. Opening and closing the windows and moon roof
1
Before driving
■Door lock linked window operation
The power windows can be opened and closed using the mechanical key.
( P. 4 9 4 )
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features  P. 5 4 0 )
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in some
instances, even death.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the window fully closes.
