441
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs■ Headlight high beams and daytime r unning lights (vehicles with halo-
gen headlights)
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3

442
4-3. Do-it-yourself maintenance
■Headlight high beams (vehicles with discharge headlights)
Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
STEP1
STEP2
STEP3

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Parking lights (vehicles with halogen headlights)
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Back-up lights
Open the trunk door and remove
the trunk panel cover clips.
STEP1
STEP2
STEP3
STEP1

444
4-3. Do-it-yourself maintenance

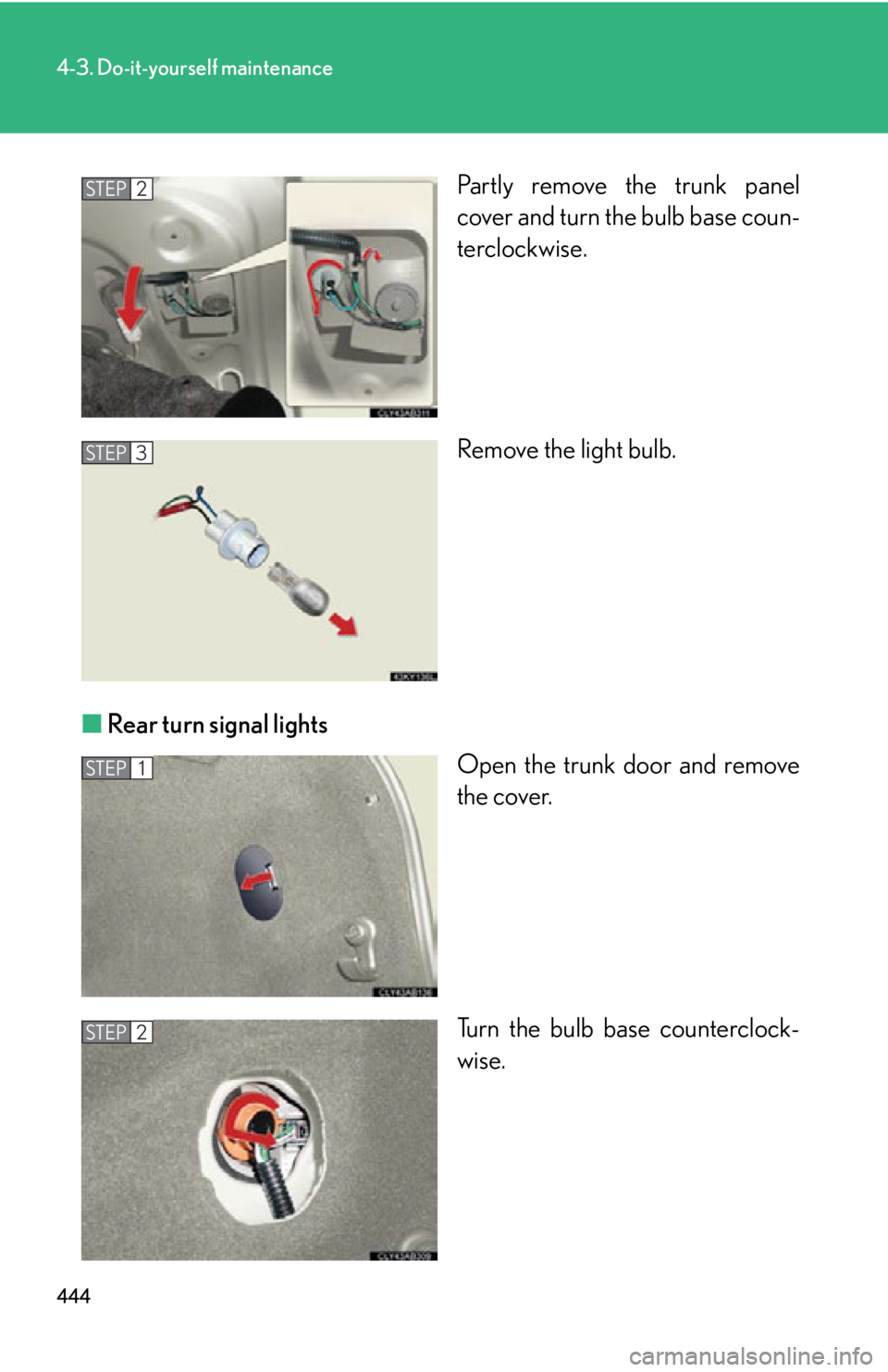

Partly remove the trunk panel
cover and turn the bulb base coun-
terclockwise.
Remove the light bulb.
■ Rear turn signal lights
Open the trunk door and remove
the cover.
Turn the bulb base counterclock-
wise.STEP2
STEP3
STEP1
STEP2

445
4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the light bulb.
■ Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (halogen bulbs)
● Headlight high and low beams (discharge bulbs)
● Front fog lights
● Front turn signal lights
● Front side marker lights
● Side turn signal lights
● Stop/tail lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lights
● Parking lights and daytime running lights (vehicles with discharge
headlights)STEP3

446
4-3. Do-it-yourself maintenance
■When replacing the front left headlight and parking light (vehicles with halogen
headlights) bulbs
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more inform ation in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED front side marker lights, side turn signal lights, tail lights, stop/tail lights, high
mounted stoplight, rear side marker lights, license plate lights and parking lights
(vehicles with discharge headlights)
The front side marker lights, side turn signal lights, tail lights, stop/tail lights, high
mounted stoplight, rear side marker light s, license plate lights and parking lights
(vehicles with discharge headlights) consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Lexus dealer to have the light replaced.
Remove the securing bolt and move the
washer fluid filler opening to allow easy
access to the light bulbs.
After replacing the bulbs, make sure to
secure the washer fluid filler opening with the
bolt.

447
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with ba re hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water en tering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
■Discharge headlights (if equipped)
●Contact your Lexus dealer be fore replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V wi ll be discharged and could result in
serious injury or death by electric shock.
●Do not attempt to take apart or repair the low beam headligh t bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

448
4-3. Do-it-yourself maintenance

When trouble arises5
449
5-1. Essential informationEmergency flashers............... 450
If your vehicle needs to be towed ....................................... 451
If you think something is wrong ...................................... 457
Fuel pump shut off system ..................................... 458
Event data recorder .............. 459 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ................................... 461
If a warning message is displayed................................ 470
If you have a flat tire................ 481
If the engine will not start .... 490
If the shift lever cannot be shifted from P ....................... 492
If you lose your keys .............. 493
If the electronic key does not operate properly.......... 494
If the vehicle battery is discharged ............................ 498
If your vehicle overheats ...... 501
If the vehicle becomes stuck........................................ 504
If your vehicle has to be stopped in an
emergency ............................ 506

450
5-1. Essential information

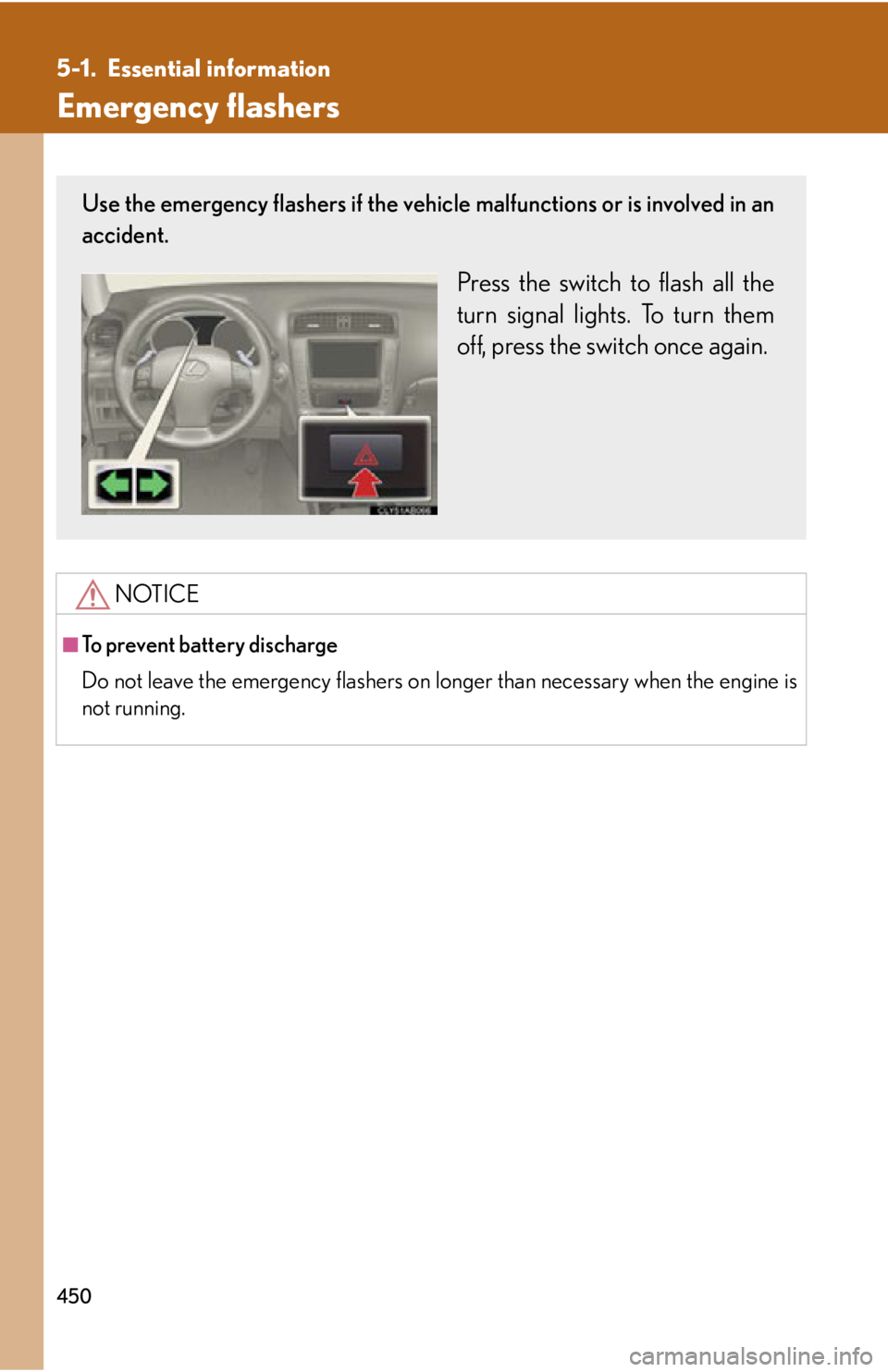

Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the engine is
not running.
Use the emergency flashers if the vehicle malfunctions or is involved in an
accident.
Press the switch to flash all the
turn signal lights. To turn them
off, press the switch once again.
