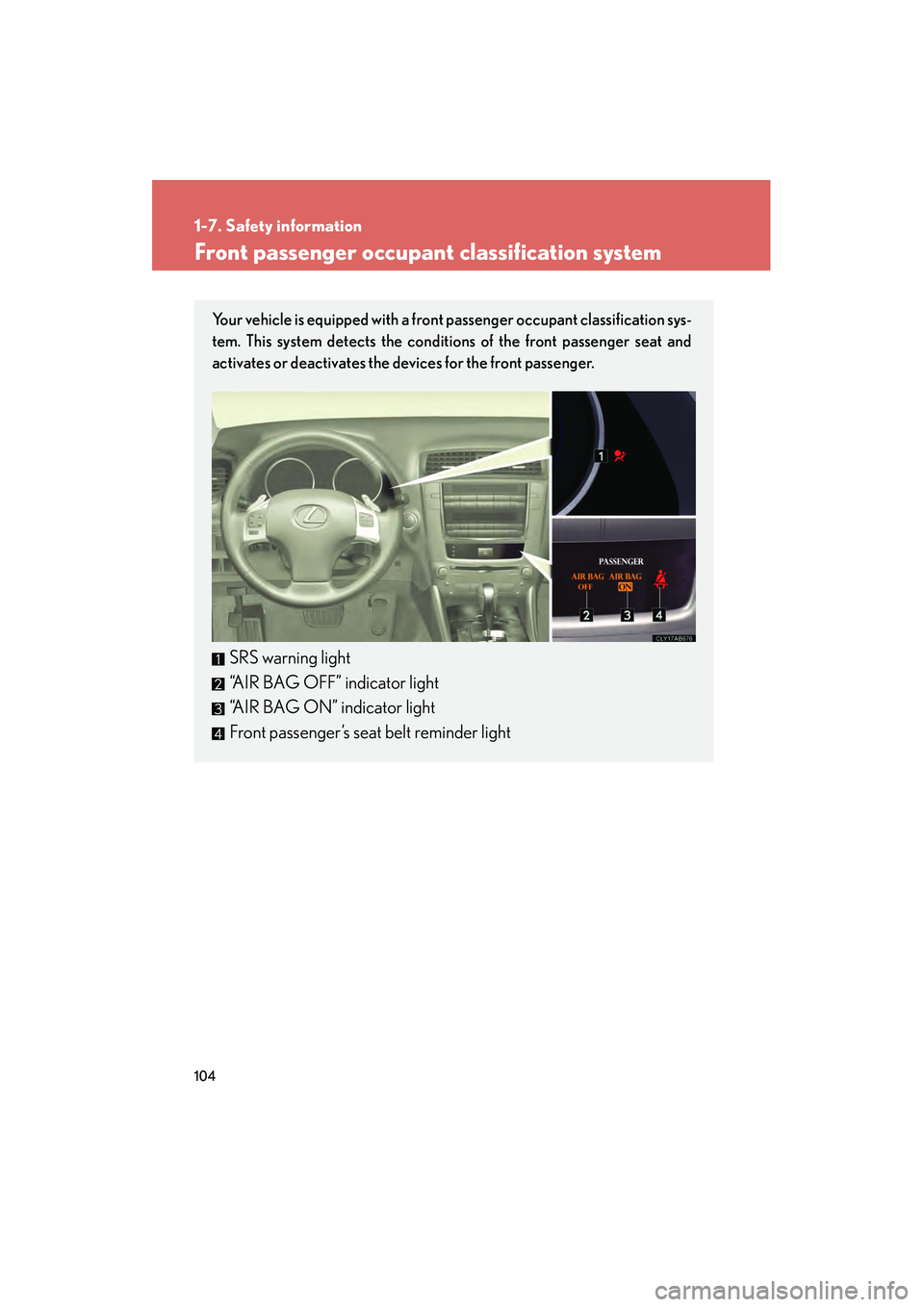

104
1-7. Safety information
IS350/250_U
Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and
activates or deactivates the devices for the front passenger.
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Front passenger’s seat belt reminder light

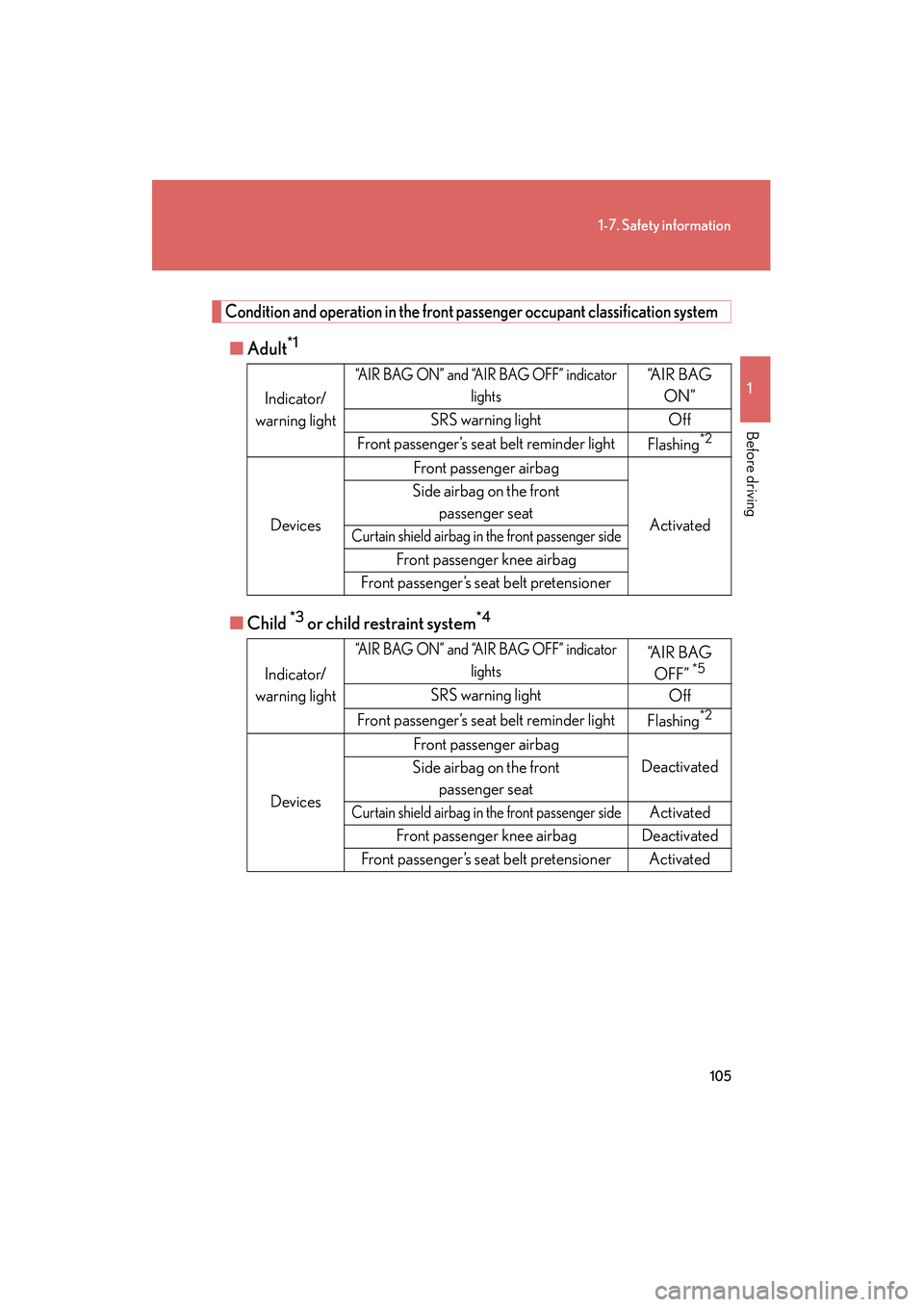

105
1-7. Safety information
1
Before driving
IS350/250_U
Condition and operation in the front passenger occupant classification system
■Adult*1
■Child *3 or child restraint system*4
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” i n d i c a t o r lights“A I R B A G ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag
Activated
Side airbag on the front
passenger seatCurtain shield airbag in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” i n d i c a t o r
lights“A I R B A G OFF” *5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag
Deactivated
Side airbag on the front
passenger seatCurtain shield airbag in the front passenger sideActivated
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

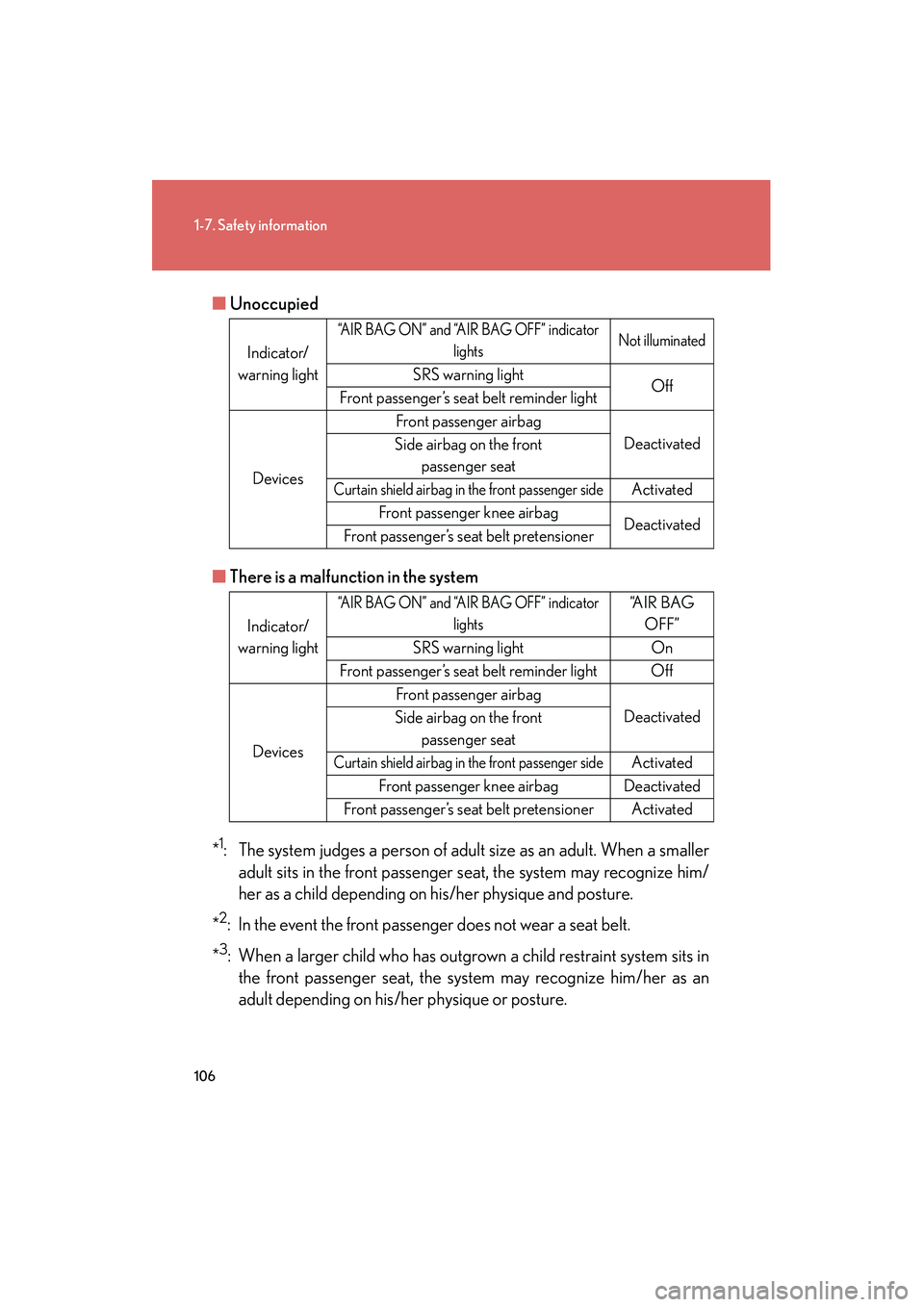

106
1-7. Safety information
IS350/250_U■
Unoccupied
■ There is a malfunction in the system
*
1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may recognize him/
her as a child depending on his/her physique and posture.
*
2: In the event the front passenger does not wear a seat belt.
*
3: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her as an
adult depending on his/her physique or posture.
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” i n d i c a t o r lights Not illuminated
SRS warning light
Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag
Deactivated
Side airbag on the front
passenger seat
Curtain shield airbag in the front passenger sideActivated
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” i n d i c a t o r lights“A I R B A G OFF”
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices Front passenger airbag
Deactivated
Side airbag on the front
passenger seat
Curtain shield airbag in the front passenger sideActivated
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

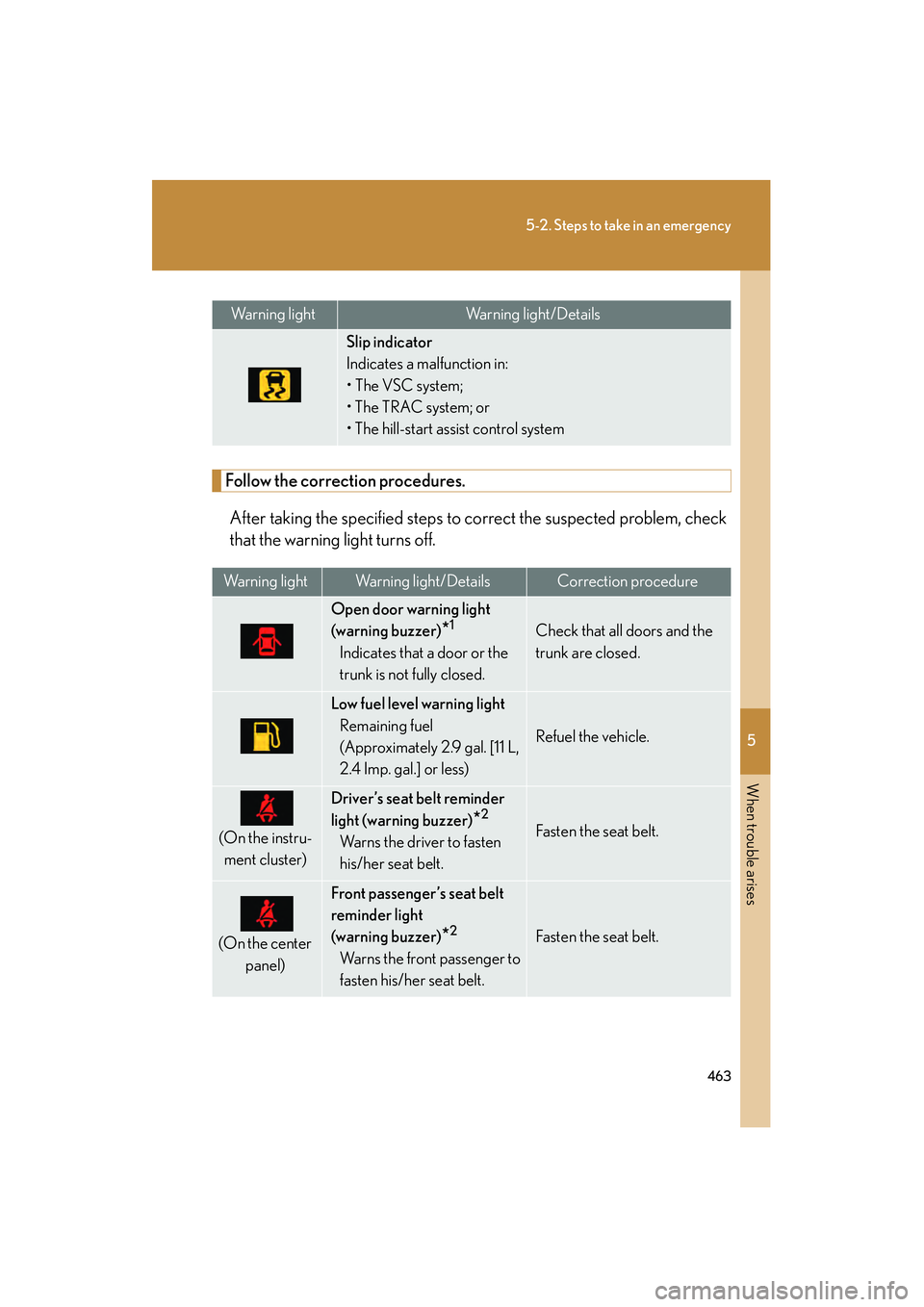

5
When trouble arises
463
5-2. Steps to take in an emergency
IS350/250_U
Follow the correction procedures.After taking the specified steps to co rrect the suspected problem, check
that the warning light turns off.
Warning lightWarning light/Details
Slip indicator
Indicates a malfunction in:
• The VSC system;
• The TRAC system; or
• The hill-start assist control system
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door or the
trunk is not fully closed.
Check that all doors and the
trunk are closed.
Low fuel level warning light
Remaining fuel
(Approximately 2.9 gal. [11 L,
2.4 Imp. gal.] or less)
Refuel the vehicle.
(On the instru-ment cluster)
Driver’s seat belt reminder
light (warning buzzer)
*2
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
(On the center
panel)
Front passenger’s seat belt
reminder light
(warning buzzer)
*2
Warns the front passenger to
fasten his/her seat belt.
Fasten the seat belt.

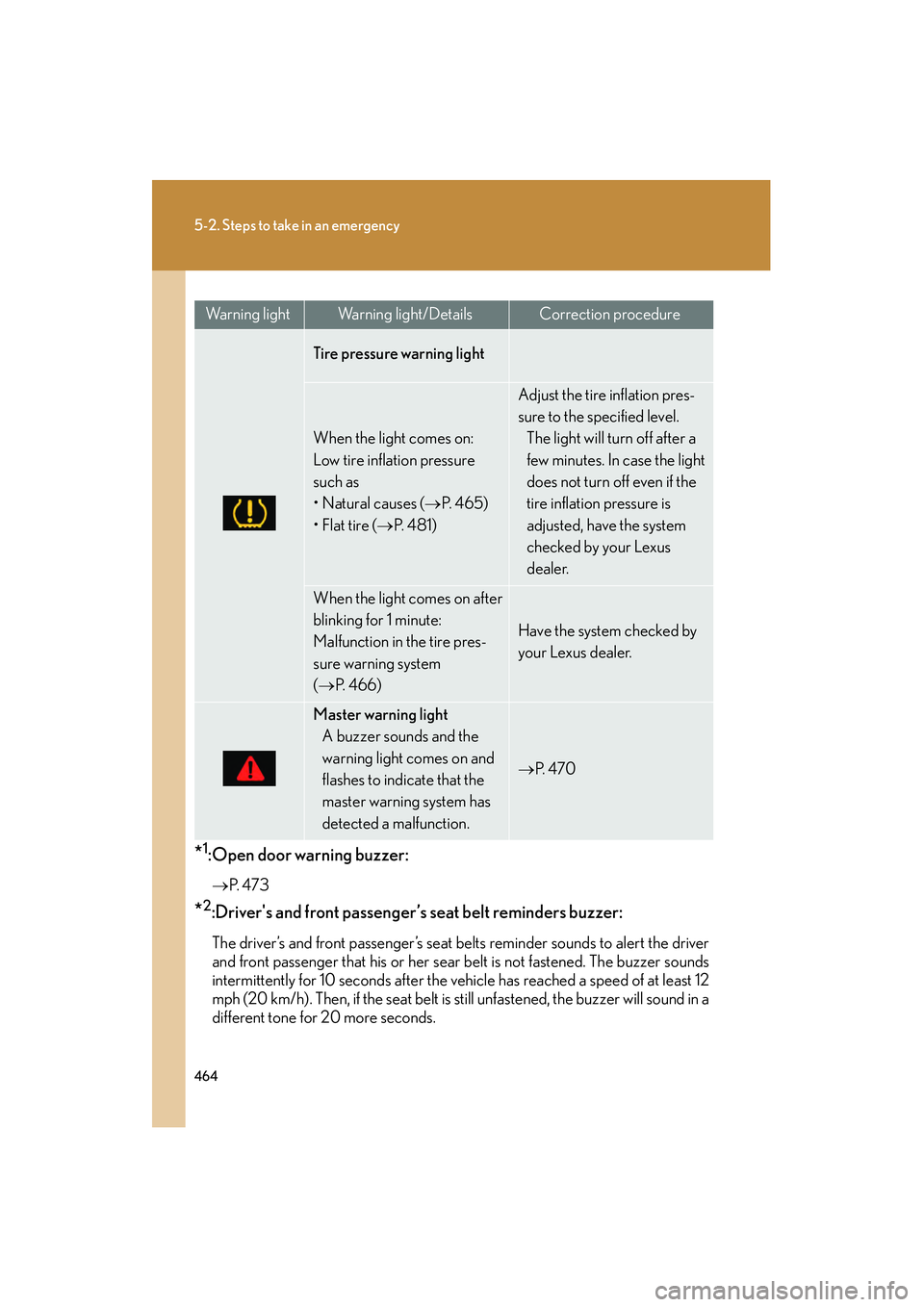

464
5-2. Steps to take in an emergency
IS350/250_U
*1:Open door warning buzzer:
→P. 4 7 3
*2:Driver's and front passenger’s seat belt reminders buzzer:
The driver’s and front passenger’s seat belts reminder sounds to alert the driver
and front passenger that his or her sear belt is not fastened. The buzzer sounds
intermittently for 10 seconds after the vehicle has reached a speed of at least 12
mph (20 km/h). Then, if the seat belt is still unfastened, the buzzer will sound in a
different tone for 20 more seconds.
Warning lightWarning light/DetailsCorrection procedure
Tire pressure warning light
When the light comes on:
Low tire inflation pressure
such as
• Natural causes (→ P. 4 6 5 )
• Flat tire ( →P. 4 8 1 )
Adjust the tire inflation pres-
sure to the specified level.
The light will turn off after a
few minutes. In case the light
does not turn off even if the
tire inflation pressure is
adjusted, have the system
checked by your Lexus
dealer.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pres-
sure warning system
(→ P. 466)
Have the system checked by
your Lexus dealer.
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
→ P. 4 7 0

5
When trouble arises
465
5-2. Steps to take in an emergency
IS350/250_U
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The lamp will go off after taking several driving trips.
If the lamp does not go off even after several trips, contact your Lexus dealer as
soon as possible.
■Electric power steering warning light
When the battery is low or when the voltage drops temporarily, the electric power
steering warning light may come on.
■Front passenger detection sensor and pass enger seat belt reminder and warning
buzzer
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash and the warning buzzer to sound,
even if a passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pressing the
satellite switch does not turn off the tire pressure warning light.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such as natural air
leaks or tire inflation pressure changes caused by temperature. In this case, adjust-
ing the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
The compact spare tire is not equipped with the tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off even
though the flat tire is replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the proper tire inflation pressure. The tire pressure warning
light will turn off after a few minutes.

466
5-2. Steps to take in an emergency
IS350/250_U
■If the tire pressure warning system is inoperative
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer
●If a different set of tires has been selected using the satellite switch
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby
●If a radio set at similar frequencies is in use in the vehicle
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings
●If non-genuine Lexus wheels are used (Even if you use Lexus wheels, the tire
pressure warning system may not work properly with some types of tires.)
●If tire chains are used
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute
when the “ENGINE START STOP” switch is turned to IGNITION ON mode, have
it checked by your Lexus dealer.
■Customization that can be configured at Lexus dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features →P. 5 4 0 )

544
6-2. Customization
IS350/250_U
Windshield
wipers and
washer
(
→P. 1 6 9 )
Switching operation when
the vehicle is stationaryOnOff
Drip prevention functionOnOff
Ti m e e l a p s e d b e f o r e t h e
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Intuitive park-
ing assist
(
→P. 1 7 9 )
Back sensor operation
display and buzzerOnOff
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.9 ft. (150 cm)2.0 ft. (60 cm)
Illumination
(
→P. 3 1 5 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedOnOff
Operation after the
“ENGINE START STOP”
switch is turned OFF
OnOff
Front footwell lightsOnOff
Shift lever lightOnOff
Outer foot lightOnOff
Seat belt
reminder
(
→P. 4 6 3 )
Vehicle speed linked seat
belt reminder buzzerOnOff
ItemFunctionDefault settingCustomizedsetting

566
Alphabetical index
IS350/250_U
Cruise control ......................................... 175
Cup holder .............................................. 322
Curtain shield airbags............................ 93
Customizable features ...................... 540
Daytime running light system ........... 166
DefoggerRear window.......................................... 214
Side mirror .............................................. 214
Dimension ............................................... 508
Dinghy towing ............................. 200, 201
Display
Satellite switch mode ....................... 329
Trip information ..................................... 161
Warning message............................. 470
Do-it-yourself maintenance ............ 380
Door courtesy lights Door courtesy lights...........................315
Wattage.................................................. 524
Door pockets..........................................324
Doors Door lock................................ 28, 40, 43
Door windows ....................................... 75
Side mirrors ..............................................72
Driver's seat belt reminder light ..... 463
Driving Correct posture ...................................... 91
Procedures ............................................. 124
Driving position memory ......................53 Electric power steering....................... 185
Electronic key
If the electronic key does not operate properly............................ 493
Emergency, in case of If the engine will not start ............... 489
If the shift lever cannot be shifted from P..................................... 491
If the vehicle has a discharged battery ................................................. 498
If the warning buzzer sounds........ 461
If the warning light turns on............ 461
If a warning message is displayed ............................................ 470
If you have a flat tire .......................... 481
If you lose your keys .........................492
If you think something is wrong ...................................................457
If the electronic key does not operate properly............................ 493
If your vehicle becomes stuck .... 504
If your vehicle has to be stopped in an emergency ............................506
If your vehicle needs to be
towed ..................................................... 451
If your vehicle overheats..................501
Emergency flashers Switch...................................................... 450
Engine Compartment ..................................... 386
Engine switch ........................................ 134
Hood ....................................................... 383
How to start the engine ................... 134
Identification number ...................... 509
If the engine will not start ............... 489
Ignition switch ....................................... 134
Overheating ..........................................501
D
E

567
Alphabetical index
IS350/250_U
Engine compartment cover............. 388
Engine coolantCapacity...................................................515
Checking ............................................... 392
Preparing and checking before winter ......................................195
Engine coolant temperature gauge ........................................................ 151
Engine immobilizer system ................. 85
Engine oil Capacity................................................... 512
Checking ............................................... 389
Preparing and checking before winter ......................................195
Engine oil maintenance data ............. 391
EPS...............................................................185
Event data recorder............................ 459
First-aid kit storage belt......................347
Floor mat.................................................. 346
Fluid Brake ....................................................... 394
Washer ................................................... 399
Fog lights
Switch ........................................................168
Wattage ................................................. 524
Footwell lights.......................................... 315
Front fog lights Switch ........................................................168
Wattage ................................................. 524 Front passenger occupant
classification system .......................... 104
Front passenger's seat belt reminder light...................................... 463
Front seats Adjustment .................................................51
Driving position memory ..................53
Front turn signal lights
Switch.........................................................147
Wattage ..................................................524
Fuel Capacity .................................................... 511
Fuel gauge................................................ 151
Fuel pump shut off system............ 458
Gas station information ..................576
Information ............................................525
Refueling.................................................... 82
Fuel door ..................................................... 82
Fuel filler door ........................................... 82
Fuel pump shut off system.................458
Fuses .......................................................... 423
Garage door opener ......................... 350
Gas station information...................... 576
Gauges ........................................................151
Glove box ................................................320
Glove box light ......................................320
F
G
