audio Lexus IS250 2012 Navigation Manual

SETUP
359
(a) Removing a Bluetoothraudio
1. Touch “Remove” of “Bluetooth*
Audio” on “BT Audio Settings” screen.
2. Touch the portable player you want
to delete and touch “OK”.
3. Touch “Yes” to unregister the se-
lected portable player.
*: Bluetooth is a registered trademark of
Bluetooth SIG.Inc.
If the selected portable player is in use, this
screen will appear. Touch “Yes”. The sys-
tem will disconnect the portable player and
remove it.
ISF/IS NAVI (U)
Finish
11

SETUP
360
(b) Connecting Bluetoothraudio
AUTOMATICALLY
Touch “On”for “Auto Bluetooth*Connect”
to activate the automatic connection for
the Bluetooth r. Always set it to this mode
and leave the Bluetooth rportable player in
a condition where connection can be
established. The “Auto Bluetooth
*
Connect” cannot be selected if the
connection method is set to “From
Portable Player”.
*: Bluetooth is a registered trademark of Bluetooth SIG.Inc.
When the “ENGINE START STOP” switch
is in ACCESSORY or IGNITION ON
mode, the selected portable player will be
automatically connected and the connec-
tion result is displayed.
MANUALLY
When the auto connection failed or turned
off, you have to connect Bluetooth rmanu-
ally.
For the manual operation, see page 248.
ISF/IS NAVI (U)
Finish

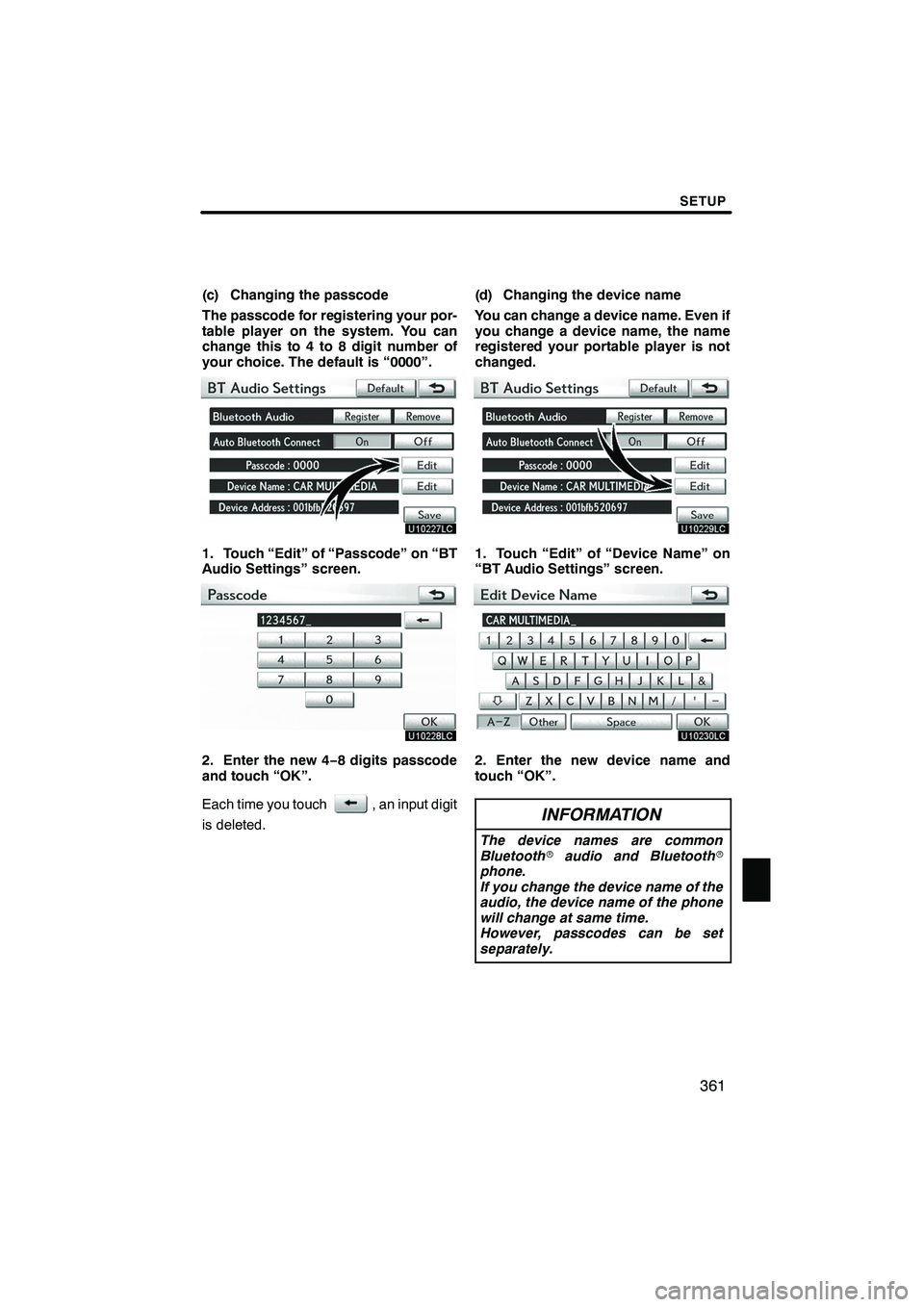

SETUP
361
(c) Changing the passcode
The passcode for registering your por-
table player on the system. You can
change this to 4 to 8 digit number of
your choice. The default is “0000”.
1. Touch “Edit” of “Passcode” on “BT
Audio Settings” screen.
2. Enter the new 4−8 digits passcode
and touch “OK”.
Each time you touch
, an input digit
is deleted. (d) Changing the device name
You can change a device name. Even if
you change a device name, the name
registered your portable player is not
changed.
1. Touch “Edit” of “Device Name” on
“BT Audio Settings” screen.
2. Enter the new device name and
touch “OK”.
INFORMATION
The device names are common
Bluetooth
raudio and Bluetooth r
phone.
If you change the device name of the
audio, the device name of the phone
will change at same time.
However, passcodes can be set
separately.
ISF/IS NAVI (U)
Finish
11

SETUP
362
(e) Initializing the Bluetoothraudio
settings
You can initialize the settings.
1. Touch “Default” on “BT Audio Set-
tings” screen.
2. Touch “Yes”. When the navigation system is turned on,
the “Information” screen displays when it is
time to replace a part or certain compo-
nents. (See page 27.)
1. Push the “SETUP” button.
2. Touch “Vehicle”.
3. Touch “Maintenance”.
ISF/IS NAVI (U)
Finish
Vehicle settings —
— Maintenance

INDEX
386
Numbers/Symbols
? button
20,33
.........................
3 routes selection 85
...................
A
A/C button 272
........................
Activation of service 153
...............
Adding destinations 94
.................
Address book button 20,77
..............
Address book entries 117
...............
Address book entry information 37 .......
Address button 20,65
...................
Adjust exhaust gas sensor screen 275 ...
Adjusting the air conditioning
system settings manually 276
..........
Adjusting the air outlets 279
.............
Air conditioning controls 272
............
Air flow control buttons 272,277
.........
Air intake control button 272,275,278 .....
Air outlets 277
........................
Alphabet key 28
.......................
AM button 182,186
....................
AM·FM button 180,184
.................
Angle mark 235
.......................
Areas to avoid 123
....................
Arrow screen 39,90
....................
ASL 192
.............................
AUDIO button 180,182,184,186
..........
Audio button 22
.......................
Audio language 235
...................
Audio settings 355
.....................
Audio system operating hints 262 ........
Audio/video remote controls 260
.........
Auto avoid traffic 170,310
..............
AUTO button 272
......................
Auto start 235
.........................
Automatic air conditioning system 274 ....
Automatic mode 278
...................
Automatic sound levelizer 192
...........
AUX button 182,186
...................
AUX port 195
.........................
AUX·USB button 180,184
..............
B
BASS 192
............................
Bluetooth r 130,316,347
.................
Bluetooth raudio operation 245
..........
Bluetooth rconnection status 352,353 ....
Brightness 31
.........................
Building information 43
.................
C
Calendar 149
.........................
Calendar button 23
....................
Call by call history 142
.................
Call by dial 139
.......................
Call by phonebook 140
.................
Call by POI 145
.......................
Call by speed dial 141
.................
Call by voice recognition 143,148 ........
Call on the Bluetooth rphone 139 ........
Categories 71
.........................
CAUTION screen 26
...................
CD button 184,186
....................
CD changer operation 206
..............
Cellular phone 130
....................
CH/DISC button 180,182,184,186 ........
Change icon 119
......................
Change location 121,126
...............
Change name 120,125
.................
Change phone # 121
...................
Change size 126
......................
Changing a portable player name 356 ....
Changing the angle 235
................
Changing the audio format 234
..........
Changing the audio language 234 .......
Changing the Bluetooth raudio
passcode 361
........................
Changing the Bluetooth raudio
player name 361
.....................
Changing the Bluetooth rsettings 348 ....
Changing the page 233
................
Changing the subtitle language 233 ......
Channel category 201
..................
Chapter 244
..........................
City to search 65,70
....................
CLIMATE button 272,273
...............
Clock button 22
.......................
Clock settings 302
.....................
Color 31
.............................
Command list 49,51
....................
Compass mode screen 39,41
............
Connecting a Bluetooth rphone 136 ......
Connecting a USB memory or
iPod 253
............................
Connecting Bluetooth raudio 360 ........
Connecting Bluetooth raudio
player 248
...........................
Contrast 31
...........................
Coordinates button 20,82
...............
Current position calibration 313
..........
Current position display 33
.............
Cursor position as a destination 34 ......
Cursor position as an address book entry 35
........................
ISF/IS NAVI (U)
Finish

INDEX
387
D
Dealer setting
365
.....................
Defogging the windshield 278
...........
Delete destination button 20,82
..........
Delete personal data 301
...............
Deletes previous destinations 110 .......
Deleting a Bluetooth rphone 325
........
Deleting address book entries 122 .......
Deleting areas to avoid 127
.............
Deleting call history 342
................
Deleting destinations 82,95
..............
Deleting home 113
....................
Deleting preset destinations 116
.........
Deleting previous destinations 127 .......
Deleting the phonebook data 333 ........
Deleting the speed dial 341
.............
Deleting the voice tag 347
..............
DEST button 10
.......................
Destination Assist 155
.................
Destination button 62
..................
Destination information 38
..............
Destination screen 20
..................
Destination search 62
..................
Destination search by
“Address Book” 77
...................
Destination search by “Address” 65 ......
Destination search by
“Coordinates” 82
.....................
Destination search by
“Destination Assist” 76
................
Destination search by “Emergency” 77 ...
Destination search by “Intersection & Freeway” 78
............
Destination search by “Map” 81
.........
Destination search by “Point of Interest” 69
..................
Destination search by “Previous Destinations” 76
.............
Destination search by home 64
..........
Destination search by preset destinations 64
.................
Detailed navigation settings 110,307 ......
Detection level of the intuitive
parking assist −sensors 292
............
Detection range of the intuitive
parking assist −sensors 293
............
Detour setting 96
......................
Dialing by name 144
...................
DISC button 180,182
..................
Disc slot 180,182,184,186
...............
DISP button 10
.......................
Display POI icons 102
.................
Displaying portable player information 356
...................... Displaying the title and name 203
........
Distance and time to destination 10,93 ....
Download eDestination 158
.............
Driving speeds 309
....................
DSP control 192
.......................
Dual button 272
.......................
Dual map screen 39,41
.................
DVD audio controls 230
................
DVD audio discs 226
..................
DVD audio settings 229
................
DVD changer operation 220
.............
DVD language 235
....................
DVD player and DVD video disc
information 243
......................
DVD setup menu 235
..................
DVD video controls 230
................
DVD video discs 226,243,244
............
DVD video settings 228
................
E
eDestination 158
......................
Edit “Dealer” or “Contact” name 366 ......
Edit “Location” 366
....................
Edit “Phone #” 367
....................
Edit route 86
..........................
Editing address book entries 118
........
Editing area to avoid 124
...............
Editing home 112
......................
Editing preset destinations 115
..........
Editing the Bluetooth rphone 323 ........
Editing the phonebook data 331
.........
Editing the speed dial 340
..............
Editing the voice tag 346
...............
Eject button 180,182,184,186,208,223 ....
Ejecting discs 208,223
.................
Emergency button 20,77
................
Enter a Bluetooth rphone 134
...........
Estimated arrival time 93
...............
Estimated travel time 93
................
F
Fan speed 276
........................
Fan speed control buttons 272,276 ......
FM button 182,186
....................
Foot print map 42
.....................
Foot print map button 10
...............
Freeway exit information screen 88 ......
Freeway screen 39
....................
Function menu display screen 180,182,184,186
...............
Function menu tab 180,182,184,186 ......
ISF/IS NAVI (U)
Finish
Idx

INDEX
388
G
General button
22
.....................
General settings 298
...................
Go home button 20
....................
GPS information 372
...................
GPS mark 10
.........................
Guidance screen for the freeway 89 ......
Guidance screen on the freeway 39 ......
Guiding the route 16
...................
H
Hands −free system 130 ................
Heading −up 10,43 .....................
Help 33 ..............................
HFP (Hands Free Profile) 130 ...........
Home 12,17,64,111 ....................
I
If the changer malfunctions 219,242 .....
Incoming call display 352 ...............
INFO/PHONE button 10 ................
Information about the icon 36 ...........
Information screen 23 ..................
Initial screen 26 .......................
Initializing the Bluetooth raudio
settings 362 .........................
Initializing the Bluetooth rsettings 351 ....
Initializing the detailed phone settings 354 .........................
Initializing the phone volume settings 318 .........................
Inputting letters and numbers 28 .........
Inserting discs 206,220 ................
Interrupt call 148 ......................
Intersection & freeway button 20,78 .......
Intersection guidance screen 39,89 .......
Intuitive parking assist 290,367 ..........
Intuitive parking assist setting 367 .......
Intuitive parking assist −sensor
detection information 293 ..............
Intuitive parking assist −sensor
failure warning 294 ...................
iPod compatibility 262 ..................
iPod operation 253 ....................
L
Language code 237
....................
Last 5 cities 67,73
......................
Lexus Enform 152
.....................
Lexus Insider 23,172
...................
Lexus Insider settings 175
..............
Limitations of the navigation system 372
..........................
List 29
...............................
List all categories button 71,74
...........
List screen operation 28
................
Listening to satellite radio 201
...........
Listening to the radio 195
...............
LOAD button 180,182,184,186,206,220 ...
Local POI list 104
.....................
M
Maintenance 362
......................
Maintenance information 27
.............
Maintenance information items 364 ......
Maintenance information setting 363 .....
Manage phone 318
....................
Map button 20,81
......................
Map coverage area 383
................
Map data button 23
....................
Map database information 374
..........
Map database updates 374
.............
Map database version 383
..............
Map icons 44
.........................
Map scale 42
.........................
Map screen 10
........................
Map screen operation 33
...............
MAP/VOICE button 10,33,34
............
Mark button 10
........................
Marks shown on DVD video discs 243 ....
Memory point names 120
...............
Message button 197
...................
Micro dust and pollen filter 281
..........
Micro dust and pollen filter button 272 ....
Microphone 44,130
.....................
MID 192
.............................
MODE button 277
.....................
MP3 214
.............................
Multi− information display 291
...........
N
Names of areas to be avoided 125 .......
Natural speech information 47 ...........
Navigation button 22 ...................
Navigation settings 110,307 .............
North− up 10,43........................
Number key 28 .......................
ISF/IS NAVI (U)
Finish

INDEX
389
O
OFF button
272
.......................
Off function 10
........................
Operating a DVD disc 226
..............
OPP (Object Push Profile) 130
..........
Orientation of the map 43
...............
Other settings 369
.....................
Outside air mode 278
..................
Outside rear view mirror defogging 280
.......................
Outside temperature display 272
........
P
Parental lock 235
......................
Pause guidance 101
...................
Phone button 22,23
....................
Phonebook 140,326,327
................
Playing a Bluetooth raudio 250
..........
Playing a disc 210,225
.................
Playing a DVD disc 227
................
Playing a MP3/WMA disc 214
...........
Playing a USB memory or iPod 254 ......
Playing a video CD 239
................
Playing an audio disc 211
..............
POI as a destination 105
...............
POI category change 312
...............
POI icons hidden 106
..................
POI information 36
....................
Point of interest button 20,69
............
POIs near the search point 74
...........
POIs to be displayed 103
...............
Pop− up information 315
................
Portable audio
players 195,245,253,355
...............
Preset destination buttons 20
...........
Preset destinations 14,64,114
...........
Presetting a channel 202
...............
Presetting a station 196
................
Previous destinations button 20,76 .......
PWR·VOL knob 180,182,184,186 ........
R
Radio data system 197
.................
Radio ID 200
.........................
Radio operation 195,200
...............
RAND button 213,218,252,259
..........
RDS 197
.............................
Rear view monitor system 284
..........
Rear view monitor system camera 286
.........................
Rear window defogger button 272 .......
Rear window defogging 280
.............
Receive on the Bluetooth rphone 146 .... Receive sports information
161
..........
Receive stock data 164
................
Recirculated air mode 278
..............
Reconnecting Bluetooth raudio
player 249
...........................
Reconnecting the Bluetooth r
phone 138
...........................
Region codes 243
.....................
Registering a Bluetooth r
phone 319,326
.......................
Registering address book entries 117 ....
Registering areas to avoid 123
..........
Registering home 12,111
................
Registering portable player 357
..........
Registering preset destinations 14,114 ....
Registering the phonebook data 330 .....
Registering the speed dial 336
..........
Registering the voice tag 344
...........
Removing a Bluetooth raudio 359 .......
Reordering destinations 94
.............
Resume guidance 102
.................
Ring volume 317
......................
Route button 10
.......................
Route features 100
....................
Route guidance screen 88
..............
Route overview 97
....................
Route preference 99
...................
Route preview 98
.....................
Route trace 106
.......................
Route trace −start 107
..................
Route trace −stop 107
..................
Route type 99
.........................
RPT button 213,218,252,259
............
S
Safety Connect 152
....................
SAT button 180,184
...................
Satellite tuner 200
.....................
Scale indicator 10
.....................
SCAN button 213,217,218,258,259 .......
Screen adjustment 31
..................
Screen configuration button 10
..........
Screen layout function 313
..............
Screen off 31
.........................
Screen scroll operation 34
..............
Screen size 193
.......................
Screens for clock settings 303
..........
Screens for general settings 298
........
Screens for navigation settings 308 ......
Screens for voice settings 304
..........
Search area 62
.......................
Search by category 71
.................
Search by eDestination 75
..............
Search by freeway entrance/exit 80 ......
Search by intersection 79
...............
ISF/IS NAVI (U)
Finish
Idx

INDEX
390
Search by name69
....................
Search by phone # 74
..................
Search point from along my route 72 .....
Search point from
near a destination 73
.................
Search point from near city center 72 ....
Search point from near hear 72
..........
Searching by group 232
................
Searching by title 231
..................
Searching by track 242
.................
Searching for a desired file 217,258 ......
Searching for a desired folder 218,259 ...
Searching for a desired track or
disc 213
.............................
SEEK/TRACK button 180,182,184,186 ....
Select button 215,255,256
...............
Select portable player 355
..............
Selecting a Bluetooth rphone 321,326 ...
Selecting a desired album 251
..........
Selecting a desired disc 211,225
.........
Selecting a desired file 215
.............
Selecting a desired file or track 256 ......
Selecting a desired folder 215,255 .......
Selecting a desired track 212,251 .......
Selecting a keyboard layout 300
.........
Selecting a language 299
...............
Selecting a play mode 255
..............
Selecting a satellite radio channel 202 ....
Selecting a station 197
.................
Selecting DVD disc menu item 231 ......
Selecting portable player
connection method 357
...............
Selecting the bonus group 232
..........
Selecting the search area 62
............
SETUP button 10
.....................
Sets address book 110
.................
Sets area to avoid 110
.................
Sets home 110
........................
Sets preset destinations 110
............
Setting and deleting destinations 94 ......
Setting Bluetooth raudio 357
............
Setting home as the destination 17 ......
Setting route 96
.......................
Setting the intuitive parking assist mode 290
......................
Setting the phonebook 327
.............
Setting the vehicle interior temperature 274,276
.................
Setting the voice tag 343
...............
Setting up the address book 116
.........
Setting up the areas to avoid 122 ........
Setting up the home 111
................
Setting up the preset destinations 113 ....
Setup screen 22
......................
Show eDestination icons 160
........... Show free flowing traffic
170,311
.........
Show on map 102
.....................
Show on map button 10
................
Show XM rNavTraffic information 170 ....
Show XM rNavWeather
information 166
......................
Show XM NavWeather t
information 166
......................
Single map screen 39,40
................
Sort 30
..............................
Sound dynamic range 235
..............
Sound icons 119
......................
Speed dial 141,335
....................
Speed dials settings 335
...............
Starting route from adjacent road 101 ....
Starting route guidance 83
..............
Steering switches 260
..................
Street address 67
.....................
Subtitle language 235
..................
Surround function 192
..................
Switching between audio functions 189
........................
Switching the air intake control to automatic mode 275
..................
Switching the screens 39
...............
Symbol key 29
........................
T
Talk on the Bluetooth rphone 146 ........
Talk switch 44,143,148 .................
Telephone settings 316 .................
Telephone switch 130 ..................
TEMP button 272,274,276 ...............
Temperature display 272,282 ...........
Time zone 303 ........................
Tire change calibration 313,315 .........
Title 244 .............................
Tone 31 ..............................
Tone and balance 192 ..................
Touch screen operation 27 ..............
Traffic announcement 199 ..............
Traffic button 199 ......................
Traffic voice guidance 170,306 ..........
Transferring a phone number 328 ........
TREB 192 ............................
TUNE·FILE knob 180,182,184,186 .......
Turn list screen 39,90 ...................
Turning the audio system on and off 189 .......................
Types of intuitive parking assist− sensors 290 ...................
TypeSeek button 197,202 ..............
Typical voice guidance prompts 91 .......
ISF/IS NAVI (U)
Finish
