Lexus IS250 2012 Navigation Manual

10
U0053LC
No.NameFunctionPage
1
North−up or
heading −up
symbolThis symbol indicates a map view with
north− up or heading −up. Touching this
symbol changes the map orientation.
43
2Scale indicatorThis figure indicates the map scale.42
3“MAP/VOICE”
buttonPush this button to repeat a guidance
voice, cancel the map scroll, start guid-
ance and display the current position.
33
4“DEST” buttonPush this button to display the “Destina-
tion” screen.12, 14, 16, 17, 20, 62
5“SETUP” buttonPush this button to display the “Setup”
screen.22, 110, 298,
302, 304, 307, 316, 355, 362
6Zoom out buttonTouch this button to reduce the map
scale.42
ISF/IS NAVI (U)
Quickguide—
— Overview buttons and guidance screen

11
No.NameFunctionPage
7“AA Off”
Touch this button to obtain a broader
view. Some of the buttons on the screen
are not displayed. They are displayed
again by touching “On"" ”.
313
8“Mark”
Touch this button to register the current
position or the cursor position as an ad-
dress book entry.
35
9“Route”Touch this button to change the route.94, 96
10“Show on Map”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
102, 170
11Zoom in buttonTouch this button to magnify the map
scale.42
12Foot print map
buttonTouch this button to display the foot print
map and the building information.42
13“INFO/PHONE”
buttonPush this button to display the “Informa-
tion” screen.23, 134, 149,
166, 383
14“DISP” buttonPush this button to display the “Display”
(quality control) screen.31
15
Screen
configuration
buttonTouch this button to change the screen
mode.39
16Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
93
17XM rindicatorThis mark is displayed when XM rinfor-
mation is received.166, 170
18
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
372
ISF/IS NAVI (U)

12U0054LC
U0058LC
U0064LC
U0004LC

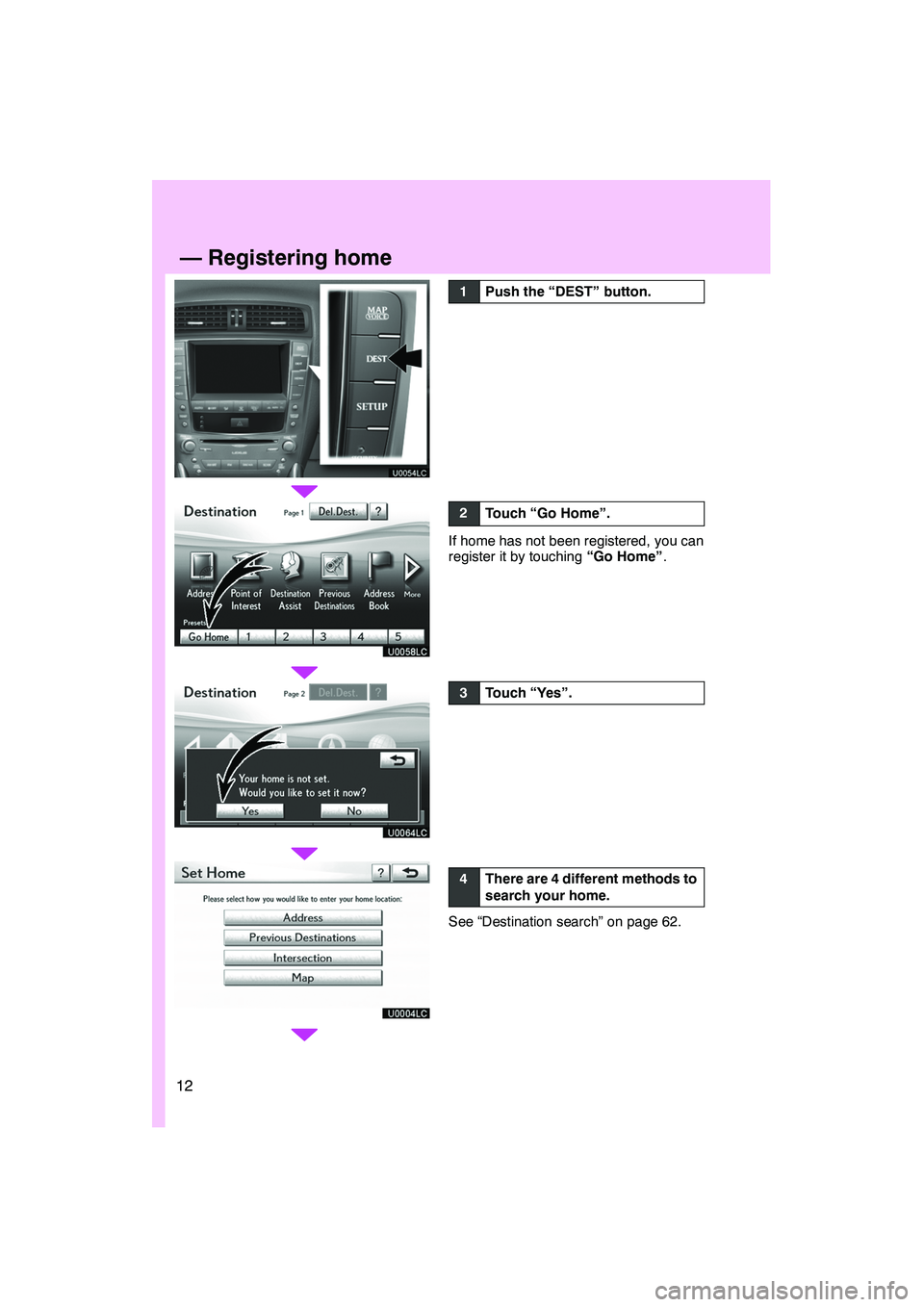

1Push the “DEST” button.
2Touch “Go Home”.
If home has not been registered, you can
register it by touching
“Go Home”.
3Touch “Yes”.
4There are 4 different methods to
search your home.
See “Destination search” on page 62.
ISF/IS NAVI (U)
—Registering home

13
U0005LC
U0006LC
5Touch “Enter”.
The “Edit Home” screen is displayed.
6Touch “OK”.
Registration of home is complete.
You can also register home by pushing the
“SETUP”button. (See “ (a) Registering
home” on page 111.)
You can change the name, location, phone
number and icon. (See “ (b) Editing home”
on page 112.)
ISF/IS NAVI (U)

14U0054LC
U0059LC
U0065LC
U0009LC
1Push the “DEST” button.
2Touch one of the preset destina-
tion buttons.
You can set a preset destination to any pre-
set destination button that has not yet been
set.
3Touch “Yes”.
4There are 4 different methods to
search preset destinations.
See “Destination search” on page 62.
ISF/IS NAVI (U)
—Registering preset destinations

15
U0010LC
U0011LC
5Touch “Enter”.
The “Edit Preset Destination” screen is dis-
played.
6Touch “OK”.
Registration of preset destinations is com-
plete.
You can also register preset destinations
by pushing the“SETUP”button.
(See “ (a) Registering preset destinations”
on page 114.)
You can change the name, location, phone
number and icon. (See “ (b) Editing preset
destinations” on page 115.)
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Preset destinations” on page
64.)
ISF/IS NAVI (U)

16U0054LC
U0060LC
U0013LC
U0014LC
1Push the “DEST” button.
2There are 10 different methods to
search destinations.
See “Destination search” on page 62.
3Touch “Go to ”.
The navigation system performs a search
for the route.
4Touch “OK”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 83.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
ISF/IS NAVI (U)
—Operation flow: guiding the route

17
U0054LC
U0058LC
U0016LCa
U0017LCa
1Push the “DEST” button.
2Touch “Go Home”.
“Go Home”
can be used if your home has
been registered. (To register “Home”, see
“ (a) Registering home” on page 111.)
3Touch “Go to ”.
The navigation system performs a search
for the route.
4Touch “OK”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 83.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
ISF/IS NAVI (U)
—Setting home as the destination

18
hMap i
Displaying mapsPage
Viewing the map screen10
Displaying the current vehicle position33
Viewing the current position vicinity map34
Changing the scale42
Changing the map orientation43
Displaying Point of Interest102
Displaying the estimated travel/arrival time to the destination93
Selecting the dual map screen39
Viewing foot print map42
Deleting map screen buttons313
Searching destinationPage
Searching the destination
(by home, Point of Interest, phone #, etc.)62
Changing the selected search area62
Operating the map location of the selected destination83
hRoute guidance i
Before starting route guidancePage
Setting the destination83
Viewing alternative routes83
Starting route guidance83
Before starting or during route guidancePage
Viewing the route83
Adding destinations94
Changing the route96
Displaying the estimated travel/arrival time to the destination93
ISF/IS NAVI (U)
Navigation system function index

19
During route guidancePage
Pausing route guidance101
Adjusting route guidance volume305
Deleting the destination82, 95
Displaying the entire route map97
hUseful functions i
Address bookPage
Registering your own address book entries11 6
Marking icons on the map11 9
InformationPage
Displaying vehicle maintenance362
Displaying the calendar149
Hands−free system (for cellular phone)Page
Initiating Bluetooth r134
Making a call on the Bluetooth rphone139
Receiving a call on the Bluetooth rphone146
Voice command systemPage
Operating the system with your voice44
ISF/IS NAVI (U)
