Lexus IS250 2012 Repair Manual

60
1-3. Adjustable components (seats, mirrors, steering wheel)
IS350/250_UUsing the wireless remote control
Turn the “ENGINE START STOP” switch OFF and close the
driver's door.
While the desired button (“1”, “2”
or “3”) press on the wireless
remote control until the signal
beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
To prevent unintended triggering of the alarm, open and close a door
once after a driving position has been recorded. (If a door is not opened
within 60 seconds after is pressed, the doors will be locked again and
the alarm will automatically be set.)
In case that the alarm is triggere d, immediately stop the alarm. (→P. 9 2 )
Using the door lock switch Turn the “ENGINE START STOP” switch OFF and close the
driver's door.
While pressing the desired button
(“1”, “2” or “3”), press the lock or
unlock side on the driver’s door
lock switch until the signal beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver's
door is opened.
STEP1
STEP2
STEP1
STEP2

61
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS350/250_U
■Canceling the linked door unlock operationTurn the “ENGINE START STOP” switch OFF and close the driver's door.
Using the wireless remote control: While pushing the “SET” button, press on the wireless remote control until the signal beeps.
Using the door lock switch: While pressing the “SET” button, press the
lock or unlock side on the door lock switch until the signal beeps.
■Operating the driving position memo ry after turning the “ENGINE START
STOP” switch OFF
Memorized positions (except for the steering wheel position) can be activated up
to 180 seconds after the driver's door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the “SET” button.
●Push button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
■If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
STEP1
STEP2

62
1-3. Adjustable components (seats, mirrors, steering wheel)
IS350/250_U

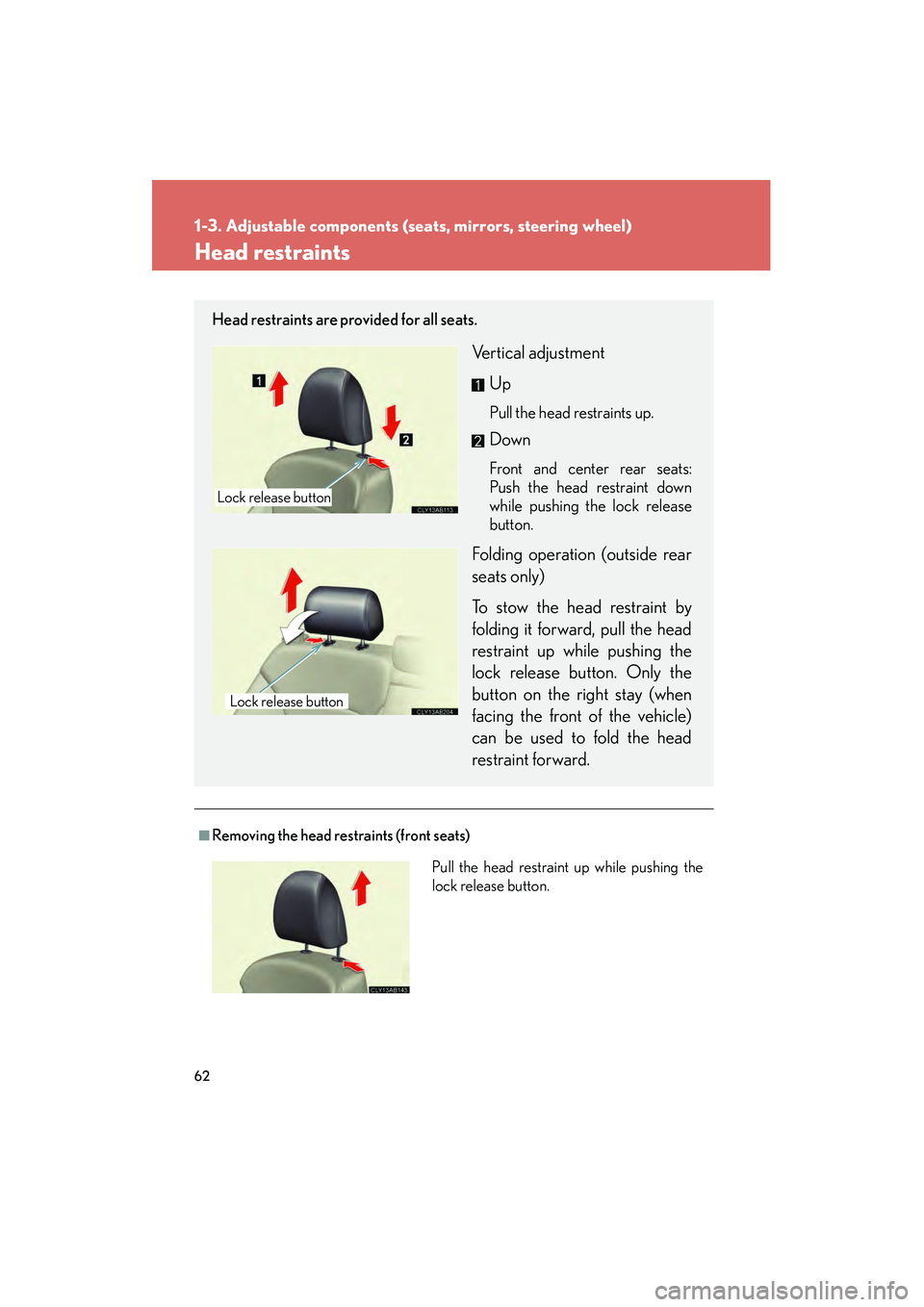

Head restraints
■Removing the head restraints (front seats)
Head restraints are provided for all seats.
Vertical adjustmentUp
Pull the head restraints up.
Down
Front and center rear seats:
Push the head restraint down
while pushing the lock release
button.
Folding operation (outside rear
seats only)
To stow the head restraint by
folding it forward, pull the head
restraint up while pushing the
lock release button. Only the
button on the right stay (when
facing the front of the vehicle)
can be used to fold the head
restraint forward.
Lock release button
Lock release button
Pull the head restraint up while pushing the
lock release button.

63
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS350/250_U

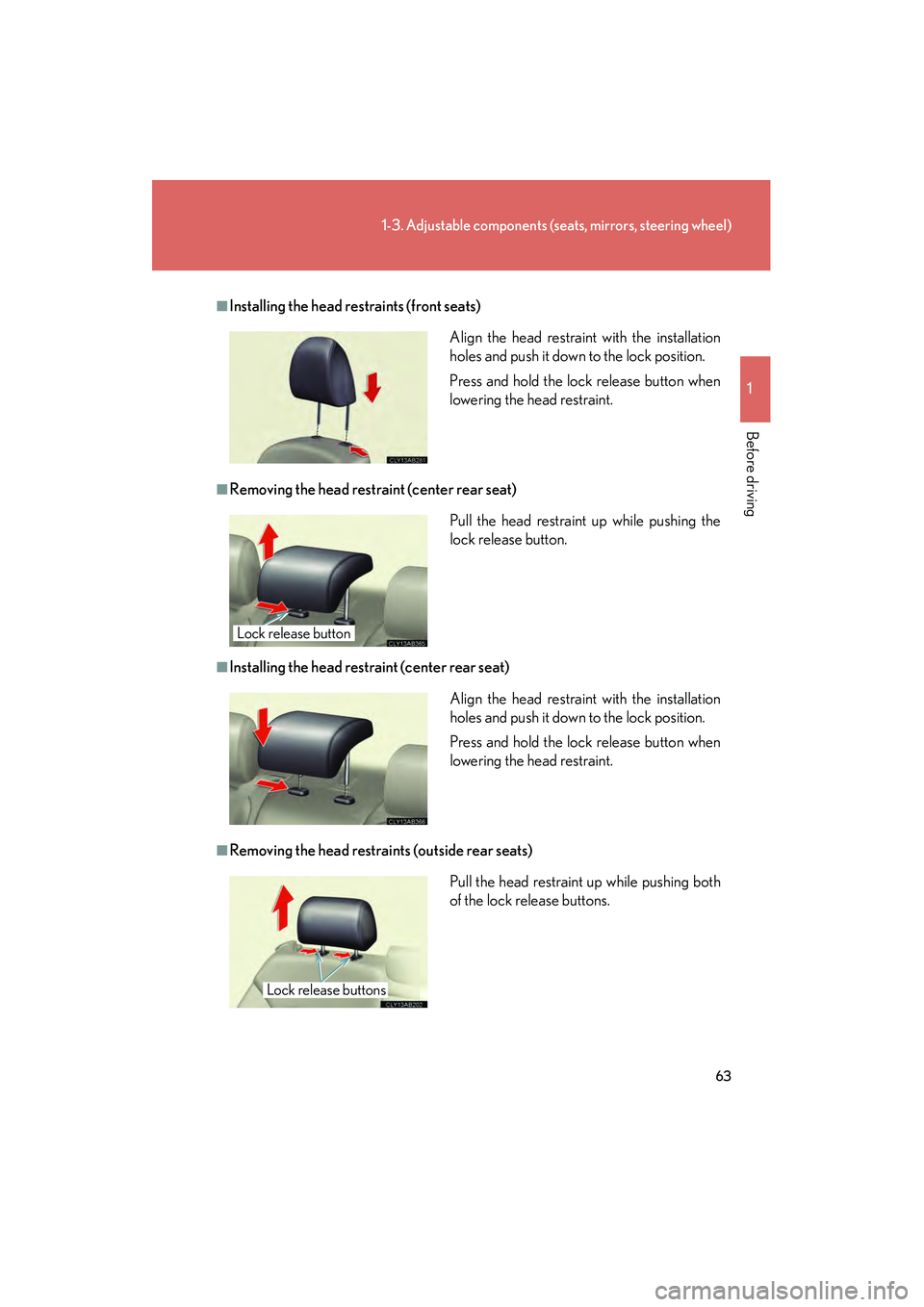

■Installing the head restraints (front seats)
■Removing the head restraint (center rear seat)
■Installing the head restraint (center rear seat)
■Removing the head restraints (outside rear seats)Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.
Pull the head restraint up while pushing the
lock release button.
Lock release button
Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.
Pull the head restraint up while pushing both
of the lock release buttons.
Lock release buttons

64
1-3. Adjustable components (seats, mirrors, steering wheel)
IS350/250_U
■Installing the head restraints (outside rear seats)
■Adjusting the height of the head restraints
■When using the rear seat head restraints
Center rear seat: Always raise the head restraint one level from the stowed position
when using.
Outside rear seats: Make sure the head restraints are not in the stowed/folded
position while in use.
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.
Align the head restraint with the installation
holes and push it down to the lock position.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

65
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
IS350/250_U

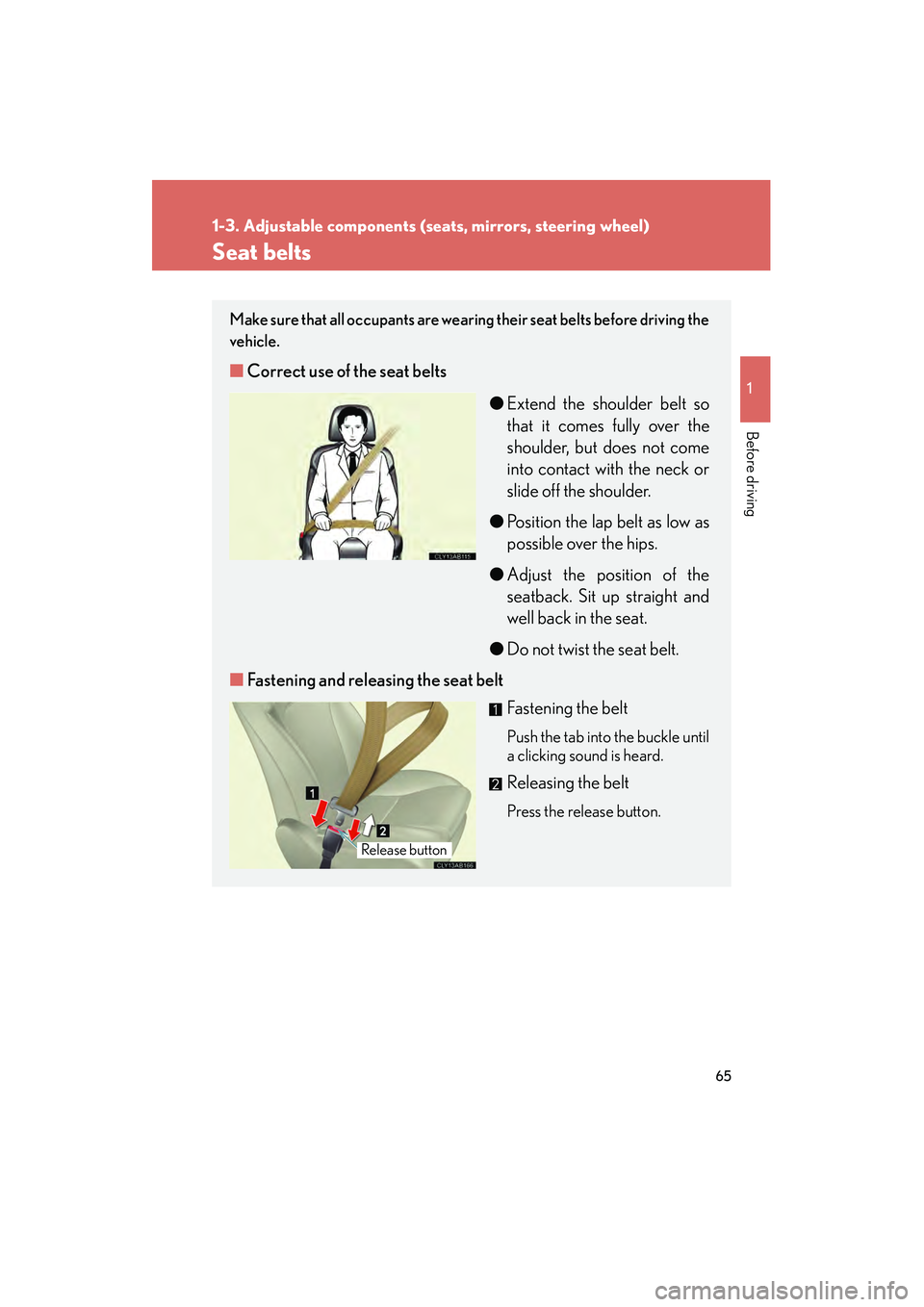

Seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the
seatback. Sit up straight and
well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle until
a clicking sound is heard.
Releasing the belt
Press the release button.
Release button

66
1-3. Adjustable components (seats, mirrors, steering wheel)
IS350/250_U

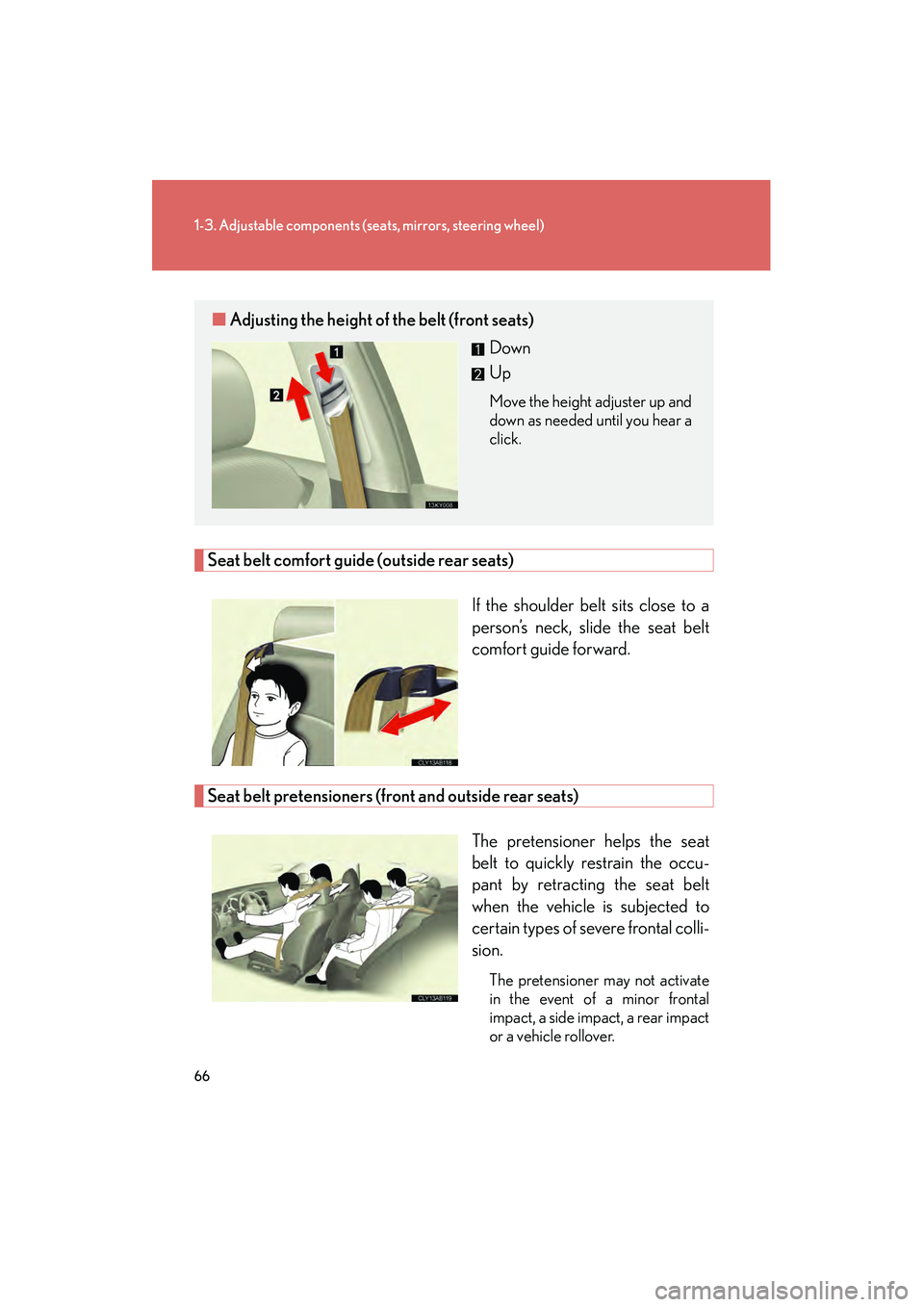

Seat belt comfort guide (outside rear seats)
If the shoulder belt sits close to a
person’s neck, slide the seat belt
comfort guide forward.
Seat belt pretensioners (front and outside rear seats)The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal colli-
sion.
The pretensioner may not activate
in the event of a minor frontal
impact, a side impact, a rear impact
or a vehicle rollover.
■Adjusting the height of the belt (front seats)
Down
Up
Move the height adjuster up and
down as needed until you hear a
click.

67
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS350/250_U

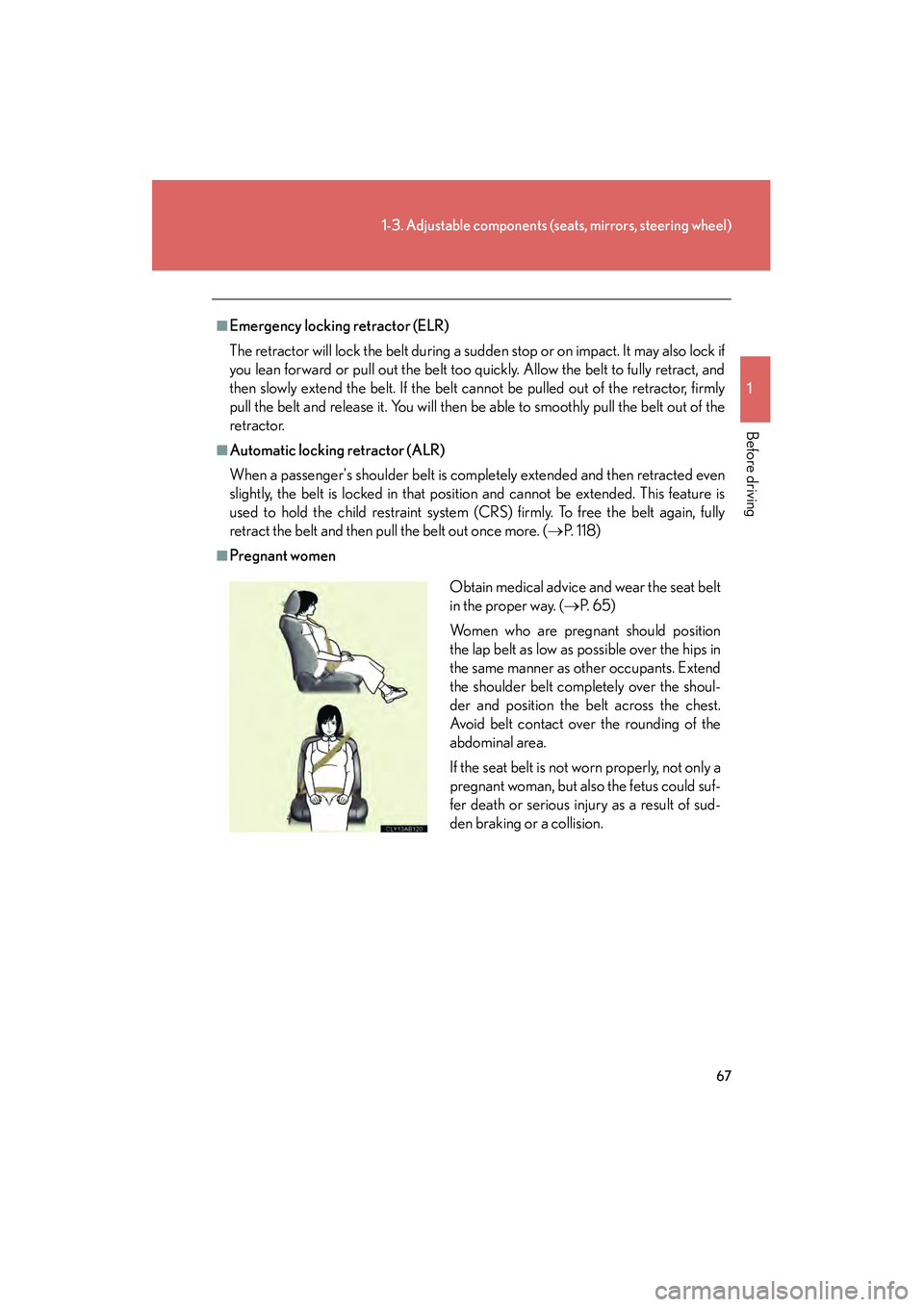

■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward or pull out the belt too quickly. Allow the belt to fully retract, and
then slowly extend the belt. If the belt cannot be pulled out of the retractor, firmly
pull the belt and release it. You will then be able to smoothly pull the belt out of the
retractor.
■Automatic locking retractor (ALR)
When a passenger's shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is
used to hold the child restraint system (CRS) firmly. To free the belt again, fully
retract the belt and then pull the belt out once more. ( →P. 118)
■Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. (→P. 6 5 )
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants. Extend
the shoulder belt completely over the shoul-
der and position the belt across the chest.
Avoid belt contact over the rounding of the
abdominal area.
If the seat belt is not worn properly, not only a
pregnant woman, but also the fetus could suf-
fer death or serious injury as a result of sud-
den braking or a collision.

68
1-3. Adjustable components (seats, mirrors, steering wheel)
IS350/250_U

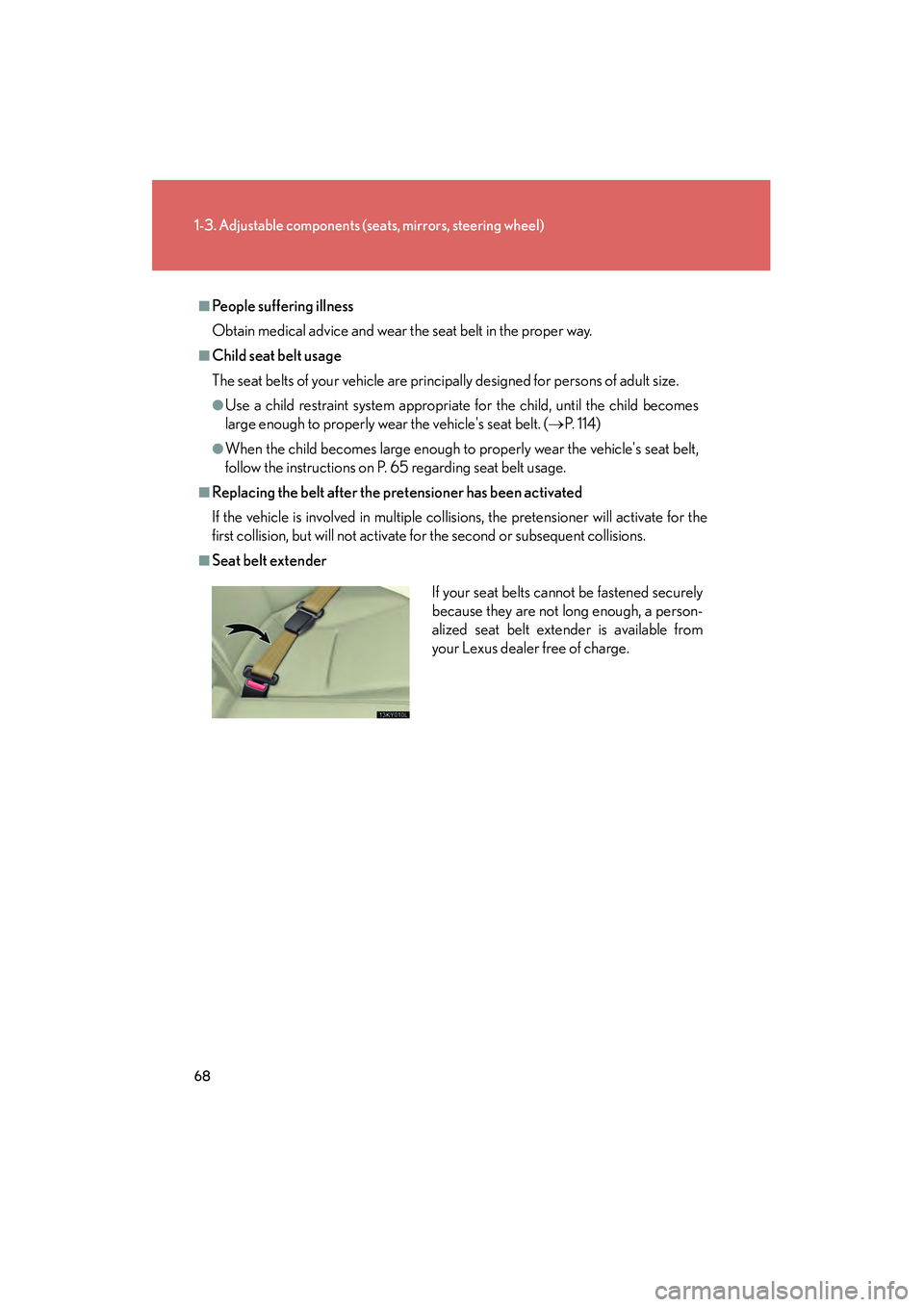

■People suffering illness
Obtain medical advice and wear the seat belt in the proper way.
■Child seat belt usage
The seat belts of your vehicle are principally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle's seat belt. ( →P. 114)
●When the child becomes large enough to properly wear the vehicle's seat belt,
follow the instructions on P. 65 regarding seat belt usage.
■Replacing the belt after the pr etensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.
■Seat belt extender
If your seat belts cannot be fastened securely
because they are not long enough, a person-
alized seat belt extender is available from
your Lexus dealer free of charge.

69
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS350/250_U

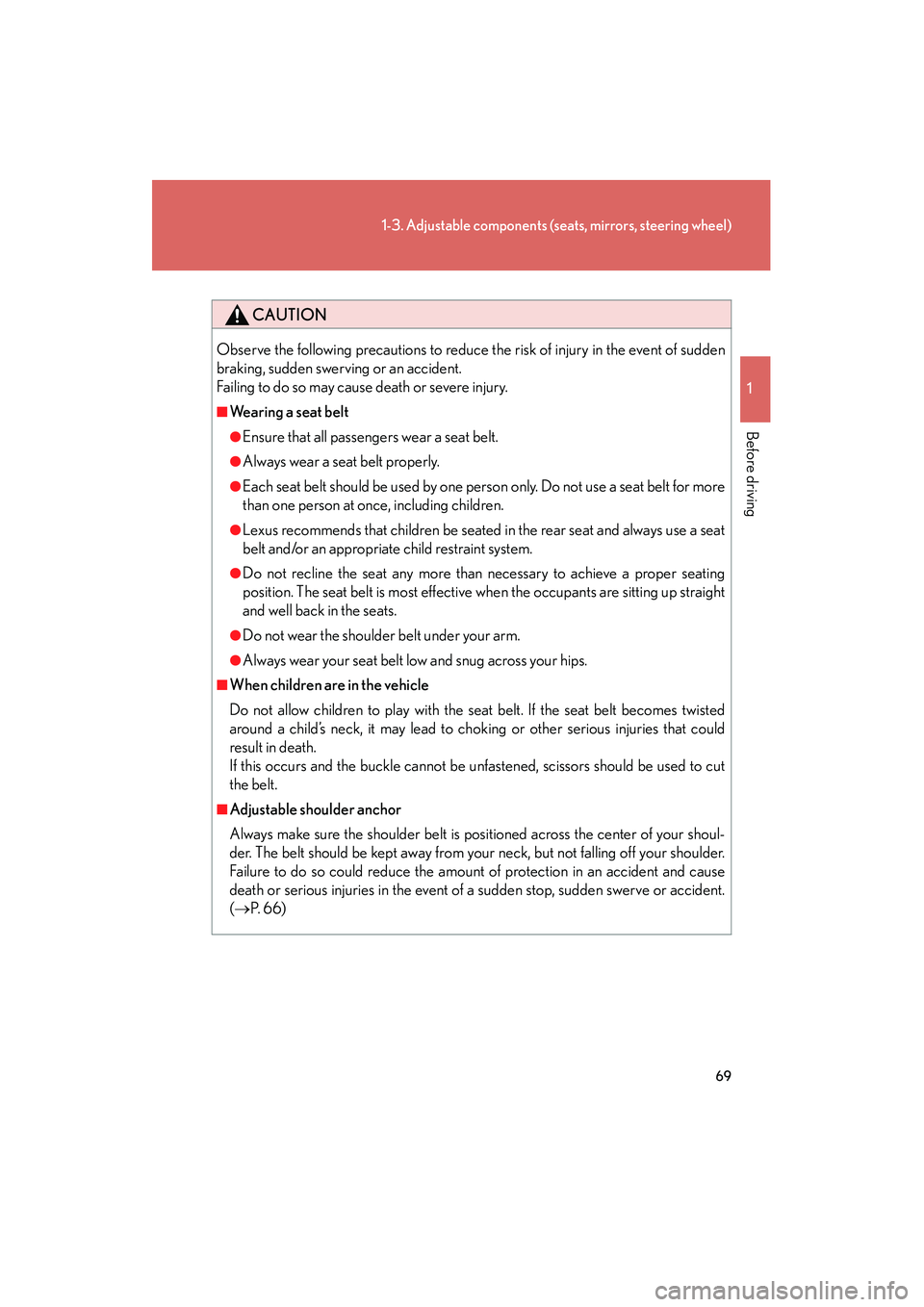

CAUTION
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failing to do so may cause death or severe injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat
belt and/or an appropriate child restraint system.
●Do not recline the seat any more than necessary to achieve a proper seating
position. The seat belt is most effective when the occupants are sitting up straight
and well back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or accident.
(→ P. 66)
