437
4-3. Do-it-yourself maintenance
4
Maintenance and care
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type CNormal fuse
Blown fuse
Contact your Lexus dealer.
STEP6

438
4-3. Do-it-yourself maintenance
Removing the front controller (engine compartment: type B fuse box)Lift the lid off while pushing the
tabs on either side.
Type DNormal fuse
Blown fuse
Contact your Lexus dealer.

439
4-3. Do-it-yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings■ Engine compartment (type A fuse box)
FuseAmpereCircuit
1PWR HTR25 A
2TURN-HAZ15 AEmergency flashers, turn signals
3IG2 MAIN20 AIG2, IGN, GAUGE
4RAD NO.230 AAudio
5D/C CUT20 ADOME, MPX-B
6RAD NO.130 A
7MPX-B10 A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, horn, power door lock system,
power windows, power seats, electric
tilt and telescopic steering column,
meter, smart access system with push-
button start, outside rear view mirrors,
air conditioning system, multiplex
communication system
8DOME10 AInterior lights, mete r, outer foot lights
9CDS10 AElectric cooling fans

440
4-3. Do-it-yourself maintenance
10E/G-B60 AFR CTRL-B, ETCS, ALT-S, A/F, STR
LO C K
11DIESEL GLW80 A
12ABS150 AVDIM
13RH J/B-B30 AFR DOOR RH, RR DOOR RH, AM2
14MAIN30 AH-LP R LWR, H-LP L LWR
15STARTER30 ASmart access system with push-button
start
16LH J/B-B30 AFR DOOR LH, RR DOOR LH,
SECURITY
17P/I-B60 AEFI, F/PMP, INJ
18EPS80 APower steering
19ALT150 A
LH J/B-AM, E/G-AM, GLW PLG2,
H E AT E R , FA N 1 , FA N 2 , D E F O G,
ABS2, RH J/B-AM, GLW PLG1,
LH J/B-B, RH J/B-B
20GLW PLG150 APTC heater
21RH J/B-AM80 A
OBD, STOP SW, TI&TE, FR P/SEAT
RH, RAD NO.3, ECU-IG RH,
RH-IG, FR S/HTR RH, ACC, CIG,
PWR OUTLET
22ABS230 AVDIM
23DEFOG50 ARear window defogger
24FA N 240 AElectric cooling fans
25FA N 140 AAir conditioning system
26HEATER50 AAir conditioning system
27GLW PLG250 APTC heater
FuseAmpereCircuit

441
4-3. Do-it-yourself maintenance
4
Maintenance and care

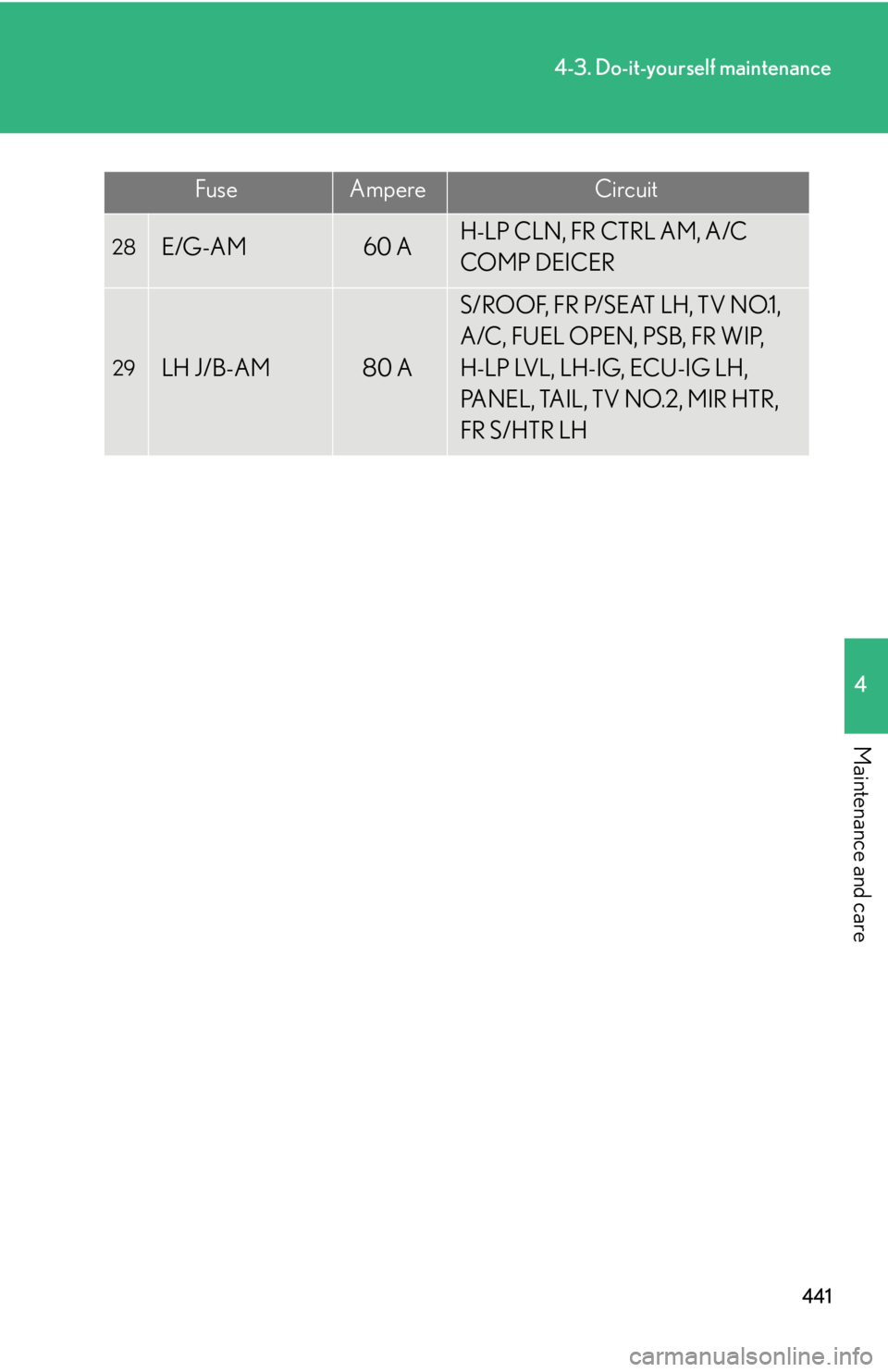

28E/G-AM60 AH-LP CLN, FR CTRL AM, A/C
COMP DEICER
29LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.1,
A/C, FUEL OPEN, PSB, FR WIP,
H-LP LVL, LH-IG, ECU-IG LH,
PANEL, TAIL, TV NO.2, MIR HTR,
FR S/HTR LH
FuseAmpereCircuit

442
4-3. Do-it-yourself maintenance
■Engine compartment (type B fuse box)
FuseAmpereCircuit
1SPARE30 ASpare fuse
2SPARE25 ASpare fuse
3SPARE10 ASpare fuse
4FR CTRL-B25 AH-LP UPR, HORN
5A/F15 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
6ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
7ALT-S7. 5 ACharging system
8TEL10 ATEL
9STR LOCK25 ASteering lock
10H-LP CLN30 AHeadlight cleaner
11A/C COMP7. 5 AAir conditioning system
12DEICER25 AWindshield wiper de-icer

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
13FR CTRL-AM30 AFR TAIL, FR FOG, WASHER
14IG210 AIgnition system
15EFI NO.210 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
16H-LP R LWR15 AHeadlight low beam (right)
17H-LP L LWR15 AHeadlight low beam (left)
18F/ P M P25 AFuel system
19EFI25 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, EFI NO.2
20INJ20 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
21H-LP UPR15 AHeadlight high beams
22HORN10 AHorns
23WA S H E R20 AWindshield washer
24FR TAIL10 AParking lights
25FR FOG15 AFront fog lights
FuseAmpereCircuit

444
4-3. Do-it-yourself maintenance
■Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO.110 ADisplay
5FUEL OPEN10 AFuel filler door opener
6TV NO.27. 5 A
7PSB30 A
8S/ROOF25 AMoon roof
9TA I L10 ATail lights, license plate lights, parking
lights
10PA N E L7. 5 ASwitch illumination, air conditioning
system, display, audio
11RR FOG7. 5 A
12ECU-IG LH10 A
Cruise control, air conditioning sys-
tem, power steering, rain sensor, anti-
glare inside rear view mirror, shift lock
system, moon roof, tire inflation pres-
sure warning system, VSC
13FR S/HTR LH15 ASeat heaters and ventilators

445
4-3. Do-it-yourself maintenance
4
Maintenance and care
14RR DOOR LH20 APo w e r w i n d o w s
15FR DOOR LH20 APower windows, outside rear view
mirror
16SECURITY7. 5 ASmart access system with push-button
start
17H-LP LVL7. 5 AAutomatic headlight leveling system
18LH-IG10 A
Charging system, headlight cleaner,
rear window defogger, electric cool-
ing fans, emergency flashers, turn sig-
nal lights, back-up lights, stop lights,
mirror heaters, rear sun shade, seat
belts, intuitive parking assist, cruise
control, air conditioning system, PTC
heater, manual transmission, wind-
shield wiper de-icer
19FR WIP30 AWindshield wipers
FuseAmpereCircuit

446
4-3. Do-it-yourself maintenance
■Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 A
Stop lights, multipor t fuel injection sys-
tem/sequential multip ort fuel injection
system, VDIM, shift lock system, high
mounted stop light
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO.310 AAudio
7GAUGE7. 5 AMeter
8IGN10 A
SRS airbag system, steering lock sys-
tem, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, stop lights
