Lexus IS250 2013 Navigation Manual / LEXUS 2013 IS250,IS350 OWNERS MANUAL (OM53B64U)

541
6-1. Specifications
6
Vehicle specifications
*: Table 1  Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Tr e a d r i bA tread section running circumferentially around a
tire
Tr e a d s e p a r a t i o nPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the degrees of
wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in
a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in
fourth seat
Tire related termMeaning

542
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart access
system with
push-button
start
(
P. 3 3 )
Operation signal
(Emergency flashers)OnOff
Operation signal
(Buzzer)OnOff
Wireless
remote con-
trol
(
P. 4 5 )
Unlocking operation
Driver's door
unlocked in one
step, all doors
unlocked in two
steps
All doors
unlocked in one
step
Automatic door lock
function to be activated if
door is not opened after
being unlocked
OnOff
Your vehicle includes a variety of elec tronic features that can be personal-
ized to your preferences. Programming these preferences requires spe-
cialized equipment and may be performed by an authorized Lexus
dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.

543
6-2. Customization
6
Vehicle specifications
Wireless
remote con-
trol
(
P. 4 5 )
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers)OnOff
Operation signal
(Buzzer) OnOff
Door lock buzzerOnOff
Tr u n k u n l o c k i n g f u n c t i o nOnOff
Trunk unlocking operationPush and holdPush twice
One short push
Panic functionOnOff
Door lock
(
P. 4 8 )
Unlocking using a key
Driver's door
unlocked in one
step, all doors
unlocked in two
steps
All doors
unlocked in one
step
Speed-detecting auto-
matic door lock functionOffOn
Opening driver's door
unlocks all doorsOffOn
Shifting gears to P
unlocks all doorsOnOff
Shifting gears to a posi-
tion other than P locks all
doors
OnOff
ItemFunctionDefault settingCustomizedsetting

544
6-2. Customization
Steering
wheel
(
P. 74 )
Auto tilt-away functionOnOff
Pow e r w i n -
dows
(
P. 8 1 )
Linked door key opera-
tionOpen and close
Off
Open only
Close only
Wireless remote control
linked operationOffOpen only
Moon roof
(
P. 8 4 )
Linked door key opera-
tionOpen and close
Off
Open only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationOffOpen only
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only
Automatic
light control
system
(
P. 1 6 7 )
Light sensor sensitivityLevel 3Level 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
P. 1 6 9 )
Daytime running light sys-
tem (U.S.A. only)OnOff
ItemFunctionDefault settingCustomizedsetting

545
6-2. Customization
6
Vehicle specifications
Windshield
wipers and
washer
(
P. 1 7 3 )
Switching operation when
the vehicle is stationaryOnOff
Drip prevention functionOnOff
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Intuitive park-
ing assist
(
P. 1 8 5 )
Back sensor operation
display and buzzerOnOff
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.9 ft. (150 cm)2.0 ft. (60 cm)
Illumination
(
P. 3 1 9 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedOnOff
Operation after the
“ENGINE START STOP”
switch is turned OFF
OnOff
Front footwell lightsOnOff
Shift lever lightOnOff
Outer foot lightOnOff
Seat belt
reminder
(
P. 4 6 5 )
Vehicle speed linked seat
belt reminder buzzerOnOff
ItemFunctionDefault settingCustomizedsetting

546
6-2. Customization
Multi-information display (P. 162)
CountryAvailable languages
CanadaEnglish and French

547
6
Vehicle specifications

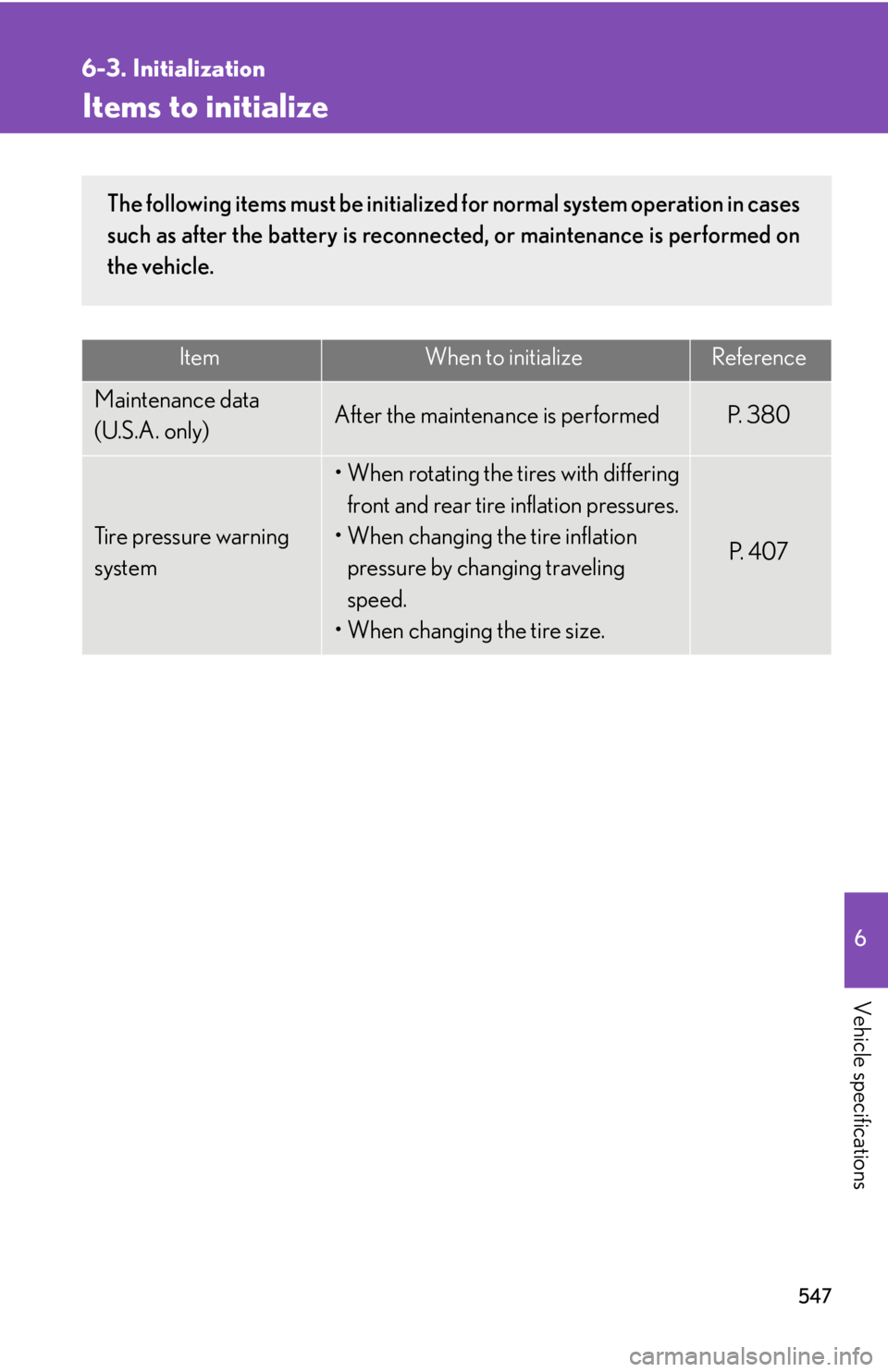

6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Maintenance data
(U.S.A. only)After the maintenance is performedP. 3 8 0
Tire pressure warning
system
• When rotating the tires with differing front and rear tire inflation pressures.
• When changing the tire inflation pressure by changing traveling
speed.
• When changing the tire size.
P. 4 0 7
The following items must be initialized for normal system operation in cases
such as after the battery is reconnected, or maintenance is performed on
the vehicle.

548
6-3. Initialization

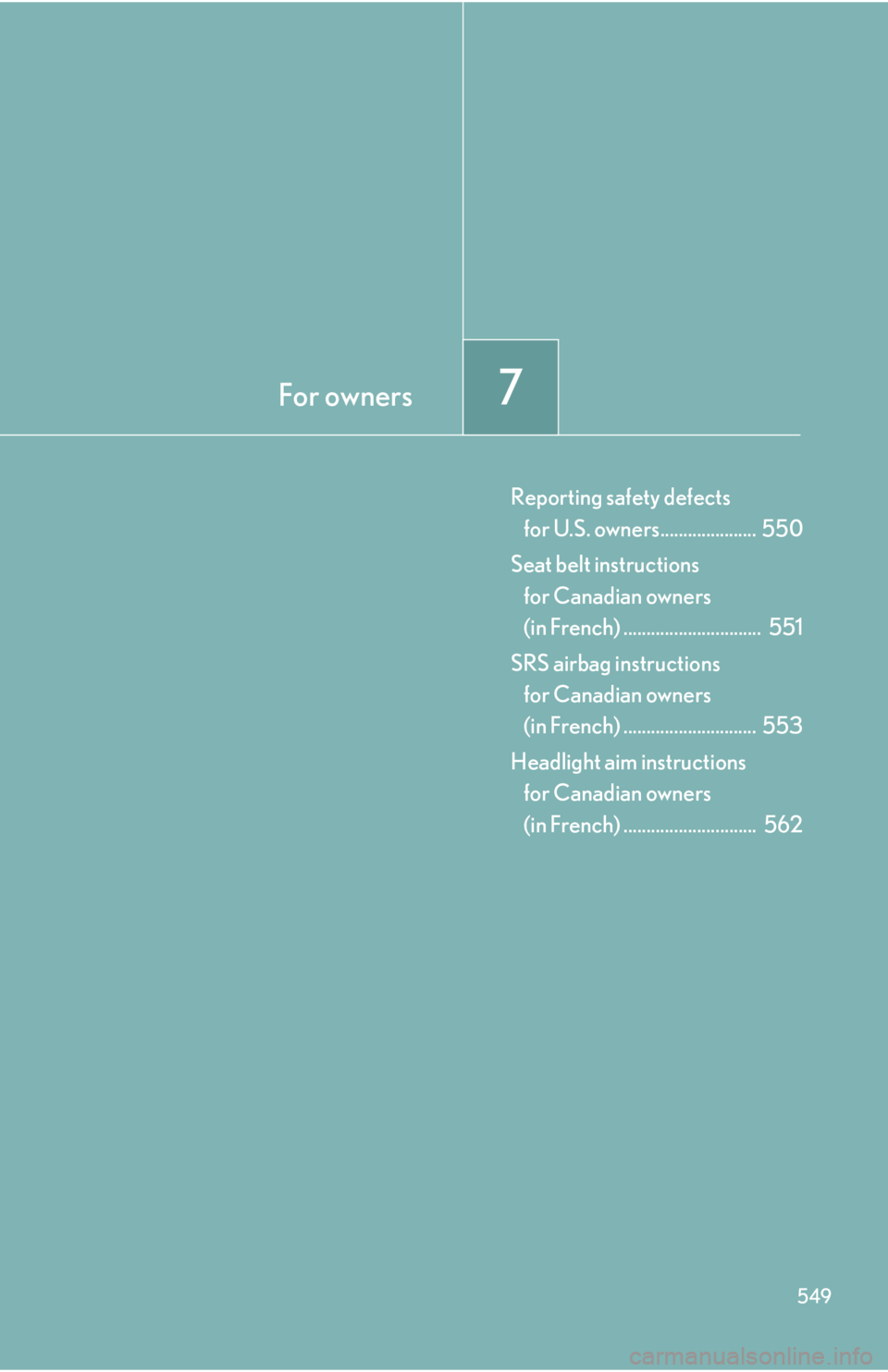

For owners7
549
Reporting safety defects for U.S. owners..................... 550
Seat belt instructions for Canadian owners
(in French) .............................. 551
SRS airbag instructions for Canadian owners
(in French) ............................. 553
Headlight aim instructions for Canadian owners
(in French) ............................. 562

550

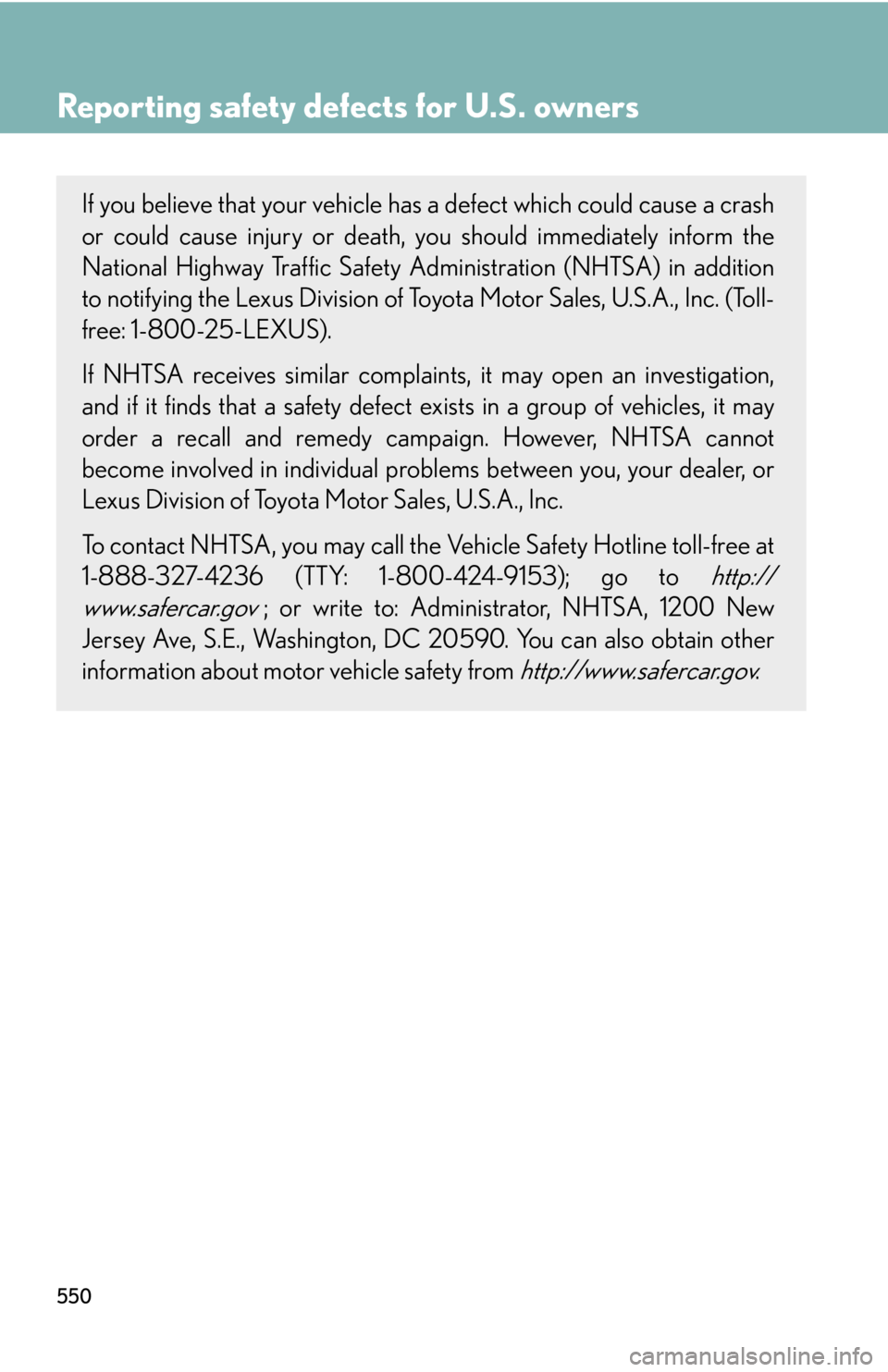

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash
or could cause injury or death, you should immediately inform the
National Highway Traffic Safety Administration (NHTSA) in addition
to notifying the Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll-
free: 1-800-25-LEXUS).
If NHTSA receives similar complain ts, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy camp aign. However, NHTSA cannot
become involved in individual problems between you, your dealer, or
Lexus Division of Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to
http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20 590. You can also obtain other
information about motor vehicle safety from
http://www.safercar.gov.
