Lexus IS250 2013 Specifications / LEXUS 2013 IS250,IS350 OWNERS MANUAL (OM53B64U)

451
4-3. Do-it-yourself maintenance
4
Maintenance and care
■When replacing the front left headlight and parking light (vehicles with halogen
headlights) bulbs
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more inform ation in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up in side the headlight.
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED front side marker lights, side turn signal lights, tail lights, stop/tail lights, high
mounted stoplight, rear side marker lights, license plate lights and parking lights
(vehicles with discharge headlights)
The front side marker lights, side turn signal lights, tail lights, stop/tail lights, high
mounted stoplight, rear side marker light s, license plate lights and parking lights
(vehicles with discharge headlights) consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Lexus dealer to have the light replaced.
Remove the securing bolt and move the
washer fluid filler opening to allow easy
access to the light bulbs.
After replacing the bulbs, make sure to
secure the washer fluid filler opening with the
bolt.

452
4-3. Do-it-yourself maintenance
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water en tering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
■Discharge headlights (if equipped)
●Contact your Lexus dealer be fore replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V wi ll be discharged and could result in
serious injury or death by electric shock.
●Do not attempt to take apart or repair the low beam headligh t bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

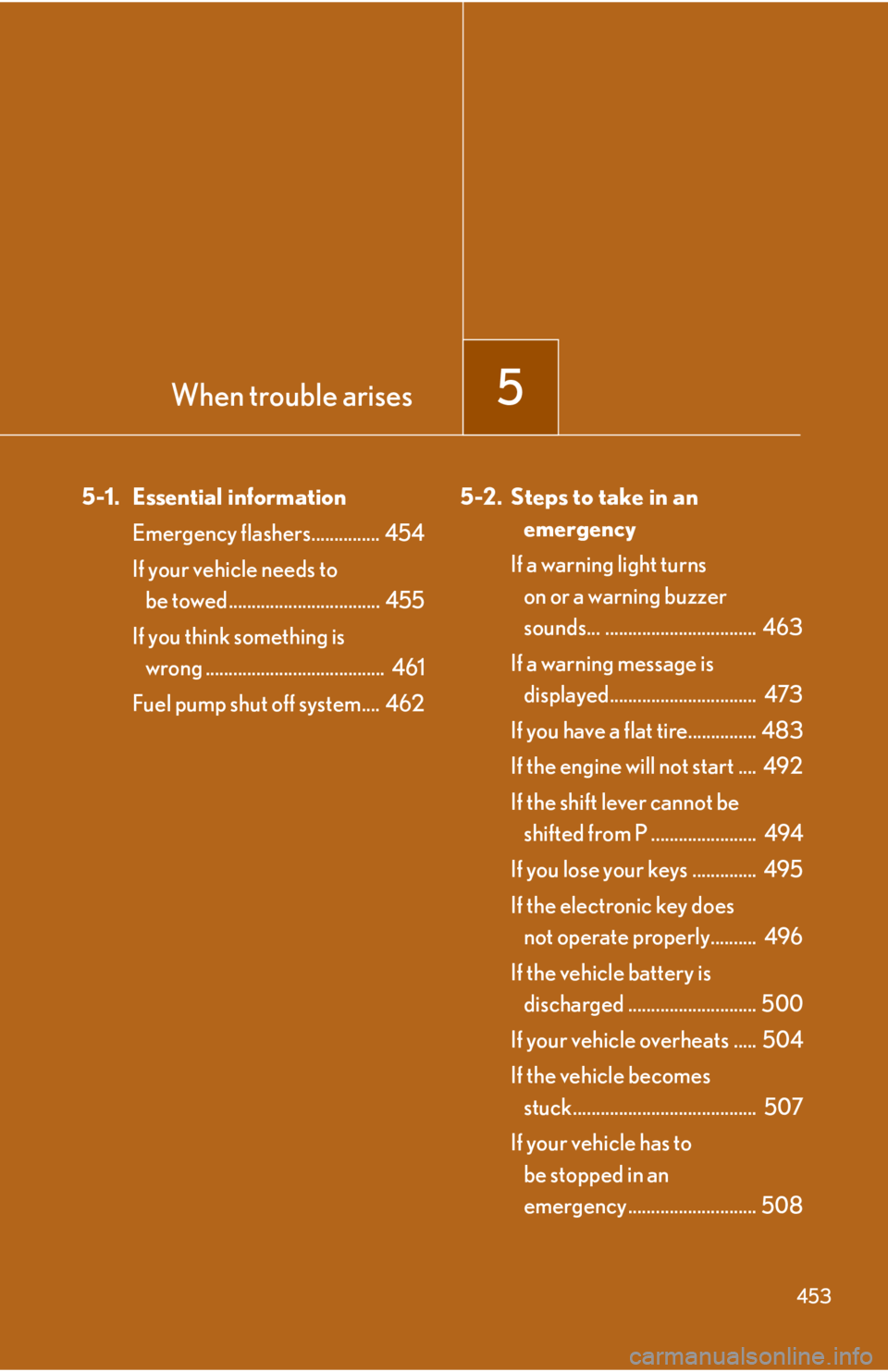

When trouble arises5
453
5-1. Essential informationEmergency flashers............... 454
If your vehicle needs to be towed................................. 455
If you think something is wrong ....................................... 461
Fuel pump shut off system.... 462 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ................................. 463
If a warning message is displayed................................ 473
If you have a flat tire............... 483
If the engine will not start .... 492
If the shift lever cannot be shifted from P ....................... 494
If you lose your keys .............. 495
If the electronic key does not operate properly.......... 496
If the vehicle battery is discharged ............................ 500
If your vehicle overheats ..... 504
If the vehicle becomes stuck........................................ 507
If your vehicle has to be stopped in an
emergency ............................ 508

454
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the engine is
not running.
Use the emergency flashers if the vehicle malfunctions or is involved in an
accident.
Press the switch to flash all the
turn signal lights. To turn them
off, press the switch once again.

5
When trouble arises
455
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet(s). This should only be attempted on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to s teer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
Towing eyelets
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towi ng, and abide by all state/provincial
and local laws.
If towing from the rear, the vehicle’s front wheels and axles must be in good
condition. ( P. 4 5 9 )
If they are damaged, use a to wing dolly or flat bed truck.

456
5-1. Essential information
■Emergency towing procedureRelease the parking brake.
Shift the shift lever to N.
Put the “ENGINE START STOP” switch in ACCESSORY mode or IGNI-
TION ON mode.
CAUTION
■Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelets and the cables or chains. Always be cautious of the
surroundings and other vehicles while towing.
●If the engine is not running, the power assi st for the brakes and steering will not
function, making steering and braking more difficult.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle from the front with the rear wheels on the ground.
This may cause serious dama ge to the transmission.
STEP1
STEP2
STEP3

5
When trouble arises
457
5-1. Essential information
Installing towing eyeletsRemove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut wrench.
STEP1
STEP2
STEP3
■Location of the emergency towing eyelet
P. 4 8 3

458
5-1. Essential information
Towing with a sling-type truck
CAUTION
■Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing. This may
lead to accidents that cause serious injury or even death.
NOTICE
■To prevent body damage
Do not tow with a sling type truck, either from the front or rear.

5
When trouble arises
459
5-1. Essential information
Towing with a wheel lift-type truckFrom the front Use a towing dolly under the rear
wheels.
From the rear (2WD models) Switch to ACCESSORY mode so
that the steering wheel is
unlocked.
From the rear (AWD models) Use a towing dolly under the front
wheels.

460
5-1. Essential information
Using a flat bed truckIf your Lexus is transported by a
flat bed truck, it should be tied
down at the locations shown in the
illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45 .
Do not overly tighten the tie downs
or the vehicle may be damaged.
NOTICE
■To prevent causing serious damage to the transmission and transfer (AWD mod-
els) when towing using a wheel-lift type truck
2WD models: Never tow this vehicle from the front with the rear wheels on the
ground.
AWD models: Never tow this vehicle with any of the wheels in contact with the
ground.
■To prevent damaging the vehicle
●Do not tow the vehicle from the rear with the “ENGINE START STOP” switch
OFF.
The steering lock mechanism is not st rong enough to hold the front wheels
straight.
●When raising the vehicle from the rear, ensure adequate ground clearance for
towing at the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed from the rear.
