437
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO.110 ADisplay
5FUEL OPEN10 AFuel filler door opener
6TV NO.27. 5 A
7PSB30 A
8S/ROOF25 AMoon roof
9TA I L10 ATail lights, license plate lights, parking
lights
10PA N E L7. 5 ASwitch illumination, air conditioning
system, display, audio
11RR FOG7. 5 A
12ECU-IG LH10 A
Cruise control, air conditioning sys-
tem, power steering, rain sensor, anti-
glare inside rear view mirror, shift lock
system, moon roof, tire inflation pres-
sure warning system, VSC
13FR S/HTR LH15 ASeat heaters and ventilators

468
5-2. Steps to take in an emergency
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The lamp will go off after taking several driving trips.
If the lamp does not go off even after several trips, contact your Lexus dealer as
soon as possible.
■Electric power steering warning light
When the battery is low or when the voltage drops temporarily, the electric power
steering warning light may come on.
■Front passenger detection sensor and pass enger seat belt reminder and warning
buzzer
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash and the warning buzzer to sound,
even if a passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pressing the
satellite switch does not turn off the tire pressure warning light.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such as natural air
leaks or tire inflation pressure changes caus ed by temperature. In this case, adjust-
ing the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
The compact spare tire is not equipped wi th the tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off even
though the flat tire is replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the proper tire inflation pressure. The tire pressure warning
light will turn off after a few minutes.

474
5-2. Steps to take in an emergency
Have the vehicle inspected by your Lexus dealer immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failing to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
(If equipped)
Indicates a malfunction in the AWD system.
(Flashing)
Indicates a malfunction in the steering lock system.
(If equipped)
Indicates intuitive parking assist malfunction.
The malfunctioning assist-sensor is shown flashing on
the display.

5
When trouble arises
479
5-2. Steps to take in an emergency
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supple-ment” for the maintenance interval applicable to your vehicle.
(If equipped)
Indicates that intuitive
parking assist is dirty or
covered with ice.
Clean the sensor.
Wa r n i n g m e s s a g eDetailsCorrection procedure

544
6-2. Customization
Steering
wheel
(
P. 74 )
Auto tilt-away functionOnOff
Pow e r w i n -
dows
(
P. 8 1 )
Linked door key opera-
tionOpen and close
Off
Open only
Close only
Wireless remote control
linked operationOffOpen only
Moon roof
(
P. 8 4 )
Linked door key opera-
tionOpen and close
Off
Open only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationOffOpen only
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only
Automatic
light control
system
(
P. 1 6 7 )
Light sensor sensitivityLevel 3Level 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
P. 1 6 9 )
Daytime running light sys-
tem (U.S.A. only)OnOff
ItemFunctionDefault settingCustomizedsetting

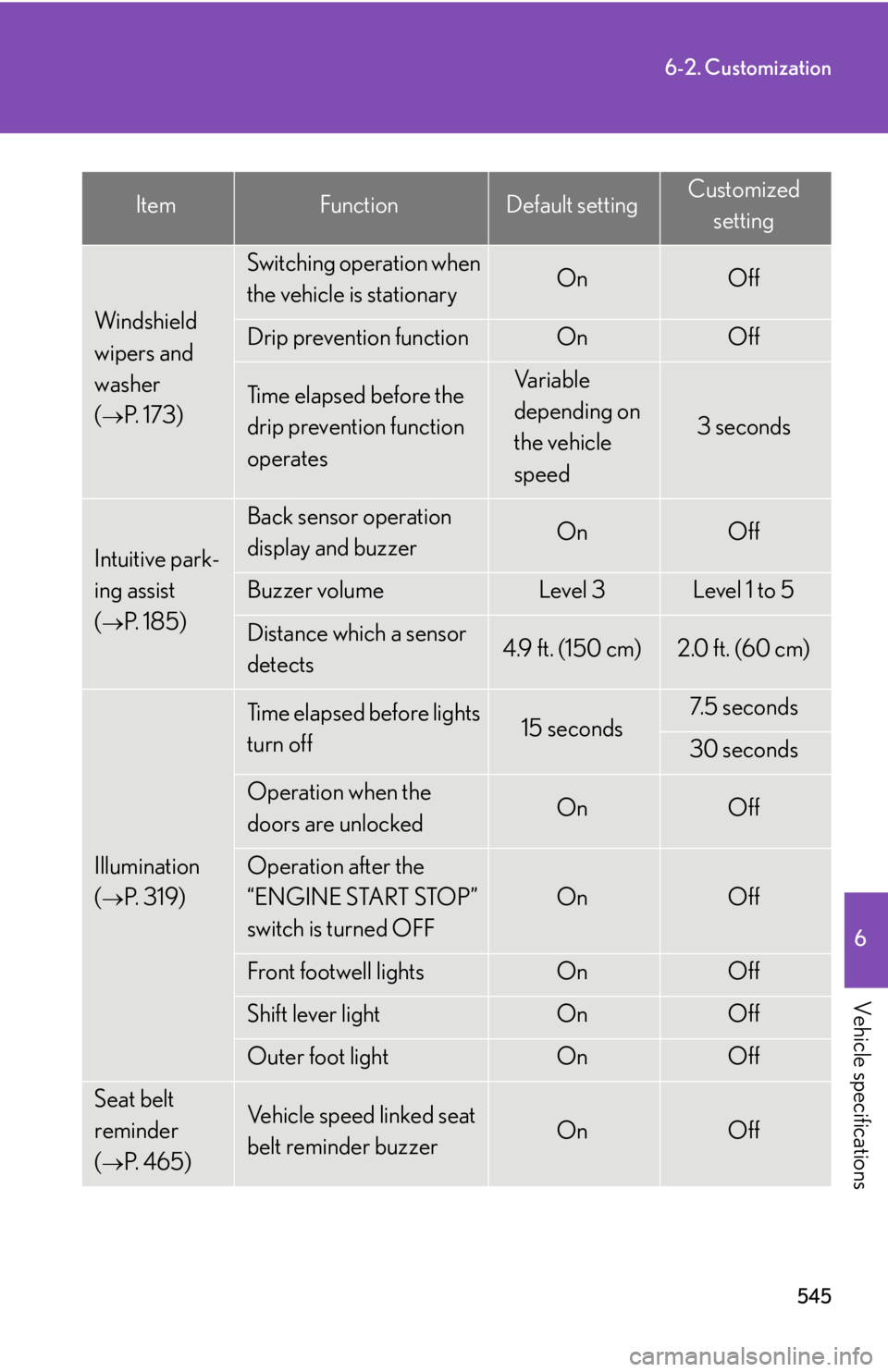

545
6-2. Customization
6
Vehicle specifications
Windshield
wipers and
washer
(
P. 1 7 3 )
Switching operation when
the vehicle is stationaryOnOff
Drip prevention functionOnOff
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Intuitive park-
ing assist
(
P. 1 8 5 )
Back sensor operation
display and buzzerOnOff
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.9 ft. (150 cm)2.0 ft. (60 cm)
Illumination
(
P. 3 1 9 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedOnOff
Operation after the
“ENGINE START STOP”
switch is turned OFF
OnOff
Front footwell lightsOnOff
Shift lever lightOnOff
Outer foot lightOnOff
Seat belt
reminder
(
P. 4 6 5 )
Vehicle speed linked seat
belt reminder buzzerOnOff
ItemFunctionDefault settingCustomizedsetting

570
Alphabetical index
Child safetyAirbag precautions............................ 105
Battery precautions ............. 404, 502
Child restraint system......................... 115
Child-protectors ................................... 49
How your child should wear the seat belt .......................................... 69
Installing child restraints .................... 119
Moon roof precautions ..................... 87
Power window lock switch................81
Power window precautions ............ 83
Removed electronic key battery precautions ........................427
Seat belt comfort guide ..................... 67
Seat belt extender precautions ....... 71
Seat belt precautions .......................... 70
Seat heater precautions ..... 340, 342
Trunk precautions ................................ 55 Cigarette lighter ................................... 337
Cleaning
Exterior .................................................... 372
Interior......................................................376
Seat belts ................................................ 377
Clock ......................................................... 332
Coat hooks.............................................. 347
Compass .................................................. 359
Condenser ..............................................400
Console box ........................................... 325
Cooling system Engine overheating .......................... 504
Cornering assist sensors .................... 185
Cruise control........................................... 181
Cup holder .............................................. 327
Curtain shield airbags ........................... 99
Customizable features ....................... 542

576
Alphabetical index
Noise from under vehicle...................... 19
Odometer................................................. 153
OilEngine oil ...............................................395
Opener Fuel filler door.........................................88
Hood....................................................... 388
Trunk ........................................................... 53
Outer foot lights Outer foot lights ...................................319
Wattage.................................................. 525
Outside rear view mirrors Adjusting and folding ......................... 78
Mirror position memory ................... 59
Outside temperature display............ 163
Overhead console ............................... 326
Overhead courtesy lights Overhead courtesy lights ...............319
Wattage.................................................. 525
Overheating, Engine.......................... 504 Parking assist sensors*........................ 185
Parking brake............................................ 151
Parking lights
Replacing light bulbs ........................444
Switch ........................................................ 167
Wattage ................................................. 525
Personal lights Switch ........................................................ 321
Power outlet ........................................... 338
Power windows ..........................................81
Radiator ....................................................400
Radio* ....................................................... 223
RDS* .......................................................... 225
Rear sunshade ....................................... 344
Rear turn signal lights Replacing light bulbs ........................444
Wattage ................................................. 525
Rear view mirror Compass ............................................... 359
Rear window defogger* ..................... 218
Replacing Electronic key battery ......................426
Fuses ........................................................ 428
Light bulbs .............................................444
Reporting safety defects for U.S. owners..........................................550
Reset the maintenance data ............380N
O
P
R

579
Alphabetical index
TachometerTacho indicator .................................... 153
Tachometer ............................................ 153
Tail lights Switch ........................................................ 167
Talk switch*............................................. 293
Telephone switch* ................................292
Theft deterrent system Alarm .......................................................... 93
Engine immobilizer system ............... 91
Theft prevention labels ..........................96
Tire inflation pressure...........................418
Tire information Glossary ................................................ 535
Size ........................................................... 532
Tire identification number ............. 532
Uniform tire quality grading......... 533
Tires Chains ....................................................... 201
Checking ............................................... 406
If you have a flat tire.......................... 483
Inflation pressure .................................418
Inflation pressure sensor................408
Information............................................530
Replacing............................................... 483
Rotating tires ........................................ 406
Size ........................................................... 520
Snow tires................................................ 201 Tools ...........................................................483
Total load capacity .............................. 200
Towing
Dinghy towing .................................... 206
Emergency towing........................... 455
Trailer towing ...................................... 205
TRAC............................................................ 191
Traction control ........................................ 191
Transmission shift switches .................147
Trip meter ................................................. 153
Trunk Extending trunk space ....................346
Opener ...................................................... 53
Trunk light Trunk light ................................................. 54
Wattage ..................................................525
Turn signal lights Replacing light bulbs ........................ 444
Switch........................................................ 150
Wattage ..................................................525T
*: For vehicles with a navigation system, refe r to the “Navigation System Owner’s Manual”.
