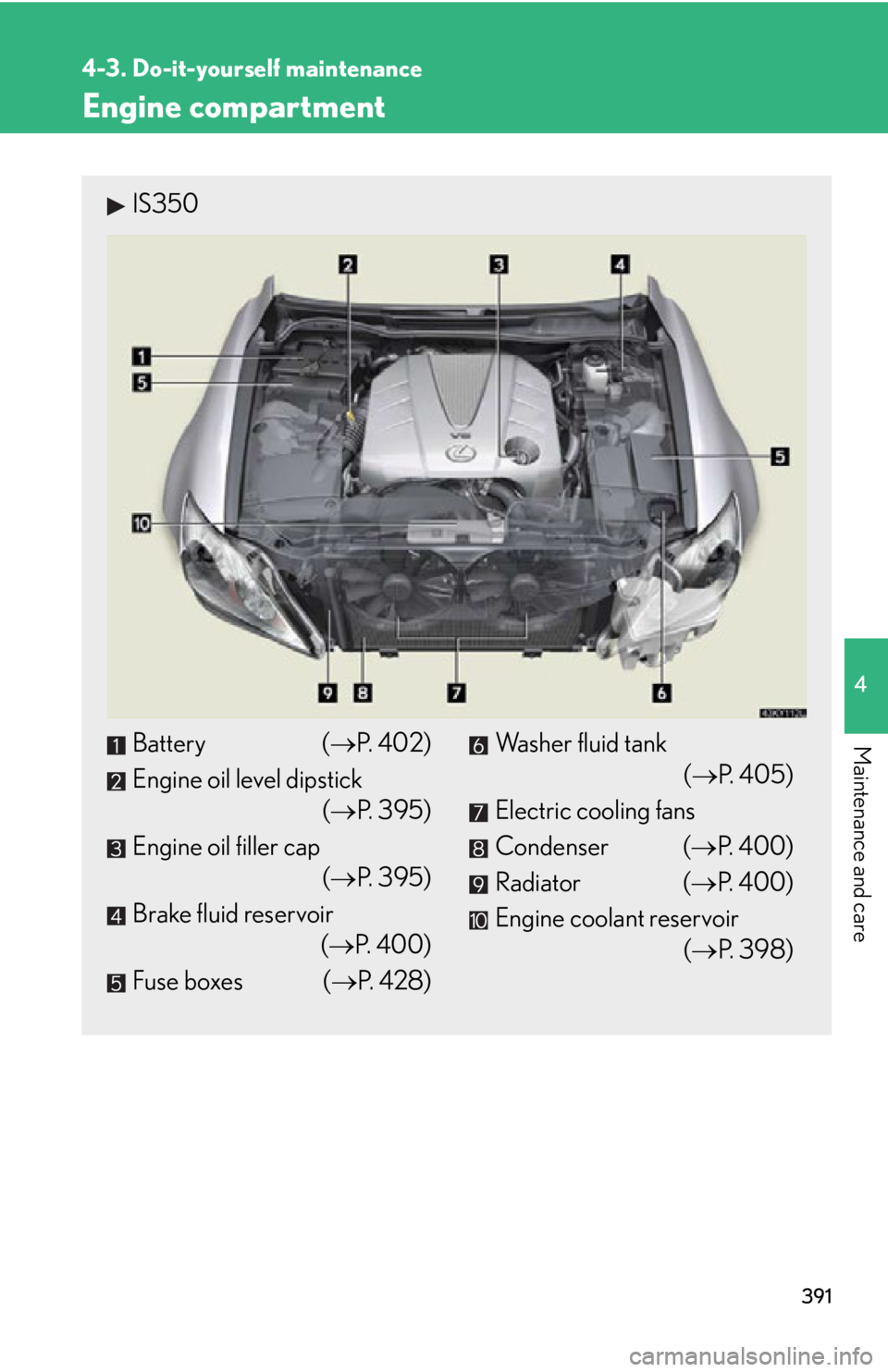

Engine compartment
IS350
Battery (P. 4 0 2 )
Engine oil level dipstick (P. 395)
Engine oil filler cap (P. 395)
Brake fluid reservoir (P. 400)
Fuse boxes ( P. 4 2 8 )Washer fluid tank
(P. 405)
Electric cooling fans
Condenser ( P. 400)
Radiator ( P. 400)
Engine coolant reservoir (P. 398)

392
4-3. Do-it-yourself maintenance
IS250
Battery (P. 4 0 2 )
Engine oil level dipstick (P. 395)
Engine oil filler cap (P. 395)
Brake fluid reservoir (P. 400)
Fuse boxes ( P. 4 2 8 )Washer fluid tank
(P. 405)
Electric cooling fans
Condenser ( P. 400)
Radiator ( P. 400)
Engine coolant reservoir (P. 398)

428
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
Engine compartment (type B fu se box): Remove the engine
compartment cover. ( P. 393)
Open the fuse box cover.
Engine compartment (type A fuse box)
Push the tabs in and lift the lid
off.
Engine compartment (type B fuse box)
Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3

430
4-3. Do-it-yourself maintenance
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type CNormal fuse
Blown fuse
Contact your Lexus dealer.
STEP6

431
4-3. Do-it-yourself maintenance
4
Maintenance and care
Removing the front controller (engine compartment: type B fuse box)Lift the lid off while pushing the
tabs on either side.
Type DNormal fuse
Blown fuse
Contact your Lexus dealer.

432
4-3. Do-it-yourself maintenance
Fuse layout and amperage ratings■ Engine compartment (type A fuse box)
FuseAmpereCircuit
1PWR HTR25 A
2TURN-HAZ15 AEmergency flashers, turn signals
3IG2 MAIN20 AIG2, IGN, GAUGE
4RAD NO.230 AAudio
5D/C C UT20 ADOME, MPX-B
6RAD NO.130 A
7MPX-B10 A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, horn, power door lock system,
power windows, power seats, electric
tilt and telescopic steering column,
meter, smart access system with push-
button start, outside rear view mirrors,
air conditioning system, multiplex
communication system
8DOME10 AInterior lights, mete r, outer foot lights
9CDS10 AElectric cooling fans

435
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Engine compartment (type B fuse box)
FuseAmpereCircuit
1SPARE30 ASpare fuse
2SPARE25 ASpare fuse
3SPARE10 ASpare fuse
4FR CTRL-B25 AH-LP UPR, HORN
5A/F15 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
6ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
7ALT-S7. 5 ACharging system
8TEL10 ATEL
9STR LOCK25 ASteering lock
10H-LP CLN30 AHeadlight cleaner
11A/C COMP7. 5 AAir conditioning system
12DEICER25 AWindshield wiper de-icer

440
4-3. Do-it-yourself maintenance
9ACC7. 5 A
Clock, air conditioning system, audio,
navigation system, outside rear view
mirrors, Lexus parking assist monitor,
glove box light, console box light, mul-
tiplex communication system, display,
smart access system with push-but-
ton start
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t
12RR DOOR RH20 APo w e r w i n d o w s
13FR DOOR RH20 A
Power windows, outside rear view
mirrors, multiplex communication sys-
tem
14AM27. 5 AStarting system
15RH-IG7. 5 A
Seat belts, intuitive parking assist,
automatic transmission, seat heater
and ventilator, windshield wiper de-
icer
16FR S/HTR RH15 ASeat heaters and ventilators
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, AWD system, out-
side rear view mirrors, VDIM, air con-
ditioning system, electric tilt and
telescopic steering, power windows,
navigation system, multiplex commu-
nication system
FuseAmpereCircuit

441
4-3. Do-it-yourself maintenance
4
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 444)
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
