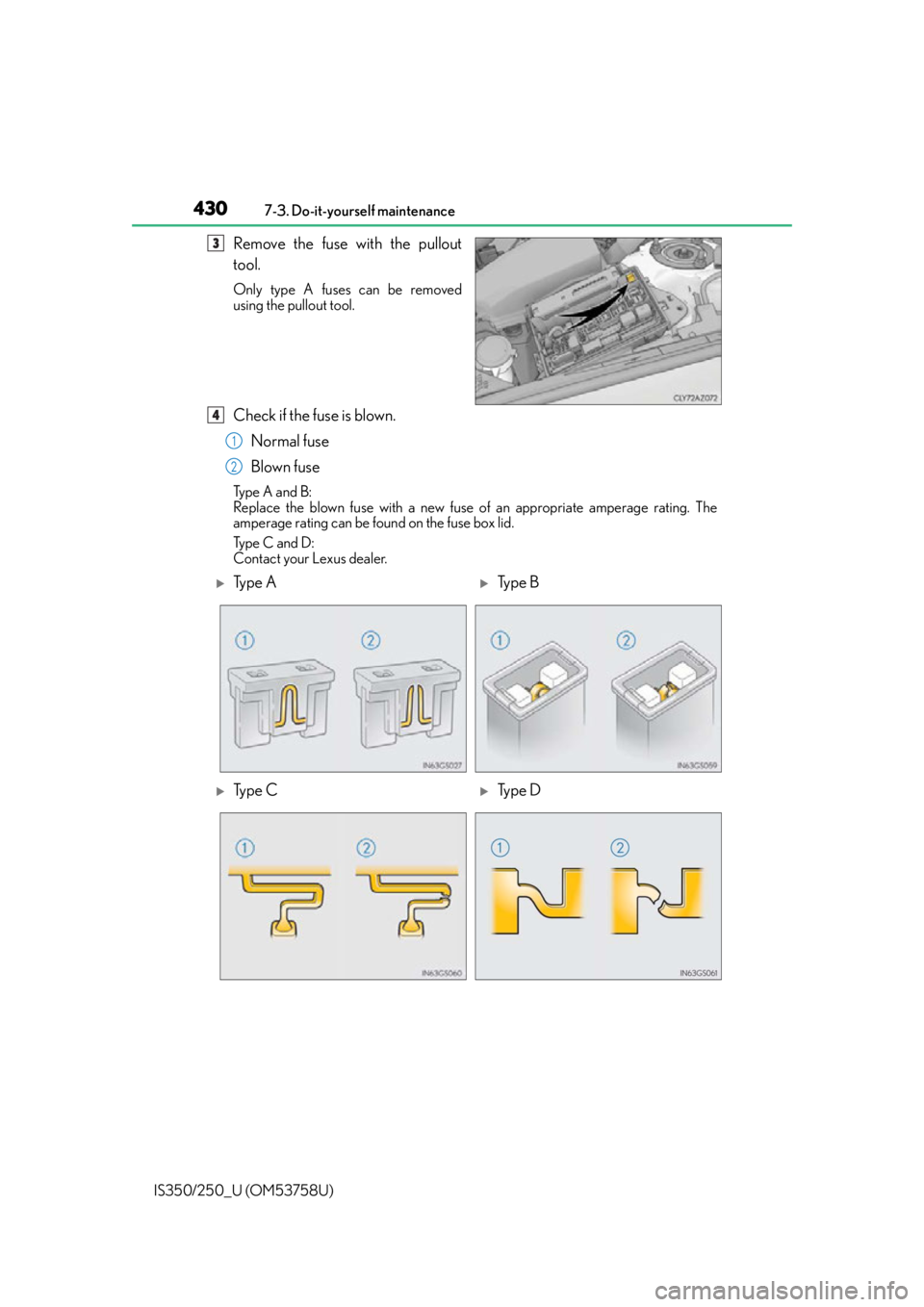

Remove the fuse with the pullout
tool.
Only type A fuses can be removed
using the pullout tool.
Check if the fuse is blown. Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Ty p e C a n d D :
Contact your Lexus dealer.
3
4
1
2
Ty p e ATy p e B
Ty p e CTy p e D

4317-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/250_U (OM53758U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (P. 4 3 2 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Le xus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-gen-
uine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rati ng than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determ ined and repaired by your Lexus dealer as
soon as possible.

4327-3. Do-it-yourself maintenance
IS350/250_U (OM53758U)
Check the wattage of the light bulb to be replaced. ( P. 5 0 9 )
■Front
Vehicles with discharge headlights
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
Preparing for light bulb replacement

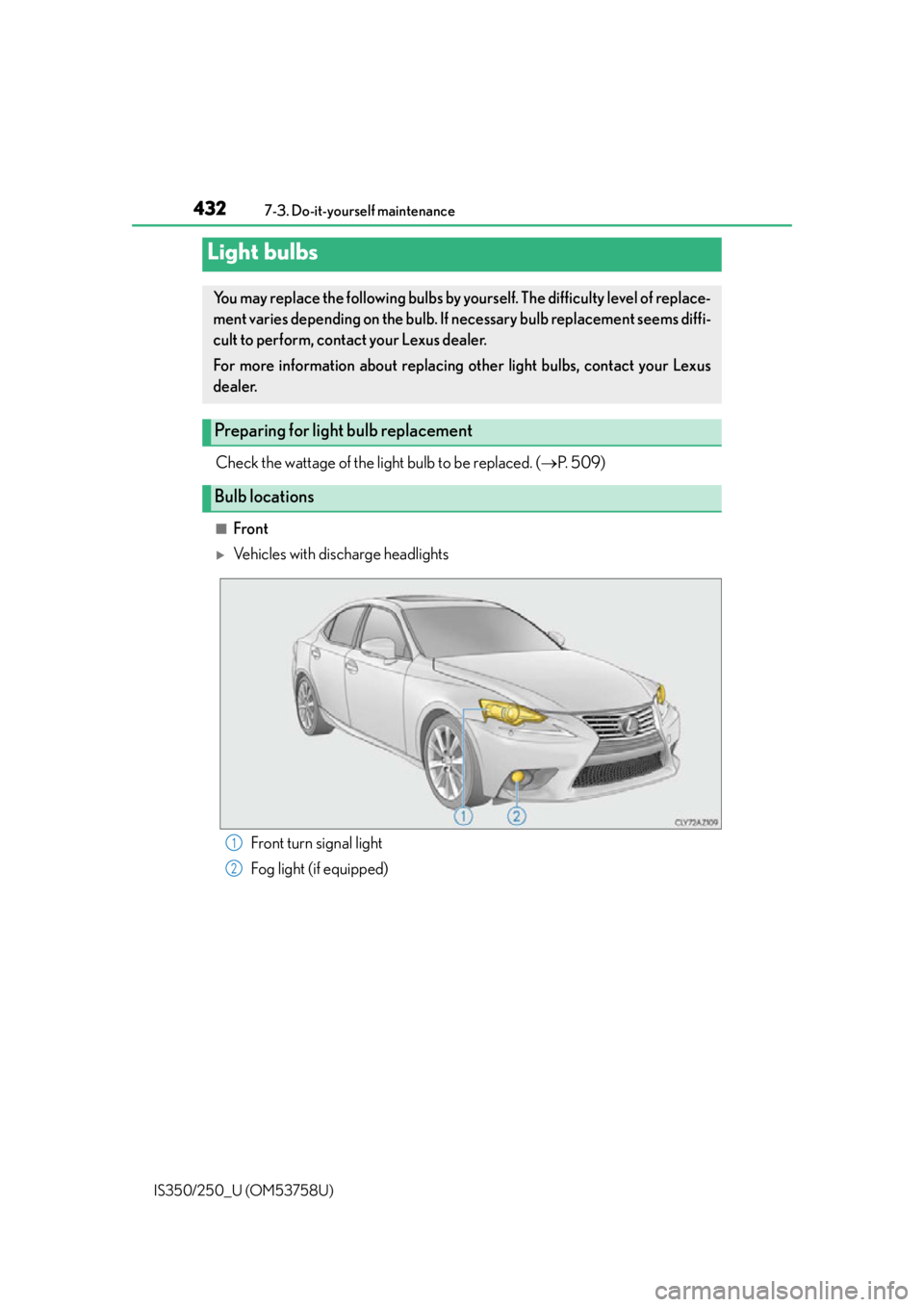

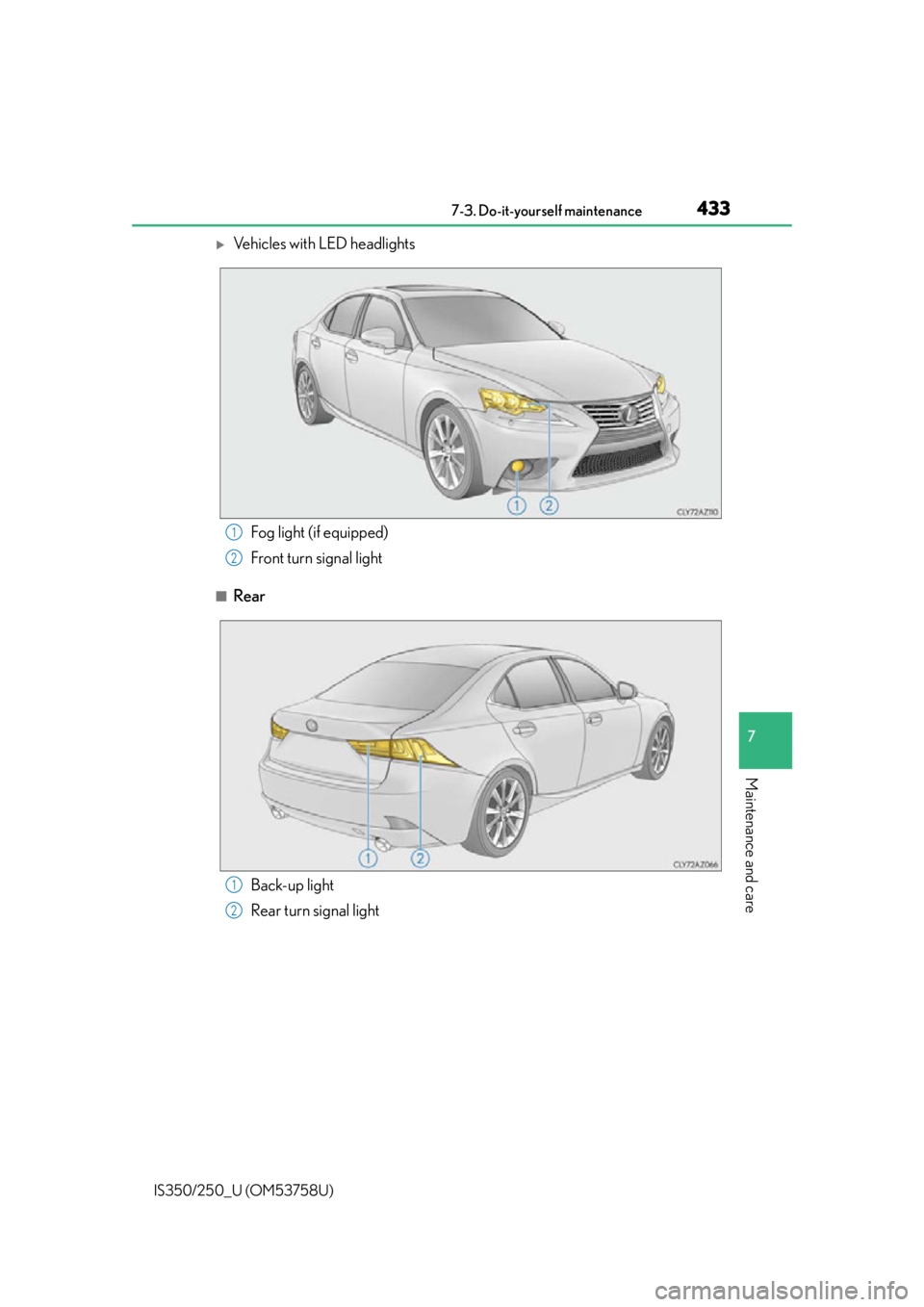

Bulb locations
Front turn signal light
Fog light (if equipped)1
2

4337-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/250_U (OM53758U)
Vehicles with LED headlights
■Rear
Fog light (if equipped)
Front turn signal light1
2
Back-up light
Rear turn signal light1
2

4347-3. Do-it-yourself maintenance
IS350/250_U (OM53758U)

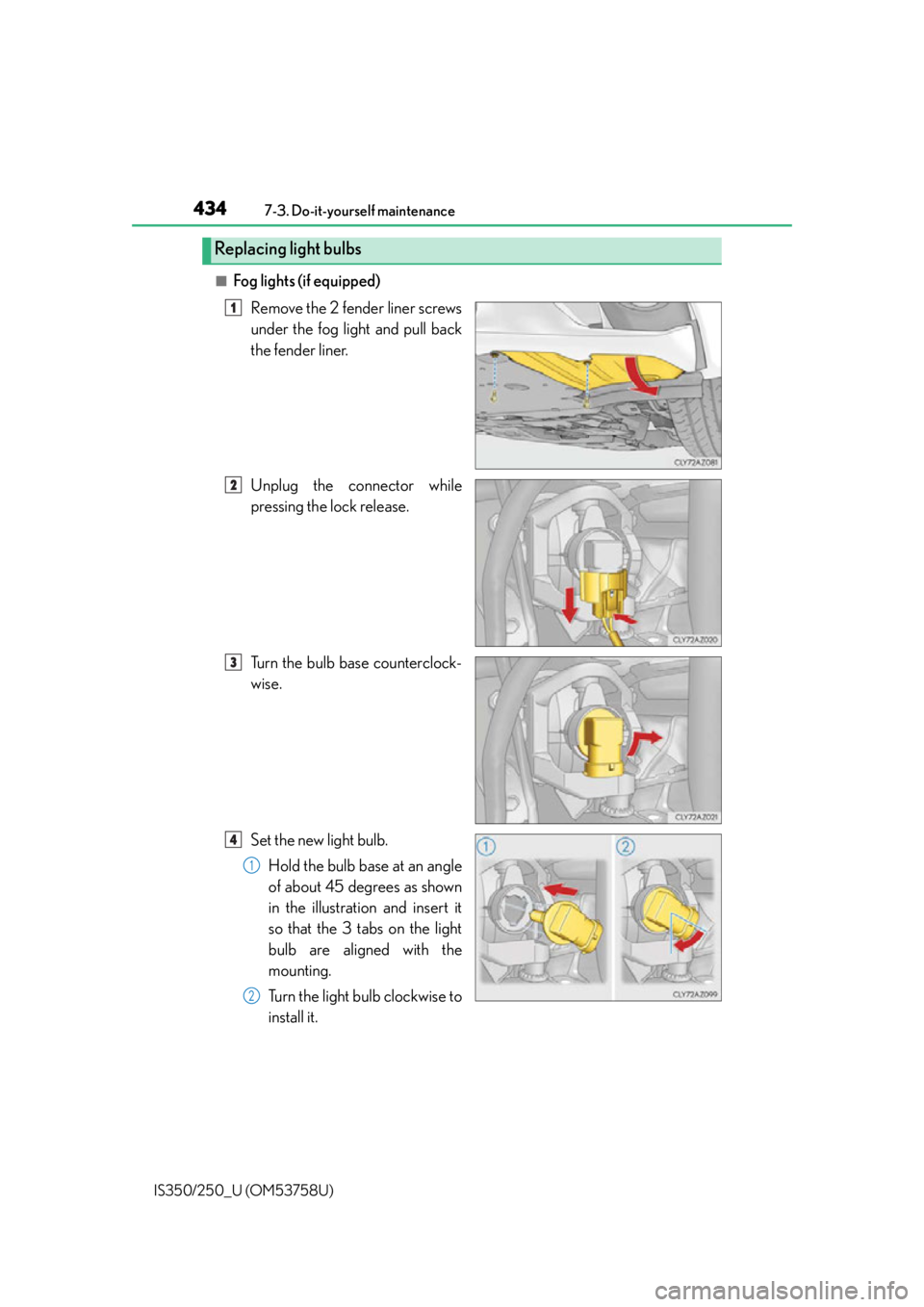

■Fog lights (if equipped) Remove the 2 fender liner screws
under the fog light and pull back
the fender liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counterclock-
wise.
Set the new light bulb.Hold the bulb base at an angle
of about 45 degrees as shown
in the illustration and insert it
so that the 3 tabs on the light
bulb are aligned with the
mounting.
Turn the light bulb clockwise to
install it.
Replacing light bulbs
1
2
3
4
1
2

4357-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/250_U (OM53758U)
Set the connector.
After installing the connector, shake
the bulb base gently to check that it is
not loose, turn the fog lights on once
and visually confirm that no light is
leaking through the mounting.

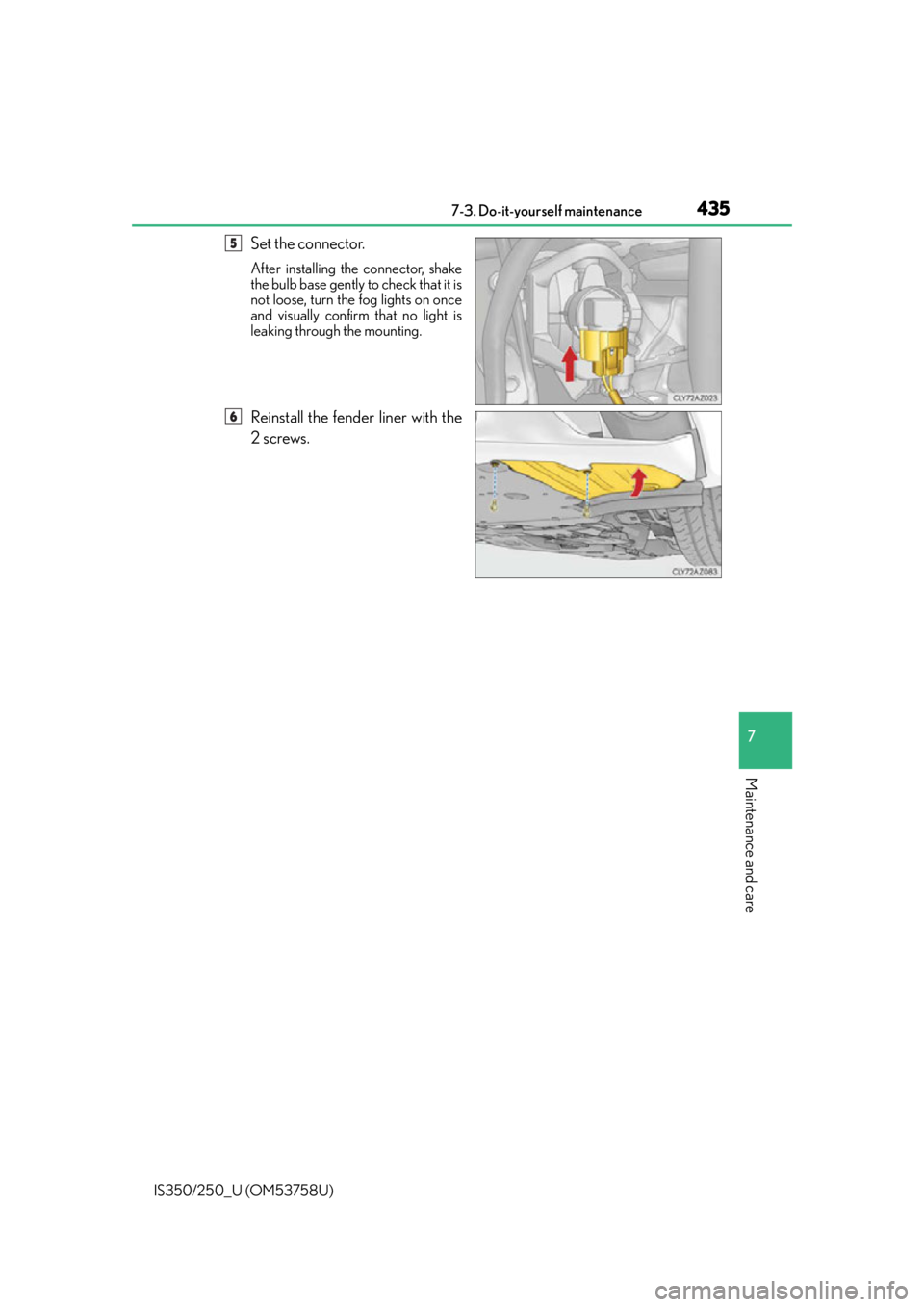

Reinstall the fender liner with the
2 screws.
5
6

4367-3. Do-it-yourself maintenance
IS350/250_U (OM53758U)
■Front turn signal lights (vehicles with discharge headlights) To ensure enough space to per-
form work, turn the steering
wheel to rotate the front wheel
away from the bulb to be
replaced.
Remove the 2 fender liner clips.
Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel to
the right when replacing the left side
light bulb.
To take out the lower clip, turn the
head of the clip to unlock it, then
remove it by pulling.
Unfasten the clamp, and pull back
the fender liner.
When unfastening the clamp, wrap
the tip of the screwdriver with tape to
protect the vehicle from damage.
Turn the bulb base counterclock-
wise.
1
2
3

4377-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/250_U (OM53758U)
Remove the light bulb.
Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on
the front turn signal light to visually
check that there is no light leaking
from the bulb base.
Reinstall the fender liner, fasten
the clamp and install the 2 clips.
Install the lower clip by inserting it
with the clip groove held vertically
straight.
4
5
6

4387-3. Do-it-yourself maintenance
IS350/250_U (OM53758U)

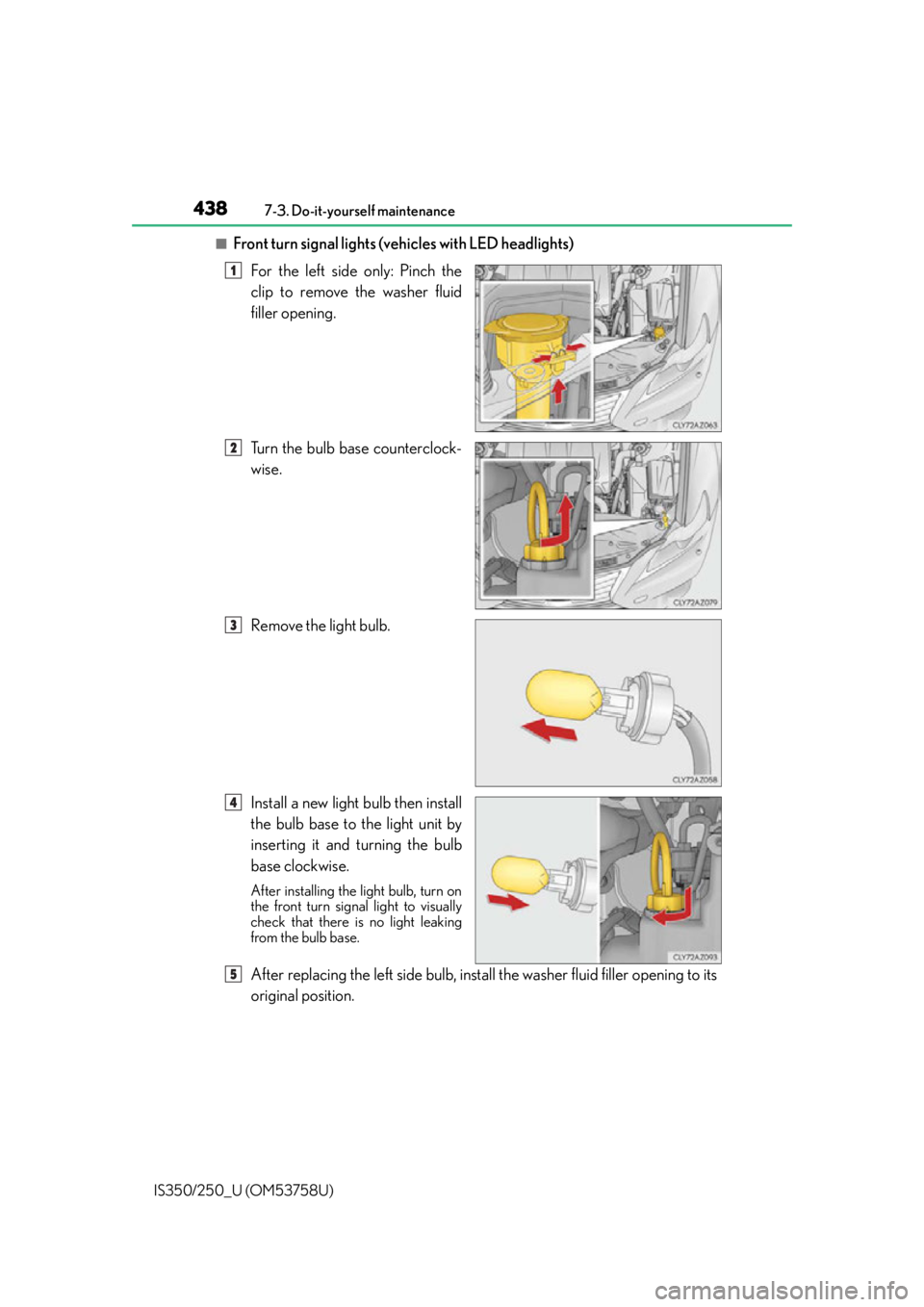

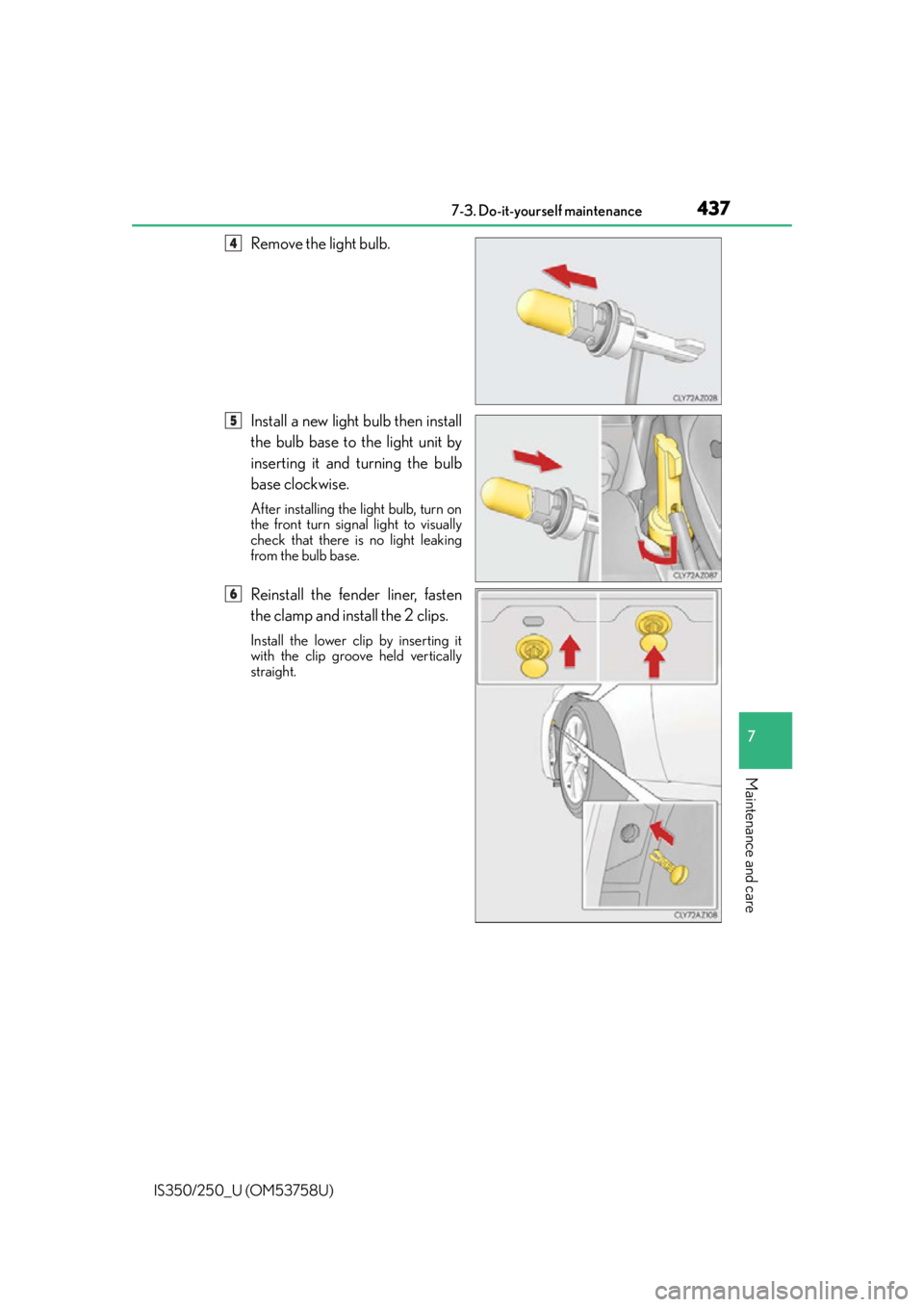

■Front turn signal lights (vehicles with LED headlights) For the left side only: Pinch the
clip to remove the washer fluid
filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on
the front turn signal light to visually
check that there is no light leaking
from the bulb base.
After replacing the left side bulb, insta ll the washer fluid filler opening to its
original position.
1
2
3
4
5

4397-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/250_U (OM53758U)

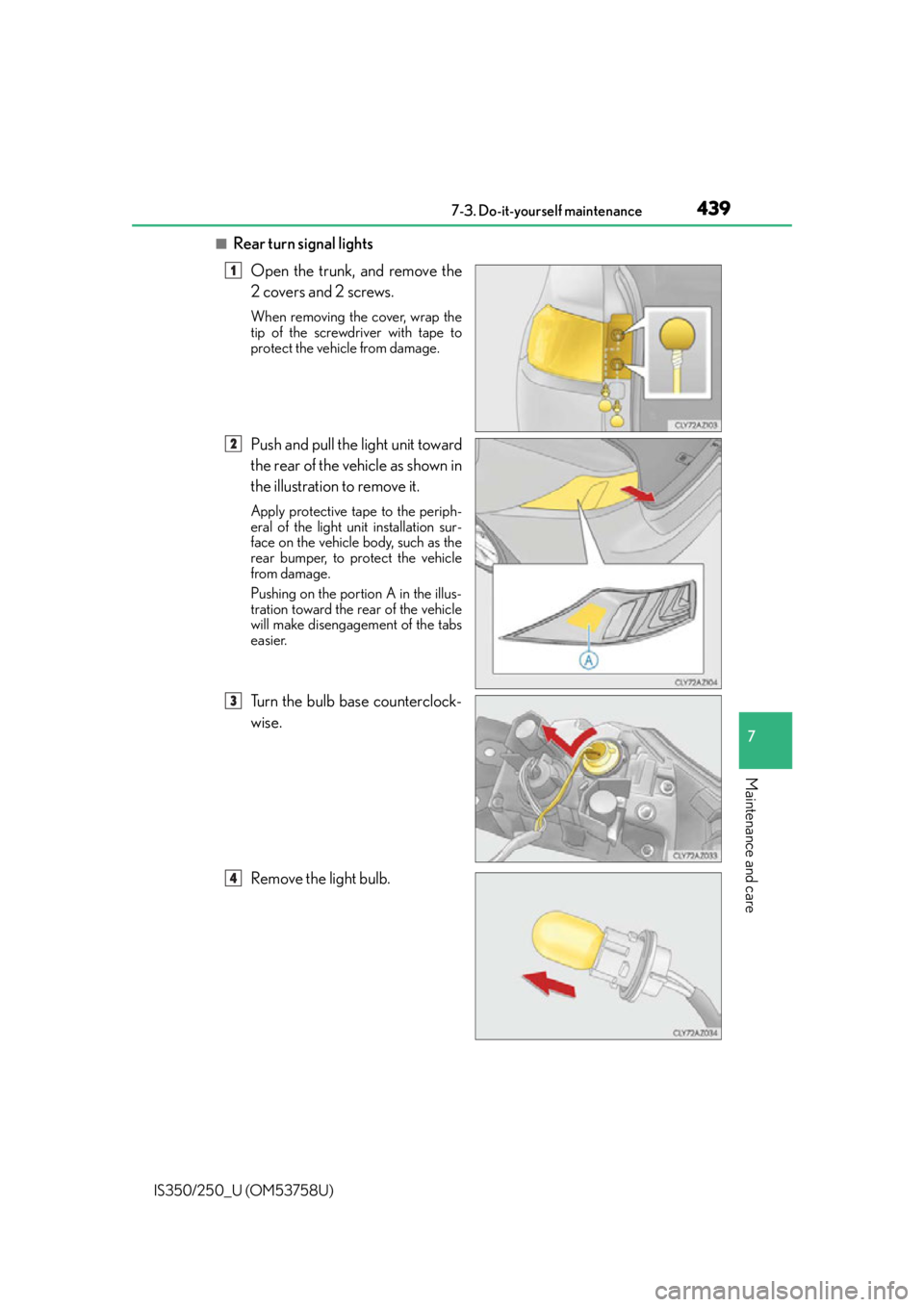

■Rear turn signal lightsOpen the trunk, and remove the
2 covers and 2 screws.
When removing the cover, wrap the
tip of the screwdriver with tape to
protect the vehicle from damage.
Push and pull the light unit toward
the rear of the vehicle as shown in
the illustration to remove it.
Apply protective tape to the periph-
eral of the light un it installation sur-
face on the vehicle body, such as the
rear bumper, to protect the vehicle
from damage.
Pushing on the portion A in the illus-
tration toward the rear of the vehicle
will make disengagement of the tabs
easier.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
1
2
3
4
