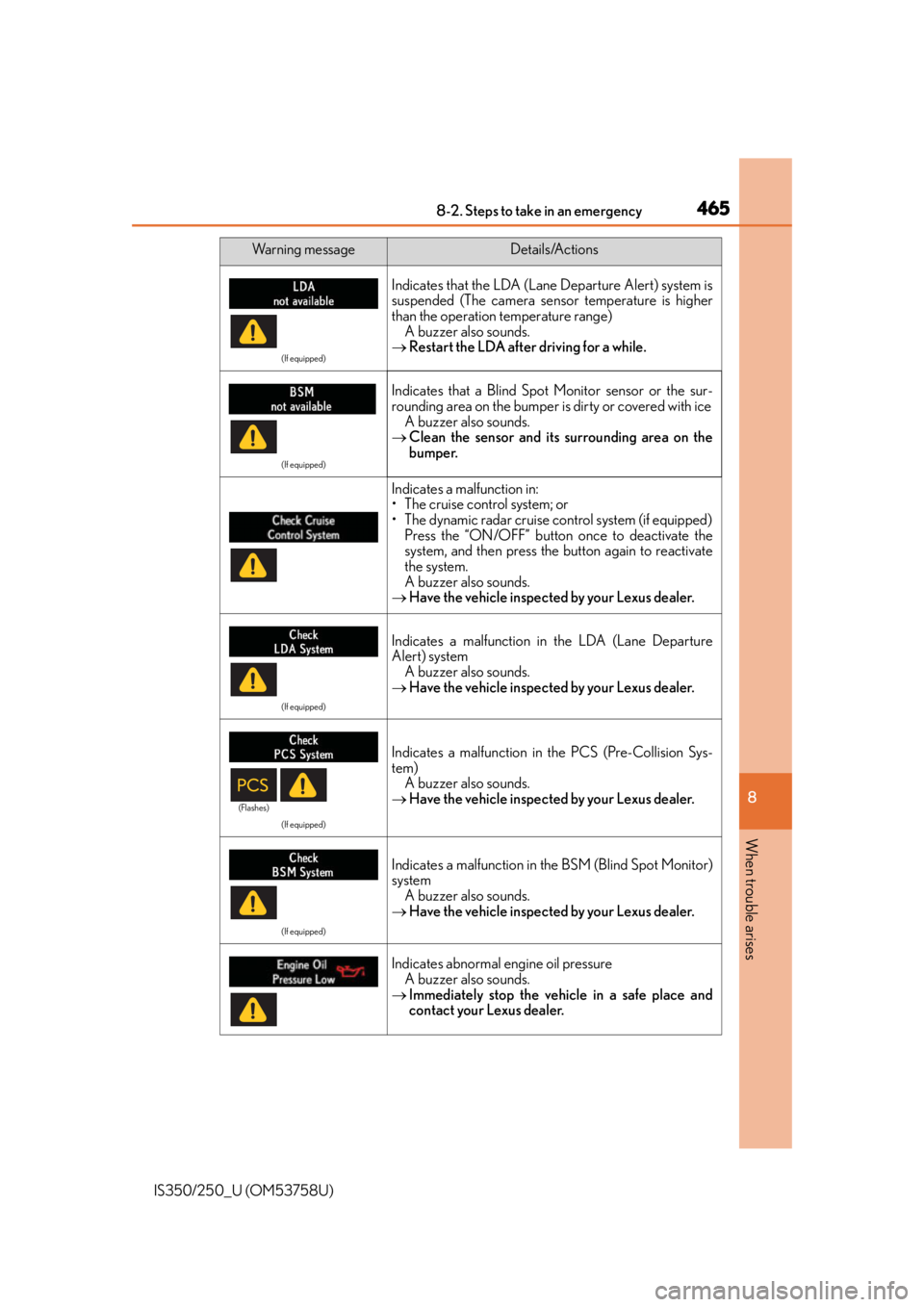

4658-2. Steps to take in an emergency
8
When trouble arises
IS350/250_U (OM53758U)
(If equipped)
Indicates that the LDA (Lane Departure Alert) system is
suspended (The camera sensor temperature is higher
than the operation temperature range)
A buzzer also sounds.
 Restart the LDA after driving for a while.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area on the
bumper.
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system (if equipped)
Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert) system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision Sys-
tem)
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates abnormal engine oil pressure
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

4698-2. Steps to take in an emergency
8
When trouble arises
IS350/250_U (OM53758U)
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supplement”
for the maintenance interval applicable to your vehicle.
(U.S.A. only)
Indicates that all maintenance is required to correspond
to the driven distance on the maintenance schedule*.
Comes on approximately 5000 miles (8000 km) after
the maintenance data has been reset.
(The indicator will not work properly unless the mainte-
nance data has been reset.)
 Perform the necessary maintenance. Please reset
the maintenance data afte r the maintenance is per-
formed ( P. 3 9 1 )
(If equipped)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
 Turn the high beam on and press the Automatic
High Beam switch again.
(If equipped)
Indicates that, since the VSC (Vehicle Stability Control)
system was turned off, the pre-collision brake system
operation is stopped
 Turn the VSC on. ( P. 2 3 6 )
(If equipped)
Indicates that the PCS (Pre-Collision System) is not cur-
rently functional because the grille cover or the sensor is
dirty
 Check the grille cover and the sensor and clean
them if they are dirty.
Indicates that operation of large electricity consuming
systems such as the air conditioning system are sus-
pended
Stop using unnecessary electric components to
reduce electricity consumption. Wait a while until
the electric power supply is restored.
(If equipped)
Indicates that the LDA (Lane Departure Alert) system
cannot be used because the vehicle speed is lower than
approximately 32 mph (50 km/h)
Drive the vehicle at 32 mph (50 km/h) or higher.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

5309-2. Customization
IS350/250_U (OM53758U)
■Tu r n s i g n a l l e v e r ( P. 1 7 0 )
*1: After flashing the turn signal lights when turn ing left or right while this function is off
and the turn signal lever is moved to the fi rst position in the direction of the flashing
light, the turn signal lights can be selected to be flashing or off.
*2: The turn signal lights keep flashing if the tu rn signal lever is moved to the first position
in the direction of flashing light.
*3: The turn signal lights will be off if the turn signal lever is moved to the first position in
the direction of flashing light.
■Automatic light control system ( P. 1 7 3 )
FunctionDefault settingCustomized setting
The number of times the
turn signal lights flash auto-
matically when the turn sig-
nal lever is moved to the first
position during a lane
change
*1
3
5
——O7
Off*2
Off*3
123
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
O—O60 seconds
90 seconds
Welcome light illumination
controlOnOff——O
123

5319-2. Customization
9
Vehicle specifications
IS350/250_U (OM53758U)
■Lights (P. 1 7 3 )
*: U.S.A. only
■Intuitive parking assist*1 ( P. 2 1 4 )
*1: If equipped
*2: When intuitive parking assist is operating.
■Automatic air conditioning system ( P. 3 4 6 )
FunctionDefault settingCustomized setting
Daytime running light sys-
tem*OnOffO—O
123
FunctionDefault settingCustomized setting
Detection distance of the
front center sensorFarNearO—O
Detection distance of the
rear center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting*2All sensors dis-
playedDisplay offO—O
123
FunctionDefault settingCustomized setting
A/C Auto switch operationOnOffO—O
123

550What to do if... (Troubleshooting)
IS350/250_U (OM53758U)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 4 5 6 )
●The parking brake indicator is on
Is the parking brake released? ( P. 1 7 2 )
Depending on the situation, other type s of warning buzzer may also sound.
( P. 4 5 5 , 4 6 1 )

●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 7 1 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside the vehicle or the moon roof opened?
Check the message on the multi-information display. ( P. 4 6 1 )
●When a warning light turns on or a warning message is displayed, refer to
P. 4 5 5 , 4 6 1 . A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

563Alphabetical index
IS350/250_U (OM53758U)
Odometer ....................................................81
OilEngine oil............................................... 502
Front differential oil........................... 505
Rear differential oil ............................ 505
Opener Hood ....................................................... 399
Trunk ......................................................... 109
Outer foot lights Location ................................................. 356
Replacing light bulbs ........................ 442
Wattage ................................................. 509
Outside rear view mirrors ..................134 Adjusting and folding........................ 134
Blind spot monitor.............................246
Linked mirror function when reversing ................................. 135
Mirror position memory ...................123
Outside rear view mirror defoggers ........................... 350
Outside temperature...............................81
Overheating, Engine .......................... 494 Paddle shift switches............................. 166
Parking assist sensors
(intuitive parking assist).................... 214
Parking brake .......................................... 172
Parking lights ........................................... 173 Light switch............................................. 173
Replacing light bulbs ....................... 442
PCS (Pre-Collision System)............ 240 Function .................................................. 240
PCS OFF switch .................................. 241
Warning light ....................................... 456
Personal lights ........................................357 Wattage ................................................ 509
Pop-up display ......................................... 88
Power easy access system ................. 124
Power outlet ........................................... 366
Power steering (Electric power steering system) ................................ 235 Warning light .......................................455
Power windows....................................... 137 Door lock linked window operation ...........................139
Jam protection function................... 138
Operation................................................ 137
Window lock switch .......................... 137
Pre-Collision System (PCS)............ 240 Function .................................................. 240
PCS OFF switch .................................. 241
Warning light ....................................... 456
OP
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

565Alphabetical index
IS350/250_U (OM53758U)
Safety Connect ..................................... 378
Seat belt reminder light...................... 456
Seat belts..................................................... 30Adjusting the seat belt ..........................31
Automatic Locking Retractor......... 32
Child restraint system installation ................................................61
Cleaning and maintaining the seat belt ...................................... 388
Emergency Locking Retractor ................................................ 32
How to wear your seat belt .............30
How your child should wear the seat belt .......................................... 32
Pregnant women, proper seat belt use.......................................... 33
Reminder light and buzzer .......... 456
Seat belt extender................................. 32
Seat belt pretensioners ........................31
SRS warning light.............................. 455
Seat heaters ............................................ 355
Seat position memory...........................123
Seat ventilators ...................................... 355
Seating capacity......................................156 Seats, Front ............................................... 120
Adjustment..............................................120
Adjustment precautions...................120
Child seats/child restraint system installation ............................. 58
Cleaning................................................. 387
Driving position memory................. 123
Head restraints ..................................... 127
Power easy access system ............. 124
Properly sitting in the seat ................ 28
Seat heaters ..........................................355
Seat position memory ....................... 123
Seat ventilators....................................355
Seats, Rear ..................................................121 Fold down the seatback.....................121
Luggage security system.................. 110
Sensor Automatic headlight system .......... 174
Inside rear view mirror...................... 133
Intuitive parking assist........................ 214
Radar sensor..................203, 241, 248
Rain-sensing windshield wipers.................................................... 186
Service reminder indicators ................ 76
S
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
