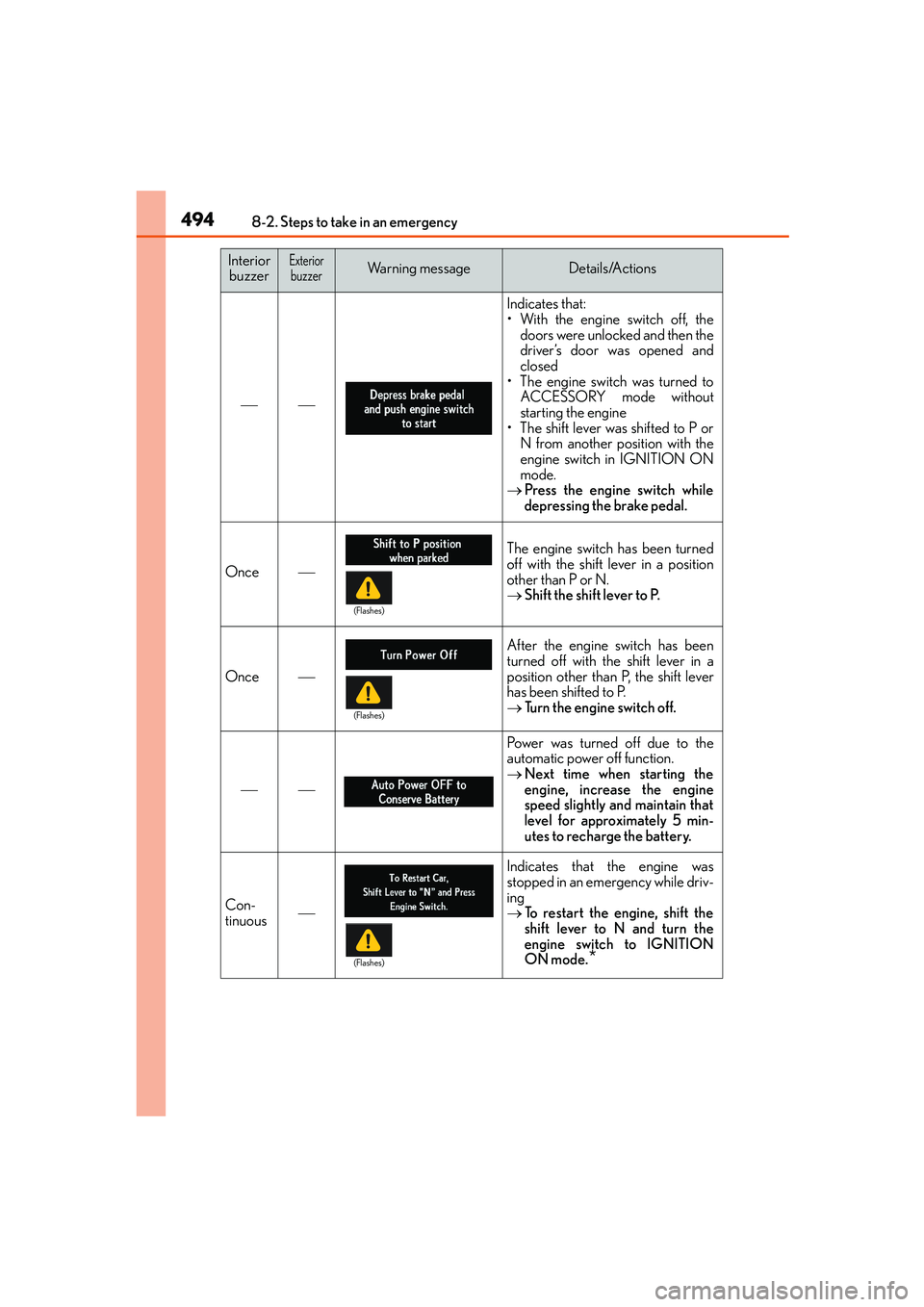

4948-2. Steps to take in an emergency
IS250_EE(OM53C51E)

Indicates that:
• With the engine switch off, the
doors were unlocked and then the
driver’s door was opened and
closed
• The engine switch was turned to
ACCESSORY mode without
starting the engine
• The shift lever was shifted to P or
N from another position with the
engine switch in IGNITION ON
mode.
→Press the engine switch while
depressing the brake pedal.
Once
The engine switch has been turned
off with the shift lever in a position
other than P or N.
→Shift the shift lever to P.
Once
After the engine switch has been
turned off with the shift lever in a
position other than P, the shift lever
has been shifted to P.
→Turn the engine switch off.

Power was turned off due to the
automatic power off function.
→Next time when starting the
engine, increase the engine
speed slightly and maintain that
level for approximately 5 min-
utes to recharge the battery.
Con-
tinuous
Indicates that the engine was
stopped in an emergency while driv-
ing
→To restart the engine, shift the
shift lever to N and turn the
engine switch to IGNITION
ON mode.
*
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

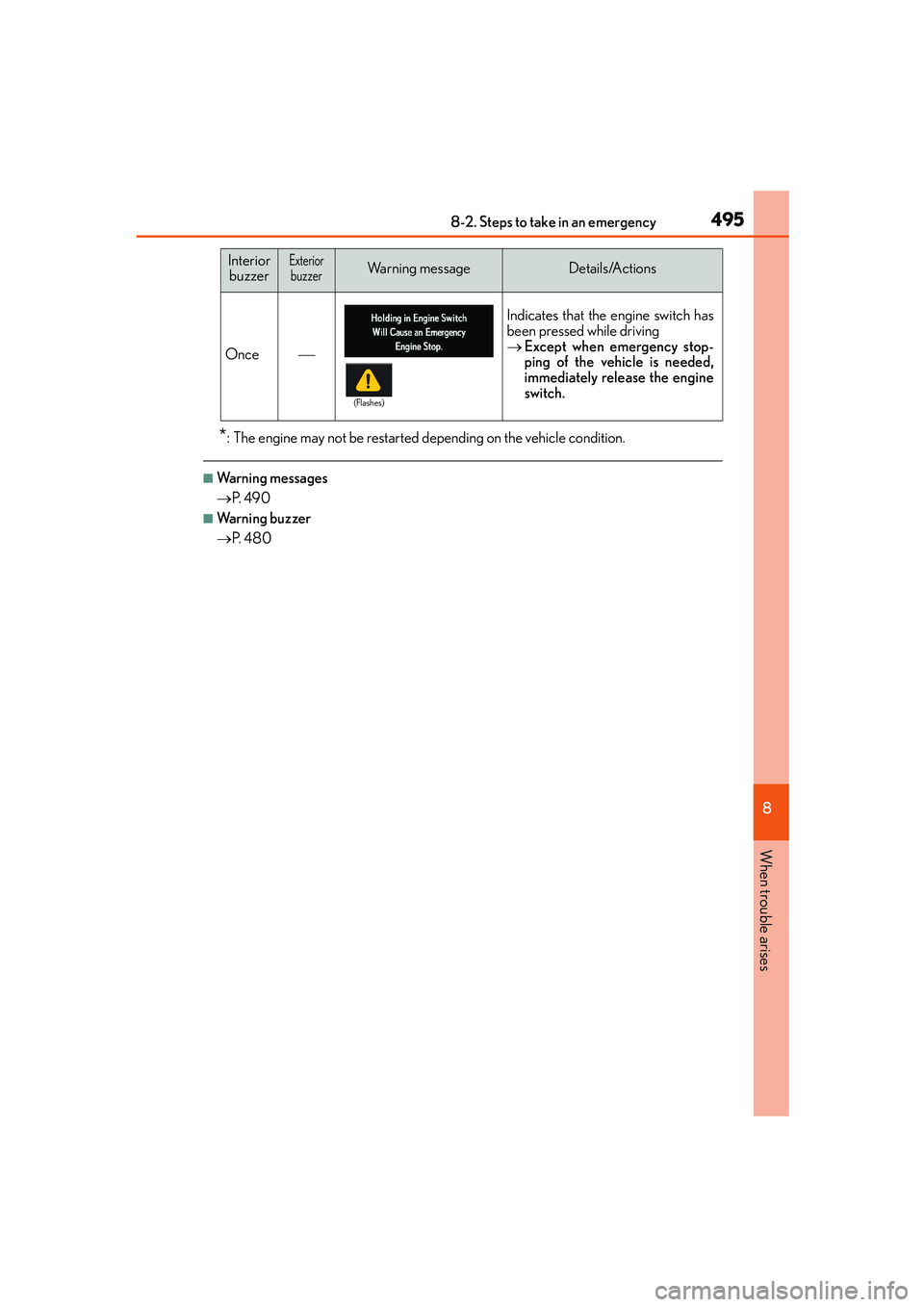

4958-2. Steps to take in an emergency
8
When trouble arises
IS250_EE(OM53C51E)
*: The engine may not be restarted depending on the vehicle condition.
■Warning messages
→P. 4 9 0
■Warning buzzer
→P. 4 8 0
Once
Indicates that the engine switch has
been pressed while driving
→Except when emergency stop-
ping of the vehicle is needed,
immediately release the engine
switch.
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)

4968-2. Steps to take in an emergency
IS250_EE(OM53C51E)
●Stop the vehicle on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. (→P. 466)
If you have a flat tire (vehicles with a spare tire)
Your vehicle is equipped with a spare tire. The flat tire can be replaced with
the spare tire.
For details about tires: →P. 4 2 7
CAUTION
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel beyond
repair, which could result in an accident.
Before jacking up the vehicle

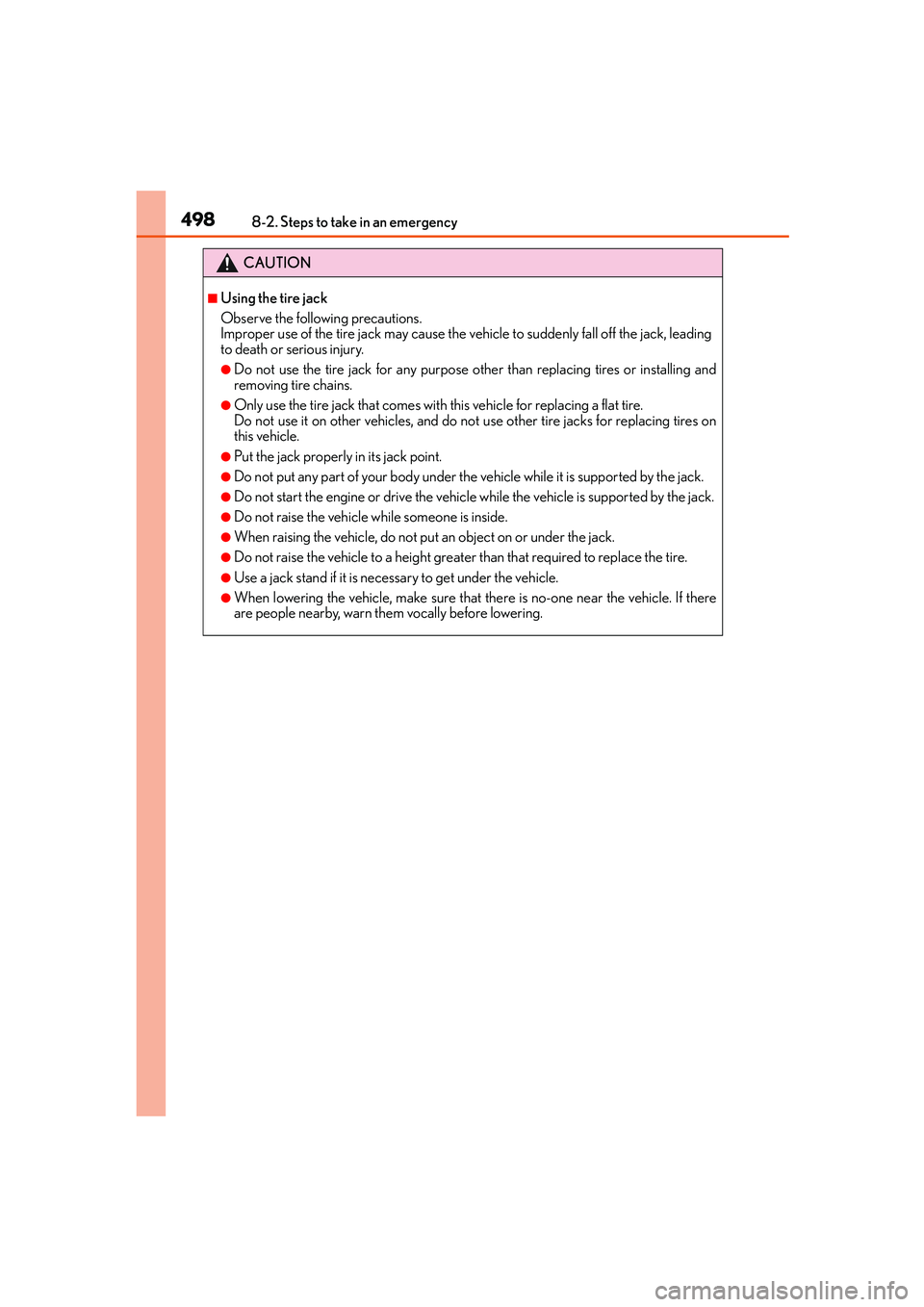

4988-2. Steps to take in an emergency
IS250_EE(OM53C51E)
CAUTION
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading
to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires on
this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the jack.
●Do not start the engine or drive the vehicle while the vehicle is supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If there
are people nearby, warn them vocally before lowering.

5068-2. Steps to take in an emergency
IS250_EE(OM53C51E)
CAUTION
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed for use with
your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.
NOTICE
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.
■When replacing the tires (vehicles with a tire pressure warning system)
When removing or fitting the wheels, tires or the tire pressure warning valve and trans-
mitter, contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional as the tire pressure warning valve and transmitter may be dam-
aged if not handled correctly.
• ABS & Brake assist
•VSC
•TRC
• Cruise control (if equipped)
• Dynamic radar cruise control
(if equipped)
•PCS (if equipped)
•EPS• LDA (Lane departure alert)
(if equipped)
• Rear view monitor system
(if equipped)
• Lexus parking assist monitor
(if equipped)
• Lexus parking assist-sensor
(if equipped)
• Navigation system (if equipped)

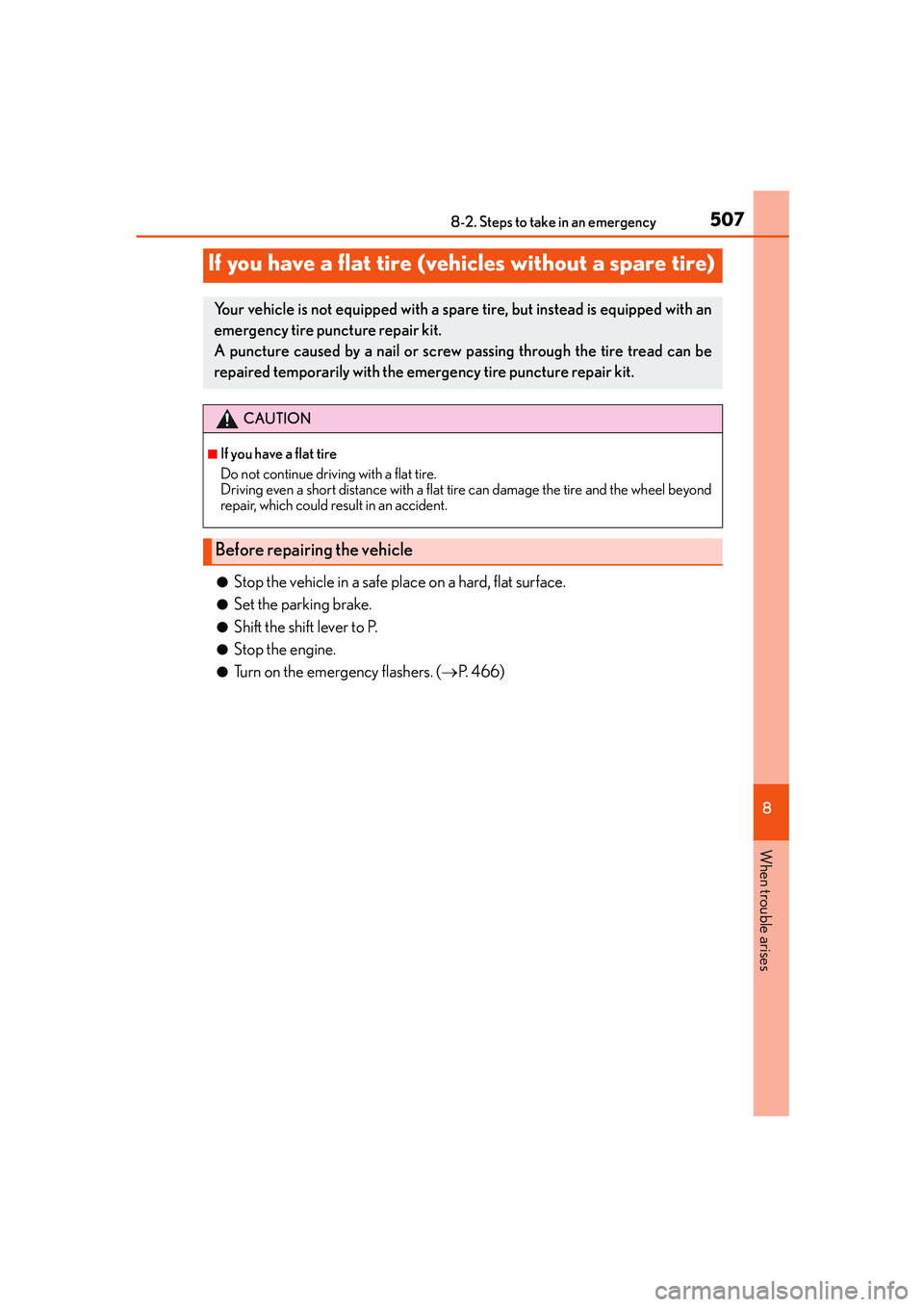

5078-2. Steps to take in an emergency
8
When trouble arises
IS250_EE(OM53C51E)
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. (→P. 466)
If you have a flat tire (vehicles without a spare tire)
Your vehicle is not equipped with a spare tire, but instead is equipped with an
emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can be
repaired temporarily with the emergency tire puncture repair kit.
CAUTION
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel beyond
repair, which could result in an accident.
Before repairing the vehicle

5148-2. Steps to take in an emergency
IS250_EE(OM53C51E)
Start the engine.
To inject the sealant and inflate the
tire, turn the compressor switch on.
Inflate the tire until the specified air
pressure is reached.
The sealant will be injected and the
pressure will surge and then gradu-
ally decrease.
The air pressure gauge will display
the actual tire inflation pressure
about 1 minute (5 minutes at low
temperature) after the switch is
turned on.
Inflate the tire until the specified air
pressure.
• Turn the compressor switch off and
then check the tire inflation pressure.
Being careful not to over inflate,
check and repeat the inflation pro-
cedure until the specified tire infla-
tion pressure is reached.
• If the tire inflation pressure is still lower than the specified point after inflation
for 35 minutes with the switch on, the tire is too damaged to be repaired. Turn
the compressor switch off and contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
• If the tire inflation pressure exceeds the specified air pressure, let out some air
to adjust the tire inflation pressure. (→P. 5 1 8 , 5 4 6 )12
13
14
1
2
3

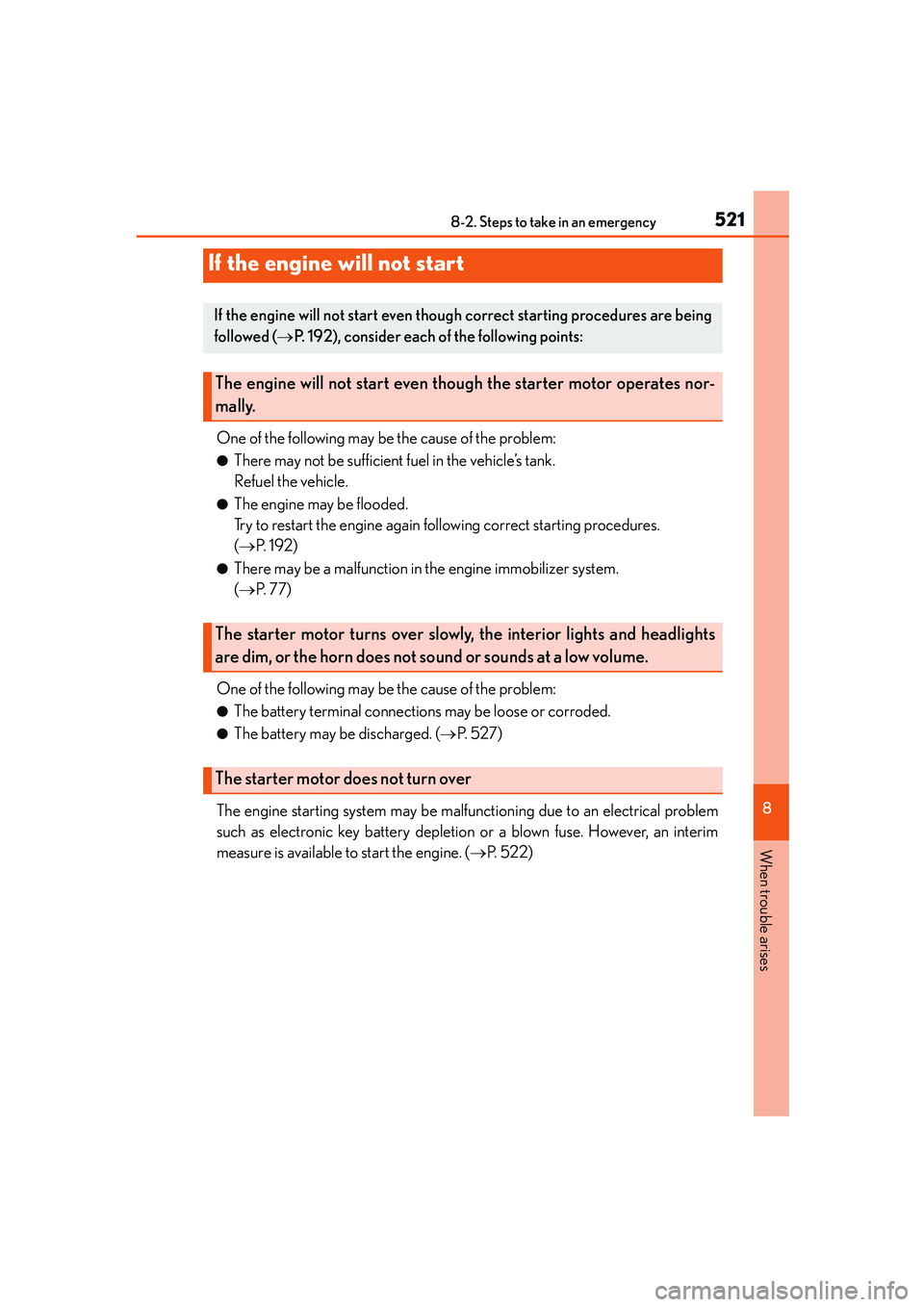

5218-2. Steps to take in an emergency
8
When trouble arises
IS250_EE(OM53C51E)
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(→P. 1 9 2 )
●There may be a malfunction in the engine immobilizer system.
(→P. 77)
One of the following may be the cause of the problem:
●The battery terminal connections may be loose or corroded.
●The battery may be discharged. (→P. 5 2 7 )
The engine starting system may be malfunctioning due to an electrical problem
such as electronic key battery depletion or a blown fuse. However, an interim
measure is available to start the engine. (→P. 522)
If the engine will not start
If the engine will not start even though correct starting procedures are being
followed (→P. 192), consider each of the following points:
The engine will not start even though the starter motor operates nor-
mally.
The starter motor turns over slowly, the interior lights and headlights
are dim, or the horn does not sound or sounds at a low volume.
The starter motor does not turn over

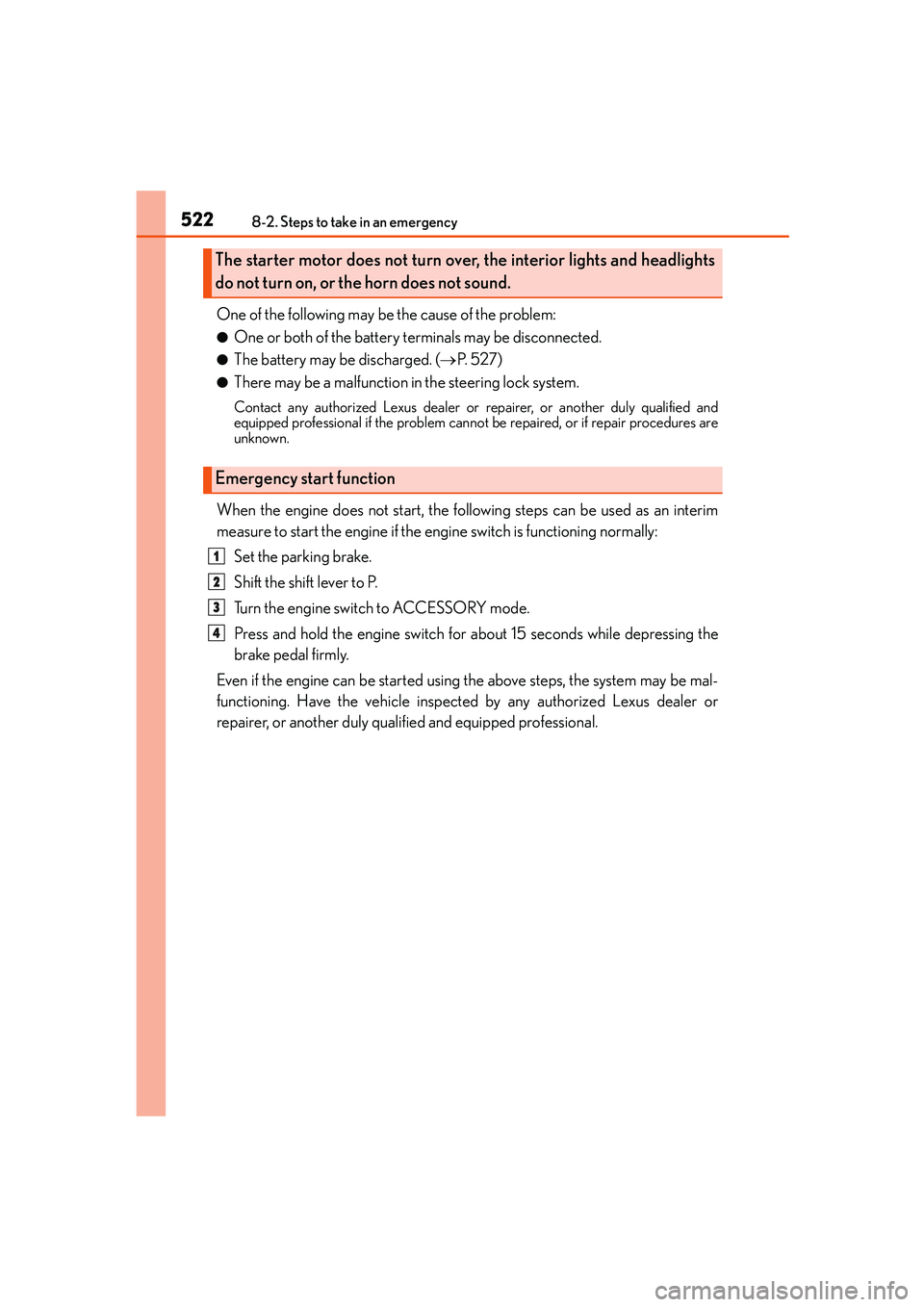

5228-2. Steps to take in an emergency
IS250_EE(OM53C51E)
One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. (→P. 5 2 7 )
●There may be a malfunction in the steering lock system.
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional if the problem cannot be repaired, or if repair procedures are
unknown.
When the engine does not start, the following steps can be used as an interim
measure to start the engine if the engine switch is functioning normally:
Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while depressing the
brake pedal firmly.
Even if the engine can be started using the above steps, the system may be mal-
functioning. Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
The starter motor does not turn over, the interior lights and headlights
do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4

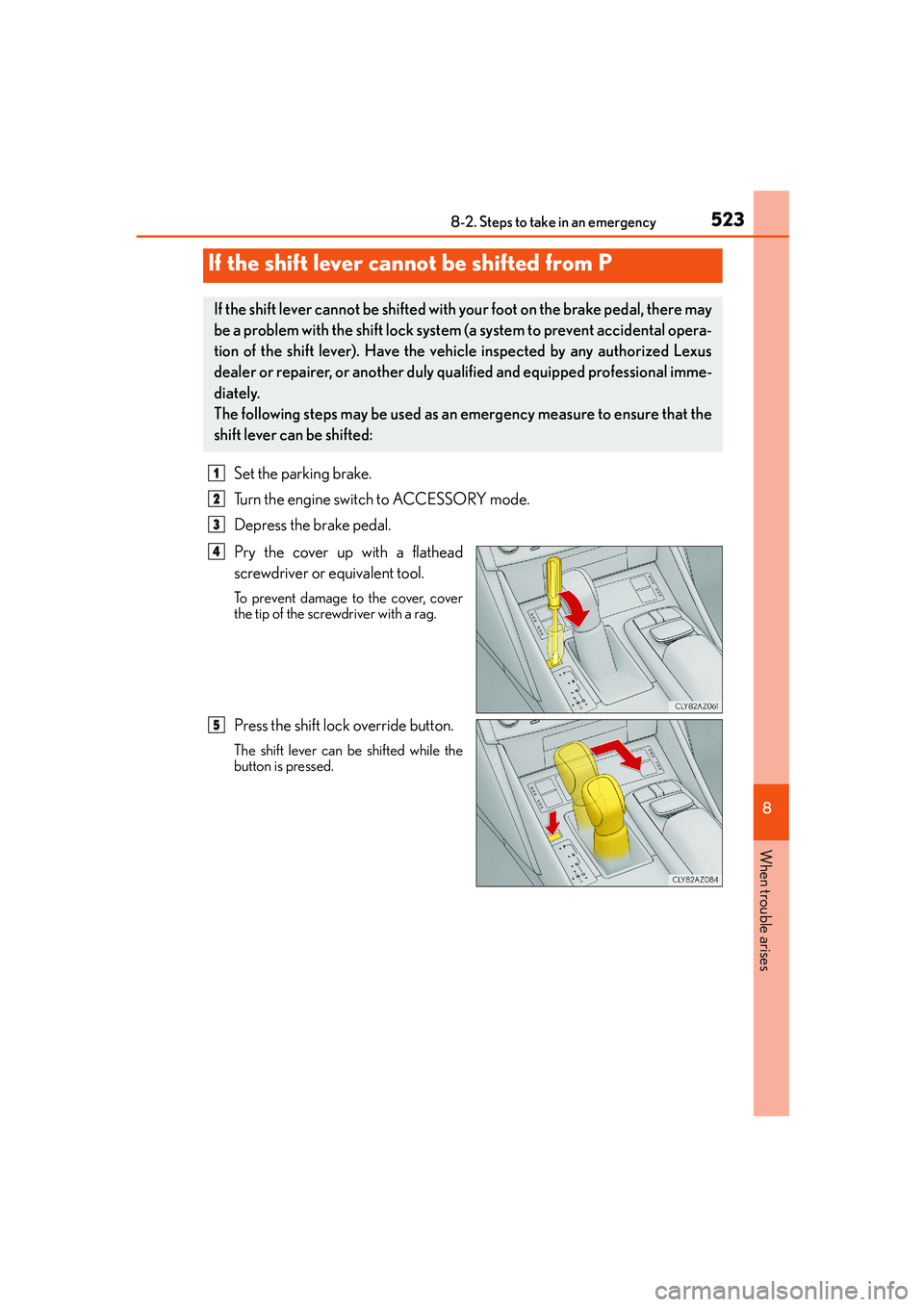

5238-2. Steps to take in an emergency
8
When trouble arises
IS250_EE(OM53C51E)
Set the parking brake.
Turn the engine switch to ACCESSORY mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional imme-
diately.
The following steps may be used as an emergency measure to ensure that the
shift lever can be shifted:
1
2
3
4
5
