heater Lexus IS250 2014 Owner's Manual

5
1
9 8
7
6 4 3
2
IS250_EE(OM53C51E)
5
5-9. Bluetooth® Phone
Using a Bluetooth
®
Phone ...........................................345
Making a call ................................ 347
Receiving a call .......................... 350
Speaking on the phone............. 351
Using a Bluetooth
® phone
messages ....................................353
Using the steering wheel
switches.......................................356
Bluetooth
® phone
settings......................................... 357
5-10. Phonebook
Contact settings .........................359
Messaging setting...................... 362
5-11. Bluetooth
®
Bluetooth®..................................363
5-12. Other function
“Information” screen ................ 368
MirrorLink.................................369
USB photo ......................................371
Speech command system ...... 3736-1. Using the air conditioning
system
Automatic air conditioning
system ...........................................376
Heated steering wheel/
seat heaters/
seat ventilators ......................... 387
6-2. Using the interior lights
Interior lights list......................... 389
• Interior lights ......................... 390
• Personal lights....................... 390
6-3. Using the storage features
List of storage features.............. 391
• Glove box................................ 392
• Console box........................... 392
•Cup holders/
Bottle holders ........................393
Trunk features ..............................395
6-4. Using the other interior
features
Other interior features ........... 398
• Sun visors ............................... 398
• Vanity mirrors ....................... 398
• Clock........................................ 398
• Power outlet ...........................399
• Armrest .................................. 400
• Rear sunshade...................... 400
• Assist grips..............................402
• Coat hooks .............................402
6Interior features

19Pictorial index
IS250_EE(OM53C51E)
Seat heater switches*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 388
Seat ventilator switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 388
Heated steering wheel switch
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 263
VSC OFF switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 267
Snow mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 198
Remote Touch
*2, 3
Lexus Display Audio controller* 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 296
*1: For vehicles with a navigation or multimedia system, refer to
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: If equipped
*3: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8

27Pictorial index
IS250_EE(OM53C51E)
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 263
VSC OFF switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 267
Snow mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 198
Seat heater switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 388
Seat ventilator switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 388
Heated steering wheel switch
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
Remote Touch
*2, 3
Lexus Display Audio controller*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 296
*1: For vehicles with a navigation or multimedia system, refer to
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: If equipped
*3: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8

2464-5. Using the driving support systems
IS250_EE(OM53C51E)
NOTICE
■To prevent damage to or incorrect operation of the LDA system
●Do not modify the headlights or attach stickers to the surface of the lights.
●Do not modify the suspension or replace it with non-genuine parts.
●Do not install or place anything on the hood or the grille. Also, do not install a grille
guard (bull bars, kangaroo bar etc.).
●If your windshield needs repairs, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■Camera sensor
Observe the following to ensure that the LDA system functions correctly.
●Keep the windshield clean at all times.
Performance could be affected if the windshield is dirty, or if raindrops, condensation
or ice are adhering to the windshield.
●Do not spill liquid onto the camera sensor.
●Do not attach window tinting to the windshield.
●Do not install an antenna in front of the camera lens.
●If the windshield is fogged up, use the windshield defogger to remove fog from the
windshield.
When it is cold, using the heater with air blowing to the feet may allow the upper part
of the windshield to fog up. This will have a negative effect on the images.
●Do not scratch the camera lens, or let it get dirty.
When cleaning the inside of the windshield, be careful not to get any glass cleaner
etc. on the lens. Also, do not touch the lens.
For lens repair, contact any authorized Lexus dealer or repairer, or another duly qual-
ified and equipped professional.
●Do not change the installation position or direction of the camera sensor or remove it.
The direction of the camera sensor is precisely adjusted.
●Do not subject the camera sensor to strong impact or force, and do not disassemble
the camera sensor.
●Do not replace windshield with non-genuine windshield.
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●Do not attach a sticker or other items to the
windshield near the camera sensor.

375
6Interior features
IS250_EE(OM53C51E)
6-1. Using the air conditioning
system
Automatic air conditioning
system ...........................................376
Heated steering wheel/
seat heaters/
seat ventilators ......................... 387
6-2. Using the interior lights
Interior lights list......................... 389
• Interior lights ......................... 390
• Personal lights....................... 390
6-3. Using the storage features
List of storage features.............. 391
• Glove box................................ 392
• Console box ........................... 392
•Cup holders/
Bottle holders ........................393
Trunk features ..............................3956-4. Using the other interior
features
Other interior features ............398
• Sun visors ................................398
• Vanity mirrors ........................398
• Clock ........................................398
• Power outlet ........................... 399
• Armrest....................................400
• Rear sunshade.......................400
• Assist grips.............................. 402
• Coat hooks ............................. 402

3876-1. Using the air conditioning system
6
Interior features
IS250_EE(OM53C51E)
Turn the heated steering wheel on/off
The indicator light comes on when the
heated steering wheel is operating.
Heated steering wheel∗/seat heaters∗/seat ventila-
tors
∗
∗
: If equipped
Heated steering wheel and seat heaters heat the side grips of the steering
wheel and seats, respectively. Seat ventilators maintain good airflow by blow-
ing air from the seats.
CAUTION
●Care should be taken to prevent injury if anyone in the following categories comes in
contact with the steering wheel and seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically challenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
●Observe the following precautions to prevent minor burns or overheating,
• Do not cover the seat with a blanket or cushion when using the seat heater.
• Do not use seat heater more than necessary.
NOTICE
●Do not put heavy objects that have an uneven surface on the seat and do not stick
sharp objects (needles, nails, etc.) into the seat.
●To prevent battery discharge, do not use the functions when the engine is off.
Heated steering wheel

3886-1. Using the air conditioning system
IS250_EE(OM53C51E)
●The heated steering wheel can be used when the engine switch is in IGNITION ON
mode.
●The heated steering wheel will automatically turn off after about 30 minutes.
Each time the switch is pressed, the
intensity of the seat heater changes and
the level indicator lights (amber) light
as follows:
Hi (3 segments lit) → Mid (2 segments
lit) → Lo (1 segment lit) → Off
■The seat heaters can be used when
The engine switch is in IGNITION ON mode.
■Seat heater timer control
To enable seat heater timer control, press and hold the driver and front passenger seat
heater switches at the same time until a buzzer sounds once. If a seat heater is turned on
while seat heater timer control is enabled, the intensity of the seat heater will automati-
cally change from Hi→Mid→Lo.
The timing of the change in seat heater intensity differs depending on the temperature
inside the cabin, etc. when the seat heater is operating.
To disable seat heater timer control, press and hold the driver and front passenger seat
heater switches at the same time until a buzzer sounds twice.
Each time the switch is pressed, the
intensity of the seat ventilator changes
and the level indicator lights (green)
light as follows:
Hi (3 segments lit) → Mid (2 segments
lit) → Lo (1 segment lit) → Off
The seat ventilators can be used when the engine switch is in IGNITION ON mode.
Seat heaters
Ty p e A Ty p e B
Seat ventilators

4107-1. Maintenance and care
IS250_EE(OM53C51E)
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle interior
or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkaline or
acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior part’s
painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park the
vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as they
may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into contact
with electrical components such as the audio system above or under the floor of the
vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield (vehicles with LDA [Lane Departure
Alert])
Be careful not to touch the camera sensor (→P. 2 4 1 ) .
If the camera is accidentally scratched or hit, LDA may not operate properly or may
cause a malfunction.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to the
rear window defogger heater wires or antenna. Use a cloth dampened with luke-
warm water to gently wipe the window clean. Wipe the window in strokes running
parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

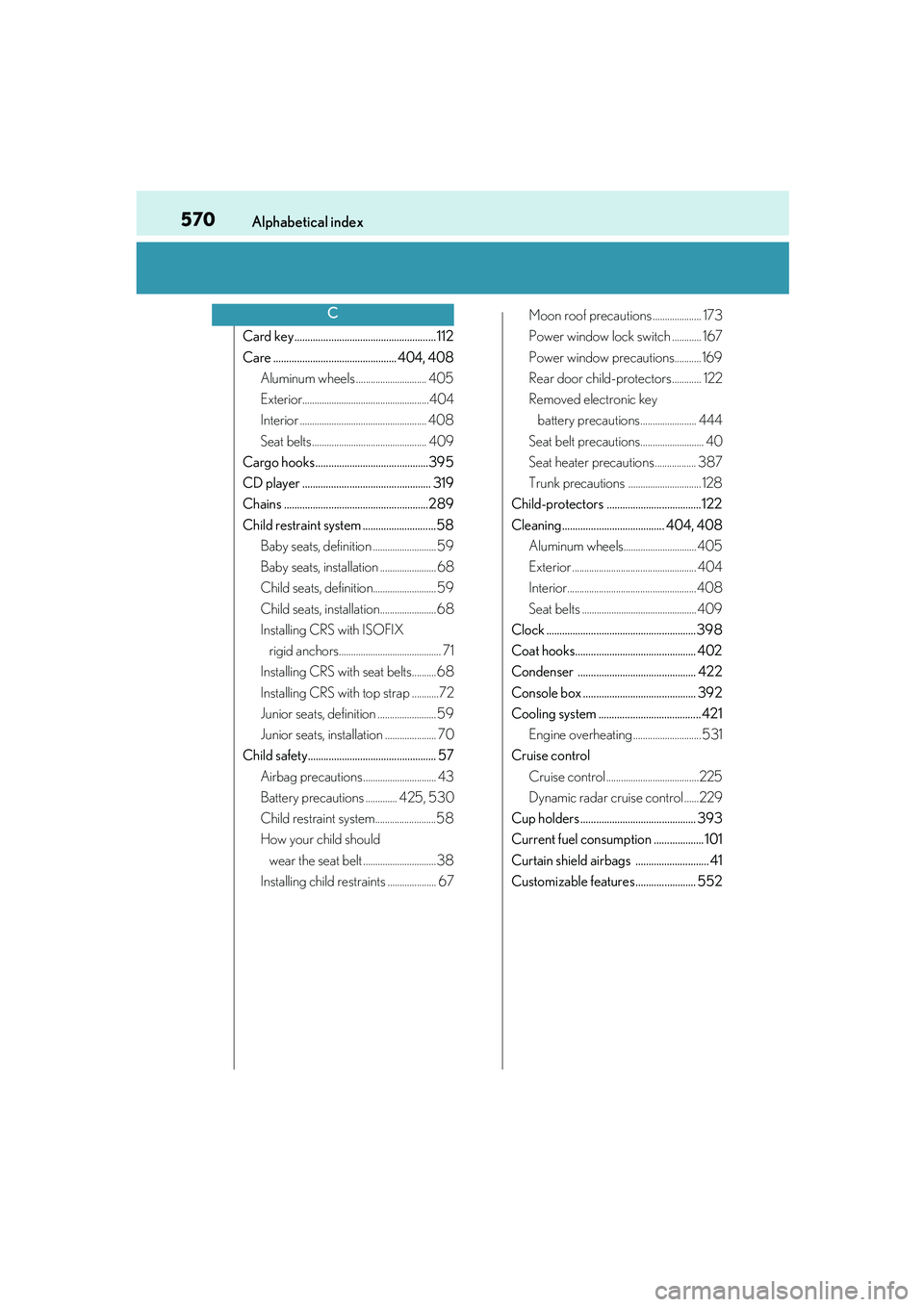

570Alphabetical index
IS250_EE(OM53C51E)
Card key...................................................... 112
Care ............................................... 404, 408
Aluminum wheels ............................. 405
Exterior....................................................404
Interior .................................................... 408
Seat belts............................................... 409
Cargo hooks ...........................................395
CD player ................................................. 319
Chains .......................................................289
Child restraint system ............................58
Baby seats, definition .......................... 59
Baby seats, installation .......................68
Child seats, definition.......................... 59
Child seats, installation.......................68
Installing CRS with ISOFIX
rigid anchors.......................................... 71
Installing CRS with seat belts..........68
Installing CRS with top strap ...........72
Junior seats, definition ........................ 59
Junior seats, installation ..................... 70
Child safety................................................. 57
Airbag precautions .............................. 43
Battery precautions ............. 425, 530
Child restraint system.........................58
How your child should
wear the seat belt .............................. 38
Installing child restraints .................... 67Moon roof precautions .................... 173
Power window lock switch ............ 167
Power window precautions........... 169
Rear door child-protectors ............ 122
Removed electronic key
battery precautions....................... 444
Seat belt precautions.......................... 40
Seat heater precautions ................. 387
Trunk precautions .............................. 128
Child-protectors .................................... 122
Cleaning....................................... 404, 408
Aluminum wheels.............................. 405
Exterior ................................................... 404
Interior.....................................................408
Seat belts ............................................... 409
Clock ......................................................... 398
Coat hooks.............................................. 402
Condenser ............................................. 422
Console box ........................................... 392
Cooling system ....................................... 421
Engine overheating ............................ 531
Cruise control
Cruise control ......................................225
Dynamic radar cruise control ......229
Cup holders ............................................ 393
Current fuel consumption ................... 101
Curtain shield airbags ............................ 41
Customizable features....................... 552
C

573Alphabetical index
IS250_EE(OM53C51E)
First-aid kit storage belt .....................395
Flat tire
Vehicles with a spare tire ..............496
Vehicles with emergency
tire puncture repair kit .................507
Floor mats ................................................... 32
Fluid
Automatic transmission ..................544
Brake........................................................545
Washer ................................................... 426
Fog lights ................................................... 213
Replacing light bulbs..........................461
Switch ........................................................ 213
Follow me home system .................... 207
Footwell light ......................................... 389
Wattage................................................. 548
Front fog lights ........................................ 213
Replacing light bulbs..........................461
Switch ........................................................ 213
Front personal lights ............................390
Wattage................................................. 548
Front position lights..............................206
Light switch ...........................................206
Replacing light bulbs..........................461Front seats ................................................. 147
Adjustment ............................................. 147
Cleaning ................................................408
Correct driving posture.....................34
Driving position memory ..................151
Head restraints ..................................... 156
Power easy access system...............151
Seat heaters..........................................388
Seat position memory .........................151
Seat ventilators ...................................388
Front turn signal lights ........................ 203
Replacing light bulbs .............451, 453
Turn signal lever................................. 203
Wattage ................................................. 548
Fuel ............................................................... 221
Capacity................................................. 540
Fuel gauge ............................................... 95
Fuel pump shut off system ............ 475
Information............................................ 549
Refueling .................................................. 221
Type ............................................... 221, 540
Warning light....................................... 478
F
